- Page 1 LevelOne LevelOne LevelOne LevelOne USB- - - - 0501 0501 0501 0501 USB Hub and Fast Ethernet Combo Adapter User Manual User Manual User Manual User Manual V1.1...
-
Page 2: About This Manual
ABOUT THIS MANUAL USB-0501 This manual is designed for use with the USB Hub and Fast Ethernet Combo Adapter. Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. -
Page 3: Table Of Contents
Table of Contents 1. Introduction..................4 Features ....................... 5 Package Contents ..................5 System Requirements ................. 5 2. Installation ..................6 Hardware Connection ................. 6 Driver Installation ..................7 On Windows XP/Vista/7 ................7 On MAC OS X 10.5 ................. 11 Verifying the Driver Installation ............... -
Page 4: Introduction

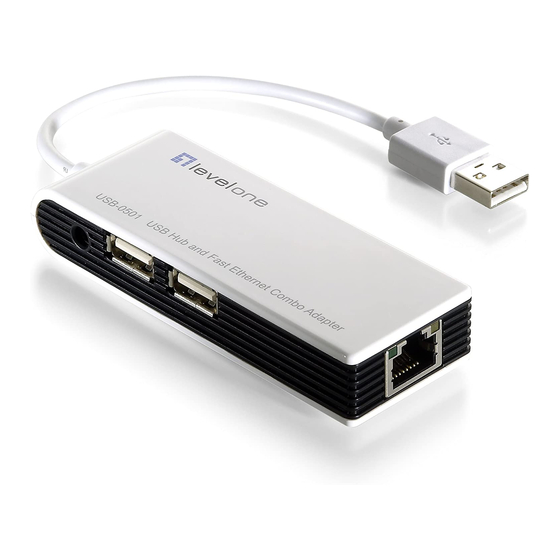

1. Introduction USB-0501 USB Hub and Fast Ethernet Combo Adapter is compliant with USB 2.0 Specification and with the stylish appearance. It is the USB Hub with Ethernet port for you easily connecting up to 4 USB 2.0 devices or LAN devices via RJ-45 port. -
Page 5: Features
Plug-and-play function. 1 Ethernet port, 1 USB upstream port and 4 USB downstream ports. Package Contents USB-0501 USB Hub and Fast Ethernet Combo Adapter x1 CD (Manual & Driver) x 1 Quick Installation Guide x 1 System Requirements PC with RJ-45 and USB port. -
Page 6: Installation
2. Installation Hardware Connection General instructions for installing the USB 2.0 4 Port Hub with Ethernet Adapter are provided below. Since the design of system may vary, refer to your system’s reference manual for further information, if needed. -
Page 7: Driver Installation
Driver Installation On Windows XP/Vista/7 Caution: DO NOT connect the Ethernet adapter to your computer before you install the provided driver. You will be instructed to do so later. For CD autorun, please click Utility begins software installation 1. Insert the provided CD into your disc drive. Then locate and double-click the setup.exe file under x:\Driver\Windows where x is your disc drive letter. - Page 8 When you see the screen below, please click Next. 3. Please choose “I accept this EULA” and click “Next”.
- Page 9 4. Click Finish to complete Ethernet Driver. Notice for Vista Users: If the USB 2.0 4-Port Hub with Ethernet Adapter does not work after completing driver installation, please restart you system. 5. Connect the Ethernet adapter’s USB end to a free USB port of your...
- Page 10 computer. Then a pop-up message will appear in the notification area indicating the installation is completed. * Actual strings depend on your operation system. These screen shots are from Windows XP and Vista, it might vary slightly for each operation system. Now the installation is completed.
- Page 11 On MAC OS X 10.5 1. Insert the provided driver CD into your CD-ROM drive. Double-click the CD and navigate to the directory of \Driver\Mac\ LAN 9500-2.1.2.pkg 2. When the Install LAN 9500 Drivers screen appears, please select Continue.
- Page 12 3. When the screen below appears, please read the SOFTWARE LICENSE AGREEMENT and click Continue. 4. After reading the agreement, please click Agree. 5. When the screen below appears, please click Install to perform a standard installation.
- Page 13 6. Please enter your password as prompted. 7. It will take for a while to install the driver. 8. The installation was successful.
- Page 14 9. Connect the Ethernet adapter to a free USB port, you’ll see the screen as below prompted and please select Network Preferences. 10. You will find that a new Ethernet network interface is available. It’s usually named LAN9514. *Actual strings depend on your operation system. These screen shots are from MAC OS X 10.5 and might vary slightly for each operation system.
-
Page 15: Verifying The Driver Installation
Verifying the Driver Installation On Windows XP/Vista/7 Once you finished the installation, you can open Windows Device Manager to verify if your Ethernet adapter is properly installed. To access the Device Manager: On Windows 7: Right-click My Computer on the desktop and click Properties >Device Manager. - Page 16 On MAC OS X 10.5 Once you finish the installation, you can open GO > Utilities > System Profile > Hardward > USB > to verify if your Ethernet adapter is properly installed.
-
Page 17: Specifications
3. Specifications Upstream port x 1 (USB Type A plug) Downstream port x 4 (USB Type A receptacles) Compliance : USB1.1 & USB 2.0 RJ-45 x 1 (Ethernet 10BASE-T/Fast Ethernet 100Base-TX port) Complies with the Full-duplex with flow control and Half-duplex with backpressure operation Power Supply Input : 100~240v 50Hz-60Hz... -
Page 18: Regulatory Compliance
4. Regulatory Compliance FCC Conditions This equipment has been tested and found to comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received. Including interference that may cause undesired operation.
