- Page 1 User Manual ( USB-0401 ) H/W Ver .: 5 Manual Ver.: 1.0...
- Page 2 ABOUT THIS MANUAL This manual provides a beginner's introduction to installing, configuring and using the USB3.0 Gigabit Network Adapter. Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice.
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ....................... 1 Features ..........................1 Package Contents ......................2 System Requirements ....................... 2 2. Installation ......................3 On Windows Ò Operating Systems ..................3 Hardware installation ......................... 5 Verifying the Installation ......................5 Uninstalling the Driver ......................6 On Mac OSX Operating Systems .................. -
Page 4: Introduction

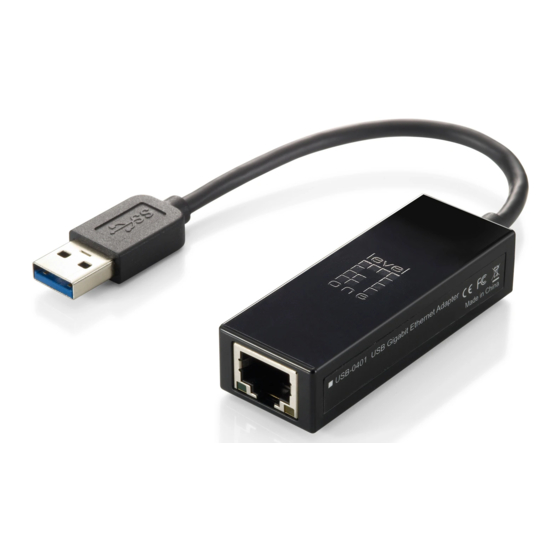

1. Introduction 1. Introduction The USB3.0 Gigabit Network adapter, is a high performance and simple plug-and-play Gigabit Ethernet network connection capability for desktops, notebook PC’s, and embedded system using a standard USB port. The USB3.0 Gigabit Network adapter offers a wide array of features including IPv4/IPv6 checksum offload engine, crossover detection and auto-correction, TCP large send offload and IEEE802.3az EEE (Energy Efficient Ethernet) that allows to enter a low power idle state to reduce power and to achieve a more energy efficient Ethernet. -
Page 5: Package Contents
USB 3.0 Gigabit Network Adapter User’s Manual Package Contents Before installation, please check the items of the package. The package should contain the following items: l Gigabit USB Network Adapter x1 l Resource CD (Driver / Manual / Quick Installation Guide / EU Declaration of Conformity ) x1 l Quick Installation Guide x1 System Requirements... -
Page 6: Installation
USB 3.0 Gigabit Network Adapter User’s Manual 2. Installation Ò On Windows Operating Systems NOTE: DO NOT connect the Ethernet Adapter to your computer before you install the provided driver. 1. Insert the provided Driver CD into your disc drive. Please locate and double-click the setup.exe file under x:\Driver\ where x is your disc drive letter. - Page 7 USB 3.0 Gigabit Network Adapter User’s Manual 2. Select the language then Click on OK to continue this installation. 3. Wait a while for the program to install the driver. 4. When the installation is done, click Finish.
-
Page 8: Hardware Installation
Hardware installation 1. Connect the Gigabit adapters USB end to a free USB port of your computer. Then a Network pop-up message will appear in the notification area indicating the installation is complete. * Actual strings depend on your operation system. These screen shots are from Windows Ò 7 and might vary slightly for each operation system. -
Page 9: Uninstalling The Driver
USB 3.0 Gigabit Network Adapter User’s Manual 3. Uninstalling the Driver Uninstalling the Driver on Windows Ò Operating Systems Please take these steps to uninstall Driver: Open the Control Panel, Programs and Features and double-click Uninstall a Program on Windows 7 or Add or Remove Programs on XP. Select AX88179_AX88178A Windows Driver and click Uninstall Select [Yes] to continue the uninstall process. - Page 10 USB 3.0 Gigabit Network Adapter User’s Manual The uninstall process starts automatically. Click Finish to complete uninstalls process.
-
Page 11: On Mac Osx Operating Systems
On Mac OSX Operating Systems Insert the provided driver CD into your CD-ROM drive. Double-click the CD and navigate to the directory of \Driver\ Driver\Mac\V2.13.0\ Click the “AX88179_178A.dmg”, the AX88179 virtual disk will be appeared on the Desktop of your Mac OSX system. (This “AX88179” virtual disk will be auto- removed after rebooting macOS system.) Click the “AX88179_178A_vx.x.x.pkg”... - Page 12 USB 3.0 Gigabit Network Adapter User’s Manual Click the Install button to continue the installation operation. You might need to enter your user/password during the driver installation. Click the [Continue Installation] button to continue the installation operation. Click the [Restart] button to restart Mac OSX system to take effect the revised driver installation.
- Page 13 USB 3.0 Gigabit Network Adapter User’s Manual After booting up your macOS system, plug your AX88179/AX88178A USB onto the USB port of your macOS system and refer to the following information to double check if your USB had been identified properly by macOS system and the AX88179/AX88178A macOS driver was installed correctly or not.
-
Page 14: Regulatory Compliance
Regulatory Compliance FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
