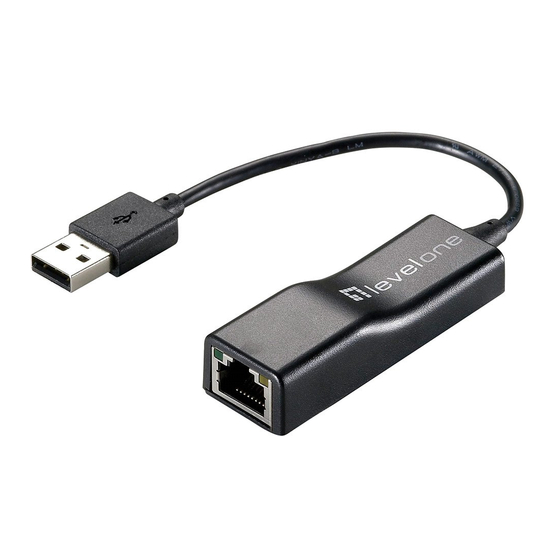

USB-0301
USB Fast Ethernet Adapter
User Manual
Ver. 1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USB-0301 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LevelOne USB-0301

Summary of Contents for LevelOne USB-0301

  • Page 1 USB-0301 USB Fast Ethernet Adapter User Manual Ver. 1.0.0...
  • Page 2 FCC Certifications This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 3: Table Of Contents

    Table of Contents 1. UNPACKING INFORMATION........3 2. OVERVIEW..............3 2.1 INTRODUCTION............3 2.2 KEY FEATURES............4 2.3 LED DEFINITION............4 2.3.1 10/100M............. 4 2.3.2 Link/Act ............. 4 2.3.3 USB Link............4 3. INSTALLATION .............. 5 3.1 SYSTEM REQUIREMENTS ........5 3.2 HARDWARE INSTALLATION........

  • Page 4: Unpacking Information

    3. QIG 2. Overview 2.1 Introduction The USB-0301 provides users to launch Internet via the USB interface up to 100Mbps transferring and receiving rate. The device is compatible to USB 2.0, 1.1, and 1.0. Along with complying 802.3, 802.3u and 802.3x standards, users are allowed to get connection to network in any environment that encountered.

  • Page 5: Key Features

    2.2 Key Features Complies with IEEE 802.3 10BASE-T standard ‧ Complies with IEEE 802.3u 100BASE-TX standard ‧ Complies with IEEE 802.3x full duplex flow control ‧ Compliant to USB 1.0, 1.1 and 2.0 standards ‧ Powered over USB bus with low power consumption ‧...

  • Page 6: Installation

    3. Installation 3.1 System Requirements A Pentium 166 MMX or above processor-based PC, any devices that support standard USB One available USB port Microsoft Windows 2000/XP/Vista/7; MAC OS 10.3 or 10.4 for 32-bit/64bit x86 and Power PC based computer. A CD-ROM Drive 3.2 Hardware Installation Before installation, please check if there is an available USB port being enabled.

  • Page 7: Connect The Adapter To Your Pc

    3.2.1 Connect the adapter to your PC 1. Plug the USB-0301 adapter to your PC. 2. Windows will detect new hardware automatically and prompt you for driver. For driver installation, please refer to the chapter “Software Installation”. 3.2.2 Networking cable installation 1.

  • Page 8: Software Installation

    3.3 Software Installation After attaching the USB to Ethernet adapter to your PC or laptop, the auto-detection for new hardware will be activated automatically. The procedures to perform driver installation differ slightly from each operation system. Please refer to the following paragraphs for detail instruction. 3.3.1 Windows 2000 Setup There are two ways to install the Win 2000 software: by using auto-install program, or, thorough the “Found New Hardware Wizard.”...

  • Page 9: Windows Xp Setup

    3.3.2 Windows XP Setup There are two ways to install the Win XP software: by using auto-install program, or, thorough the “Found New Hardware Wizard.” Please refer to the following instruction. Auto-Install Program 1. The “Found New Hardware Wizard” window pops up. Click “Cancel” to close the window.

  • Page 10: Windows Vista/7 Setup

    1. The “Found New Hardware Wizard” window pops up. Click “Cancel” to close the window. 2. Insert LevelOne CD-Rom to your CD-Rom drive. Click on My Computer --> your CD-Rom drive --> Driver --Vista 32 bit press setup icon then it will start to install the driver 3.
  • Page 11 Found New Hardware Wizard 1. The “Found New Hardware” window pops up. Select “Locate and install driver software”. 2. Select “I don‟t have the disc. Show me other options”. Then, click “Next” to proceed.
  • Page 12 3. Select “Browse my computer for driver software”. 4. Insert the provided driver CD. Click the “Browse” button and select Computer your CD-ROM driveDriverVista_32bit_driver WHQL (or Vista_64bit_driver WHQL, depends on your system). Click “Next” to proceed.

  • Page 13: Mac Os Setup

    5. Click the “Close” button to finish the installation. 3.3.4 Mac OS Setup It is not necessary to install driver on Mac10.5 , it „s plug and play. Below are Mac 10.3 or 10.4 installation guideline 1. Insert the provided CD to your CD-Rom drive. Browse to Mac_OSX10.3 (or Mac_OSX10.4, which depends on your system).
  • Page 14 2. Select a destination to install the driver on. Click “Continue” to proceed. 3. Click “Install” to start installation.

  • Page 15: Wii Setup

    4. Click the “Close” button to finish the installation. 3.3.5 Wii Setup 1. Just connect the USB-0301 to a free USB port of Wii (Game Station) and the default setting is DHCP client mode 2. It can be modified via Wii‟s configuration, please see the detail on Wii‟s...

  • Page 16: Product Specifications

    4. Product Specifications Standard IEEE802.3, 10BASE-T IEEE802.3u, 100BASE-TX IEEE802.3x full duplex flow control USB v 1.0 / 1. 1 / 2.0 Interface 1* USB port 1* 10/100Mbps Ethernet Port Cable Connections UTP Category 3,4,5,5e Network Data Rate 100Mbps, 10Mbps LED indications 1* 10/100M 1* Link/Act 1* USB Link...
