- Page 1 User Manual (USB-0401-v9 / USB-0402-v4) V1.01 Digital Data Communications GmbH, Germany. http://www.level1.com...
- Page 2 ABOUT THIS MANUAL This manual provides a beginner's introduction to installing, configuring and using the Gigabit Network Adapter. The information in this document is subject to change without notice. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability, or fitness for any particular purpose.
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ....................... 1 Features ..........................1 Package Contents ......................3 System Requirements ....................... 3 2. Installation ......................4 On Windows Ò Operating Systems ..................4 Hardware installation ......................... 6 Verifying the Installation ......................6 Uninstalling the Driver ......................7 On Mac OS X Operating Systems .................. -
Page 4: Introduction

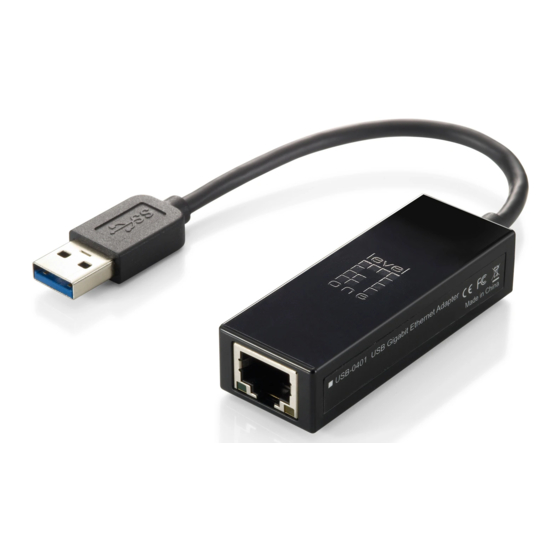

The USB-0401 easily does the job, all through your USB port. The USB-0401 is USB 2.0 and 3.0 compliant. It also follows the Ethernet standards set by the IEEE 802.3/3u and 802.3ab, allowing you to take advantage of Gigabit Ethernet speeds of up to 1000Mbps. - Page 5 USB 3.0 Gigabit Network Adapter User’s Manual The LevelOne USB-0402 Gigabit USB-C Network Adapter allows you to connect to the internet easily through the built-in USB-C port on your laptop. This is an ideal solution for MacBook or other Windows computers that may have wireless built-in but don’t come with an Ethernet port.
-
Page 6: Package Contents
Package Contents Before installation, please check the items of the package. The package should contain the following items: l EU Declaration of Conformity l Resource CD l Quick Installation Guide System Requirements One available USB port l Windows Ò XP, Windows Ò Vista, Windows Ò 7, Windows Ò 8, Windows Ò 10 l Mac OS X 10.6 /7/8/9/10/11/12/13/14/15... -
Page 7: Installation
USB 3.0 Gigabit Network Adapter User’s Manual 2. Installation Ò On Windows Operating Systems NOTE: DO NOT connect the Ethernet Adapter to your computer before you install the provided driver. 1. Insert the provided Driver CD into your disc drive. Please locate and double-click the setup.exe file under x:\Driver\Windows\ (where x is your disc drive letter) Notice :... - Page 8 USB 3.0 Gigabit Network Adapter User’s Manual 2. Select the language then Click on OK to continue this installation. 3. Wait a while for the program to install the driver. 4. When the installation is done, click Finish.
-
Page 9: Hardware Installation
Hardware installation 1. Connect the Gigabit adapters USB end to a free USB port of your computer. Then a Network pop-up message will appear in the notification area indicating the installation is complete. * Actual strings depend on your operation system. These screen shots are from Windows Ò 7 and might vary slightly for each operation system. -
Page 10: Uninstalling The Driver
USB 3.0 Gigabit Network Adapter User’s Manual 3. Uninstalling the Driver Uninstalling the Driver on Windows Ò Operating Systems Please take these steps to uninstall Driver: Open the Control Panel, Programs and Features and double-click Uninstall a Program on Windows 7 or Add or Remove Programs on XP. Select AX88179_AX88178A Windows Driver and click Uninstall Select [Yes] to continue the uninstall process. - Page 11 USB 3.0 Gigabit Network Adapter User’s Manual The uninstall process starts automatically. Click Finish to complete uninstalls process.
-
Page 12: On Mac Os X Operating Systems
On Mac OS X Operating Systems Insert the provided driver CD into your CD-ROM drive. Double-click the CD and navigate to the directory of \Driver\Mac\V2.13.0\ Click the “AX88179_178A.dmg”, the AX88179 virtual disk will be appeared on the Desktop of your Mac OS system. (This “AX88179” virtual disk will be auto-removed after rebooting macOS system.) Click the “AX88179_178A_vx.x.x.pkg”... - Page 13 USB 3.0 Gigabit Network Adapter User’s Manual Click the Install button to continue the installation operation. You might need to enter your user/password during the driver installation. Click the [Continue Installation] button to continue the installation operation. Click the [Restart] button to restart Mac OS system to take effect the revised driver installation.
- Page 14 USB 3.0 Gigabit Network Adapter User’s Manual After booting up your macOS system, plug your AX88179/AX88178A USB onto the USB port of your macOS system and refer to the following information to double check if your USB had been identified properly by macOS system and the AX88179/AX88178A macOS driver was installed correctly or not.
