PORTABLE

DVD PLAYER

MODEL: GDVDPLY01
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GDVDPLY01 and is the answer not in the manual?

Questions and answers

Related Manuals for Goodmans GDVDPLY01

Summary of Contents for Goodmans GDVDPLY01

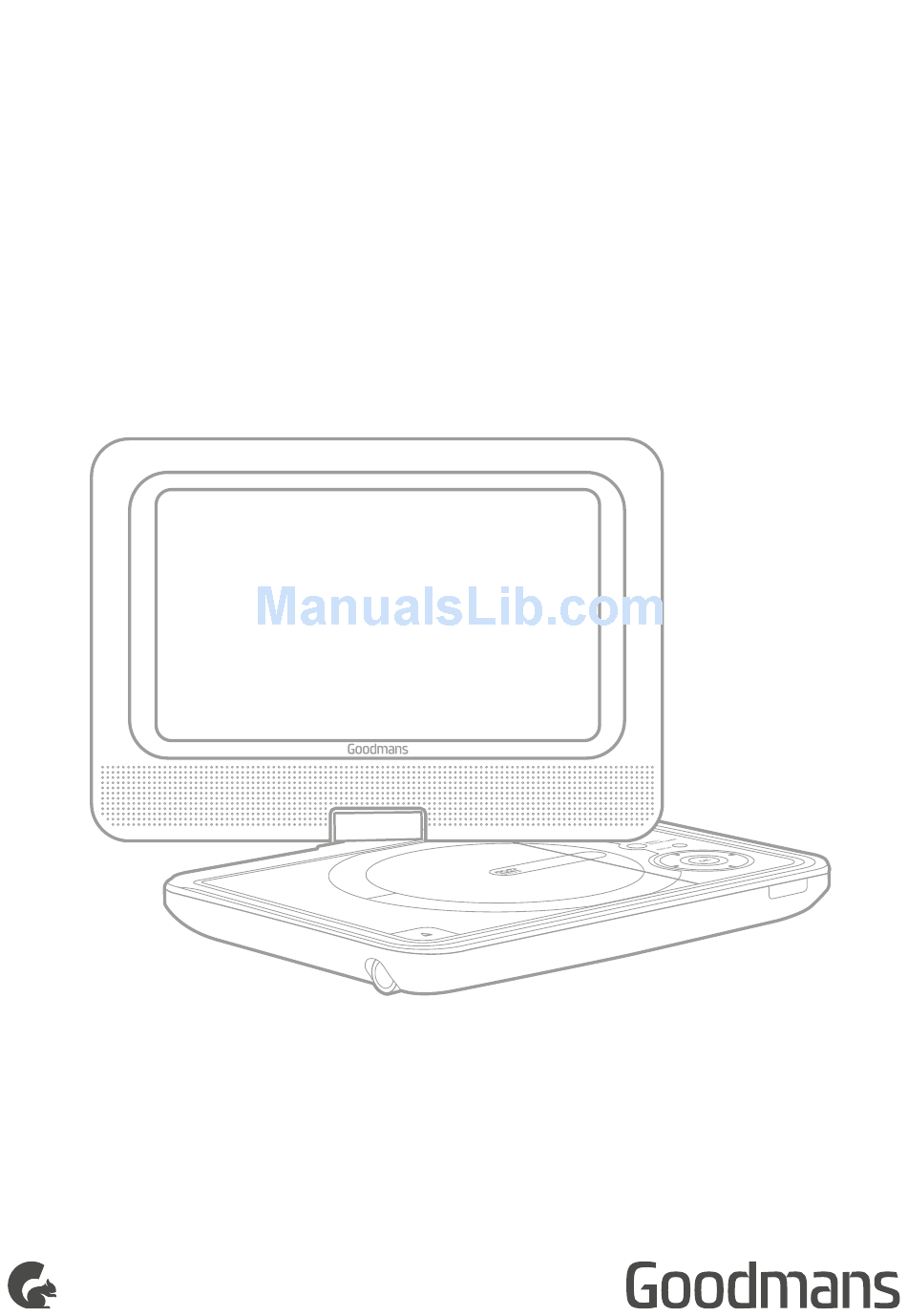

  • Page 1: Dvd Player

    PORTABLE DVD PLAYER MODEL: GDVDPLY01 USER MANUAL...

  • Page 2: Table Of Contents

    Welcome Your DVD Player 2.1 In The Box 2.4 Remote Control 2.2 Open Top View 2.3 Side View Quick Setup 3.4 Fitting The Remote Batteries 3.1 Power On/Off - Mains Operation 3.2 Charging the Internal Battery 3.5 Connection to a TV 3.6 Connecting a second unit as 3.3 Standby a slave display...

  • Page 3: Your Dvd Player

    Welcome Thank you for choosing this Goodmans product. We’ve been making electronics for the British people for 70 years. Each of our projects has been carefully designed to be great at what it does and this one is no exception. We hope you enjoy your new portable DVD player.

  • Page 4: Your Portable Dvd Player

    Side View EARPHONE. Earphone output socket. AV OUT. Output socket. AV IN. Input socket. OFF/ON. Power on/off EARPHONE AV OUT AV IN OFF/ON DC IN 9-12V switch. DC IN 9-12V. Power input/ charging socket. GDVDPLY01...

  • Page 5: Remote Control

    REPEAT QUICK SEARCH RWD/FWD. AUDIO Press repeatedly to cycle between ZOOM GOTO the fast rewind/forward speeds. SETUP. Press once to enter the system menu. TFT. Press to disable the built-in TFT screen. Press again to enable GDVDPLY01...
  • Page 6 REPEAT GOTO. Specify an exact point AUDIO on a DVD or CD to jump to. ZOOM GOTO ZOOM. Increase the image size up to 4 x larger SKIP PREV/NEXT. Press to skip DVD chapters/CD tracks PREV or NEXT. GDVDPLY01...

  • Page 7: Charging The Internal Battery

    OFF/ON DC IN 9-12V Charging the Internal Battery The GDVDPLY01 is fitted with a built-in rechargeable battery. Before using the battery, please make sure it is fully charged. Slide the power switch to the OFF position and connect the DC adaptor to the DC input (M) & mains supply.

  • Page 8: Connection To A Tv

    Connection to a TV NOTE: before attempting to connect this unit to a TV, ensure that the GDVDPLY01 and TV are both switched off. 1. Insert the 3.5mm end of an AV cable (supplied ) into the AV OUTPUT socket (J) on the side of the unit.
  • Page 9 Quick Setup Connecting a second unit as a slave display It is possible to connect a second GDVDPLY01 unit as a slave display. This function will display the content from one unit onto both screens. EARPHONE AV OUT AV IN...

  • Page 10: Getting Started

    1. Use the VOLUME - / + buttons (C & D or 07 & 19) on either the main unit or remote to increase or decrease the listening level. 2. Use the MUTE button (15) on the remote to silence the audio, press again to resume. VOL+ GDVDPLY01...

  • Page 11: Basic Operations

    1. Press the REPEAT button (21) once during playback to activate the REPEAT function. SUBTITLE 2. Press repeatedly to cycle the REPEAT modes available for the current disc type. 3. Press the REPEAT button until you reach OFF REPEAT (no icon visable) to disable the REPEAT mode. AUDIO GDVDPLY01...

  • Page 12: Advanced Operation

    2. Press repeatedly to cycle through the available subtitle REPEAT options. 3. When you have found the track you wish to view release the button for a few seconds to activate. 4. To cancel press the SUBTITLE button until you see [OFF]. GDVDPLY01...

  • Page 13: Advanced Operations

    5. To clear the setup screen navigate to EXIT and press ENTER. Note: The start button does not appear until you have entered track numbers to playback. You must start entering track numbers at number 1 and continue numerically. GDVDPLY01...

  • Page 14: Picture Disc / Jpg Image Viewer

    To enlarge or reduce the image press the ZOOM button repeatedly to cycle through the magnification modes. EG:- 50%, 75%, 100%, 125%, 150% & 200%. SLIDE SHOW TRANSITIONS During the slide show, pressing the PROGRAM button will cycle through all the available transition presets. GDVDPLY01...

  • Page 15: Earphone Usage

    1. The display can be rotated 90 degrees Anti-clockwise from the facing front position. 2. The display can be rotated 180 degrees Clockwise from the facing front position. NOTE: Take care not to rotate any further than the specified angles, as internal wiring can be damaged. GDVDPLY01...

  • Page 16: Setup Menu

    Select this mode for older 4:3 DVDs on your player. ANGLE MARK Select ON of you wish an icon to be displayed when the multi- angle option is available. OSD LANGUAGE This sets the On-Screen Display language. Choose between: English, French & Spanish. GDVDPLY01...

  • Page 17: Dolby Digital Setup

    Sharpness Brightness SHARPNESS Contrast Set the image sharpness value from HIGH, MEDIUM or LOW. BRIGHTNESS Go To Video Setup Page Set the image brightness level from -20 to +20. CONTRAST Set the image contrast level from -16 to +16. GDVDPLY01...

  • Page 18: Preferences Setup

    5. Press ENTER to confirm the new password. NOTE: Should you forget the new password you can use the master code‘1369’ to gain access. DEFAULT This setting when activated restores the default settings to the system. NOTE: This is not reversible once activated. GDVDPLY01...

  • Page 19: Disc Handling

    Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. GDVDPLY01...

  • Page 20: Disc Types

    DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD Player, this DVD player can¬not play that disc. The Region number of this DVD player is ‘REGION 2’ GDVDPLY01...

  • Page 21: Troubleshooting

    Make sure you aim the remote at the Remote not aimed at the IR IR sensor on the front of the unit near the sensor on the unit. LED indicators Forgotten the Use the default override code ‘1369’. Pass Code GDVDPLY01...

  • Page 22: Technical Specifications

    1.4 Vrms / 10 KΩ Frequency response 20Hz~20KHz Screen size 7” (17.8cm) Supported Discs CD, CD-R, DVD, DVD-R, DVD+R, PICTURE CD & JPG Customer Support Our customer service team is available for technical or guarantee support. Visit www.goodmans.co.uk/support QSG-APRIL15-GDVDPLY01 www.goodmans.co.uk GDVDPLY01...
