Summary of Contents for Goodmans GDVD90W11
-

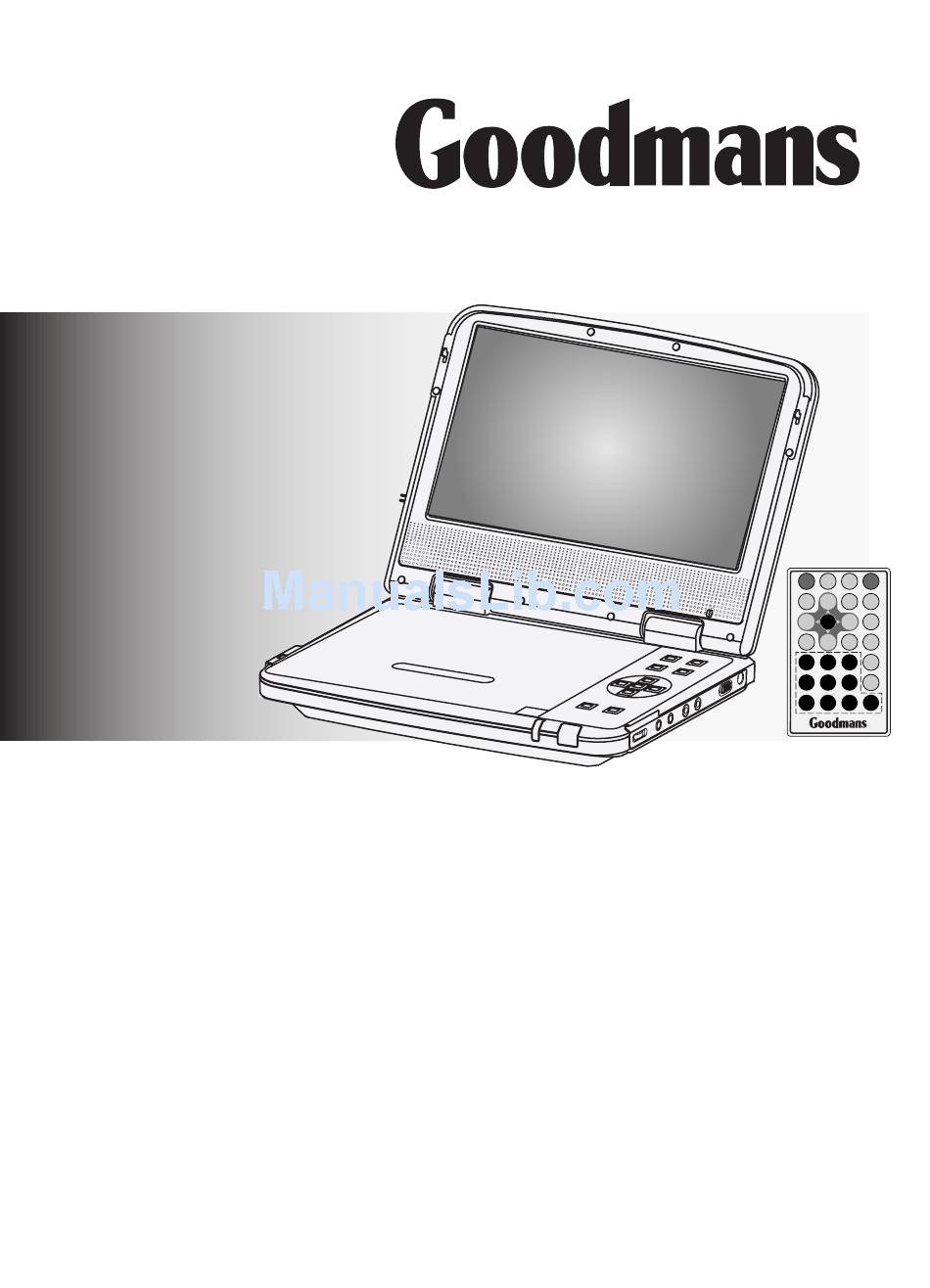

Page 1: Portable Dvd Player
GDVD90W11 Portable DVD Player User Guide 82-227-00060... -
Page 2: Table Of Contents
Contents CHAPTER 1: Getting Started ....3 Rotating Pictures ........13 Viewing the Next or Previous Picture ..13 Front View ........3 Thumbnail Function ........13 Side View ........... 4 Remote Control ........... 5 CHAPTER 5: OSD Setup ....14 Connections .......... -
Page 3: Chapter 1: Getting Started
Getting Started Front View LCD Button SETUP Button INFO Button MENU Button PLAY/SEL. Button PAUSE/UP Button B.FWD/LEFT Button F.FWD/RIGHT Button OPEN Button STOP/DOWN Button PREVIOUS Button NEXT Button LCD Screen Remote Sensor Speakers POWER Indicator PORTABLE DVD PLAYER USER GUIDE... -
Page 4: Side View
Getting Started - continued Side Views Right Side Panel Back Panel Volume Adjustment Scroll Wheel PHONE Sockets AV OUT Socket AV IN Socket POWER Switch DC IN Socket Battery Connector PORTABLE DVD PLAYER USER GUIDE... -
Page 5: Remote Control
Getting Started - continued Remote Control Portable DVD INFO. Button SUBTITLE Button SETUP Button TITLE Button PAUSE/UP Button ANGLE Button MENU Button AUDIO Button F.BWD/LEFT Button F.FWD/RIGHT Button PLAY/SEL. Button NEXT Button PREVIOUS Button REPEAT A-B Button STOP/DOWN Button REPEAT 1/ALL Button Number Buttons MUTE Button LCD Button... -
Page 6: Connections
Getting Started - continued Connections Connect TV Connect the Portable DVD Player to Power. Please connect the supplied AC adapter to the DC IN socket on the right side of the unit. Connect the AV OUT of the DVD Player to the Video In and Audio In of your TV with an Audio/Video Cable. -
Page 7: Input From External Equipment
Getting Started - continued Input from External Equipment Connect the Portable DVD Player to Power. Please connect the supplied AC adapter to the DC IN socket on the right side of the unit. Connect the Video/Audio In of the DVD Player to the Video/Audio Out of external devices. -
Page 8: Using The Battery Pack
Getting Started - continued Using the Battery Pack Battery charge indicator Battery release button Battery connectors DC IN Before using the battery pack, please ensure that it is fully charged. You can charge the battery pack directly or charge it while the battery pack attached to the portable DVD player. - Page 9 Getting Started - continued Charge the battery pack while the battery pack is attached to the portable DVD player STEP 1. Please align the portable DVD player’s battery connectors with the battery pack’s battery connectors. Then attach the battery pack to the portable DVD player.
-
Page 10: Chapter 2: Dvd Playback
DVD Operation Basic DVD Playback Frame Advance (Step) Turn on the player. Press OPEN to Press Pause to pause playback. open the disc cover. • The disc is advanced by one frame each time pressing Pause. Hold the edge of the disc to put it in the disc tray with the printed side up. -
Page 11: Repeating Viewing
DVD Operation - continued Repeat Viewing Changing Subtitle Languages Press Subtitle during play back. During playback, press 1/All Repeat repeatedly to select the following Press Subtitle a number of options: times until a preferred language is REP: [ CHAPTER ] : Repeat Chapter selected. -
Page 12: Chapter 3: Audio Cd Playback
Audio CD Playback Basic Audio CDs Playback [ I TAL I AN OP E RA ]08– ––––– . Load an Audio CD. 01. CITY JAZZ 01. 0 1 –––– –– 02. CLASSICAL 02. 0 2 –––– –– • For audio CDs without playback control, the 03. -
Page 13: Chapter 4: Picture Cd Playback
Kodak and JPEG Picture CDs Playback Basic Picture CDs Playback [CA NAD A]0 0 1 . J PG 01. JAPAN 0 0 1 . 0 0 1 Load a Picture CD. 02. CANADA 0 0 2 . 0 0 2 03. -
Page 14: Chapter 5: Osd Setup
OSD Setup Subtitle Language Language Setup Press Setup in stop mode. LANGUAGE SETUP Press Left / Right to select CHINESE LANGUAGE SETUP icon. AUDIO ENGLISH SUBTITLE JAPANESE MENU FRENCH SPANISH PORTUGUESE GERMAN LANGUAGE SETUP AUDIO Menu Language SUBTITLE MENU LANGUAGE SETUP CHINESE Press Up /... -
Page 15: Video Setup
OSD Setup - continued Video Setup 4:3 Letter Box Select “4:3 Letter Box” for a conventional size TV set. Black Press Setup in stop mode. bands appear at top and bottom of screen (letter-box style). Press Left / Right to select VIDEO SETUP icon. -
Page 16: Screen Saver
OSD Setup - continued Screen Saver Enter 4-digit password and press Play/Sel.. Press Up / Down to select • Enter factory pre-set password “0000” for SCREEN SAVER and then press the fi rst time setup. Right. SYSTEM SETUP SYSTEM SETUP SCREEN SAVER 1 KID PARENTAL... -
Page 17: Password [Dvd]
OSD Setup - continued Password Note: • Pressing Angle will change camera angles for Press Up / Down to select movies that support this feature regardless of whether PASSWORD and then press the ANGLE MARK feature is “On” or “Off”. Right. -
Page 18: Chapter 6: Lcd Setup
LCD Setup Panel Setting Brightness Setting LCD a number of times to LCD a number of times to Press Press select PANEL. select BRIGHT. Press Left / Right to choose Press Left / Right to choose a preferred panel setting. a preferred brightness setting. -
Page 19: Important Safety Instruction
Important Safety Information This manual contains important information about how to safely and properly install, opeprate and care for this product. Failure to properly install, operate and care for this product can increase the risk of electric shock or fi re. It can also increase the risk of monitor failure and possibly personal injury. -
Page 20: Disc Use And Care
Important Safety Information - continued IMPORTANT AUDIO SAFETY Your hearing is very important to you and to us, so please take care when operating this equipment. It is strongly recommended that you follow the listed guidelines in order to prevent possible damage to or loss of hearing. - Page 21 Disc Use and Care DO NOT use non-circular DVD discs, otherwise it may lead to damage to this DVD player. In order to keep the disc surface clean, please hold the DVD disc by its edge. DO NOT touch the recorded surface of DVD disc. DO NOT stick anything on the surface of DVD disc.
-
Page 22: Precautions
Precautions Please read these precautions before operating this player. Placement Avoid placing the player in areas of: direct sunlight radiators, or closed automobiles high temperature (over 35°C) or high humidity (over 90%) large amounts of dust as the internal parts may be seriously damaged Non-use periods When the player is not being used, turn it off. -
Page 23: Troubleshooting
Troubleshooting Before requesting service for the DVD Player, check the chart below for a possible cause of the problem you are ex pe ri enc ing. Some simple checkups or a minor adjustment on your part may eliminate the problem and restore proper op er a tion. -
Page 24: Disc Handling And Maintenance
Disc Handling and Maintenance Handling Precautions • Hold the disc by the edges so the surface will not be soiled with fi nger- prints. (A) Fingerprints, dirt and scratches can cause skipping and distortion. • Do not write on the label side with a ball-point pen or other writing utensils. •... -
Page 25: Specifi Cations
Specifi cations GDVD90W11 Disk Format. DVD/CD/CD-R/CD-RW. Video System Video Decompression MPEG-2(ISO/IEC-13818)/MPEG-1 LCD Display 9” active-matrix TFT type Terminals:. Audio/Video Section AV Output x 1 AV Input x 1 Headphone Sockets Headphone Socket x 2 Line Voltage AC 100-240 VAC 10% (50/60 Hz) Adapter Power Consumption 15W (12V, 1.25A)
