GDVD80W8
Portable DVD Player
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GDVD80W8 and is the answer not in the manual?

Questions and answers

Related Manuals for Goodmans GDVD80W8

Summary of Contents for Goodmans GDVD80W8

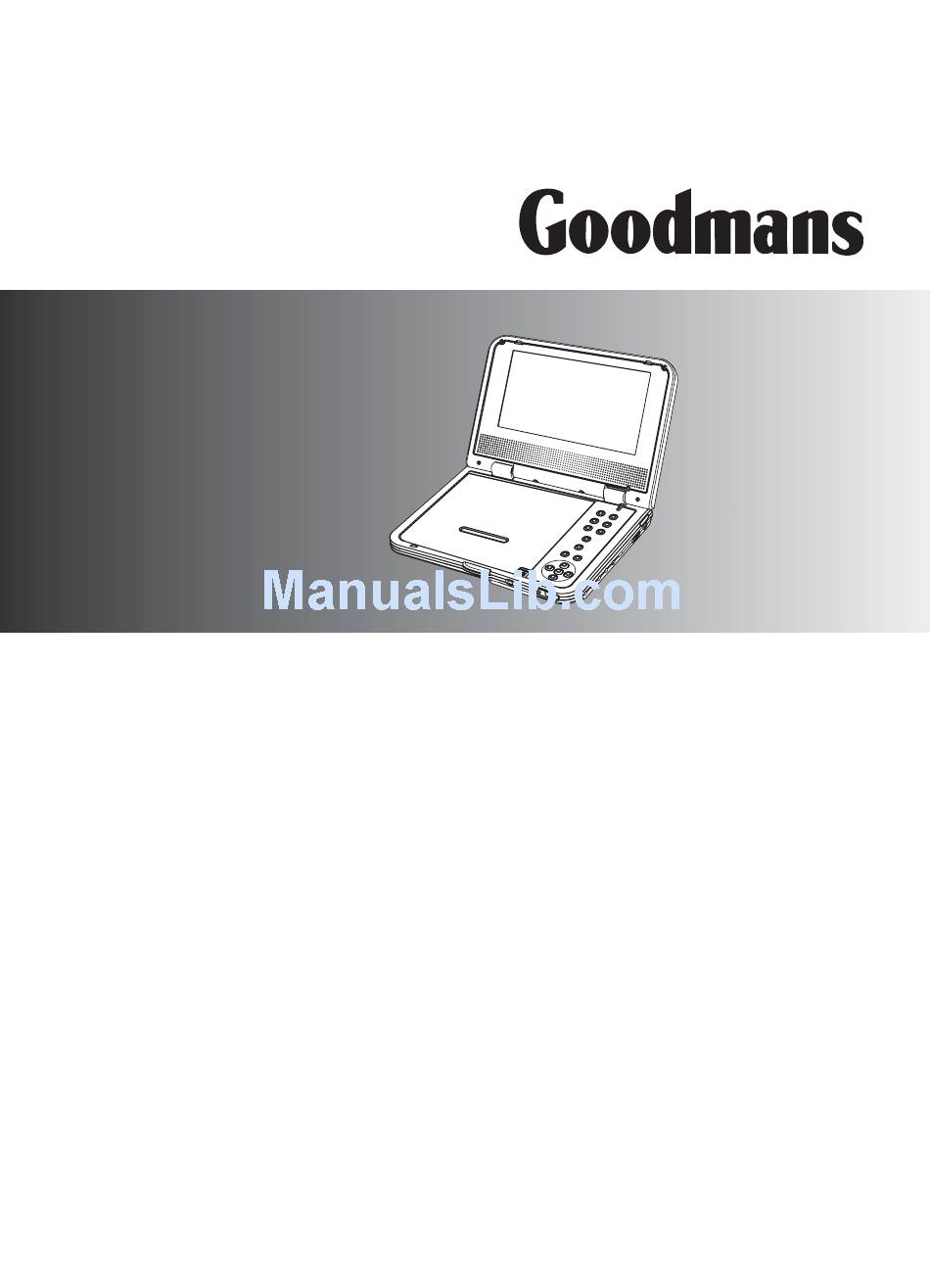

  • Page 1 GDVD80W8 Portable DVD Player User Guide...

  • Page 2: Table Of Contents

    Contents Getting Started ........3 Rotating Pictures ........12 Viewing the Next or Previous Picture ..12 Front View ..........3 Thumbnail Function ........12 Side View ..........4 Connections ........... 5 OSD Setup ........13 Using the Battery Pack ......7 Language Setup ......

  • Page 3: Getting Started

    Getting Started Front View 20 19 18 LCD Screen PREVIOUS Button Speakers NEXT Button SETUP Button F.FWD/RIGHT Button MENU Button STOP/DOWN Button SUBTITLE Button Remote Sensor LCD Button LED Indicator TITLE Button EJECT Button AUDIO Button PLAY/PAUSE Button VOLUME UP Button F.BWD/LEFT Button VOLUME DOWN Button INFO./UP Button...

  • Page 4: Side View

    Getting Started - continued Side Views Right Side Panel DC IN Jack AV IN Jack POWER Switch PHONE Jacks AV OUT Jack Back Panel Battery Connectors PORTABLE DVD PLAYER USER GUIDE...

  • Page 5: Connections

    Getting Started - continued Connections Connect TV Connect the DVD Player to Power. Please connect the supplied AC adapter to the DC IN jack on the right side of the unit. Connect the AV Out of the DVD Player to the Video In and Audio In of your TV with an Audio/Video Cable.

  • Page 6: Input From External Equipment

    Getting Started - continued Input from External Equipment Connect the DVD Player to Power. Please connect the supplied AC adapter to the DC IN jack on the right side of the unit. Connect theAudio/Video In of the DVD Player to the Audio/Video Out of external devices.

  • Page 7: Using The Battery Pack

    Getting Started - continued Using the Battery Pack Battery charge indicator Battery release button Battery connectors DC IN jack Before using the battery pack, please ensure that it is fully charged. You can charge the battery pack directly or charge it while the battery pack attached to the portable DVD player.
  • Page 8 Getting Started - continued Charge the battery pack while the battery pack attached to the portable DVD player STEP 1. Please align the portable DVD player’s battery connectors with the battery pack’s battery connectors. Then attach the battery pack to the portable DVD player.

  • Page 9: Dvd Playback

    DVD Operation Basic DVD Playback Frame Advance (Step) Turn on the player. Press Eject button Press Pause button to pause playback. • to open the disc cover. The disc is advanced by one frame each time pressing Pause. Hold the edge of the disc to put it in the disc tray with the printed side up.

  • Page 10: Displaying Scene Information

    DVD Operation - continued Displaying Scene Information Using a DVD Menu Press Info. button during playback Press Title button in stop mode. • Press Info. a number of times, the title The DVD menu available on the disc number, chapter number, and other appears.

  • Page 11: Audio Cd Playback

    Audio CD Playback Basic Audio CDs Playback Stopping Playback Load an Audio CD. Press Stop button. • For audio CDs without playback control, the DVD player starts playback. Pausing Playback • For audio CDs provided with playback con- trol, a menu appears after a few seconds. Press Pause button.

  • Page 12: Picture Cd Playback

    Kodak and JPEG Picture CDs Playback Basic Picture CDs Playback [CAN ADA]001. JPG 01. JAPAN 001. 001 Load a Picture CD. 02. CANADA 002. 002 03. FRANCE 003. 003 • 04. BRAZIL 004. 004 For Kodak Picture CDs, the DVD player 05.

  • Page 13: Osd Setup

    OSD Setup Language Setup LANGUAGE SETUP Press Setup button in stop mode. CHINESE AUDIO ENGLISH SUBTITLE JAPANESE Press Left / Right button to select MENU FRENCH LANGUAGE SETUP icon and then SPANISH PORTUGUESE press Play button. GERMAN Menu Language LANGUAGE SETUP AUDIO SUBTITLE MENU...

  • Page 14: Video Setup

    OSD Setup - continued Press Up / Down to select DIGITAL OUT and then press Play button. VIDEO SETUP VIDEO OUTPUT CVBS TV TYPE TV SYSTEM AUDIO SETUP DIGITAL OUT SPDIF/OFF SPDIF/RAW SPDIF/PCM Press Play button to confirm the selection. - To leave SETUP MENU, press Setup.

  • Page 15: System Setup

    OSD Setup - continued Screen Saver 16:9 Wide Select “16:9 Wide” for a wide-screen TV set to played in “FULL” size. Press Up / Down to select SCREEN SAVER and then press Play button. SYSTEM SETUP - To leave SETUP MENU, press Setup. SCREEN SAVER PARENTAL PASSWORD...

  • Page 16: Password [Dvd]

    OSD Setup - continued Press Up / Down to select a preferred Enter new password and then press rating and then press Play button. Play button. - To leave SETUP MENU, press Setup. Enter the password again to verify and Rating Explanations then press Play button.

  • Page 17: Lcd Setup

    LCD Setup Panel Setting Brightness Setting LCD a number of times to LCD a number of times to Press Press select PANEL. select BRIGHT. Press Left / Right to choose Press Left / Right to choose a preferred panel setting. a preferred brightness setting.

  • Page 18: Important Safety Information

    Important Safety Information This manual contains important information about how to safely and properly install, opeprate and care for this product. Failure to properly install, operate and care for this product can increase the risk of electric shock or fi re. It can also increase the risk of monitor failure and possibly personal injury.
  • Page 19 Important Safety Information - continued IMPORTANT AUDIO SAFETY Your hearing is very important to you and to us, so please take care when operating this equipment. It is strongly recommended that you follow the listed guidelines in order to prevent possible damage to or loss of hearing.

  • Page 20: Disc Use And Care

    Disc Use and Care DO NOT use non-circular DVD discs, otherwise it may lead to damage to this DVD player. In order to keep the disc surface clean, please hold the DVD disc by its edge. DO NOT touch the recorded surface of DVD disc. DO NOT stick anything on the surface of DVD disc.

  • Page 21: Precautions

    Precautions Please read these precautions before operating this player. Placement Avoid placing the player in areas of: direct sunlight radiators, or closed automobiles high temperature (over 35°C) or high humidity (over 90%) large amounts of dust as the internal parts may be seriously damaged Non-use periods When the player is not being used, turn it off.

  • Page 22: Troubleshooting

    Troubleshooting Before requesting service for the DVD Player, check the chart below for a possible cause of the problem you are ex periencing. Some simple checkups or a minor adjustment on your part may eliminate the problem and restore proper op eration. SYMPTOM (COMMON) REMEDY No power.

  • Page 23: Disc Handling And Maintenance

    Disc Handling and Maintenance Handling Precautions • Hold the disc by the edges so the surface will not be soiled with fi nger- prints. (A) Fingerprints, dirt and scratches can cause skipping and distortion. • Do not write on the label side with a ball-point pen or other writing utensils. •...

  • Page 24: Specifi Cations

    Specifi cations GDVD80W8 Disk Format. DVD/CD/CD-R/CD-RW. Video System Video Decompression MPEG-2(ISO/IEC-13818)/MPEG-1/MPEG4 LCD Display 8” active-matrix TFT type Terminals:. Audio/Video Section AV Output x 1 AV Input x 1 Headphone Jacks Headphone Jack x 2 Line Voltage AC 100-240 VAC 10% (50/60 Hz) Adapter Power Consumption 15W (12V, 1.25A)
