HK Audio ADX 112 A Service Documents

A.c.t.o.r dx 115a sub
Hide thumbs Also See for ADX 112 A:
Table of Contents

Advertisement

Quick Links

Confidential, for authorized service technicians only!
Do not disclose this information to or share these documents
A.C.T.O.R
Note!
The components used in this product - particularly parts affecting
safety as well as speakers and transformers - were developed and
manufactured to certain specifications. Please use original spare
parts only to ensure the product remains fully functional and safe.
TECHNICAL SERVICE:
Stamer Musikanlagen GmbH • Magdeburger Str. 8 • 66606 St.Wendel • Germany
Music & Sales P.E. GmbH • Leipziger Str. 3 • 66606 St.Wendel • Germany
with third parties.
Vertraulich! Nur für autorisierte Servicetechniker!
Nicht zur Weitergabe an Dritte freigegeben!
DX 115A
SUB
Achtung!
Die in diesem Produkt verwendeten Komponenten, insbesondere
sicherheitsrelevante Teile, Lautsprecher und Transformatoren
wurden nach spezifischen Vorgaben entwickelt und gefertigt.
Bitte benutzen Sie ausschließlich Original-Ersatzteile – nur so ist
die volle Funktionalität und Sicherheit gewährleistet.
13.07.07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADX 112 A and is the answer not in the manual?

Questions and answers

Related Manuals for HK Audio ADX 112 A

Summary of Contents for HK Audio ADX 112 A

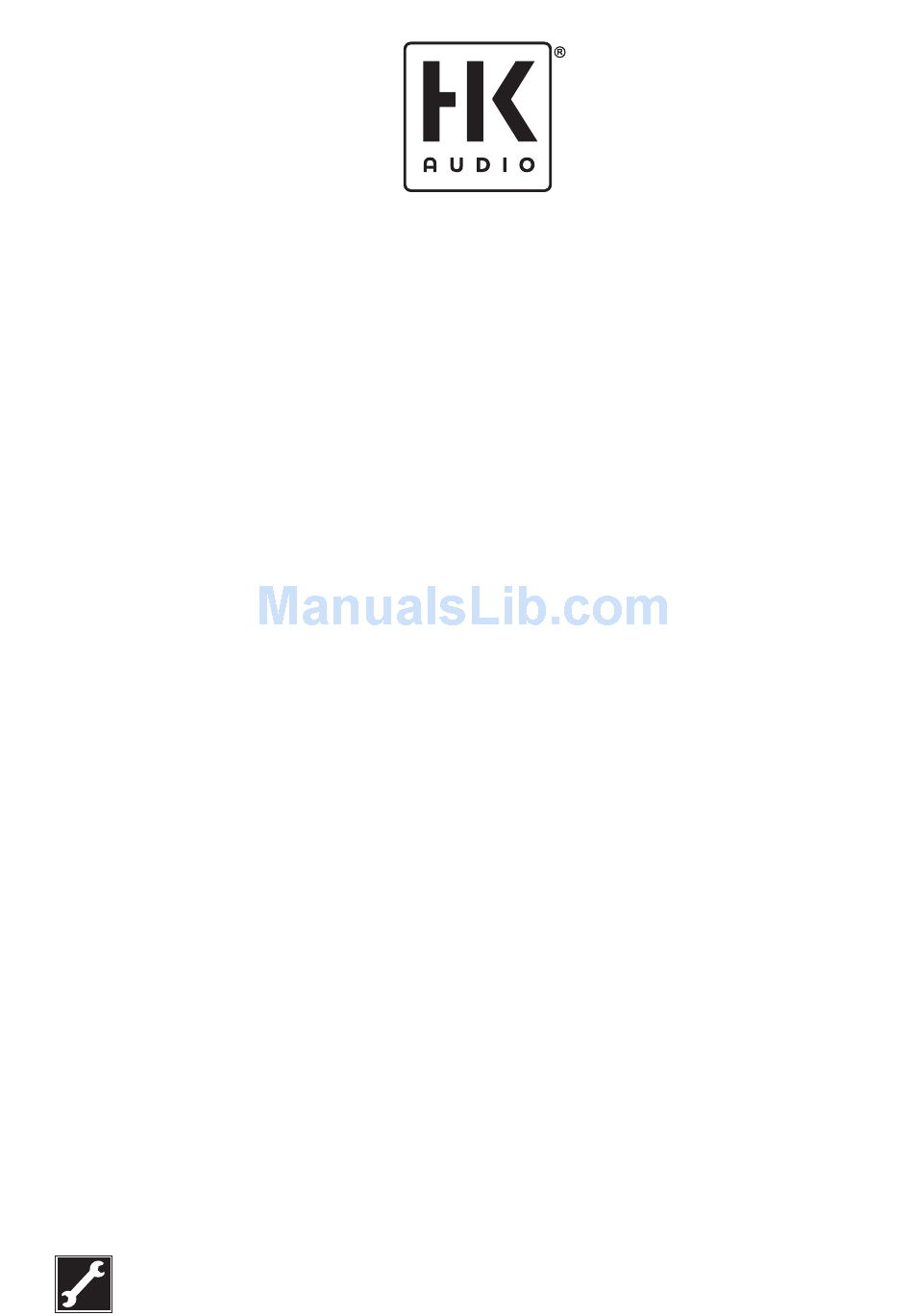

  • Page 1 13.07.07 Service Documents Confidential, for authorized service technicians only! Do not disclose this information to or share these documents with third parties. Vertraulich! Nur für autorisierte Servicetechniker! Nicht zur Weitergabe an Dritte freigegeben! A.C.T.O.R DX 115A Note! Achtung! The components used in this product - particularly parts affecting Die in diesem Produkt verwendeten Komponenten, insbesondere safety as well as speakers and transformers - were developed and sicherheitsrelevante Teile, Lautsprecher und Transformatoren...
  • Page 2 Directory features page: drawing-numbers-example page: standard for single wire confection page: HK1104-A.C.T.O.R DX SUBWOOFER 115A page: exploded drawings: complete /active Rev.: page: 16-17 complete /passive Rev.: page: 18-19 chassis /active Rev.: page: 20-22 chassis /passive Rev.: page: 23-24 front grille Rev.: page: cabling 100-240V...
  • Page 3 Thank you for choosing an HK AUDIO product. free of charge! Use the convenient online registration option at ACTOR DX consists of two ADX 112 A mid/high units www.hkaudio.com. loaded with a 12" woofer, 1. 4" driver and a DDO™...
  • Page 4 – making the most of sonic energy – for less pre-gig stress The novel DuoTilt™ pole mount allows sound energy Like all HK AUDIO Active Systems, ACTOR DX to be utilized far more efficiently. DuoTilt™ offers was designed as a cohesive system consisting of 7.5°...
  • Page 5 ACTOR DX, in contrast, features the DDO™ System has a power handling capacity of 500 W RMS and a Controller housed in the ADX 112 A mid/high unit. nominal impedance of 8 ohms. The power amp is This controller lets you determine basic settings housed in a separate compartment at the rear of the such as the system configuration, the mid/high...
  • Page 6 (for example, half- couplers, TV spigots, brackets, and so forth)! Ensure wall and pole mounts are designed to handle the load (an ACTOR ADX 112 A weighs 30 kg). ACTOR ADX 112 A with rigging bracket Question...
  • Page 7 Features to the mixer’s output signal level. Engage this switch to select either -10 dB (for exam- 4.1 ACTOR ADX 112 A ple, for unbalanced 1/4” jacks and consumer level 1 Power Switch devices) or +0 dB (for example, for balanced XLR Handling: This is the on/off switch for the active ports and professional mixers).
  • Page 8 Operation: To enable the buttons, press Up and Down simultaneously and hold for about one to two ACTOR ADX 112 A control features seconds. The letter U (for unlocked) appears briefly in the display. Now you can press Up and/or Down to select the desired setup (see the table above).
  • Page 9 ACTOR DX Manual 1.1 Feel free to use a four-core cable if you wish, though 4.2 ACTOR ADX 115 Sub A pin 2+ and 2- remain unused, of course. 1 Power Switch Operation: This is the on/off switch for the active system.

  • Page 10: Troubleshooting

    2 If the LED displays on your mixer are in the green, ACTOR DX system during transport. but the sound is still distorted, back off the Level knobs on the ACTOR ADX 112 A enclosures. HK AUDIO ACTOR DX Rigging Frame 3 Observe the Input Overload indicator and the Easy-to-mount U bracket for attaching half-couplers, Limiter LEDs on the ACTOR DX mid/high units’...

  • Page 11: Technical Specifications

    1.4" Directivity: 60° x 40° CD horn Crossover frequency: 950 Hz, 12 dB/octave Pole mount: HK AUDIO DuoTilt™, 36 mm, 7.5°, 15° Rigging points: 4 M10 threaded bushings for attaching an optional rigging bracket Accessories: ACTOR DX Tilt-Unit, 7.5°, 15°...
  • Page 12 +/- 10% Lothar Stamer Dipl.Ing. Ambient temperature range: -10° C to +35° C Managing Director Internal fuses: St.Wendel, 04/15/05 * Stamer Musikanlagen manufactures exclusively for HK AUDIO ® ACTOR ADX 115 Sub B Connections: 1x Speakon ® Input Nominal power handling:...
  • Page 13 KU = PLASTIC / KUNSTSTOFF LP = PCB / LEITERPLATTEN SO = MISCELLANEOUS / SONSTIGES SP = SCHEMATIC / SCHALTPLÄNE TR = TRANSFORMER / TRANSFORMATOR GK = WIRING DIAGRAM / GERÄTEVERKABELUNG PROJECT-NR.: HK = HK AUDIO HU = HUGHES&KETTNER MP = MINDPRINT...
  • Page 14 Stand 17. Jun 04 Standard for single wire confection. 485 W 1015 style 1015 according UL specifications I = completely insulated with black shrinktube or appropriate sleeve IT = partly insulated; only crimp connection insulated. no marking = without insulation Z = with additional junction no marking = without additional junction W = angled faston...
  • Page 15 Service Documents HK1104 A.C.T.O.R DX 115A Subwoofer Confidential, for authorized service technicians only! Do not disclose this information to or share these documents with third parties. TECHNICAL SERVICE: Stamer Musikanlagen GmbH • Magdeburger Str. 8 • 66606 St.Wendel • Germany Music &...
  • Page 16 E 974220 E 976115 E 400264 HK1104-HZ-R02-1D 9 E 974099 E 994116 E 972008 18 E 976158 E 974108 E 970451 3 E 502182 (220-240V) E 974009 E 502183 (100-120V) HK1104-EX-R02-1B E 974011 E 1125 HK1104-EX-R06-1B 14 E 974355 19 E 976159 E 972047 15 E 976009 11 E 974218...
  • Page 17 pos. no. part-no. 1 part-no. 2 description Beschreibung quantity 1125 front grille assembly Actor DX sub Frontgitter Actor DX Bass 400264 Wooden Cabinet, ACTOR DX Sub Active Holzgeh. ACTOR DX Sub Aktiv 502182 502183 Chassis Actor DX Sub Active Chassis Actor DX Sub Aktiv (220-240V) (100-120V) 970451...
  • Page 18 E 976094 E 502184 HK1104-EX-R01-1B E 400265 HK1104-HZ-R03-1C E 976159 9 E 974099 E 994116 16 E 976158 E 972008 E 974108 E 970451 E 974009 E 974011 E 1125 HK1104-EX-R06-1B 13 E 974355 E 972047 14 E 976009 11 E 974218 E 974314 ACTOR DX SUB PASSIV TITEL:...
  • Page 19 pos. no. part-no. 1 description Beschreibung quantity 1125 front grille assembly Actor DX sub Frontgitter Actor DX Bass 400265 Wooden Cabinet, ACTOR DX Sub Passive Holzgeh. ACTOR DX Sub Passiv 502184 Chassis Actor DX Sub Passive Chassis Actor DX Sub Passiv 970451 front grille reinforcement profile Blech Verstrebungswinkel...
  • Page 20 E 970745 9 E 970742 HK1104-BL-R04-1A HK1104-BL-R02-1D 5 E 950060 E 976007 14 E 974157 E 974100 E 976141 E 974075 E 943230 18 E 974521 HK1104-SO-R06-1A 17 E 974444 E 600079 15 E 974197 E 976135 E 974290 E 974110 TITEL: E 931304 ACTOR DX SUB-ACTIV...
  • Page 21 pos. no. part-no. 1 description Beschreibung quantity 547054 ADX115 SubA Input Board Actor DX Bass Inputboard 600079 mains filter, DEACON / ACTOR Netzfilter Deacon 230-100V 931304 ferrite teroid core, 25x15x12 Ferritring, geschlossen 25x15x12 943230 dust filter, ACTOR DX "R06" Staubschutz, ACTOR DX "R06" 950060 hi-inrush, mains rocker switch, C13150VB Netzschalter gross C1350VB...
  • Page 22 TITEL: ACTOR DX SUB-ACTIV EXPLODED DRAWING CHASSIS 66606 St. Wendel / Germany ZEICHNUNGS-NR.: HK1104-EX-R02-1B VERSION: REVISION: BLATT: ERSTELLT VON: C. LORIS 19.06.07 ÄNDERUNG ZEICHNER INDEX GEPRÜFT/ BLÄTTER FREIGEGEBEN VON: 1B-190607 update for service manual C. Loris WERKSTOFF: OBERFLÄCHE: HK1104-EX-R02-1B-CHASSIS-BASS-A DATEINAME:...
  • Page 23 Pos. part-no. 1 description Beschreibung Menge 2 E 943230 board without part-no. Aussteifung- Brett aus Schreinerei E 970743 HK1104-SO-R06-1A ohne Artikel-Nr. HK1104-BL-R03-1D 943230 dust filter, ACTOR DX "R06" Staubschutz, ACTOR DX "R06" 952305 speakon chassis connector, NL4MP-3 Speakonbuchse 4pol eckig, NL4MP-3 6 E 974110 970743 Sheet Metal Chassis, ACTOR DX Sub P...
  • Page 24 TITEL: HK1104 - ACTOR DX EXPLODED DRAWING CHASSIS SUB - PASSIV 66606 St. Wendel / Germany ZEICHNUNGS-NR.: HK11043-EX-R01-1B VERSION: REVISION: BLATT: ERSTELLT VON: C. LORIS 19.06.07 ÄNDERUNG ZEICHNER INDEX GEPRÜFT/ BLÄTTER FREIGEGEBEN VON: 1B-190607 update for service manual C. Loris WERKSTOFF: OBERFLÄCHE: HK1104-EX-R01-1B-CHASSIS-BASS-P...
  • Page 25 972085 acoustic foam anthracite 15mm Akustikschaum Anthrazit 15mm 974158 snapon retaining ring (for logo) Schnellbefestiger f. Logo 980105 logo ´HK Audio´ 55x55 mm Logo ´HK Audio´ 55x55 mm E 972085 HK1104-SO-R04-1C 3 E 974158 1 E 970335 HK1104-SO-R02-1C E 980105...
  • Page 26 / 01 3 ∗+ , +,2 22 , !! / 01 3 ∗+ , +,2 22 , !! 4 / 01 1 ∗+ ,2 +,2 +,2 ∗+ ,, −#∃& + .. / 01 1 ∗+ ,2 + !! +,2 +,2 ∋ / 01 3 ∗+ ∋+ / 01 3 ∗...
  • Page 27 TITLE: HK1104 - A.C.T.O.R. DX INPUTBOARD AKTIVBASS (SUB1) 66606 St. Wendel / Germany DRAWING-NO.: VERSION: REVISION: HK1104_LP_R02_1A DATE: PAGE: DRAWN BY: Michael Bohlender 09.07.2007 INDEX CHANGES RESP. CHECKED BY: DATE: PAGES MATERIAL: FINISH: Fehler: Keine Referenz FILENAME: HK1104_LP_R02_1A_inputboard...
  • Page 28 47p/100V-K 47p/100V-K 47p/100V-K SUB IN BL01RN1A1F1J XLR/F-NC3FBH2 390R BL01RN1A1F1J 47n/250V SEK18-20P L-1503CB/1ID DGND DGND 47p/100V-K DGND Parallel Out not assembled for ACTOR DX SUB1 BL01RN1A1F1J XLR/M-NC3MBH G2UEE*2UM FASTON-6.3-ST 47p/100V-K 47p/100V-K NDK-R0-B40 NDK-R0-B40 NDK-R0-B40 NA = not assembled part ----- EX = exclusive part, no alternative allowed HT = high temperature part, assemble with distance from PCB Title: HK1104 -- A.C.T.O.R.
