Summary of Contents for HK Audio CONTOUR ARRAY
- Page 1 ConTour Array™ Manual 1.4 English Deutsch Français...
- Page 2 Bitte vor Gebrauch lesen und für späteren Ge- brauch aufbewahren! • The unit has been built by HK AUDIO ® in accordance with IEC 60065 and • Das Gerät wurde von HK AUDIO ® gemäß IEC 60065 gebaut und hat das •...
-
Page 3: Table Of Contents
3.3 Technical Specifications of ConTour Array™ Rigging Hardware ....... 6... -
Page 4: A Notes On Rigging Safety
Please read these instructions carefully before you begin setting up the system! 1 Use 2 Warranty and Liability 1.1 Intended Use HK AUDIO is not responsible for damages caused by improper use or non-compliance with setup and Specifications for intended use include the operating safety specifications. HK AUDIO excludes... -
Page 5: Notes On Safety For The Hk Audio Contour Array
ConTour Array™ 1.4 3. Notes on Safety for the HK AUDIO ConTour Array™ The HK AUDIO ConTour Array™ Rigging System’s 3.2 Maintenance, Inspection and 3.5 Pick-points for Flying ConTour Repair of HK AUDIO ConTour Array™ Enclosures terms for use require you to install it according Array™... - Page 6 This is to certify that HK AUDIO ® ConTour Array™ CTA 208 Mid/High Unit HK AUDIO ® ConTour Array™ CTA 118 SUB Active System Bass complies with the provisions of the Directive of the Council of the European Communities on the ap proximation of the laws of the Member States relating to electromagnetic compatibility (EMC Directive 89/336/ EEC) and the low voltage Directive (73/23/EEC).
-
Page 7: B Contour Array™ Speakers

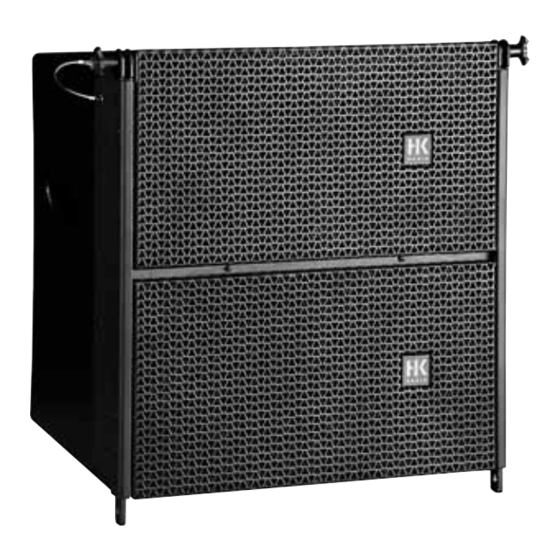

ConTour Array™ 1.4 B. ConTour Array™ Speakers 1. The CTA 208 Mid/High Unit Design and Construction 1.1 Specifications, CTA 208 The CTA 208 Mid/High unit‘s top and bottom panels slope at an angle of 4.5°. Water-repellent, A professional two-way system featuring cylindrical... -
Page 8: The Cta 208 Enclosures' Technical Data
Handles: ..............Two slot grips routed into the side panels Rigging hardware: ............DualCurve™, integrated with quick-release pins Pole mount: ............... HK AUDIO DuoTilt™ Weight: ..............29 kg/ 63.8 lbs. Dimensions (W x H x D): ........... 51 x 52.5 x 34.6 cm; 20" x 20 2/3" x 13 2/3"... -
Page 9: Cta 118 Sub
Another 1000 W PWM power amp drives set-up; a recessed handle is on the lid. The active HK AUDIO CTA 208 or ConTour Series™ speakers. circuitry resides in a separate chamber at the back The rectangular block housing is made of 18 mm of the enclosure. -
Page 10: Technical Data, Cta 118 Sub
2.2 Technical Data, CTA 118 Sub Integrated Power Amps: Output power, Subwoofer: .......... 1000 W EIAJ, Class D @ 4 ohms Output power, Mid/High: ..........1000 W EIAJ, Class D @ 4 ohms Protection circuits: ............DDO Pro™ Limiter, thermal protect, short-circuit Line In/ Through:............ -
Page 11: C Rigging Contour Array™ Enclosures
Please also read the Notes on Rigging Safety in Chapter A of this manual. 1. Components and Applications of ConTour Array™ Rigging Hardware ConTour Array™ rigging hardware consists of the Tip: If you intend to rig additional enclosures, we following parts: recommend that you attach all the required speaker •... - Page 12 Fig. 8: Mounting the rigging frame Fig. 9: Setting an intermediate angle Fig. 10: Hoisting the mounted CTA 208 enclosure Fig. 11 a, b, c, d, e: Rigging additional CTA 208 enclosures...
-
Page 13: Ground Stacking
0° and 9° 100-120-volt units. in 1.5° increments. Fig. 12 a, b: ConTour Array™ ground stack connectors Fig. 13: ConTour Array™ stack plate Fig. 14 a, b: Attaching the stackplate to the CTA 118 Sub... -
Page 14: D The Contour Array™ Ddo-Pro™ Controller
D. The ConTour Array™ DDO-Pro™ Controller 1. The DDO-Pro™ 3. Handling the Net Port DDO-Pro™ Controller Net Ports link several CTA 118 Subs in a Four keys operate the device - Menu, Enter, communication network. Use CAT 5 network cables Up and Down. -
Page 15: Key Lock
ConTour Array™ 1.4 3.2 Key Lock – Preventing 3.4 Sub Delay Unauthorized Access Sub Delay is a time alignment tool, that is, it Locking Keys compensates differences in mid/high units’ and You can lock the CTA 118 Sub’s keys to prevent subwoofers’... -
Page 16: Quick Guide To The V1.01 Controller's Menu Structure
3.8 Quick Guide to the V1.01 Controller’s Menu Structure Fig. 19: Menu structure of the DDO-PRO™ Controller... -
Page 17: Technical Specifications Ddo-Pro™ Controller
Interface: ..............RS 485 Ethercon Gain: ................-96 dB to +6 dB in 0.5 dB steps Sub Level: ..............-12 dB to +6 dB in 0.5 dB steps Delay: ................Up to 72 ms Limiter: ................ HK AUDIO DDO™ Multi-Band Limiter... -
Page 18: E Service
CTA 118 Sub for phase checks. • If your equipment needs service, please turn a replacement speaker! Red= positive, black = to your HK AUDIO dealer or the HK AUDIO negative Connect the phase-checker to the CTA 118’s signal distributor in your country. - Page 19 ConTour Array™ 1.4 ® HK Audio • Postfach 1509 • 66595 St. Wendel Germany • info@hkaudio.com • www.hkaudio.com International Inquiries: fax +49-68 51-905 215 international@hkaudio.com Technische Änderungen vorbehalten Copyright 2009-2014 • Music & Sales GmbH • 10/2014...
