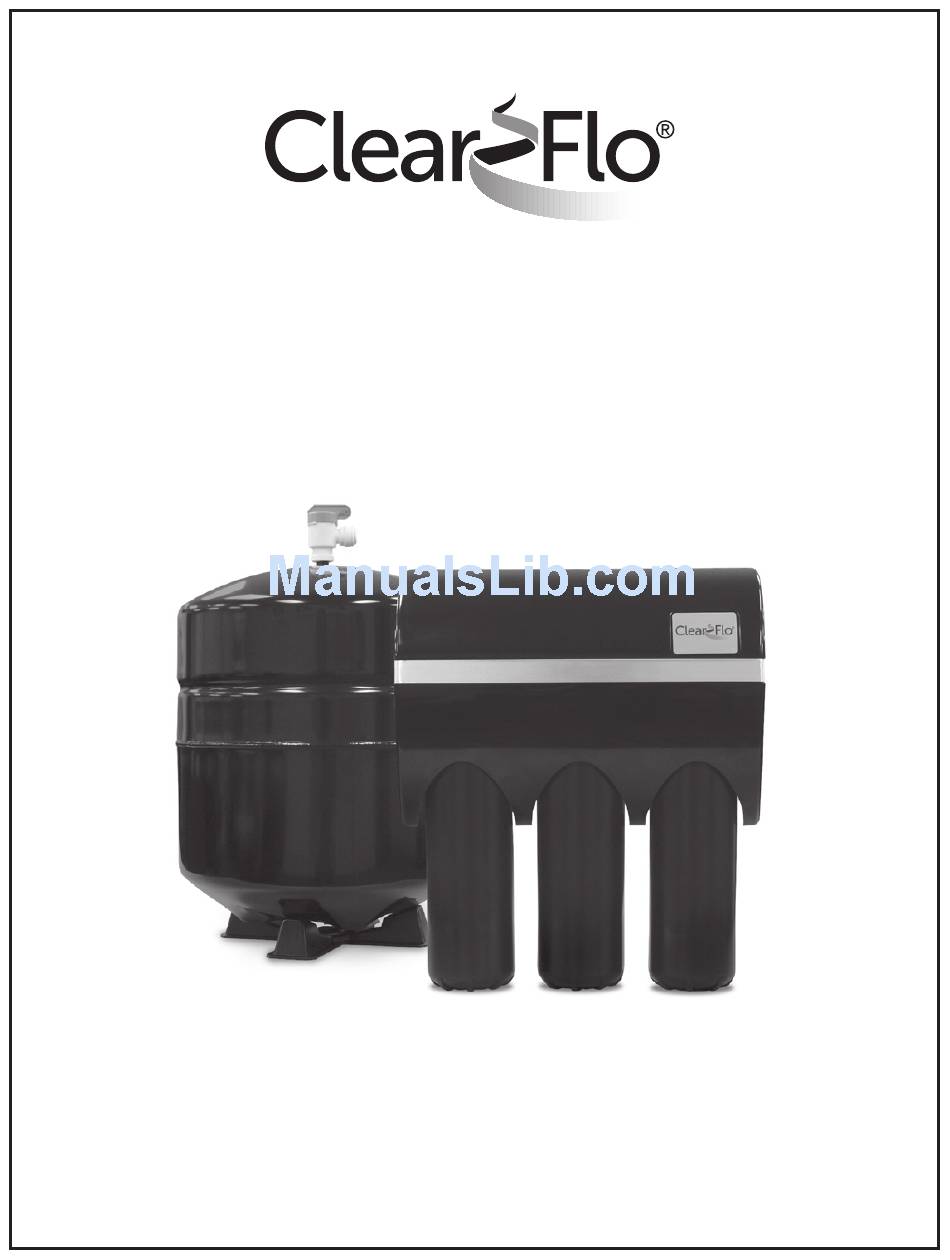

- Page 1 REVERSE OSMOSIS DRINKING WATER SYSTEM INSTALLATION, OPERATION & SERVICE MANUAL Drink With Confidence!
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page SECTION I. INTRODUCTION ...................3 SECTION II. SPECIFICATIONS ................4 SECTION III. PREPARATION ..................5 A. Typical Under Sink Installation Diagram .........5 B. Tools Recommended for Installation ..........7 C. Site Selection For Major System Components .......7 SECTION IV. INSTALLATION STEPS ................8 A. -
Page 3: Section I
SECTION I. INTRODUCTION Your new Reverse Osmosis (R.O.) Drinking Water System uses a combination of filtration technologies to reduce unwanted contaminants in a water supply. The following steps combine to give you the best in clear sparkling drinking water: MECHANICAL FILTRATION–The Sediment Prefilter has been designed to reduce the larger particles such as silt, rust and scale. Its 5 micron (equal to 0.0002 inch) nominal rating helps to give maximum life to the R.O. Membrane. -
Page 4: Specifications
SECTION II. SPECIFICATIONS TABLE A – RECOMMENDED OPERATING LIMITS FOR FEED WATER Specifications T.F.C. Membrane Water Pressure 40–100 psig (280–690 kPa) 2000 ppm (also mg/l) max. Temperature 40–100°F (4–38°C) 4–11 (optimum rejection at pH 7.0 - 7.5) Hardness Less than 10 gpg (170 mg/l) or soften Iron Less than 0.1 ppm (also mg/l) Manganese... -
Page 5: Preparation
SECTION III. PREPARATION A. TYPICAL UNDER SINK INSTALLATION DIAGRAM Close-up of Manifold DISPENSING FAUCET WITH AIR GAP See Page 9 IN-LINE ACTIVATED CARBON POST FILTER COVER DRAIN (3/8" Black) PRODUCT (3/8" Blue) HOLDING TANK SHUTOFF VALVE RO MANIFOLD (Open Position) DRAIN CLAMP DRAIN... - Page 6 OPTIONAL BASEMENT INSTALLATION DIAGRAM Close-up of Manifold DISPENSING FAUCET See Page 9 NOTE: FOR REFRIGERATOR WATER DISPENSER OR PRODUCT ICE MAKER HOOKUP, TEE (3/8” Blue) INTO 3/8" BLUE TUBING TO DISPENSING FAUCET. HOLDING TANK SHUTOFF VALVE (Open Position) FLOOR TANK (3/8”...
-
Page 7: Tools Recommended For Installation
B. Tools Recommended for Installation open area beneath the faucet under the sink for attaching product and drain tubing are The following tools will cover most of the considerations. installation sites encountered: 2. Drinking Water Holding Tank–The Holding " variable speed electric drill. Tank may be placed where it is convenient 2. -
Page 8: Installation Steps
SECTION IV. INSTALLATION STEPS •Turn the Handle of the Feed Water Saddle Valve counter clockwise (outward) until the lance does not protrude from the gasket. It All plumbing should be done in accordance with may have to be pushed in. state and local plumbing codes. -
Page 9: Drain Clamp Installation
3/8" DRAIN CLAMP ASSEMBLY D. R.O. Manifold Assembly Installation Locate the site per Sec. III, C.3. Various installation sites will require different types Drain Pipe 1/4" Nut of mounting fasteners; be sure the fastener selected will provide a firm, solid mounting. A support panel may be necessary on thin cabinet walls or to span between wall studs on Drain Clamp particleboard or drywall. -
Page 10: Position The Drinking Water Holding Tank And Make The Final Hose Connections
4. Locate the ¼" yellow tubing with the tee 1. Sanitizing the system. Use a drip pan to aid attached to one end. Remove the yellow plug clean–up. from the fitting labeled "Out" on the manifold NOTE: The system should be sanitized and insert the tubing. BEFORE installing the Sediment Prefilter, E. ... -
Page 11: Operation And Maintenance
2. Installing the R.O. Membrane: Holding Tank is full and no water is being used, the ASO Valve will automatically shut •Remove the R.O. Membrane Housing, (the off the feed water to conserve water. The closest of the three to the In-Out ports), and more water that is used (up to the capacity empty. -
Page 12: Changing The In-Line Activated Carbon Post Filter
4. To sanitize the system and replace the filters: •Do not open the Faucet for at least 8 hours. NOTE: The system should be sanitized •Discard the first three full tanks of water before installing the Sediment Prefilter and produced, they will contain chlorine. Activated Carbon Prefilter. •Use a good quality unscented 5¼% liquid IN–LINE ACTIVATED CARBON chlorine household bleach. POST FILTER ASSEMBLY •Add one capful of bleach (this is 2 tsp. - Page 13 NOTES:...
- Page 14 NOTES:...
- Page 15 NOTES:...
-
Page 16: Trouble Shooting Guide
SECTION VI. TROUBLE SHOOTING GUIDE Problem Possible Cause Solution Low quantity of Product Water Feed Water Saddle Valve is plugged or Open Valve or unclog. from Holding Tank closed. Clogged Sediment Prefilter or Replace Filters. Activated Carbon Prefilter. Low water pressure. Feed Water pressure must be above 40 psig. R.O. Membrane is fouled. See Feed Water operating limits. - Page 17 Problem Possible Cause Solution High Total Dissolved Solids (TDS) The Product Water and Drain Water Correct plumbing. in the Product Water lines are reversed. (continued) No drain flow, Drain Restrictor is Clear or replace Drain Restrictor. clogged. No drain flow, the drain orifice in Clear or replace Dispensing Faucet. the Dispensing Faucet is plugged. The ASO Valve is not closing. Repair or replace the ASO Valve Components New In-Line or Activated Carbon...
-
Page 18: Exploded View And Parts List
EXPLODED VIEW & PARTS LIST MADE IN USA... - Page 19 DRAWING NO. PART NO. DESCRIPTION 1 ....CS2009 ......Self Tapping Screw 2 ....CS2005 ......ASO Cap 3 ....CS2013 ......ASO Cap O–Ring 4 ....CS2011 ......ASO Diaphragm – Large 5 ....CS2007 ......ASO Piston 6 ....CS2006 ......ASO Piston Ring 7 ....
- Page 20 What Will The Manufacturer Do? Water-Right will repair or replace at its discretion any defective component. You must pay any labor charges. You must also pay for shipping or travel charges to return the defective part(s).
