CleanMate QQ3 Model
Quick Start Guide
If you have question or issue on the product, do not return it to store.
Please contact technical support first with live chat at:
http://cleanmate.metapo.com
You can register your product for one year warranty service at:
http://cleanmate.metapo.com

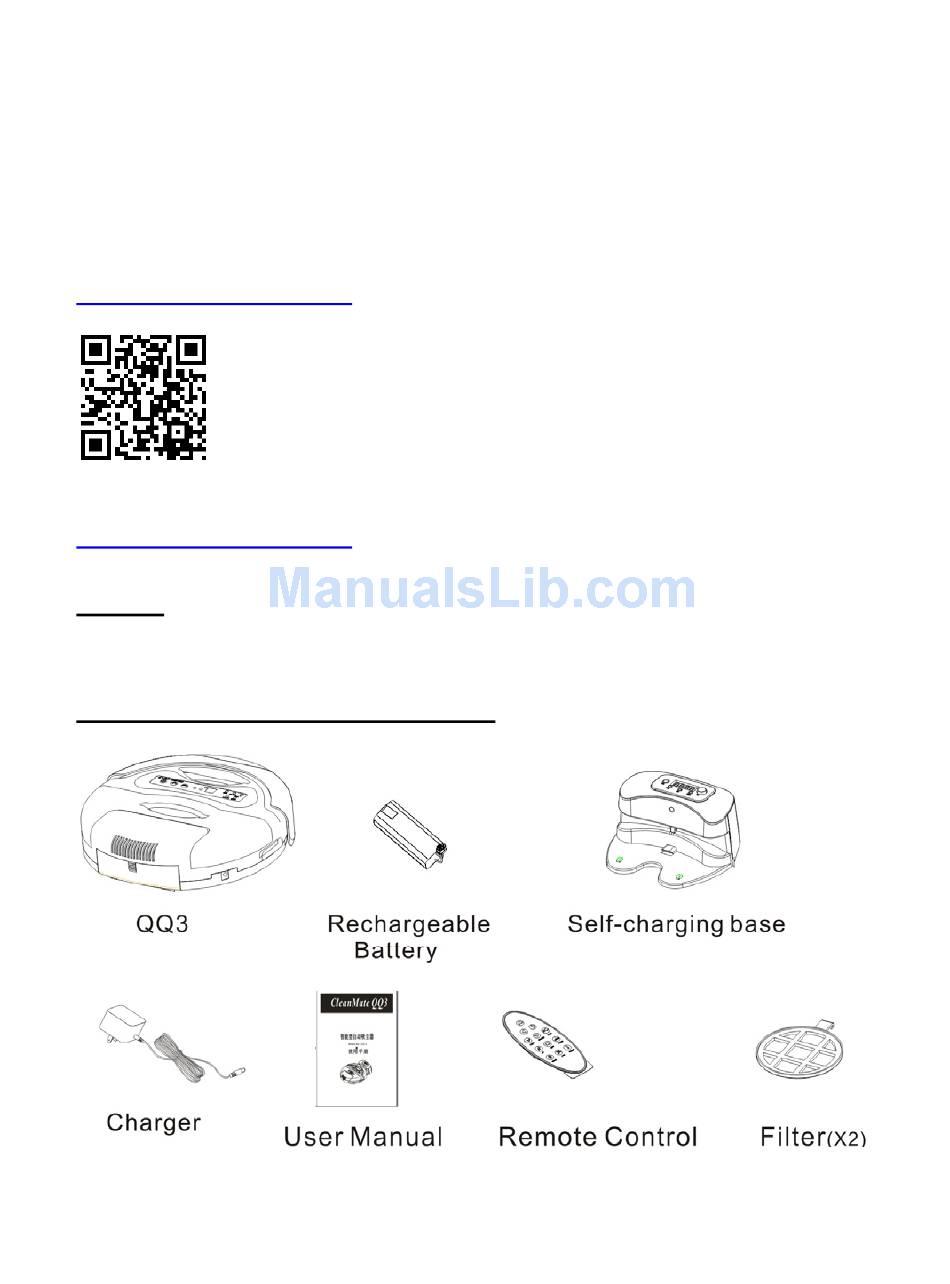

Step 1: Check QQ3 Unit and Accessories in the Package
Please check and make sure the following items are inside your package.
For QQ3T model without Sonic Walls

Advertisement

loading
Need help?

Need help?

Do you have a question about the CleanMate QQ3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iNFinuvo CleanMate QQ3

Summary of Contents for iNFinuvo CleanMate QQ3

  • Page 1 CleanMate QQ3 Model Quick Start Guide If you have question or issue on the product, do not return it to store. Please contact technical support first with live chat at: http://cleanmate.metapo.com You can register your product for one year warranty service at: http://cleanmate.metapo.com...
  • Page 2 For QQ3LT model with two Sonic Walls* * Note: Two Sonic Walls are optional based on the model configuration. Please check your invoice if Sonic Walls are included or not. If Sonic Walls are not included, then the Self-charging base is shown on the previous page.

  • Page 3: Step 2: Install The Battery

    Step 2: Install the Battery Remove both bumper protection foam pads before first use of the CleanMate unit. Remove the insulation sheet under battery before using the remote control for the 1 time. Battery installation – open battery cover, connect the battery wire connector to the connector on QQ3 unit, put battery securely in battery compartment, and close the battery cover.

  • Page 4: Step 3: Charge The Battery

    Step 3: Charge the Battery A. Charge the battery on self-charging base Make sure battery charger connector is plugged to the power socket on charging base first, and then plug the other end of charger to wall outlet. Position charging base securely against the wall and leave enough clearance space on both sides.
  • Page 5 B. Charge battery manually To charge the battery manually without using self-charging base, just plug battery charger connector to the charging socket on QQ3 unit first, and then plug the other end of charger to wall outlet. QQ3T model: Blue LED light on QQ3T unit will be blinking to indicate that battery is being charged. It normally takes about 3 hours to have the battery fully charged.
  • Page 6 Step 4: Start / Stop Cleaning for QQ3T model 1. Press “POWER” button on QQ3 to turn it on. The power LED (solid blue) will light up. 2. Press “Start/Stop” button once on QQ3 unit to start the cleaning. Press this button again to stop cleaning.
  • Page 7 LED and Audible Alert Indicators Audible indicator Status Description Times up (when the cleaning timer was set) Long Beep once followed by one Short Beep Battery Low, cleaning function off Long Beep once Error Short Beep three times Fully charged Fully charged and start vacuuming again Short Beep three times and One long Beep (when the docking station is set that after fully...
  • Page 8 Start / Stop Cleaning for QQ3LT model LCD Control Panel and Functions 1. Power Button: To turn on QQ3LT 2. Start Button: To start QQ3LT 3. Time and Mode Indicator: The numerical panel on QQ3LT will display the running time & cleaning mode.

  • Page 9: Remote Control Operation

    Remote Control Operation Make sure to remove the insulation plastic sheet under remote battery before using the remote for the first time. Remote Functions: 1. START button: Press START to begin the automatic cleaning of your room. 2. STOP button: Press STOP to stop the operation of QQ3. You will hear a long beep sound.
  • Page 10 a) Press “MODE”button once (1 time) to choose “Spiral” mode. The timer on QQ3 will display “1” for one minute and then show the cleaning time setting. When QQ3 hits an object while running in this mode, it will stop the movement and wait for further instruction.
  • Page 11 Step 6: How to Clean the Roller Brush Step 7: How to Set Up Sonic Walls (if it is available) The CleanMate Sonic Walls create an invisible barrier that QQ3LT will not cross. Sonic Wall...
  • Page 12 Push down the power switch, “POWER” green LED is on and Sonic Wall works. Push power switch again will power off. Sonic Walls can be set to block an area 1.5M (5ft.) long. Sonic Wall beam is keyhole shaped. A larger cone-shaped section blocks off areas of your home where you don’t want QQ3 to go.
  • Page 13 Step 7: How to Set Up QQ3 Scheduler With the help of scheduler on QQ3, user has the freedom to set up the cleaning time according to pre-programmed schedule. On the preset cleaning time, QQ3 will leave the charging base and start the cleaning session automatically. You can program it to start cleaning job at the same time on every day, or on any day of week you choose.
  • Page 14 2. Scheduler Setting Operations Setting the Clock 2.1 Once powered on, the scheduler will enter Clock Display Mode and display initial default setting of Sunday 00:00 (in 24 hours time format) 2.2 Press “SET” to set up the clock time (enter Clock-setting mode and display SET and CLK icon).
  • Page 15 After cleaning time is set, you can choose to schedule the cleaning time on any day in a week. The initial default setting is to clean on everyday. Press “WEEK”, then the scheduler will highlight all 7 days of the week, which means the QQ3 will start automatic cleaning once a day, 7 days a week (at same cleaning time).
  • Page 16 3. How to Delete a Preset Cleaning Schedule When scheduler displays clock time (at Clock Display Mode), press “SET” once and it will enter Clock-setting Mode. Press “SET” again, it will enter Scheduler Mode. When you set Hours and Minutes, the cleaning will be deleted if you select the bar (“- ”...
