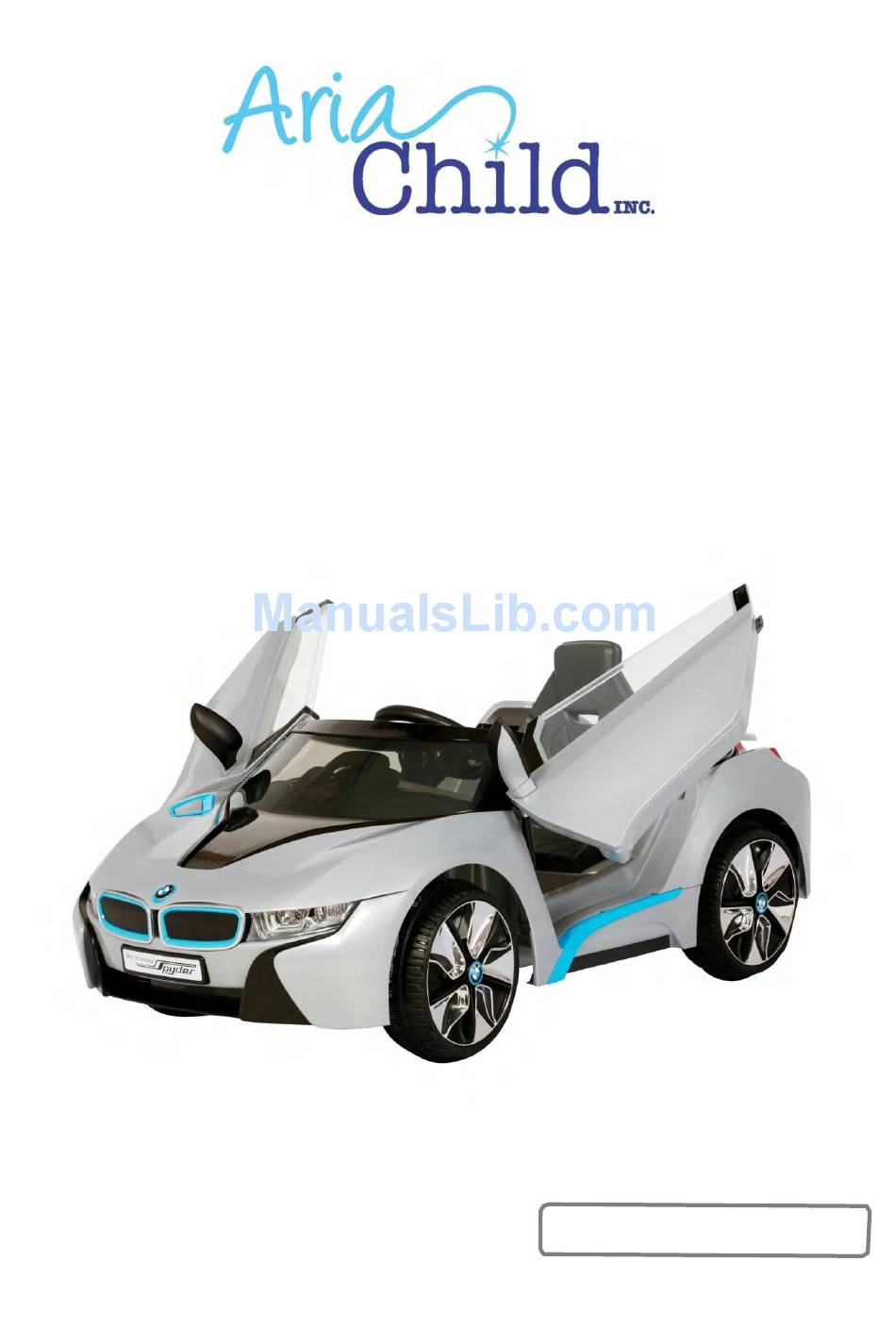

- Page 1 6V BMW i8 (5F62632) Customer Service Guide For internal reference only MMXIV © Copyright Aria Child Inc.
-
Page 2: Table Of Contents
Customer Service Guide Contents I) Check Battery …………………………........... 3 II) Check Wiring Condition ……………………………..…..…….…...………. 6 III) Check Foot Pedal ……………………………………..……………..……..….…... 15 IV) Gearbox Replacement ……………………………………..…..….….….…… 17 V) Butterfly Door Replacement ……………………..………………….……… VI) Warning Stickers …………….……………………………..…..…..….… VII) Schematic diagram ……………..…………….…..….……….…..….…. ………………………..…..….……...……..……… . 36 VIII) Exploded View CAUTION : DISCONNECT THE BATTERY BEFORE... -
Page 3: I) Check Battery
Customer Service Guide I) Check Battery Operation: Using a Flat head screwdriver, unlock and remove the seat. Locate the battery harness, unplug the connector then use a volt-meter to check battery condition at connector. Step (1) Turn to unlock plastic screw Unlock position Step (2) - Page 4 Customer Service Guide I) Check Battery Unplug the battery connector (RED) underneath seat Step (3) Step (4)
- Page 5 Customer Service Guide I) Check Battery Step Voltage Reading: 6.0 V ~ 6.6 V – Good condition 5.6 V ~ 5.9 V – Proceed to Recharge 5.5 V – Battery needs to be recharged. If after the stipulated recharging time, voltage has not increased, the battery needs replacement Below 5.5 V –...
-
Page 6: Ii) Check Wiring Condition
Customer Service Guide II) Check Wiring Connection Operation: There are two wiring connections that should be checked. A. Motor/Gearbox : Follow above (Point I) to remove the seat, locate the Gearbox harness underneath. Check the white connector of Gearbox underneath the seat... - Page 7 Customer Service Guide II) Check Wiring Connection B. Steering Wheel Unscrew the Steering Wheel on the right side Step (1) Pull it out and up to remove from steering column Step (2)
- Page 8 Customer Service Guide II) Check Wiring Connection Step Check wiring connection for the sound effects of Steering Wheel Unplug the connector and follow steps below to check the wiring inside the Dashboard. Otherwise, reverse above procedures to re-assemble the vehicle.
- Page 9 Customer Service Guide II) Check Wiring Connection C. Other Connections: Access the circuitry inside Dashboard assembly to check other wiring connections, Steering Wheel should be removed first. Step (1) Unscrew and remove the steering column at bottom of car body Step (2) Two screws...
- Page 10 Customer Service Guide II) Check Wiring Connection Step (3) Locate the two screws that secure the dashboard in place Step (4) Use Phillips screwdriver to unscrew and remove the dashboard...
- Page 11 Customer Service Guide II) Check Wiring Connection Step (5) Remove the Dashboard from the car body and check the wiring connection Step (6) There are two sets of black plugs connecting the Dashboard If the problem is addressed and fixed, reverse above steps to re-assemble the vehicle.
- Page 12 Customer Service Guide II) Check Wiring Connection Unscrew these eight screws to remove the Dashboard bottom Step (7) Step (8) Remove the dashboard bottom carefully to avoid breaking the wires...
- Page 13 Customer Service Guide II) Check Wiring Connection A : Power switch Step (9) B : Forward/Reverse switch A: Power Switch Step (10) Orange Black...
- Page 14 Customer Service Guide II) Check Wiring Connection B: F/R Switch Step Blue (top blade) (11) Purple (middle) Yellow (bottom) Check the wiring connections of Forward/Reverse shifter Reverse above procedures to re-assemble the vehicle...
-
Page 15: Iii) Check Foot Pedal
Customer Service Guide III) Check Foot Pedal Operation: Follow below procedures to check the Foot Pedal connection. Step (1) Turn over the vehicle and pull out the Foot Pedal cover by screwdriver from the right side Empty (front) Step (2) Pink Pink... - Page 16 Customer Service Guide III) Check Foot Pedal Snap it back in place Step Slide in the Foot Pedal into chassis from right side...
-
Page 17: Iv) Gearbox Replacement
Customer Service Guide IV) Gearbox Replacement Operation: Follow below steps to remove and replace the gearbox. Step (1) Use Flat screwdriver to lift up the wheel cap at its five ends (Rear right wheel only) Step (2) Use the screwdriver to remove the snap pin from the axle... - Page 18 Customer Service Guide IV) Gearbox Replacement Step (3) Remove the wheel from axle Keep the parts organized for re-assembly Step (4)
- Page 19 Customer Service Guide IV) Gearbox Replacement Unplug the gearbox connector (white) underneath the seat Step (5) Step (6) Cut the cable tie to release and remove the gearbox...
- Page 20 Customer Service Guide IV) Gearbox Replacement Step (7) Unplug the Headlights connector with Blue/White wires which is located underneath the wheel fender Unscrew these three screws to remove the wiring cover Step (8)
- Page 21 Customer Service Guide IV) Gearbox Replacement Then unscrew the wire clip at the inside of wiring cover Step (9) Step (10) Pull the gearbox and wire harness out from the axle...
- Page 22 Customer Service Guide IV) Gearbox Replacement Replace the entire gearbox with a new one Step (11) Reverse above procedures to re-assemble the vehicle For re-assembly, put the B/W harness through the circular hole first Step (12)
- Page 23 Customer Service Guide IV) Gearbox Replacement Then passing out the harness at the next wiring slot Step (13) Align the motor and gearbox to the proper location Step (14)
-
Page 24: V) Butterfly Door Replacement
Customer Service Guide V) Butterfly Door Replacement Operation: Follow above Procedure (IIB) to remove the Steering Wheel. Step (1) Unscrew the two screws at the inner side of windshield frame Open the door and unscrew the screw next to the piston point Step (2) - Page 25 Customer Service Guide V) Butterfly Door Replacement Use Flat screwdriver to lift the piston holder out of the car body Step (3) Step (4) Lift and remove the whole door from the holder slot...
- Page 26 Customer Service Guide V) Butterfly Door Replacement Step (5) Replace the entire door with new one Step (6) Insert the piston holder to the slot in car body...
- Page 27 Customer Service Guide V) Butterfly Door Replacement Press the tab here Step (7) Use a screwdriver press the holder into place Close the door Step (8)
- Page 28 Customer Service Guide V) Butterfly Door Replacement Step Hold and lightly compress the piston to press the door into place Reverse the above Steps 1&2 to re-assemble the vehicle...
-
Page 29: Vi) Warning Stickers
Customer Service Guide VI) Warning Stickers Operation: Check and replace the damaged warning stickers after repairing. Behind the seat... - Page 30 Customer Service Guide VI) Warning Stickers Behind the seat...
- Page 31 Customer Service Guide VI) Warning Stickers Below the seat...
- Page 32 Customer Service Guide VI) Warning Stickers Below the seat...
- Page 33 Customer Service Guide VI) Warning Stickers Below the seat...
- Page 34 Customer Service Guide VI) Warning Stickers Battery harness...
-
Page 35: Vii) Schematic Diagram
Customer Service Guide VII) Wirings Schematic... -
Page 36: Viii) Exploded View
Customer Service Guide VIII) Exploded View...
