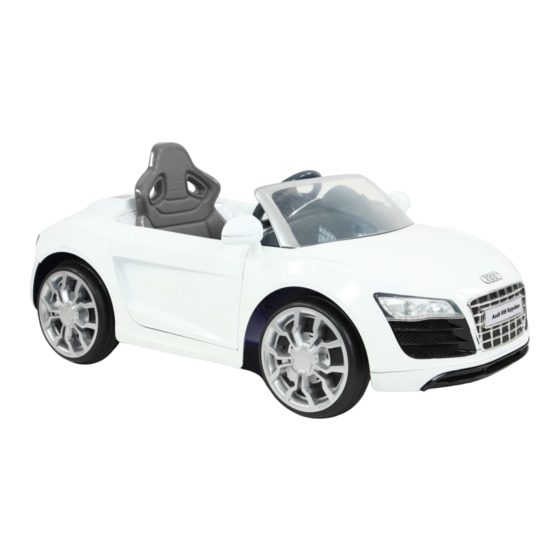

6V Audi R8 Spyder (W458AC)

Customer Service Guide

For internal reference only

MMXV © Copyright Aria Child Inc.

Table of Contents

Need help?

Do you have a question about the Rollplay W458AC and is the answer not in the manual?

Questions and answers

Summary of Contents for Aria Child Rollplay W458AC

Page 2: Table Of Contents
Customer Service Guide Contents I) Check Battery …………………………..........3 II) Check Wiring Condition ……………………………..………………………. 6 III) Check Foot Pedal ………………………………………………………..….….. 11 IV) Gearbox Replacement …………………………………………..…………… 13 V) Warning Stickers ……………………………………………..……..……… 20 VI) Schematic diagram ……………..…………….…..….………..……………. 26 VII) Exploded View …………….…………..…..….……….……..…….…… 27 CAUTION : Disconnect the battery before proceed the checking and/or replacing steps...
Page 3: I) Check Battery
Customer Service Guide I) Check Battery Operation: Use a Flat head screwdriver, unlock and remove the seat. Locate the battery harness, unplug the connector then use a volt-meter to check battery condition at battery side. Step (1) Unlock position Turn and unlock this plastic knob Step (2) Lift the seat from bottom edge then remove at headrest...
Page 4 Customer Service Guide I) Check Battery Step (3) Unplug the battery connector (RED) underneath seat Step (4)
Page 5 Customer Service Guide I) Check Battery Step Reading Judgment: 6.0 V ~ 6.5 V – Good condition 5.6 V ~ 5.9 V – Proceed to Recharge 5.5 V – Battery to be recharged if after the stipulated recharging time, voltage has not increased, the Battery needs replacement Below 5.5 V –...
Page 6: Ii) Check Wiring Condition
Customer Service Guide II) Check Wiring Connection Operation: There are totally two positions of connections should be checked. A. Motor/Gearbox : Follow above (Point I) to remove the seat, locate the Gearbox harness underneath. Check the harness of Gearbox which is in white color...
Page 7 Customer Service Guide II) Check Wiring Connection B. Functional Switches : Access all the functional switches per below procedures that located at the bottom side of Shifter. Main function switches located inside the wiring cover Step (1) Upside down the vehicle, unscrew these two screws to remove the cover Step (2)
Page 8 Customer Service Guide II) Check Wiring Connection Rear side Shifter Front side Single Blue Double Black Single Red Black Black Step (3) Double Black Single Red Double White Step (4) Power switch (leave the empty blade at the front side) Reverse above procedures to re-assemble back the vehicle...
Page 9 Customer Service Guide II) Check Wiring Connection C. Dashboard : Access the wiring connection under the Dashboard. Step (1) Unscrew the Steering Wheel from right hand side Step (2) Life and remove the Steering Wheel from column...
Page 10 Customer Service Guide II) Check Wiring Connection Step (3) Unscrew these two screws to remove the dashboard Step (4) Check the 2-pin plug for any loose connection or not...
Page 11: Iii) Check Foot Pedal
Customer Service Guide III) Check Foot Pedal Operation: Follow below procedures to check the Foot Pedal connection. Step (1) Upside down the vehicle and pull out the Foot Pedal cover by screwdriver from right side Black (middle) White (front) Step (2) Blue (rear)
Page 12 Customer Service Guide III) Check Foot Pedal Snap back in place Step Slide in the Foot Pedal into Chassis from right side...
Page 13: Iv) Gearbox Replacement
Customer Service Guide IV) Gearbox Replacement Operation: Follow below steps to disassemble and replace the gearbox completely. Use a flat head screwdriver to remove the wheel cap from tabs (Rear left wheel only) Step (1) Step (2) There are four tabs at the wheel cover (align the center lines)
Page 14 Customer Service Guide IV) Gearbox Replacement Step (3) Use the same screwdriver to remove the snap-pin from axle as showed Step (4) Slide the rim and rear wheel out from axle...
Page 15 Customer Service Guide IV) Gearbox Replacement Follow above (Point IIB) to access the Motor harness (white) underneath the seat, then unplug it before removing the gearbox Step (5) Step (6)
Page 16 Customer Service Guide IV) Gearbox Replacement Step (7) Upside down the unit and then unscrew the wiring cover Unplug the Headlights connector plugs located near the front end Step (8)
Page 17 Customer Service Guide IV) Gearbox Replacement Step (9) Unscrew the two wiring clips as showed Step (10) Cut this cable tire to release the gearbox...
Page 18 Customer Service Guide IV) Gearbox Replacement Step (11) Slide the gearbox out from axle Step (12) Advance design for easy to replace the whole gearbox by simple steps...
Page 19 Customer Service Guide IV) Gearbox Replacement Step (13) Reverse above procedures to re-assemble back the vehicle...
Page 20: V) Warning Stickers
Customer Service Guide V) Warning Stickers Operation: Check and re-put the damaged warning stickers after repairing. Underneath the Seat (left)
Page 21 Customer Service Guide V) Warning Stickers Underneath the Seat (right)
Page 22 Customer Service Guide V) Warning Stickers Underneath the Seat (middle)
Page 23 Customer Service Guide V) Warning Stickers Front Inner wall of Battery Compartment...
Page 24 Customer Service Guide V) Warning Stickers Below the seat...
Page 25 Customer Service Guide V) Warning Stickers Battery harness...
Page 26: Vi) Schematic Diagram
Customer Service Guide VI) Wirings Schematic...
Page 27: Vii) Exploded View
Customer Service Guide VII) Exploded View...
