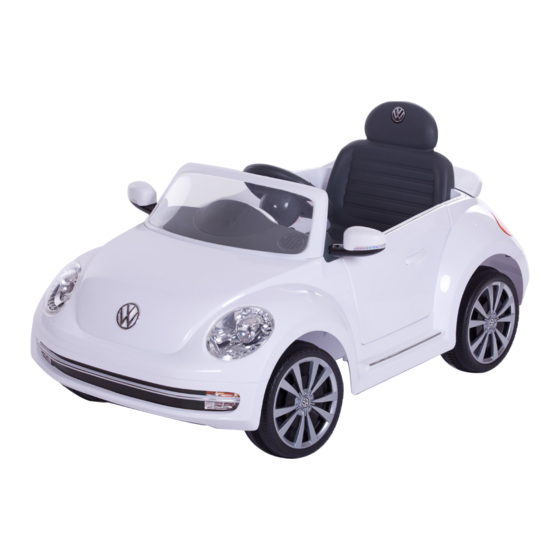

Volkswagen Beetle
Owner's Manual and Assembly Instructions
Model W486TG-F
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colours may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
The 21st Century Beetle is of cially licensed by Volkswagen. Manufactured and distributed by
or for Paragon Child Products Co., Ltd. (Goodbaby Group).
Trademark "VW-in-circle logo", associated design patents and copyrights are used with the
approval of the owner Volkswagen AG.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W486TG-F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aria Child W486TG-F

Summary of Contents for Aria Child W486TG-F

  • Page 1 Volkswagen Beetle Owner’s Manual and Assembly Instructions Model W486TG-F Read and understand the entire manual before assembly and operation. The vehicle must be assembled by an adult who has read and understands the instructions. Made in China. Styles and colours may vary. Do not return to store. Call 1-888-982-9309 for assistance and replacement parts.
  • Page 2 Introduction Thank you for purchasing this vehicle from Aria Child. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please have your model number and serial number ready before calling. Please have proof of purchase.
  • Page 3 IMPORTANT! YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE FIRST USE! Charge the battery after each use. Charge the battery at least once a month, even if the vehicle is not in use. DO NOT RETURN THIS ITEM TO THE STORE! Call Customer Service if you need assistance or replacement parts.
  • Page 4 This page is intentionally left blank.

  • Page 5: Table Of Contents

    Table of Contents Safety ............6 Parts ............8 Charging Instructions .......9 Assemble the Front Wheels ....10 Assemble the Left Rear Wheel ....11 Assemble the Right Rear Wheel ....12 Attach the Windshield and Spoiler..13 Attach the Steering Wheel ......14 Attach the Mirrors ........15 Attach the Seat ........16 Battery Removal ........17 Operating Instructions ......18...

  • Page 6: Safety

    Safety WARNING: SAFETY RIDING RULES The user must follow all safety rules and guidelines, or serious injury or death may occur to the user. Always use common sense and safe practices when using the vehicle. The user must be at least 3 years old and weigh no more than 77 lbs. This product contains small parts that are for adult assembly only.
  • Page 7 Safety (Continued) WARNING: BATTERY SAFETY Battery posts, terminals and related accessories contain lead and lead compound (asic) chemicals known to the state of California to cause cancer, reproductive harm, and are toxic and corrosive. DO NOT open the battery. Contact exposure to battery leakage (lead acid) may cause serious injury. Immediately contact your doctor if exposure occurs.

  • Page 8: Parts

    Parts 1. Manual 11. Front thin washer 2. Steering wheel assembly (10 x 1 mm) (2) Not Included: 3. Battery charger 12. Rear thin washer 4. Mirrors (2) (12 x 1 mm) (2) 5. Windshield 13. Snap pins (4) 6. Seat 14.

  • Page 9: Charging Instructions

    Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. To Charge the Battery: 1. Ensure the car is stopped and turned off. 2. Unlock and remove the seat. 3.

  • Page 10: Assemble The Front Wheels

    Assemble the Front Wheels 1. Slide the front thick washer (9) onto the front axle. 2. Slide the front wheel (7) onto the front axle. 3. Slide the front thin washer (11) onto the front axle. 4. Slide the snap pin (13) into the hole on the front axle until rmly attached.

  • Page 11: Assemble The Left Rear Wheel

    Assemble the Left Rear Wheel Left Rear Wheel: 1. Slide the rear thick washer (10) onto the left rear axle. 2. Slide the rear wheel orientation sleeve (15) onto the left rear wheel axle. 3. Slide the left rear wheel (8) onto the left rear axle. The side with the gear teeth faces inward.

  • Page 12: Assemble The Right Rear Wheel

    Assemble the Right Rear Wheel Right Rear Wheel: 1. Slide the right rear wheel (8) onto right rear wheel axle. The side with gear teeth faces inward. (Note: the gear teeth must engage with the gear box.) 2. Slide the rear thin washer (12) onto the right rear axle. 3.

  • Page 13: Attach The Windshield And Spoiler

    Attach the Windshield 1. Align the windshield (5) with the two side slots between the dashboard and the body. 2. When evenly aligned, push lightly on the windshield while holding at each end until it clicks. (Note: the two sides of the windshield must be pushed in evenly.) 3.

  • Page 14: Attach The Steering Wheel

    Attach the Steering Wheel 1. Remove the screw and nut from the steering wheel assembly before attaching. 2. Plug the black steering wheel connector (A) into the black dashboard connector (B). 3. Insert the steering wheel (2) into the steering rod, and match the screw holes of the steering wheel with the screw holes on the steering rod.

  • Page 15: Attach The Mirrors

    Attach the Mirrors 1. Remove the screw and nut from the mirror (4) before attaching. 2. Insert the left side mirror into the slot on the side of the body. Push it into the slot. 3. Insert the screw and fasten the nut to secure the mirror. 4.

  • Page 16: Attach The Seat

    Attach the Seat 1. Position the seat (6) over the battery compartment. 2. Slide the seat onto the guides located in front of the rear spoiler. 3. Turn the thumb screw clockwise on the seat to lock it properly in position.

  • Page 17: Battery Removal

    Battery Removal Battery strap Screw Battery 1. Disconnect the red battery connector (A) from the red engine connector (B) . 2. Loosen and remove the screw. 3. Unfasten the battery from the strap. 4. Remove the battery. Note: It is not necessary to remove the battery for charging. However, if the battery does not reach the outlet, it can be removed for charging.

  • Page 18: Operating Instructions

    Operating Instructions To turn on the vehicle, turn the power switch to “I.” To turn off the vehicle, turn the power switch to “O.” Push the shifter forward to move forward. Pull the shifter backward to go in reverse. Insert the MP3 cable (20) into the MP3 jack and connect to your device. The MP3 player will turn off after about 1 hour.

  • Page 19: Maintenance

    Maintenance Important Battery and Charger Information Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. Charge the battery for 24 hours before using the vehicle for the rst time.

  • Page 20: General Care

    General Care Regularly inspect all vehicle parts to ensure they are in good working condition. Regularly inspect the charger, cord, plug, and other related parts for damage. Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 24 for more information.

  • Page 21: Troubleshooting Guide

    Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Thermal fuse tripped Reset fuse Snap pins are loose Tighten snap pins Loose wires or loose Ensure the battery connectors connectors...
  • Page 22 Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors start connectors are securely attached. If wires are loose, contact Consumer Service for repairs “Dead spot” on motor A “dead spot” means electricity is not being delivered to the terminal.

  • Page 23: Fcc Information

    FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 24: Service And Repairs

    Service and Repairs Do not return this vehicle to the store. If your product requires service, repairs or replacement parts, please contact Aria Child Customer Service. Hours: 9 AM - 5 PM (CST), Monday - Friday 888-982-9309 Phone: 1- Email: customerservice@ariachild.com Web: www.ariachild.com...

  • Page 25: Warranty

    This warranty does not cover, and is not intended to exclude any liability on the part of Aria Child, whether under this warranty or implied by law for any indirect or consequential damages for breach of warranty. Some states may not allow the exclusion or limitation so this limitation may not apply to you.
  • Page 26 This page is intentionally left blank.
  • Page 28 Un coupon de caisse émis par un détaillant agréé par Aria Child est exigé. Aria Child assure que la batterie 6 V est garantie pendant six mois à partir de l’achat original chez un détaillant agréé. Un coupon de caisse est exigé.
  • Page 30 Renseignements de la FCC Cet appareil est conforme à l’article 15 des Règles de la FCC. Son fonctionnement est assujetti aux deux conditions suivantes : (1) cet appareil ne peut causer d’interférence nuisible, et (2) cet appareil doit accepter toute interférence reçue, notamment l’interférence susceptible de causer un fonctionnement non désiré.
  • Page 34 Entretien Renseignements importants sur la batterie et le chargeur Seul un adulte qui a lu et compris les mises en garde de sécurité peut manipuler et faire fonctionner la batterie et le chargeur de batterie. Garder hors de portée des enfants. Charger la batterie pendant 24 heures avant de conduire le véhicule pour la première fois.
  • Page 46 Sécurité (suite) MISE EN GARDE : SÉCURITÉ DE LA BATTERIE Les bornes et cosses de batterie, ainsi que les accessoires connexes, peuvent contenir du plomb et des composés chimiques de plomb (ASIC) reconnus par l’État de la Californie comme une cause de cancer, d’anomalies de la reproduction, et sont toxiques et corrosifs.
  • Page 50 IMPORTANT! LA BATTERIE DOIT ÊTRE CHARGÉE PENDANT 24 HEURES AVANT PREMIÈRE UTILISATION! Charger la batterie après chaque utilisation. Charger la batterie au moins une fois par mois, même si le véhicule n’a pas été utilisé. NE PAS RETOURNER CET ARTICLE AU MAGASIN! Pour obtenir de l’aide ou des pièces de remplacement, appeler le service à...
