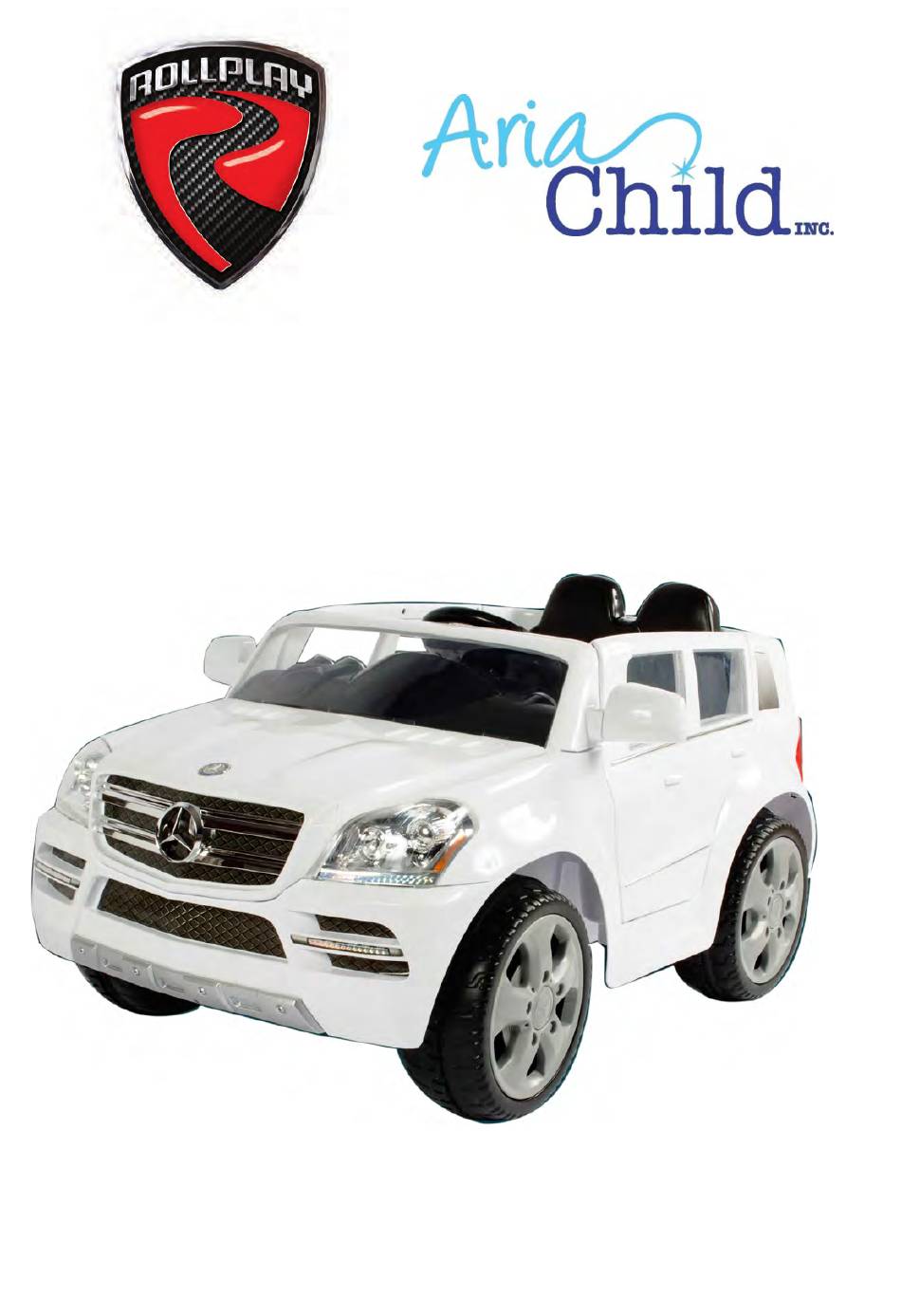

- Page 1 Mercedes Benz GL (W488AC) Customer Service Guide MMXIII © Copyright Aria Child Inc.
-
Page 2: Table Of Contents
Customer Service Guide Contents I) Check Battery …………………………..........3 II) Check Wiring Condition ……………………………..………………………. 5 III) Check Foot Pedal ………………………………………………………….…..12 IV) Gearbox Replacement …………………………………………..…………… 14 V) Door Replacement .…………………………………..…….……..….………. 17 VI) Motor Control Board Replacement .….………..…….……..….………. 19 VII) Headlight Replacement .….……………………...…….……..….………. -
Page 3: I) Check Battery
Customer Service Guide I) Check Battery Operation: Using a Flat head screwdriver, unlock and remove the seat. Locate the battery harness, unplug the connector, and use a volt-meter to check battery condition at battery side. Step (1) Turn and unlock this plastic knob according to the icon Step (2) Unplug the battery connector (red) by holding down the small clip and pulling apart. - Page 4 Customer Service Guide I) Check Battery Step Voltage Reading: 6.0 V ~ 6.5 V – Good condition 5.6 V ~ 5.9 V – Proceed to Recharge 5.5 V – Battery to be recharged if after the stipulated recharging time, voltage has not increased, the Battery needs replacement Below 5.5 V –...
-
Page 5: Ii) Check Wiring Condition
Customer Service Guide II) Check Wiring Connection Operation: There are four positions of connections to check. A. Motor/Gearbox : Remove seat per instructions above (Point I), locate the Gearbox harness underneath Check the gearbox connector (white). Disconnect by pressing small clip and pulling apart, then push firmly back together. - Page 6 Customer Service Guide II) Check Wiring Connection B. Motor Control Board : Remove seat as per instructions above (Point I), locate and access the Motor Control Board just next to the rechargeable battery. There is a WHITE plug (4-pin) on the motor control board, ensure that all four wires are properly connected.
- Page 7 Customer Service Guide II) Check Wiring Connection C. Dashboard : Remove the Steering Wheel and Dashboard to check the connection. Step (1) Unscrew then pull up & out to remove steering wheel Step (2) Next, unscrew these two screws to remove the dashboard...
- Page 8 Customer Service Guide II) Check Wiring Connection Step (3) Pull up & out to remove the dashboard and windshield together as one unit. Step (4) Check the 4-Pin plug...
- Page 9 Customer Service Guide II) Check Wiring Connection D. Shifter : Follow steps above to remove the Dashboard, then check the connection of Shifter and Main Power Switch as well. Step (1) Unplug this connector Step (2) Unscrew these four screws to remove the Windshield...
- Page 10 Customer Service Guide II) Check Wiring Connection Step (3) Unscrew these four screws Step (4) Lift up the bottom plate to access the switch for Shifter & Power...
- Page 11 Customer Service Guide II) Check Wiring Connection Shifter Step (5) Bottom Blue Pink Yellow Main Power Switch Step (6) Red wire Orange wire Empty blade (the one far away from shifter) Reverse above procedures to re-assemble the vehicle...
-
Page 12: Iii) Check Foot Pedal
Customer Service Guide III) Check Foot Pedal Operation: Follow below procedures to check the Foot Pedal connection. Step (1) Turn over the vehicle and push on the smaller lip to loosen the pedal Empty (front) Step (2) Pink (middle) Pink (rear) - Page 13 Customer Service Guide III) Check Foot Pedal Press it down in place ② Step ① Slide the Foot Pedal into Chassis from right side...
-
Page 14: Iv) Gearbox Replacement
Customer Service Guide IV) Gearbox Replacement Operation: Follow below steps to inspect the gearbox or remove for replacement. Use a flat head screwdriver to remove the hub cap (Rear right/ passenger side wheel only) Step (1) Step (2) Use the flat head screwdriver to remove the snap-pin from axle as shown... - Page 15 Customer Service Guide IV) Gearbox Replacement Step (3) off of axle Slide the rear wheel Follow above (Point IIB) to access the Motor harness underneath the seat, then unplug it before removing the gearbox Step (4)
- Page 16 Customer Service Guide IV) Gearbox Replacement Step (5) Slide the gearbox out from axle Step (6) Replace easily by sliding the new gearbox onto the axle. Fit the gray cylinder through the hold and plug in the white connectors. Reverse above procedures to re-assemble the vehicle...
-
Page 17: V) Door Replacement
Customer Service Guide V) Door Replacement Operation: Follow above (Point IIC) to remove the Dashboard first and replace the Car Door by below steps. Step (1) Unscrew these two screws on hinge and release the whole door Step (2) Lift up the car door to remove... - Page 18 Customer Service Guide V) Door Replacement Easy steps to replace the whole Car Door Assembly completely Step Reverse above procedures to re-assemble the vehicle...
-
Page 19: Vi) Motor Control Board Replacement
Customer Service Guide VI) Motor Control Board Replacement Operation: Follow above (Point I) to remove the seat first and replace the Motor Control Board (MCB) by below steps. Unscrew these two washerscrews on MCB Step (1) Step (2) Unplug these three connectors... - Page 20 Customer Service Guide VI) Motor Control Board Replacement Step No connection needed at that 2-Pin connector Easy to replace the whole MCB by simple steps Reverse above procedures to re-assemble the vehicle...
-
Page 21: Vii) Headlight Replacement
Customer Service Guide VII) Headlight Replacement Operation: Follow below steps to remove and replace the Headlight. Turn over the vehicle to access and unscrew the headlight washerscrew Step (1) Use a flat head screwdriver to release the two latch locks Step (2) Then replace the Headlight Assembly with new one Reverse above procedures to re-assemble the vehicle... -
Page 22: Viii) Schematic Diagram
Customer Service Guide VIII) Wiring Schematic... -
Page 23: Ix) Exploded View
Customer Service Guide IX) Expanded View...
