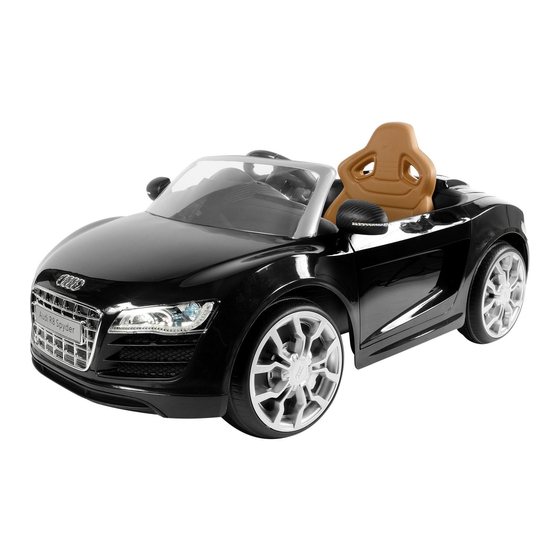

- Page 1 All manuals and user guides at all-guides.com 6V Audi R8 Spyder (W458AC) Customer Service Guide MMXV © Copyright Aria Child Inc.
- Page 2 All manuals and user guides at all-guides.com Customer Service Guide Contents I) Check Battery …………………………..........3 II) Check Wiring Condition ……………………………..………………………. 6 III) Check Foot Pedal ………………………………………………………..….….. 11 IV) Gearbox Replacement …………………………………………..…………… 13 V) Exploded View …………….…………..…..….……….……..…….…… 20 CAUTION : Disconnect the battery before proceeding with any of the following steps...
- Page 3 All manuals and user guides at all-guides.com Battery Troubleshooting: How to Access and Check the Battery 1. Use a flat head screwdriver to unlock the seat 2. Lift the seat from the bottom to remove 3. Locate the battery, and unplug the red connectors 4.
- Page 4 All manuals and user guides at all-guides.com Battery Troubleshooting: How to Access and Check the Battery Step (3) Unplug the battery connector (RED) underneath seat...
- Page 5 All manuals and user guides at all-guides.com Battery Troubleshooting: How to Access and Check the Battery Step Volt Meter Results: 6.0 V ~ 6.5 V – Good condition 5.6 V ~ 5.9 V – Proceed to Recharge 5.5 V – Recharged battery for 8-10 hours. If after the charging time, voltage has not increased, the battery needs replacement Below 5.5 V –...
- Page 6 All manuals and user guides at all-guides.com Battery Troubleshooting: Check the Wiring Connections 1. Check the Gearbox Connection: Follow the above steps to remove the seat. Locate the white gearbox connectors in the battery compartment. 2. Disconnect and reconnect these connectors. Try reconnecting the battery, and pressing the gas pedal to check for power.
- Page 7 All manuals and user guides at all-guides.com Battery Troubleshooting: Check the Wiring Connections 1.Flip the car on its side. 2. Locate the black wiring harness. Use a screwdriver to remove the screws on either side of the cover. 3. Check the wiring connections to ensure they are pushed in completely and fully intact.
- Page 8 All manuals and user guides at all-guides.com Battery Troubleshooting: Check the Wiring Connections Rear side Shifter Front side Single Blue Double Black Single Red Black Black Step (3) Double Black Single Red Double White Power switch (leave the empty blade at the front side) Reverse above procedures to re-assemble the vehicle...
- Page 9 All manuals and user guides at all-guides.com Sound and Steering Troubleshooting 1. Unscrew the steering wheel screw, and remove the steering wheel from the steering column. 2. Unscrew the screws on either side of the dashboard. Lift up the dashboard and windshield assembly. 3.
- Page 10 All manuals and user guides at all-guides.com Sound and Steering Troubleshooting Step (2) Unscrew these two screws to remove the dashboard Step (3) Check the 2-pin plug for any loose connections...
- Page 11 All manuals and user guides at all-guides.com Checking the Foot Pedal Connection 1. Turn the vehicle on its back and located the foot pedal harness underneath the car. 2. Use a flat head screwdriver to snap out the foot pedal. 3.
- Page 12 All manuals and user guides at all-guides.com Checking the Foot Pedal Connection Snap back in place Step Slide in the Foot Pedal into Chassis from right side...
-
Page 13: Replacing The Gearbox
All manuals and user guides at all-guides.com Replacing the Gearbox Follow the below steps to remove and replace the gearbox. Use a flat head screwdriver to remove the wheel cap from tabs (Rear right wheel only) Step (1) - Page 14 All manuals and user guides at all-guides.com Replacing the Gearbox Step (2) Use the same screwdriver to remove the snap- pin from axle as show Step (3) Slide the rim and rear wheel out from axle...
- Page 15 All manuals and user guides at all-guides.com Replacing the Gearbox Step (4) Step (5)
- Page 16 All manuals and user guides at all-guides.com Replacing the Gearbox Flip the car over to access the wiring harness (Follow steps on page 7) Step (6) Unscrew the wiring cover Unplug the headlight connector plugs located near the front end Step (7)
- Page 17 All manuals and user guides at all-guides.com Replacing the Gearbox Step (8) Unscrew the two wiring clips as shown Step (9) Cut this ziptie to release the gearbox...
- Page 18 All manuals and user guides at all-guides.com Replacing the Gearbox Step (10) Slide the gearbox off axle...
- Page 19 All manuals and user guides at all-guides.com Replacing the Gearbox Step (11) Reverse above procedures to replace the gearbox...
- Page 20 All manuals and user guides at all-guides.com Customer Service Guide VII) Exploded View...
