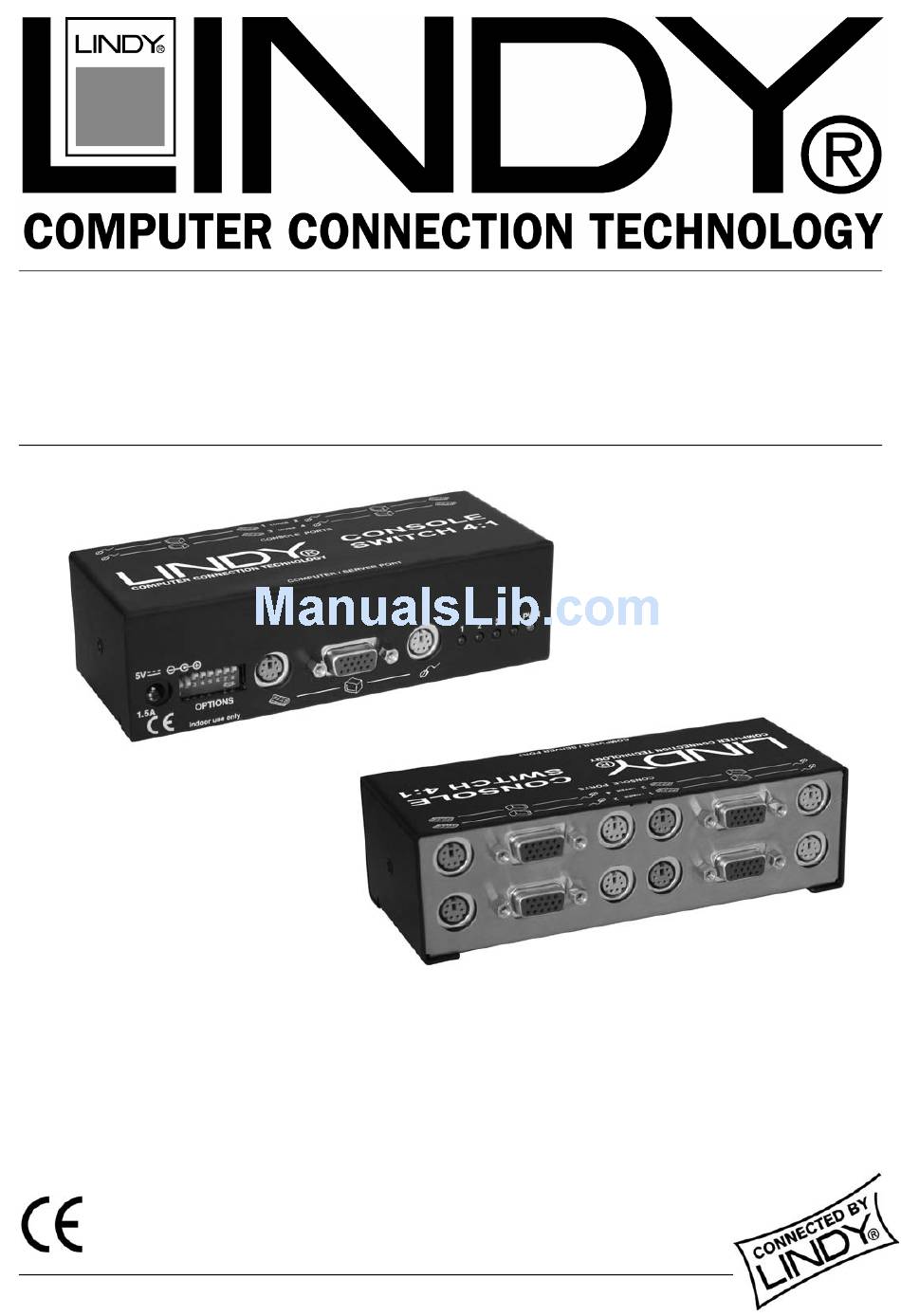

Page 1: User Manual
Console Switch 4:1 User Manual For Commercial Use Tested to Comply with FCC Standards © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (JULY 2005) LINDY No. 39123 www.lindy.com English... - Page 2 Main KVM connection o One host or many o The LINDY Console Switch can just as easily connect to a single host system or, via a KVM switch, to many systems.
-
Page 3: Installation And Operation
(switch 2) for more information. Computer or KVM switch The LINDY Console Switch can either connect directly to a single host computer or to range of hosts via one or more KVM switches. To connect a host computer or KVM switch: 1. - Page 4 The ports can be connected and used in any order (see note 2 below), and not all connectors of each port need to be used. For instance, when a port of the LINDY Console Switch is used as a video splitter port, usually only the video connections are utilised.
- Page 5 LINDY Console Switch can be configured to derive its power from the host system. The following two main factors will determine whether you can use the LINDY Console Switch with, or without the power supply: 1: Lengths of cables to host computer and to consoles A.
-
Page 6: Operation
The effect of this is to ensure that the video images remain sharp even at high resolutions over relatively long distances. To enable video boost • Click switch 2 (the LINDY Console Switch may be powered on or off) down into its ON position. Resetting LINDY Console Switch A reset option is provided. -
Page 7: Special Configuration
400mA, then the power adapter must be used. Note 4: The power adapter must be used if the LINDY Console Switch is to be cascaded with other similar units or interface-powered KVM switches or extenders. - Page 8 English Manual Reset LINDY Console Switch (switch 3) Use this option to reset the LINDY Console Switch. Change the switch to the ON position momentarily and then OFF again to achieve the reset. OFF Normal operation. Reset LINDY Console Switch (change back to OFF position to complete the reset).
- Page 9 1. Enter configuration mode (click switch 6 down into its ON position). All of the LINDY Console Switch front panel indicators will light as well as all three of the keyboard indicators (‘Num Lock’, ‘Caps Lock’ and ‘Scroll Lock’). Your LINDY Console Switch is now ready to accept new configuration options.
- Page 10 It is strongly recommended that you switch off the host system or KVM switch before attempting to connect your LINDY Console Switch. However, if this is not possible then you need to ‘hot plug’ your LINDY Console Switch while power is still applied to the system. There is not normally a danger of damage to the system, however, when mouse communications are interrupted, often they fail to reinitialise when reconnected.
- Page 11 Microsoft® mouse, then it will usually state that it is an Intellimouse® on its underside label. Note: Where a mixture of different mice are connected to the LINDY Console Switch, only one of the connected mice needs to be Intellimouse®-style in order to consider using the Intellimouse®...
- Page 12 English Manual LINDY Console Switch Software Upgrade The internal software of your LINDY Console Switch can be upgraded to utilise the latest features and functionality. However, you should only consider this option when you experience problems with the switch that cannot be solved in another way.
- Page 13 Stage C - Place the LINDY Console Switch in upgrade mode and reboot 1. On the LINDY Console Switch front panel, click switch 7 down into its ON position to select upgrade mode at its next power on.
-
Page 14: Radio Frequency Energy
A prescrites dans le règlement sur le brouillage radioélectriques publié par le ministère des Communications du Canada. For Commercial Use Tested to Comply with FCC Standards © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (JULY 2005)
