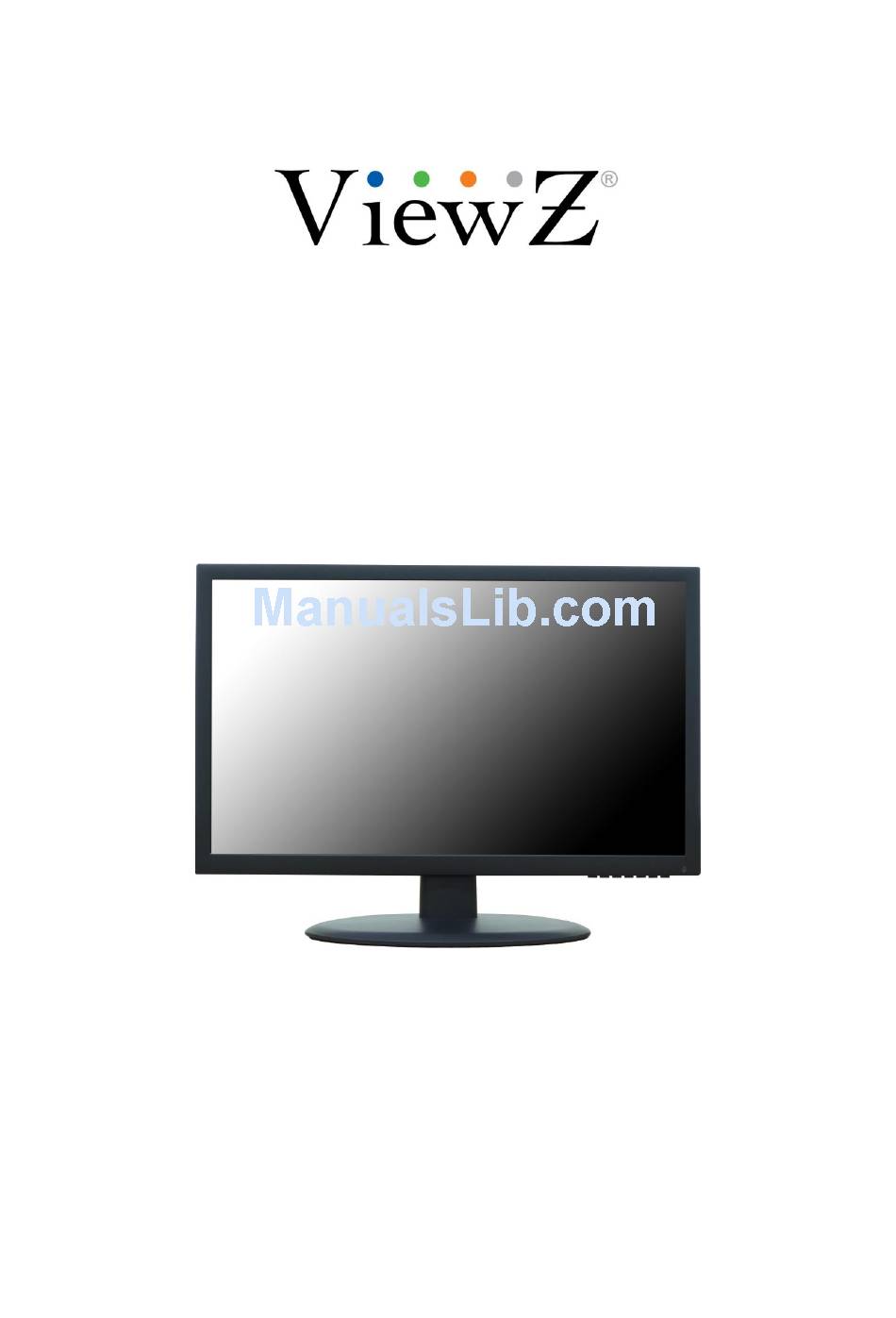

- Page 1 18.5/21.5-INCH WIDE TFT-LED MONITOR USER MANUAL Please read this manual thoroughly before use, and keep it handy for future reference.
- Page 3 SAFETY INSTRUCTION ………………………………………………………….…… 2 ~ 3 CAUTIONS………………………………………………………………......FCC RF INTERFERENCE STATEMENT ……………………………....... INSTALLATION …………………………………………………………………………… CONNECTING WITH EXTERNAL EQUIPMENT……………………………………… CONTROLS AND FUNCTIONS ………………………………………………………… 9 ~ 12 MOUNTING GUIDE……………………………………………………………………….. D-SUB CONNECTOR PIN ASSIGNMENTS ………………………………………… POWER MANAGEMENT ……………………………………………………………… SPECIFICATIONS ……………………………………………………………………… TROUBLE SHOOTING GUIDE …………………………………………………..This Monitor was Manufactured by ISO 9001 Certified Factory...
-
Page 4: Important Safety Instruction
Important Safety Instruction 1. Read these instructions. 2. Keep these Instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. - Page 5 - The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed no the apparatus. 14 Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation. “WARNING – To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture.” “The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.”...
- Page 6 CAUTION The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible. ATTENTIONN Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être située ou installée à...
-
Page 7: Doc Compliance Notice
NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 8: Positioning Your Display
Before setting up the monitor, ensure that the power to the monitor and other attached devices are turned off. ※ Notice: Stand & screws are optional A. Connecting the stand A-1. Place the monitor with its front facing downward on a soft cloth. A-2. -
Page 9: Rear Connection
Rear Connection 1. DC 12V IN 2. AUDIO IN 3. VGA 4. DVI 5. HDMI - 7 -... - Page 10 Bottom Key Control 1. SOURCE/ Selects VGA, DVI and HDMI inputs. Selects an option in the OSD. 2. MENU Activates or exits the OSD. Moves previous menu or status in the OSD. 3, 4. AUTO/▼ & ▲ Moves another option in the OSD. The ▲...
-
Page 11: Osd Menus
▶ OSD Menus : All monitor pages, sound and settings can be adjusted and changed from OSD menus. ▶ How to Adjust SD Menu: 1. Press PAIRING/MENU button to enter OSD menu. 2. Find the item you desire using AUTO/▼, ▲ buttons. 3. - Page 12 2. COLOR Options Functions Value Preset The color temperature will be reset to the default sRGB, 6500K, 9300K Red color of the screen is adjusted. 0 ~ 100 Green The Green color of screen is adjusted. 0 ~ 100 Blue The Blue color of screen is adjusted.
- Page 13 3. TRACKING Options Functions Value Horizontal The screen moves Left or Right 0 ~ 100 Vertical The screen moves Up or Down 0 ~ 100 Clock 0 ~ 100 Adjusts the vertical noise of screen image. Phase 0 ~ 100 Adjusts the number of horizontal picture elements.
- Page 14 5. SEP UP Options Functions Value Korean, Japanese, Chinese, The language of OSD menu can be Language English, German, French, selected Spanish, Italian OSD Horizontal Moves OSD left/right on the screen 0 ~ 100 OSD Vertical Moves OSD up/down on the screen 0 ~ 100 OSD Timer Sets OSD time...
- Page 15 Wall mounting (Optional) The LCD monitor is suitable for wall mounting by using the VESA 100 standard wall mount (not included in the delivery). M4x10 screws ※ Attention! You must use four M4x10 screws to assemble this monitor and the wall mount bracket. ※...
- Page 16 ▶ Pin Assignments Pin 1 RED VIDEO GREEN VIDEO SIGNAL CABLE DETECT BLUE VIDEO GROUND GROUND SDA(for DDC) GROUND H-SYNC.(or H+V SYNC.) RED GROUND V-SYNC. GREEN GROUND SCL(for DDC) BLUE GROUND D-SUB ▶ Accessories 1. Power cord 2. Power adaptor 3.
- Page 17 This monitor features a power management system to “power down” upon receipt of the VESA DPMS(The display power management signaling) from a VESA DPMS video card. The VESA DPMS-compliant video card performs this signaling system through not sending horizontal, vertical, or sync signal. This monitor enters an appropriate mode through identifying each of the three modes of the signaling system.
- Page 18 18.5” 21.5” 18.5˝ Diagonal AM-TFT 21.5˝ Diagonal AM-TFT Type (Active-Matrix) (Active-Matrix) Pixel pitch(mm) 0.3(H) x 0.3(V) 0.24825(H) x 0.24825(V) 250cd/ m² (Typical) Brightness Type Contrast ratio 1000:1 (Typical) Viewing angle 170°/160° (H/V) 5ms (Typ., on/off) Response time Resolution (H x V) 1366x768 @60Hz 1920x1080 @60Hz Horizontal : 31~64kHz,...
-
Page 19: Weee Symbols
WEEE Symbols Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. - Page 20 MEMO...
- Page 21 MEMO...
- Page 22 MEMO...
- Page 24 P/N : L39ME0352 Rev.1...
