- Page 1 ADN-W AM Antenna Module Instruction manual...
-
Page 3: Table Of Contents

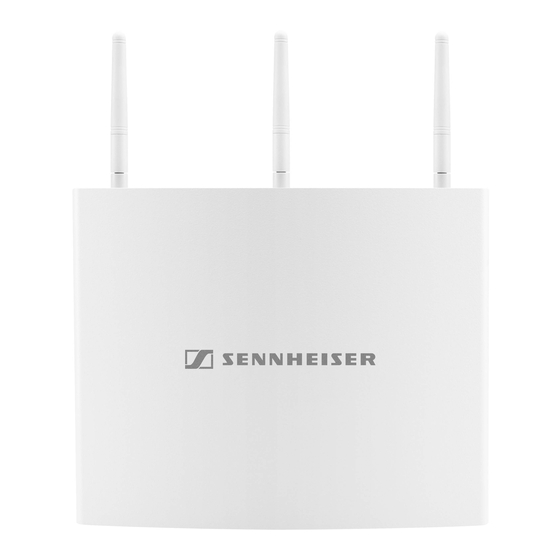

• on the DVD-ROM supplied with the ADN CU1 central unit. The ADN-W AM antenna module The ADN-W AM antenna module is part of the Sennheiser ADN confer- ence system. When connected to the ADN CU1 central unit, the ADN-W AM antenna module controls the RF data transmission to and from the ADN-W D1 and ADN-W C1 wireless conference units. -
Page 4: Package Contents
Package contents Package contents 1 ADN-W AM antenna module with 3 rod antennas (ADN-W AM or ADN-W AM-US version) 1 SDC CBL RJ45-5 system cable, length 5 m 1 thread insert (5/8" to 3/8") 1 instruction manual Intended use Intended use of the products includes •... -
Page 5: Components Required For Wireless Operation
ADN CU1-EU central unit, 505553 Controls the conference EU version (wired and wireless components) and ADN CU1-UK central unit, 505554 supplies power to the UK version ADN-W AM antenna ADN CU1-US central unit, 505555 module US version Wireless Number Description Cat. No. -
Page 6: Product Overview Adn-W Am
Product overview ADN-W AM Product overview ADN-W AM 95 mm Hole for safety wire Antenna coupling ring Cable grip Mounting holes for wall mounting Output socket 5/8" mounting thread with 3/8" thread insert Input socket > Rubber feet Hollow jack socket for connection of... -
Page 7: Preparing The Antenna Module For Operation
Preparing the antenna module for operation Preparing the antenna module for operation Connecting the antennas Always use all 3 antennas to ensure reliable wireless operation. The 3 antennas are connected upon delivery. CAUTION Radio communication outside the legal requirements! When connecting antennas other than the supplied ones, the trans- mission power of the conference system may not meet the legal requirements and may cause interference to other radio equipment. -
Page 8: Connecting The Antenna Module To The Mains Power Supply
Product damage due to an unsuitable power supply! If you use an unsuitable power supply, this can cause damage to the ADN-W AM antenna module. Only connect the NT 12-50C power supply to the antenna module. Connect the hollow jack plug... -
Page 9: Setting Up And Positioning The Antenna Module
Setting up and positioning the antenna module Setting up and positioning the antenna module CAUTION Danger of injury and material damage! If improperly installed or insufficiently fixed, the antenna module can fall from the wall, ceiling or stand or tip over and can cause injury or material damage. Protect the antenna module against tipping or drop- ping by means of a safety wire which is attached to a separate hook. - Page 10 Place the antenna module as centrally as possible and above the wireless conference units. Orient the 3 antennas of the antenna module so that they are par- allel to each other and are directed at a 90° angle towards the wire- less conference units. 90° 8 | ADN-W AM...
- Page 11 Setting up and positioning the antenna module Ceiling mounting is recommended for rooms with a ceiling height of up to approx. 10 Mount the antenna module to the center of the ceiling. Orient the antennas horizontally and at a 90° angle with respect to the wireless conference units.
-
Page 12: Connecting The Adn-W Am Antenna Module To The Adn Cu1 Central Unit
Connecting the ADN-W AM antenna module to the ADN CU1 central unit Connecting the ADN-W AM antenna module to the ADN CU1 central unit Use a system cable (supplied with the ADN-W AM; the maximum cable length allowed is 50 m) to connect the... -
Page 13: Switching The Antenna Module On/Off
Set the on/off switch of the ADN CU1 central unit to position “I”. The central unit switches on and its display panel lights up. The connected ADN-W AM antenna module is also switched on. ADN CU1 ADN-W AM ADN CU1... -
Page 14: Configuring The Wireless Components
– Open access mode (“Wireless Menu” > “Access mode” > “Open”) All ADN-W D1 wireless conference units that are ready for operation automatically connect to the antenna module and can be used instantly. This access mode should be used if only 12 | ADN-W AM... -
Page 15: Cleaning And Maintaining The Antenna Module
ADN system manual. Cleaning and maintaining the antenna module Only use a dry and soft cloth to clean the product. Specifications ADN-W AM RF frequency range 2.4 GHz; 5.1 to 5.9 GHz RF output power... - Page 16 Specifications ADN-W AM In compliance with Europe EN 301489-1/-17 0682 Radio EN 300328 EN 301893 EN 300440-1/-2 Safety EN 60065 Approved by 47 CFR Part 15 FCC ID: DMOADNWAM Canada Industry Canada RSS 210 IC: 2099A-ADNWAM Japan Japanese Radio Law and Japanese Telecommu-...
- Page 17 • Consult the dealer or an experienced radio/ TV technician for help. Changes or modifications not expressly approved by Sennheiser electronic Corp. could void the user’s authority to operate the equipment. This Class B digital apparatus complies with the Canadian ICES-003.
- Page 18 Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com Printed in Germany, Publ. 08/13, 546420/A01...
