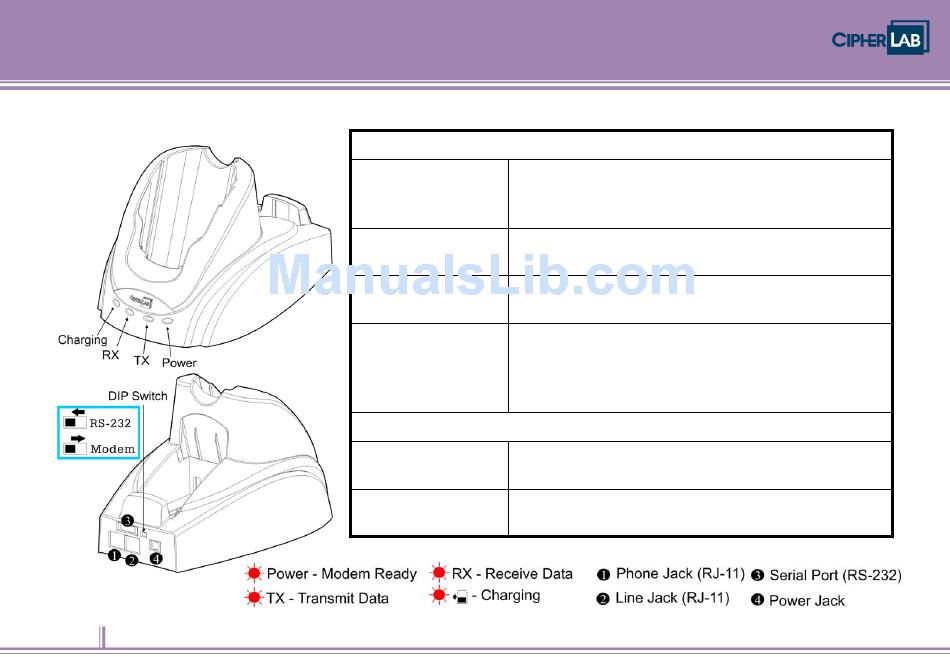

8500 Modem Cradle Overview
Indicators
Power
TX
RX
Charging Spare
Battery
Communications
Ports
Transmission Rate
Solid red : Power ON for Modem Connection
Solid green : Power ON for RS-232 Connection
Off : Power OFF
Solid red : Transmitting data to the remote device
Off : No activity
Solid red : Receiving data from the remote device
Off : No activity
Solid red : Charging
Solid green : Charging Done
Flashing : Error occurs
Off : Battery not ready
Serial : RS-232 port
Modem : Line jack (RJ-11)
Default to 57,600 bps
Up to 115,200 bps via the onboard DIP switch
