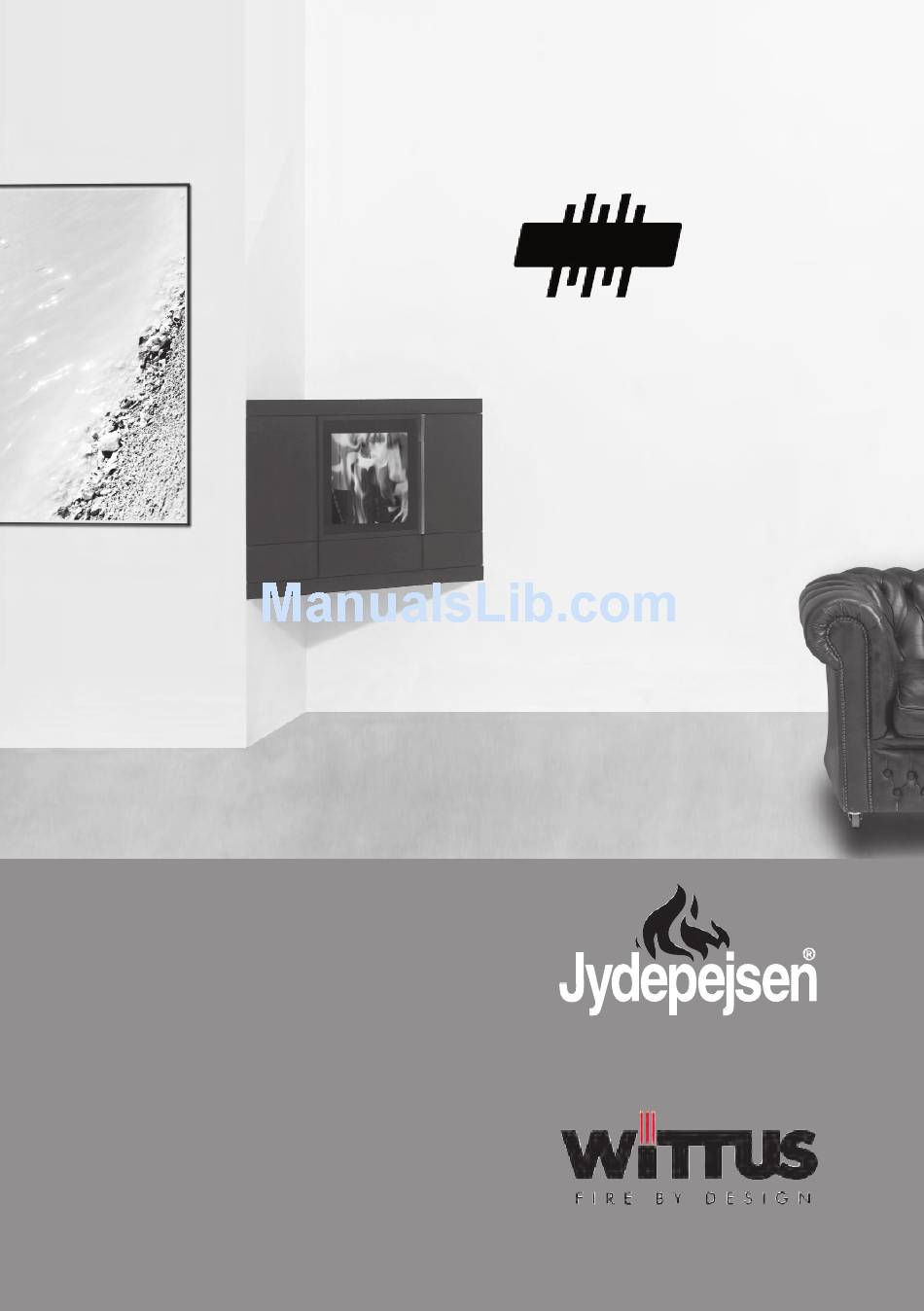

- Read this manual carefully and save the instructions -
Installation and user manual
Trendline 1+2+3
Troja 1+2+3
Softline
Fineline 1+2
Zeus
Athene
Hera
Avanti
Cubic 109-166-215
Cubic Corner
Cubic Wall
Cubic W200
Tested and listed by:
O-T L
C
OMNI-Test Laboratories, Inc.
Manufactured by:
Ahornsvinget 3-7 . DK-7500 Holstebro
T.++45 96101200 F.++45 97425216 . www.jydepejsen.com
Imported by:
PO Box 120
T.914-764-5679
.
F.914-764-0465
Portland
Oregon, USA
US
.
Pound Ridge NY
.
www.wittus.com
Advertisement
Table of Contents
Related Manuals for Jydepejsen Trendline 1+2+3
Summary of Contents for Jydepejsen Trendline 1+2+3
- Page 1 - Read this manual carefully and save the instructions - Manufactured by: Installation and user manual Trendline 1+2+3 Troja 1+2+3 Ahornsvinget 3-7 . DK-7500 Holstebro Softline T.++45 96101200 F.++45 97425216 . www.jydepejsen.com Fineline 1+2 Zeus Athene Imported by: Hera Avanti...
-
Page 2: Table Of Contents
Jydepejsen A/S - version 5 - 04/09 Contents: Page: Wood-burning stoves from Jydepejsen A/S Before installing your stove Chimney Chimney connector Heat generation and distribution Sensible wood burning Technical information on wood burning Air supply and combustion Preparation for the first fire... -
Page 3: Wood-Burning Stoves From Jydepejsen A/S
1. Wood-burning stoves from Jydepejsen A/S A wood burning stove from Jydepejsen A/S is a quality Danish product. Our stoves have been providing a cheerful, cozy atmosphere and excellent savings on heating in many homes since the company was founded in 1979. -
Page 4: Before Installing Your Stove
2. Before installing your stove Jydepejsen stoves Trendline1+2+3, Troja 1+2+3, Softline, Fineline, Zeus, Athene, Hera, Avanti, and Cubuc series are tested by OMNI-Test Laboratories, Inc. of Beaverton, Oregon and are listed to UL 1482 and ULC S627. They are also EPA certified and meet the more stringent WA State Environmental standards. - Page 5 Diagrams for Trendline 1-2-3 / Troja 1-2-3 / Softline / Zeus / Athene/ Hera / Avanti/ Fineline 1-2 WALL VIEW CORNER VIEW TURNABLE INSTALLATION...
- Page 6 Diagrams for Cubic Series CUBIC 109/166/215 CUBIC WALL CUBIC CORNER CUBIC WALL CUBIC CORNER...
- Page 7 Installation of Trendline 2 without the turntable feature If the Trendline 2 stove is to be used without the turntable feature (screws still attached), please follow the standard installation procedures (pages 4 and 5) under Wall View and Corner View for the correct clearances. ...
-
Page 8: Chimney
3. Chimney The Jydepejsen stoves must be installed using a Class A UL 103 HT approved factory- built chimney system or a code-approved masonry chimney with a flue liner. In Canada, the installation must conform to NFPA 211 or CAN/CSA-B365. The chimney must extend through the roof at least 3’... - Page 9 This prevents any amount of condensed or liquid creosote from running down the outside of the pipe or the stove top. All joints, including the flue collar connection must be secured with three sheet metal screws to ensure that the sections do not separate.
-
Page 11: Heat Generation And Distribution
5. Heat generation and distribution All Jydepejsen wood-burning stoves are two stoves in one. Inside is the actual stove, produced from strong steel plates, and on the outside a covering of steel, ceramic tiles or soapstone. -
Page 12: Sensible Wood Burning
6. Sensible wood burning When dry wood is burned in a wood-burning stove the following process occurs (over a period of approx. 1 hour): · After lighting the log starts to dry and heats up. · After drying the temperature of the wood rises to approx. - Page 13 Remember that three logs will burn just as quickly as one The quantity of firewood determines the heat emission - the more heat you re- quire, the more wood you should add at each refueling. Types of fuel and heating values All the stoves are constructed and approved for burning wood.
-
Page 14: Air Supply And Combustion
C)) and to keep the glass free of soot. For wood to burn correctly, the right amount of air has to be supplied at the right time and place. In the Jydepejsen DuplicAir system, the startup and pri- mary air are combined into one air supply system. - Page 15 There are two other non-adjustable air systems on the stove; secondary air and direct air. Secondary air: To ensure a better combustion of gasses, the stove is constructed with secondary air holes in the baf- fle plates. Preheated air is supplied through these holes, which ensures burning of the last amount of gases before they slip out through the...
-
Page 16: Preparation For The First Fire
9. Preparation for the first fire Once your stove is installed and all instructions have been read, the first fire can be started. However, please take careful note of the following: The baking liner should be removed before the initial lighting. A sudden tempera- ture change could cause it to crack. -
Page 17: Troubleshooting
12. Troubleshooting Combustion problems can arise if the combustion conditions are not optimal. This can be corrected by following the advice given below. Lighting and burning problems are usually due to wet wood or insuf- ficient draft. -
Page 18: Maintenance Of The Stove
The heat-reflecting and insulating panels in the firebox of all wood-burning stoves from Jydepejsen are made of vermiculite. This material in its basic form consists of laminated minerals, and is supplied by an ISO 9001 certified company. Vermiculite poses no health hazards. - Page 19 Cleaning ceramic tiles Ceramic from Jydepejsen is simple to maintain. Wiping the tiles with a damp cloth is generally adequate. For more stubborn marks, use a little mild soapy water. Like other natural products, ceramic tiles cannot tolerate strong acids or leaching solutions.
- Page 20 Cleaning soapstone Soapstone is very simple to clean. Wiping the soapstone with a damp well- squeezed cloth soaked in lukewarm water is generally sufficient. Avoid all types of detergent. Any minor scratches can be carefully removed using very fine sandpaper. Should any of your soapstone tiles need repairing, please contact your dealer.
- Page 21 Replacing door gaskets - Cubic series Remove the gasket from the inner frame Push new gasket down into the groove. Replacing the gasket at the glass - Cubic series Lift the door from the hinges and place it on a flat base. Dismount bolts and screws from the closing system.
-
Page 22: Warranty
Any claims during the warranty period should be directed to the dealer who sold the stove. All stoves from Jydepejsen come with their own individual serial number on the type plate on the back of the stove. Please quote stove model and serial number to your dealer in connection with service tasks. - Page 23 Cubic Series Assembly...
- Page 24 Trendline soapstone - convection...
- Page 25 Trend-line with full soapstone cladding Soapstone assembling...
- Page 26 Softline with full soapstone or ceramic cladding Soapstone assembling 1,5 cm ...
- Page 27 Softline with full soapstone or ceramic cladding Ceramic assembling...
- Page 28 Manufactured by: Ahornsvinget 3-7 . DK-7500 Holstebro T.++45 96101200 F.++45 97425216 . www.jydepejsen.com Imported by: PO Box 120 Pound Ridge NY T.914-764-5679 F.914-764-0465 www.wittus.com...
