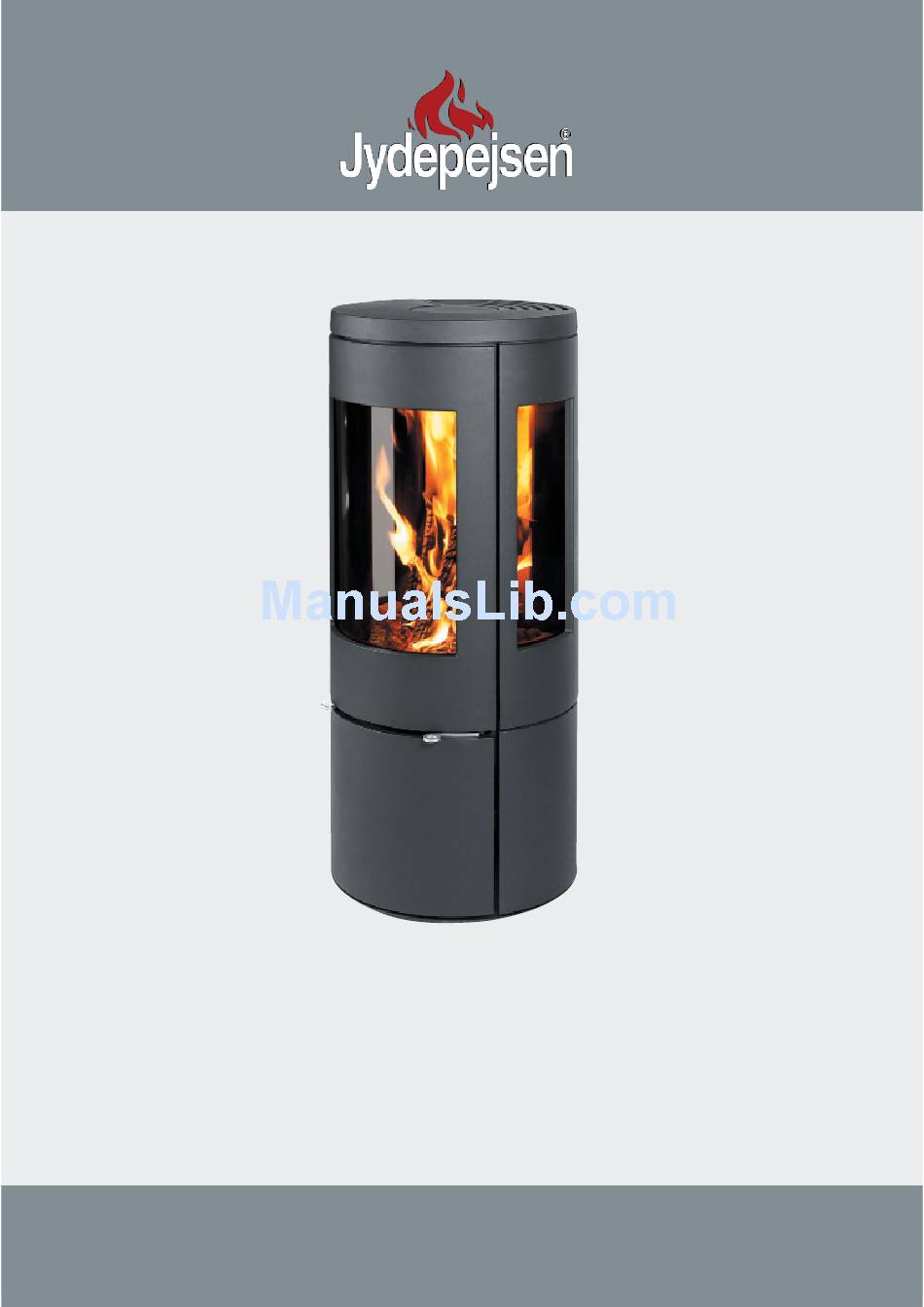

- Page 1 Betjeningsvejledning - DK Befeuerungsanleitung - D User´s manual - GB Mode d´emploi - F...
- Page 2 Jydepejsen Web site at www.jydepejsen.com. 2. Installation Jydepejsen stoves are tested by specialist institutions and approved according to applicable legislative requirements. Before nal approval is granted, stoves have to successfully complete a variety of combustion tests. The stove tested featured a top outlet.
- Page 3 Any claims during the warranty period should be addressed to the dealer from whom you purchased the stove. All stoves from Jydepejsen come with their own individual serial number on the boiler plate on the back of the stove. In connection with service procedured of all kinds, please quote the stove model and serial number.
-
Page 4: Air Supply
To meet these conditions, Jydepejsen has developed an air supply system for EOS that contains three individual air systems (see ill.) Air supply for lighting: Air supply for lighting supplies air directly into the bottom of the combustion chamber, throgh the front vermiculite parts. -
Page 5: Air Control
AIR CONTROL Air wheel Air supply for combusiton Air supply for lighting Air control 5. Stoking instructions t is essential to ensure that your chimney draws well. The alpha and omega of stove operation is the interaction between chimney and stove. Your dealer or chimney sweep will be able to give you advice and guidance about chimney conditions. - Page 6 This phenomenon is completely normal for sheet iron, and cannot be regarded as a fault. All Jydepejsen stoves are intermittent. Maximum height of rewood in the combustion chamber is 35 cm. Warning! NEVER use impregnated wood, painted wood, lami- nated plastic, plywood, chipboard, refuse,milk cartons,printed matter or similar.Use of such ma-...
- Page 7 Therefore, it is important that you check the chimney for blockings and that the ba e plates are placed correctly. On Jydepejsens website, jydepejsen.com, you can nd more information on trouble shooting. In case of overheating, or a chimney re, close all air supplies and keep an eye...
- Page 8 6. Maintenance Sealing strips and Vermiculite panels are wearing parts which need to be replaced from time to time – depending on how much you use your stove. In some cases, you may need to replace them every year, while in others, replacement every second or third year will su ce.
- Page 9 Replacing the vermiculite panels (You should also follow these instructions when cleaning your stove, as clean- ing necessitates the removal of the combustion chamber cladding). 1. Position the two back panels - side - at each side, behind the back, vertical pipe.
- Page 10 Front glass with gasket Side glass with gasket 55800045 Wood holder 44300140 Set of gaskets with glue echnial Speci cations Modell EOS 1065 Modell EOS 1175 Modell EOS 1245 Dimensions 1065 x Ø480 1175 x Ø480 1245 x Ø480 Options...
