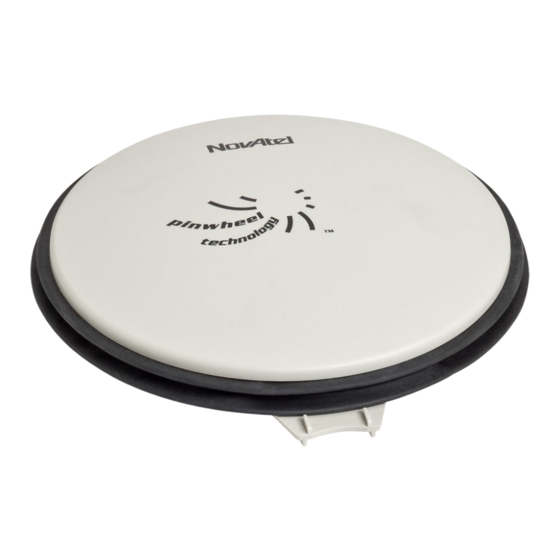

The GPS-702-GG-HV and color variants are active antennas designed to operate at the GPS L1 frequency
at 1575.42 MHz, the GPS L2 frequency at 1227.60 MHz, the GLONASS L1 frequencies from 1598 MHz to
1611.5 MHz, and the GLONASS L2 frequencies from 1242.5 MHz to 1254.3 MHz. This guide provides the
basic information you need to install and begin using your new antenna.

AVAILABLE COLOR VARIANTS

GPS-702-GG-HV (grey)
GPS-702-GG-HV-DT-U (desert tan)
GPS-702-GG-HV-OD-U (olive drab)

ADDITIONAL EQUIPMENT REQUIRED

The equipment listed below is required to set up a GPS-702-GG-HV antenna:
A mount, such as a range pole, tribrach or tripod, with a 5/8" x 11 thread that extends between 3/8" and
7/8" (9 mm and 22 mm)
A 1" open-end wrench
Coaxial cable with a male TNC connector
A device with an antenna input port that both receives the RF signal and provides 4.5 - 18.0 VDC to the
antenna. (All NovAtel GNSS receivers provide the necessary power through their antenna RF
connectors.)

SITE SELECTION GUIDELINES

Before installing the antenna, select a site that as closely as possible meets the following conditions for
optimal performance:
An unobstructed line-of-sight from horizon to horizon and at all bearings and elevation angles.
As far as possible from reflective objects, especially those that are above the antenna and any water
bodies, which can be a strong source of multipath reflections.
If obstructions and reflective surfaces are within 30 m, ensure the site is as high as possible. Otherwise,
mount the antenna as low as possible.
GPS-702-GG-HV
USER GUIDE
GM-14915131
Rev 1
September 2014
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPS-702-GG-HV and is the answer not in the manual?

Questions and answers

Summary of Contents for Novatel GPS-702-GG-HV

  • Page 1 Rev 1 September 2014 The GPS-702-GG-HV and color variants are active antennas designed to operate at the GPS L1 frequency at 1575.42 MHz, the GPS L2 frequency at 1227.60 MHz, the GLONASS L1 frequencies from 1598 MHz to 1611.5 MHz, and the GLONASS L2 frequencies from 1242.5 MHz to 1254.3 MHz. This guide provides the basic information you need to install and begin using your new antenna.
  • Page 2 NovAtel GNSS receivers provide the necessary power through their antenna RF connectors. ANTENNA CARE The GPS-702-GG-HV and variants are designed to withstand the elements, including rain, snow and dust. However, to ensure your antenna performs optimally, keep the radome (the top surface of the antenna) clean and brush off any ice and snow.
  • Page 3 ELEVATION GAIN PATTERN...
  • Page 4 SPECIFICATIONS Radio Frequency 1588.5 ± 23.0 MHz (typical) 3 dB pass band (typical) 1236.0 ± 18.3 MHz (typical) Out-of-band rejection (typical) L1 100 MHz 30 dBc L2 200 MHz 50 dBc +5 dBic Gain at zenith (= 90°) (min) +2 dBic 13 dB Gain roll-off (zenith to horizon) 11 dB...
  • Page 5 MECHANICAL DRAWINGS All dimensions are in millimeters (mm) where 1 inch = 25.4 mm VIEW Tape measure station Ø185 Ø170 SIDE 60.6 69.1 VIEW Height 194.5 = PHASE CENTER BOTTOM VIEW  Height = Vertical phase center offset from antenna reference point or Antenna Reference Plane (ARP)
  • Page 6 Only integer hardware revisions affect the phase center offsets. For example, the numbers given for hardware revision 2.02 are applicable to an antenna labeled H/W Rev: 2.00, 2.04, 2.12 and so on. Table 1 shows typical absolute and relative offset numbers for the current GPS-702-GG-HV antenna model. Table 1: Height...
  • Page 7 Cables and Accessories: Ninety (90) Days Date of sale shall mean the date of the invoice to the original customer for the product. NovAtel's responsibility respecting this warranty is limited solely to product repair at an authorized NovAtel location only. Determination of repair will be made by NovAtel personnel or by technical personnel expressly authorized by NovAtel for this purpose.
  • Page 8 The GPS-702-GG-HV, GPS-702-GG-HV-DT-U and GPS-702-GG-HV-OD-U are manufactured and protected under U.S. Patents #6,445,354 B1, #6,452,560 B2, and #7, 250, 916. QUESTIONS OR COMMENTS If you have any questions or comments regarding any GPS-702-GG-HV antenna, contact NovAtel Customer Service using one of methods provided below. Email: support@novatel.com...
