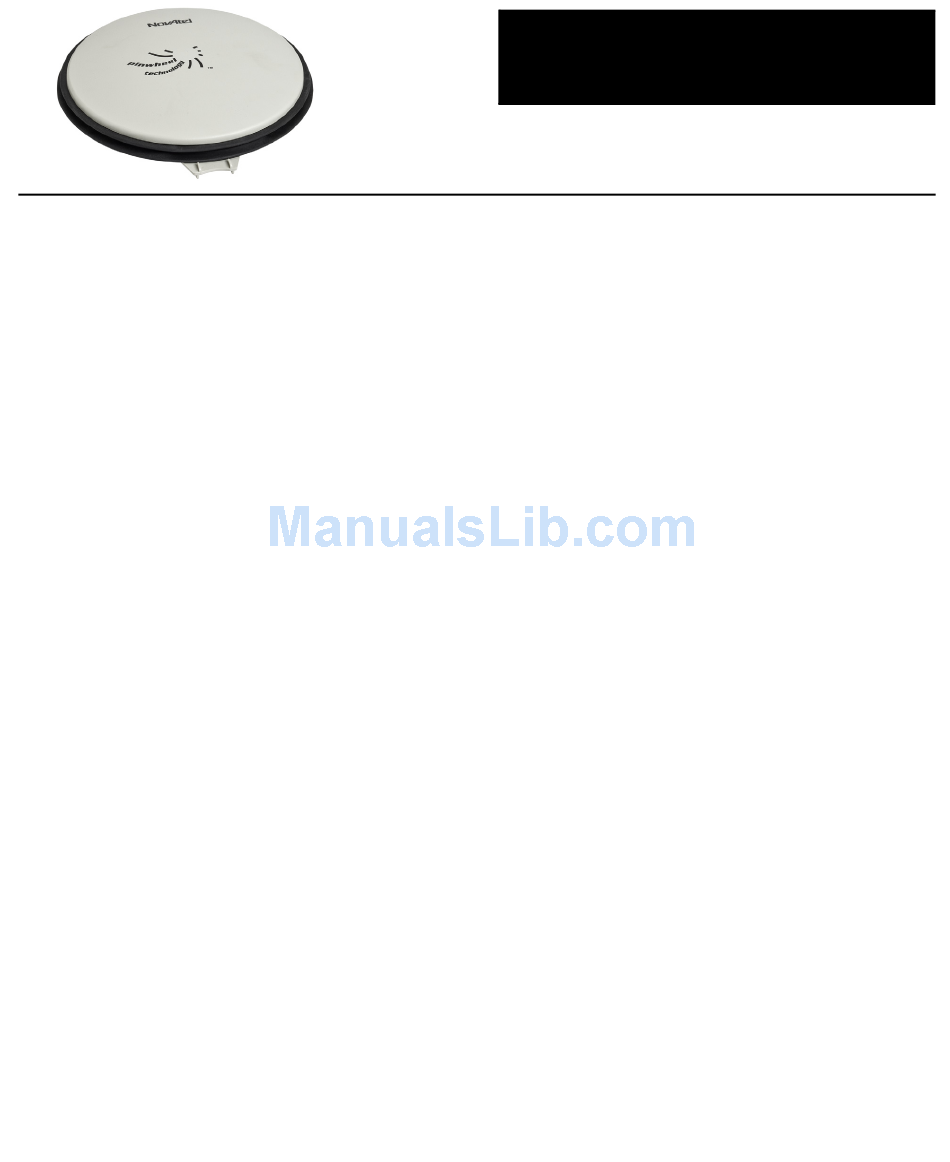

The GPS-703-GGG and GPS-703-GGG-N are active antennas designed to operate at the GPS L1
frequency at 1575.42 MHz, the GPS L2 frequency at 1227.60 MHz, the GPS L5 frequency at 1176.5 MHz,
the GLONASS L1 frequencies from 1593 MHz to 1609 MHz, and the GLONASS L2 frequencies from 1238
MHz to 1254 MHz. The Galileo E5a, E5b, and E1 frequencies; BeiDou B1 and B2 frequencies and
GLONASS L3 frequencies are also supported. This guide provides the basic information you need to
install and begin using your new antenna.
ADDITIONAL EQUIPMENT REQUIRED
The equipment listed below is required to set up a GPS-703-GGG or GPS-703-GGG-N antenna:
•
A mount, such as a range pole, tribrach, or tripod, with a 5/8" x 11 thread that extends between 3/8" and
7/8" (9 mm and 22 mm)
•
A 1" open-end wrench
•
Coaxial cable with a male TNC connector (N-Type connector for the GPS-703-GGG-N)
•
A device with an antenna input port that both receives the RF signal and provides 4.5 - 18.0 VDC to the
antenna. (All NovAtel GNSS receivers provide the necessary power through their antenna RF
connectors.)
SITE SELECTION GUIDELINES
Before installing the antenna, select a site that as closely as possible meets the following conditions for
optimal performance:
•
An unobstructed line-of-sight from horizon to horizon and at all bearings and elevation angles.
•
As far as possible from reflective objects, especially those that are above the antenna and any water
bodies, which can be a strong source of multipath reflections.
•
If obstructions and reflective surfaces are within 30 m, ensure the site is as high as possible. Otherwise,
mount the antenna as low as possible.
INSTALLING THE ANTENNA
After a site has been selected, install the antenna as follows.
1. Verify that the thread on the mount does not extend more than 7/8" (22 mm) to ensure the plastic
inside the antenna receptacle is not damaged when the mount is inserted. If it extends further than 7/8"
(22 mm), add two jam nuts to shorten the exposed thread, ensuring the nuts are well-tightened.
GPS-703-GGG and
GPS-703-GGG-N
USER GUIDE
GM-14915086
Rev 4
April 2014
1
Advertisement
Table of Contents
Related Manuals for Novatel GPS-703-GGG-N
Summary of Contents for Novatel GPS-703-GGG-N
-
Page 1: Additional Equipment Required
Rev 4 April 2014 The GPS-703-GGG and GPS-703-GGG-N are active antennas designed to operate at the GPS L1 frequency at 1575.42 MHz, the GPS L2 frequency at 1227.60 MHz, the GPS L5 frequency at 1176.5 MHz, the GLONASS L1 frequencies from 1593 MHz to 1609 MHz, and the GLONASS L2 frequencies from 1238 MHz to 1254 MHz. -
Page 2: Antenna Care
3. Remove the dust cap from the antenna’s connector. 4. Attach the male TNC connector of the coaxial cable to the antenna’s TNC connector. For the GPS-703-GGG-N, attach the male N-Type connector of the coaxial cable to the antenna’s N-Type connector. - Page 3 ELEVATION GAIN PATTERN...
-
Page 4: Specifications
SPECIFICATIONS Radio Frequency L1/B1/E1: 1580.0 ± 28.5 MHz (typical) 3 dB pass band (typical) L2/L3/L5/B2/E5/E5a/b: 1210.0 ± 45.0 MHz (typical) Out-of-band rejection (typical) L1 100 MHz 30 dBc L2 200 MHz 50 dBc GPS L1/Galileo E1/BeiDou B1: +5 dBic Gain at zenith (= 90°) (min) GPS L2/BeiDou B2: +3 dBic GPS L5/Galileo E5:... -
Page 5: Mechanical Drawings
MECHANICAL DRAWINGS All dimensions are in millimeters (mm) where 1 inch = 25.4 mm VIEW Tape measure station Ø185 Ø170 SIDE 60.6 69.1 VIEW Height 194.5 = PHASE CENTER BOTTOM VIEW Height = Vertical phase center offset from antenna reference point or antenna reference plane (ARP) - Page 6 For absolute and relative offset values for phase center variation (PCV tables are available for download), visit the GEO++ website at www.geopp.com. If you need any further advice on this matter, visit our website at www.novatel.com. Other methods of contacting Customer Service can be found on the last panel of this guide.
-
Page 7: Warranty Policy
Cables and Accessories: Ninety (90) Days Date of sale shall mean the date of the invoice to the original customer for the product. NovAtel's responsibility respecting this warranty is limited solely to product repair at an authorized NovAtel location only. Determination of repair will be made by NovAtel personnel or by technical personnel expressly authorized by NovAtel for this purpose. -
Page 8: Weee Notice
WEEE NOTICE If you purchased your GPS-703-GGG or GPS-703-GGG-N in Europe, return it to your dealer or supplier at the end of its life. The objectives of the European Community's environment policy are, in particular, to preserve, protect and improve the quality of the environment, protect human health and utilise natural resources prudently and rationally.
