Novatel GPS-701-GGL User Manual

GPS-701-GGL and GPS-702-GGL
USER GUIDE

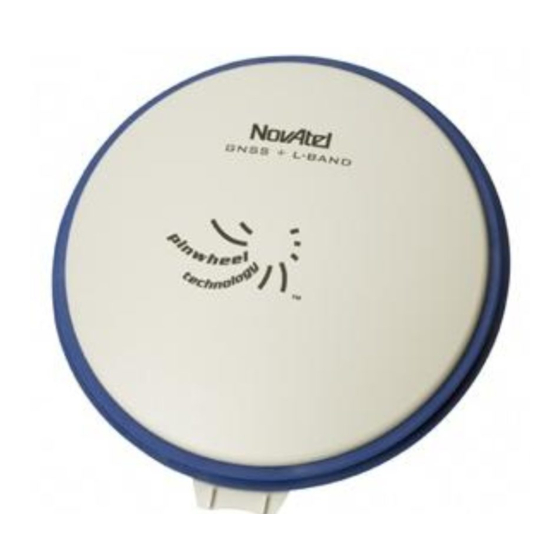

The GPS-701-GGL and GPS-702-GGL are active antennas
designed to receive signals from the GPS and GLONASS satel-
lites as well as L-Band signals. Both antennas are designed to
operate in GPS L1 (1575.42 MHz), GLONASS L1 (1598 - 1611.5
MHz), and L-band (1525 - 1565 MHz) frequencies. The GPS-
702-GGL is also designed to operate in GPS L2 (1227.60 MHz)
and GLONASS L2 (1243 - 1255 MHz) frequencies.
This guide provides the basic information you need to install and
begin using your new antenna.
ADDITIONAL EQUIPMENT REQUIRED
The following equipment is required to set up the GPS-702-GGL
or GPS-701-GGL antenna:
• A mount, such as a range pole, tribrach, or tripod, with a
5/8" x 11 thread that extends between 3/8" and 7/8" (9
mm and 22 mm)
• A 1" open-end wrench
• Coaxial cable with a male TNC connector
• A device with an antenna input port that both receives
the RF signal and provides 4.5 - 18.0 VDC to the
antenna (all NovAtel GPS receivers provide the neces-
sary power through their antenna RF connectors)
SITE SELECTION GUIDELINES
Before installing the antenna, select a site that as closely as
possible meets the following conditions for optimal performance:
• An unobstructed line-of-sight from horizon to horizon
and at all bearings and elevation angles
• As far as possible from reflective objects, especially
those that are above the antenna and any water bodies,
which can be a strong source of multipath reflections
• If obstructions and reflective surfaces are within 30 m,
ensure the site is as high as possible. Otherwise, mount
the antenna as low as possible.

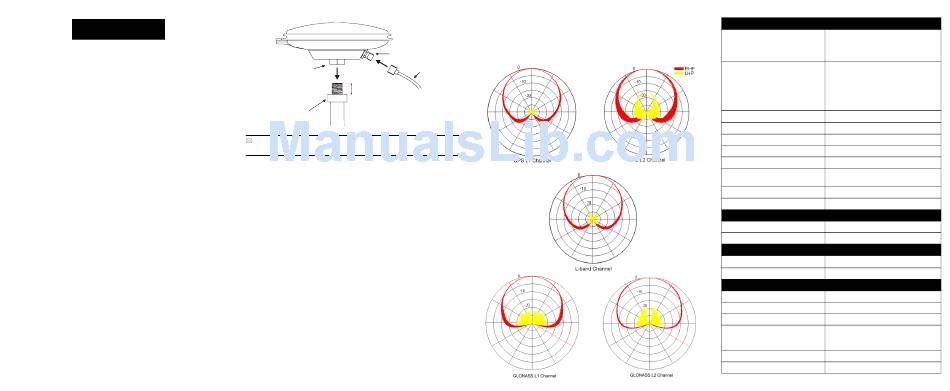

INSTALLING THE ANTENNA
TNC connector
Coaxial
Metal
cable
adapter
5/8 x 11 "
3/8 - 7/8 " " ( 9 - 22 mm )
thread
Jam nuts
Antenna Mount
or flange
The metal adapter on the bottom of the antenna is fixed in place.
Do not attempt to remove it.
After a site has been selected, install the antenna as follows:
1. Verify that the thread on the mount does not extend more
than 7/8" (22 mm) to ensure the plastic inside the antenna
receptacle is not damaged when the mount is inserted. If it
extends further than 7/8" (22 mm), add two jam nuts to
shorten the exposed thread, ensuring the nuts are well tight-
ened.
2. Align the mount thread with the metal adapter on the bottom
of the antenna and rotate the antenna clockwise until it is
securely screwed to the mount. Using a wrench, tighten the
adapter to the mount.
3. Remove the dust cap from the antenna's TNC connector.
4. Attach the male TNC connector of the coaxial cable to the
antenna's TNC connector.
5. Attach the other end of the coaxial cable to the antenna input
port of the receiving device, which must provide power as
detailed in the SPECIFICATIONS section of this guide. All
NovAtel GPS receivers provide the necessary power
through their antenna RF connectors.
ANTENNA CARE
The GPS-701-GGL and GPS-702-GGL are designed to with-
stand the elements, including rain, snow, and dust. However, to
ensure your antenna performs optimally, keep the radome (the
top surface of the antenna) clean and brush off any ice and
snow. In addition, ensure the TNC connector remains clean and
dry and replace the dust cap when a cable is not connected.
ELEVATION GAIN PATTERN
Table 1: SPECIFICATIONS
RF
±
L-Band 1545 20.0 MHz
±
3 dB pass band (typical) L1: 1588.5 23.0 MHz
±
L2: 1236.0 18.3 MHz
Out-of-band rejection (typical)
±
30 dBc
150 MHz (L1 centred)
±
30 dBc
100 MHz (L2 centred)
±
250 MHz (L1 centred) 50 dBc
±
200 MHz (L2 centred)
50 dBc
θ
LB/L1:+5 dBic L2: +2 dBic
Gain at zenith ( = 90°) (min)
Gain roll-off (zenith to horizon) LB/L1:13 dB L2: 11 dB
LNA gain (typical) 29 dB
Polarization Right-hand circular
Noise figure (typical) 2.5 dB
L1-L2 differential propagation
5 ns
delay (maximum)
50 Ω
Nominal impedance
VSWR ≤ 2.0 : 1
POWER
Input voltage 4.5 - 18.0 VDC
Current (typical) 35 mA
PHYSICAL
Diameter 185 mm (7.28 " )
Weight 500 g (17.6 oz)
ENVIRONMENTAL
Maximum altitude 9000 m (29527.5 ft)
Operating temperature -40°C to +85°C (-40°F to +185°F)
Storage temperature -55°C to +85°C (-67°F to +185°F)
Random: MIL-STD-202F Method
Vibration 214, Test Curve A
Sine: SAEJ1211, Section 4.7
Salt spray MIL-STD-810F Method 509.4
Ingress protection IPX6 and IPX7
