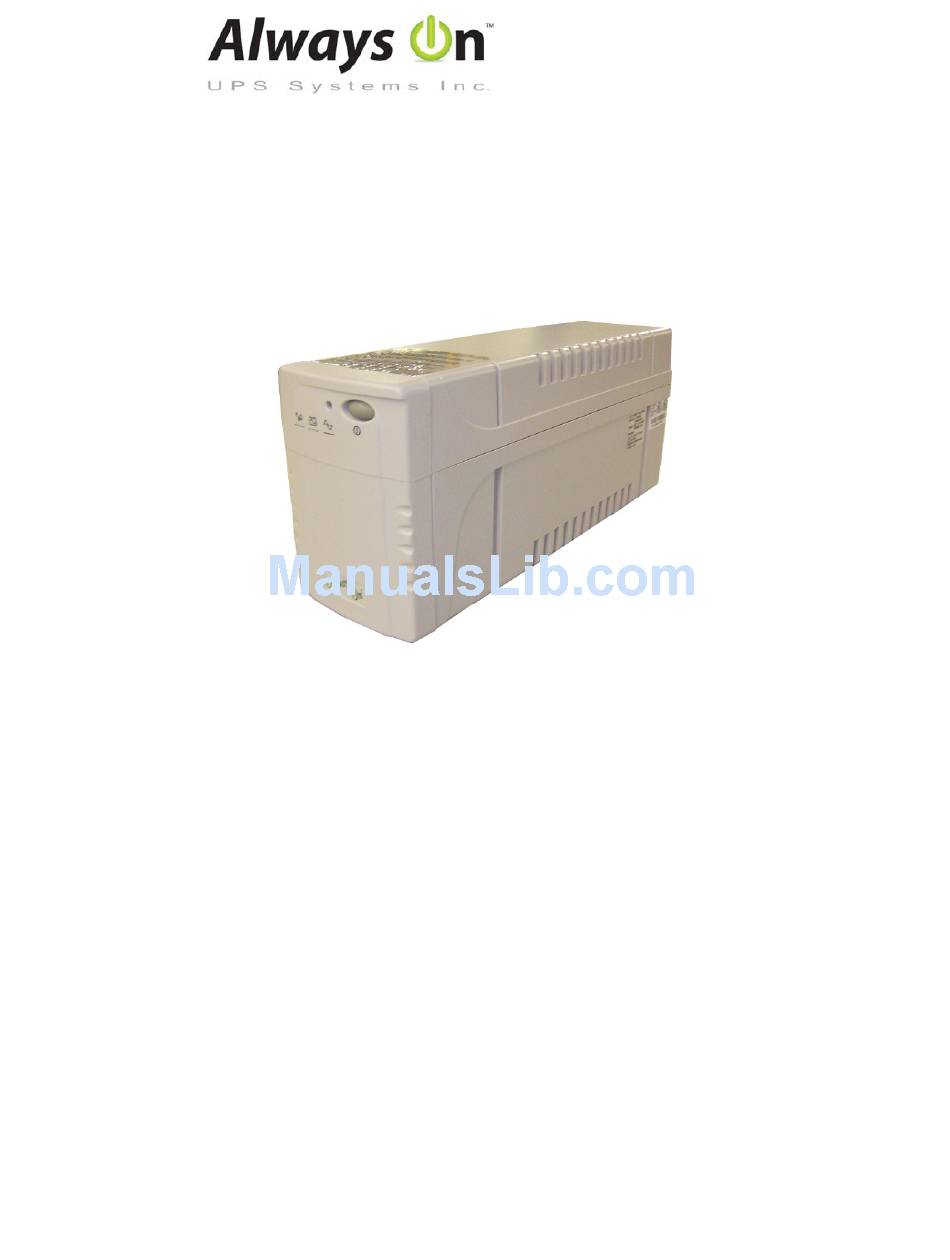

P.O.S. Pro-Series – Single Phase Input, Single
Phase Output
Uninterruptible Power Supply
P.O.S. Pro 600VA
Line Interactive UPS (PWM): 600VA with Integrated DC Power
Supply
User's Manual
M1701_POS_Pro_Manual V1.0 2012-06-12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P.O.S. Pro 600VA and is the answer not in the manual?

Questions and answers

Related Manuals for Always On P.O.S. Pro 600VA

Summary of Contents for Always On P.O.S. Pro 600VA

  • Page 1 P.O.S. Pro-Series – Single Phase Input, Single Phase Output Uninterruptible Power Supply P.O.S. Pro 600VA Line Interactive UPS (PWM): 600VA with Integrated DC Power Supply User’s Manual M1701_POS_Pro_Manual V1.0 2012-06-12...
  • Page 2 SAVE THESE INSTRUCTIONS This manual contains important instructions for the P.O.S. Pro 600va UPS, and should be followed during installation and maintenance of the UPS and batteries. The UPS contains voltages that are potentially hazardous. Please contact our dealers or qualified personnel for service.
  • Page 3 SAFETY INSTRUCTIONS The UPS has its own internal energy source (battery), therefore the output receptacles may have electricity present even though the UPS is disconnected from the utility power. The DC voltage provided from the internal battery is 12VDC. Isolated Ground Wire refers to the bare wire connecting electrical equipment to ground.

  • Page 4: Table Of Contents

    Table of Contents INTRODUCTION PRESENTATION INSTALLATION 3.1. Unpacking and Inspection 3.2. Placement 3.3. Connect to Utility 3.4. Charging the Battery 3.5. Connecting the Loads 3.6. Storage Conditions 3.7. Extended Storage OPERATION 4.1. Switching “On” the UPS 4.2. Switching “Off” the UPS 4.3.

  • Page 5: Introduction

    1. INTRODUCTION The P.O.S. Pro-Series is a Line Interactive UPS system that includes the newest and latest technology enhancements. The Line Interactive technology with AVR function (on-line voltage boost-up & buck-down) allows for a wide input voltage range of 90 to 150VAC.

  • Page 6: Presentation

    2. PRESENTATION Front Panel Multi purpose LED This LED will be solid greed when the UPS is under normal conditions. It will flash every two seconds when the UPS is supplying battery power to the loads, and flash rapidly when the battery requires replacement.

  • Page 7: Installation

    3. INSTALLATION 3.1. Unpacking and Inspection Examine the packaging for damage. Inform the carrier immediately if and/or when damage is noticed. Retain the packaging for future use. 3.2. Placement Install the UPS in a protected area with adequate airflow and free of excessive dust.

  • Page 8: Storage Conditions

    Caution: The line current limiting feature could be rendered inoperable if improperly installed. Make sure that the line from the wall is plugged into the connector marked “IN”, and the device to be protected (telephone, modem, etc.) is plugged into the connector marked “OUT”. This surge protection device is for indoor use only;...

  • Page 9: Operation

    4. OPERATION 4.1. Switching “On” the UPS With the UPS plugged in and utility power present, press and hold the On/Off/Test/Silence Button more than 3 seconds or until the LED is lit. The UPS will perform self-testing each time it is switched “On”. 4.2.

  • Page 10: Green Function

    4.7. Green Function If the connected loads are drawing less than 20 watts, the UPS will automatically shutdown after 5 minutes in back-up mode in order to conserve battery power. To disable “GREEN FUNCTION” press and hold the “On” button during initial start-up for at least 3 seconds, until a beep-beep sound is heard.

  • Page 11: Battery Replacement

    5. BATTERY REPLACEMENT Your battery should run anywhere from 3-5 years before it needs to be replaced. Please follow the instructions below for easy, trouble free, battery replacement. Turn the UPS off (follow procedure previously mentioned) Unplug the UPS from utility power source and disconnect all connected loads. Disconnect AC power cord from unit.

  • Page 12: Troubleshooting

    6. TROUBLESHOOTING Please follow the guidelines below for common problems: Check UPS input plug and wiring. Check UPS input voltage. Please prepare the information as follows for service personnel: UPS model number and serial number Description of problem(s) in detail. 6.1.

  • Page 13: Specifications

    7. SPECIFICATIONS MODEL P.O.S. Pro 600 Capacity 600VA INPUT Voltage 120V, 220V +/-25% Frequency 50 or 60Hz +/-10% (auto sensing) Voltage (on battery) Simulated sine wave at Line Input +/-5% Frequency (on battery) 50 or 60Hz +/- 1Hz DC Output 24V/1.5A (24VDC Printer cord) OUTPUT Auto Voltage Regulation...

  • Page 14: Dc Power Supply Specifications

    Storage Condition 15000 meters max. elevation Specifications subject to change without prior notice to reflect upgrades and improvements in technology. 7.1. DC Power Supply Specifications: Output Voltage: 24VDC Regulation: +/- 1% Ripple and Noise: <150mV Rated Current: 1.5A Continuous, 2A Surge Capacity: 58 Watts Protection:...

  • Page 15: Contact Information

    8. CONTACT INFORMATION 8.1. Additional Purchases or Upgrades Always On UPS Systems Inc. Bldg 1 – 150 Campion Road, Kelowna, BC, Canada, V1X 7S8 Phone: (250) 491-9777 Ext 451 Fax: (250) 491-9775 Email: sales@alwayson.com Website: www.alwayson.com 8.2. QA / Warranty Questions Always On UPS Systems Inc.
