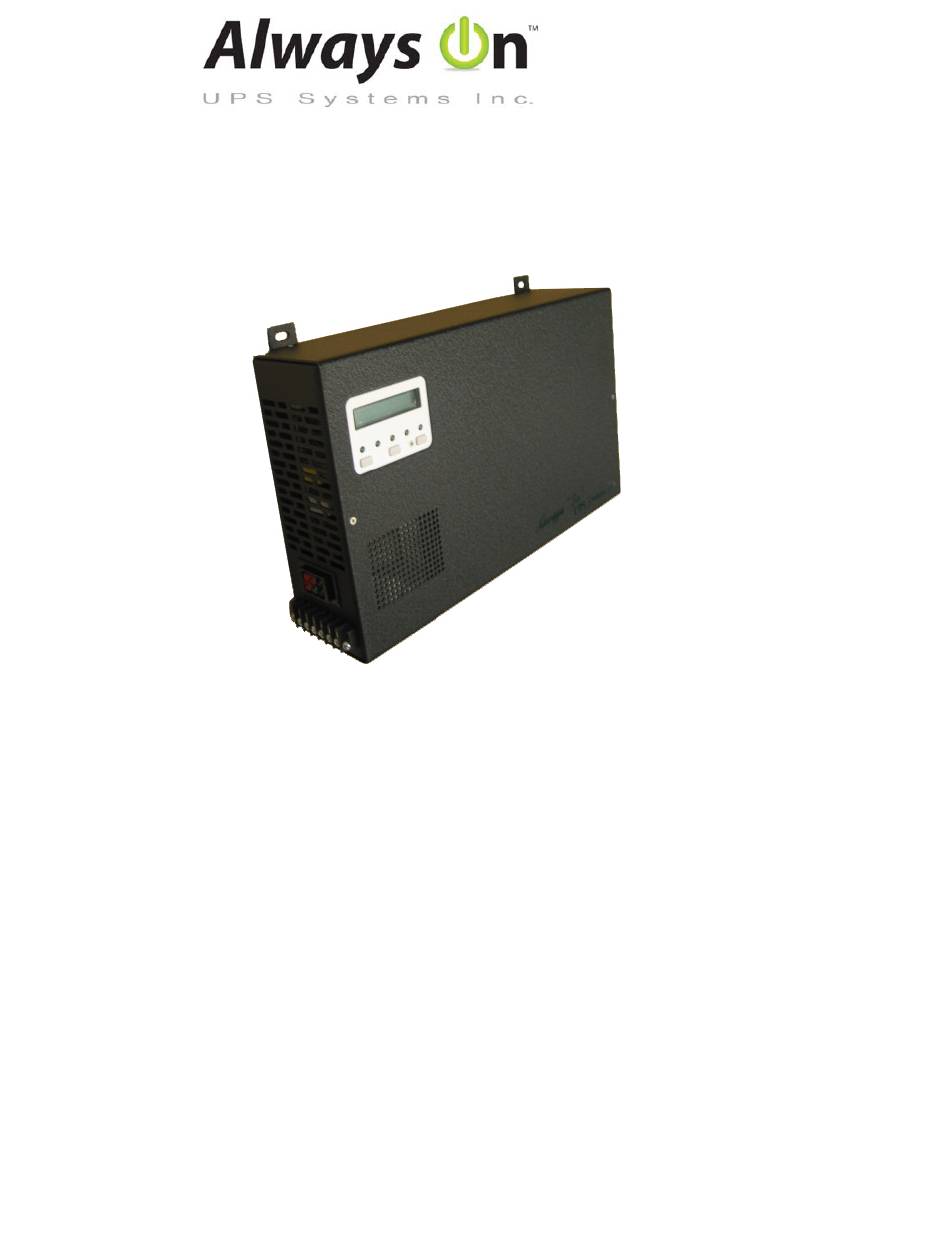

- Page 1 SLIMLINE / DOORMOUNT For Traffic Applications GES-102NDM – GES-152NDM On Line: 1kVA, 1.5kVA Operators Manual M0301_N_Series_DM_Manual V1.4 2012-06-12...
- Page 2 THIS PAGE IS INTENTIONALLY BLANK M0301_N_Series_DM_Manual V1.4 2012-06-12...
- Page 3 Uninterruptible Power Supply Uninterruptible Power Supply Please complete the Warranty Card supplied with this UPS and return it by mail to Always On Please complete the Warranty Card supplied with this UPS and return it by mail to Always On UPS Systems Inc.
- Page 4 Always On UPS Systems IMPORTANT SAFETY INSTRUCTIONS • THIS MANUAL CONTAINS IMPORTANT INSTRUCTIONS THAT SHOULD BE FOLLOWED DURING INSTALLATION AND MAINTENANCE OF THE UPS AND BATTERIES. • THE UPS SYSTEM IS NOT INTENDED FOR EXTERNAL USE UNLESS SPECIFICALLY DESIGNED FOR IT.
- Page 5 Always On UPS Systems MORE SAFETY INSTRUCTIONS • DO NOT USE THIS EQUIPMENT FOR ANY PURPOSE OTHER THAN THE INTENDED USE. • EXAMINE THE PACKAGING CONTAINER FOR DAMAGE. NOTIFY THE CARRIER IMMEDIATELY IF DAMAGE IS PRESENT. • DO NOT DISASSEMBLE THE UPS.
-
Page 6: Table Of Contents
Always On UPS Systems Table of Contents INTRODUCTION ............1 1.1........................1 ODES OF PERATION PRODUCT DESCRIPTION ......... 2 2.1........................2 HEORY OF PERATION 2.2..........................2 LOCK IAGRAM 2.3....................... 3 ESCRIPTION OF LOCK 2.4........................ 4... -
Page 7: Introduction
Always On UPS Systems 1.0 Introduction Congratulations on your choice of the Always On NDM Series On-Line Uninterruptible Power System (UPS). The NDM Series Slimline/Doormount features the very latest, top of the line, microprocessor technology and IGBT transistors for clean, highly regulated, PWM (Pulse Width Modulated) True Sine Wave power all in a convenient, lightweight package. -
Page 8: Product Description
Always On UPS Systems 2.0 Product Description 2.1. Theory of Operation The UPS (Uninterruptible Power Supply) is designed for installation between utility (commercial supplied power) and your loads. The dual conversion online UPS provides a totally reconstructed and regulated true sine wave. Thus it may be used to protect your loads from any power fluctuations (e.g. -
Page 9: Block
Always On UPS Systems 2.3. Description of Each Block Input Fuse:Provides secondary circuit protection and a further reduces possible damage to the system. EMI/RFI Filter: This filter attenuates the electrical noise associated with the polluted utility power to the UPS or noise (THD) generated by the UPS. -
Page 10: Perational Features
Always On UPS Systems 2.4. Operational Features Normal Mode System operates within user-defined settings. The input operating range is based on the Input Frequency Setting and the Input/Bypass Voltage Setting (Chapter 6.5). The output is synchronized with the input until the AC supply falls outside of the... - Page 11 Always On UPS Systems Other than during the initial 24 hours, after startup, or while the UPS is in charging mode, diagnostic tests (please see chapter 6.5) can be performed manually from the front panel at any time. M0301_N_Series_DM_Manual V1.4 2012-06-12...
-
Page 12: Handling
In the event that physical damage is visible, the carrier must be informed immediately and a claim filed with them. Inform Always On as soon as the claim has been filed and a copy of claim should be faxed to Always On at (250) 491-9775. -
Page 13: Installation
Always On UPS Systems 4.0 Installation The Slimline/Doormount UPS is intended for installation in a relatively temperature-controlled lled indoor area, free of conductive contaminants. Installation should be conducted by qualified indoor area, free of conductive contaminants. Installation should be conducted by qualified individuals. -
Page 14: Onsiderations
Always On UPS Systems Electrical Considerations The UPS shall be installed by a qualified technician and wired in accordance with local and national electrical codes. The following information is for recommendation only. Standard Load VA Rating F (Hz) Panel Input... -
Page 15: Attery Connection
Always On UPS Systems 4.4. Input, Output and External Battery Connection Figure 4.4.1 AC connections are hardwired to a terminal block as seen in the figure above. The cable sizes, input breakers/outlets and distribution methods used during installation are subject to the local and national electrical codes of practice, therefore are not detailed here. - Page 16 Always On UPS Systems Caution: • Servicing of the batteries should be performed or supervised by personnel knowledgeable of batteries and the required precautions. • Keep unauthorized personnel away from the batteries. • Do not dispose of batteries in a fire. They may explode.
-
Page 17: Start-Up/Shutdown
Always On UPS Systems 5.0 Start-up/Shutdown Once the UPS is installed, make sure it is located in a sturdy, ventilated enclosure, and that the exhaust fans and ventilation grills are not obstructed. Below is the necessary information for operation of the unit. Normally the UPS runs automatically, but on those few occasions such as just after installation start-up or shutdown procedures maybe required. -
Page 18: Front Control Panel
Always On UPS Systems 6.0 Front Control Panel Figure 6.1 LCD Display & Interface 6.1. Normal Display The UPS status is shown in normal display mode. From here you have a choice to go to the UPS metering display and the Settings display by pushing the button. -
Page 19: Utton Operation
Always On UPS Systems 6.3. Button Operation Please note the three operating buttons on the front panel: “ON/ OFF” button: (a) Push and hold the “ON/OFF” button for at least 3 seconds to turn on the UPS. (b) When UPS is working, push and hold the “ON/OFF” button for at least 5 seconds to turn off the UPS. - Page 20 Always On UPS Systems Press the “FUNC” button to scroll through the options for the selected parameter; Press the “ENTER” button to select the option. You may be prompted to save the selection, if so press the “ENTER” button to either confirm or save your selection.
- Page 21 Always On UPS Systems Settings LCD Display Explanation Selection Factory Default Detect battery is within Do Battery Test Battery Test normal parameters Permanently force Force Manual Bypass Manual Bypass UPS to bypass. For ON/OFF service only* Enable or disable Silence Function...
-
Page 22: Audible Alarm
Always On UPS Systems 7.0 Audible Alarm 7.1. Backup mode The UPS will beep once every five (5) seconds and the BACKUP LED will light, when the unit is in back-up mode. (beep - - - - beep - - - - beep) [Slow beep] 7.2. -
Page 23: Applications
Always On UPS Systems 10.0 Software Setup For Standard Software Applications On the side of the UPS is an interface allowing direct communication with your computer system, the location of which can be found in figure 4.3.1. There is a RS232 serial data interface and an emergency power off switch supplied. -
Page 24: P Rocedure For (O Ptional ) E Xtended B Atteries
Always On UPS Systems Optional Extras 10.4. Procedure for (Optional) Extended Batteries Attention: Choose the correct battery pack voltage, according to the UPS rated capacity. Do not connect too few or too many batteries, as this could cause electrical shock, damage or death. -
Page 25: Ptional ) Extended Anagement ) A Operation
Connect the UPS to the AC supply and turn “On” the UPS. 10.5. SNMP (Network Management) Adapter (Optional) The Always On Simple Network Management Protocol (SNMP) adapter is a web- based management product that uses multiple, open standards such as Telnet, HTTP, and SNMP to provide full management of supported devices. -
Page 26: As-400 And R Elay C Ontact ( Optional On Standard Temperature Models )
Always On UPS Systems 10.8. AS-400 and Relay Contact (optional on standard temperature models) Located on the rear panel of the UPS is a connector, which provides status information through relay and photo-coupler of the UPS operation. Pin Assignment (DB 25pin male connector) -
Page 27: Troubleshooting
Always On UPS Systems 11.0 TROUBLESHOOTING The following chart of unusual situations includes some possible problems and solutions occurring under daily operation. If the UPS loses its basic functions, please check the following items before contacting your local dealer or service center:... -
Page 28: Technical Data
Always On UPS Systems 12.0 TECHNICAL DATA Standard Models NDM SERIES MODEL NO. GES-102NDM GES-152NDM Maximum Capacity 1000VA/700W 1500VA/1050W GENERAL UPC Order Code 825433 30218 825433 30317 120VAC (OPTIO NAL 220VAC AVAILABLE) Nominal Voltage 60VAC/40% Load, 70VAC/70% Load, 80VAC - 144VAC/100%... -
Page 29: Contact Information
Always On UPS Systems 13.0 CONTACT INFORMATION 13.1. Additional Purchases or Upgrades Always On UPS Systems Inc. Bldg 1 – 150 Campion Road, Kelowna, BC, Canada, V1X 7S8 Phone: (250) 491-9777 Ext 451 Fax: (250) 491-9775 Email: sales@alwayson.com Website: www.alwayson.com 13.2.
