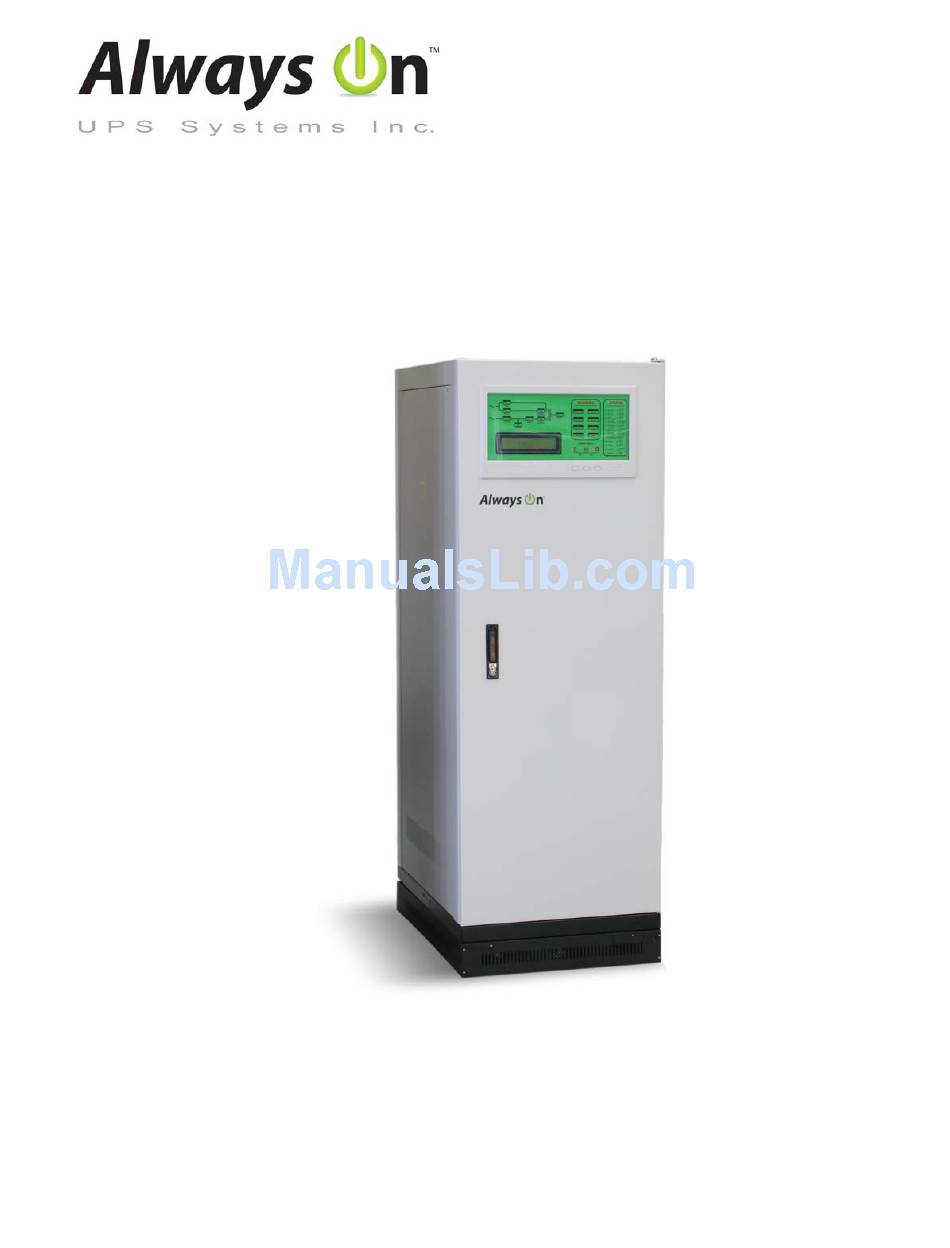

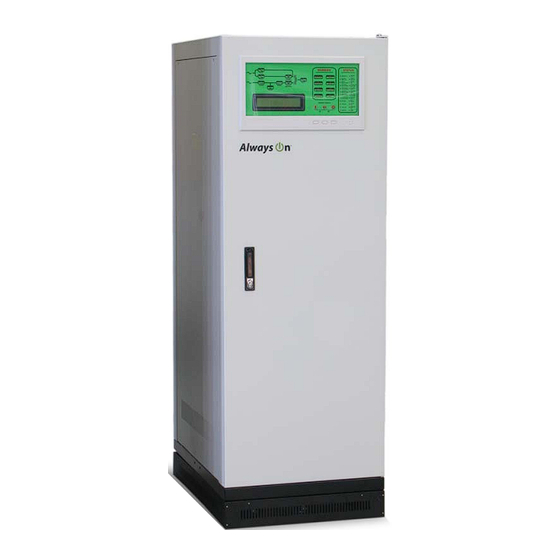

- Page 1 NX-Series Three Phase UPS System GES-103NX – GES-1603NX 10 kVA – 160 kVA Operators Manual M0703_NX_Series_Operators_Manual V1.25 2012-06-12...
- Page 2 Always On UPS Systems M0703_NX_Series_Operators_Manual V1.25 2012-06-12...
- Page 3 Always On UPS Systems Inc. We are confident that this Always On NX Series Uninterruptible Power Supply system, developed and manufactured in our ISO 9001 Certified facilities will provide the quality and satisfaction you demand.
- Page 4 Always On UPS Systems Preface Congratulations on your choice of NX Series Uninterruptible Power Supply (UPS). This system will protect your valuable equipment from the electrical noise, spikes, surges and other power aberrations found in today’s power grids. This manual describes how to prepare the installation site and procedures for moving, installing and connecting the UPS, with detailed information of maintenance procedures suggested to allow for maximum reliability.
- Page 5 Always On UPS Systems TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS .................. 1 INTRODUCTION ........................3 System Description.........................3 Definitions ............................3 THEORY OF OPERATION ....................... 5 General Topology..........................5 Normal Operation Mode........................6 Back-Up Mode: ..........................6 Reserve Mode:..........................7 Maintenance Bypass Mode: ......................7 Features and Advantages.......................8 Rectifier ............................10...
- Page 6 Always On UPS Systems Menu 3 – Real Time Data Menu....................41 Menu 4 – Historical Event Menu ....................42 Menu 5 – Parameter Setting Menu....................43 Menu 6 – Rectifier Data Menu ......................44 Menu 7 – Reserve Data Menu.......................44 Menu 8 – Output Data Menu ......................45 9.10...
-
Page 7: Important Safety Instructions
Check the integrity of the UPS equipment carefully. If visible damage is evident, do not attempt to install or start the UPS. Contact the transport delivery company immediately, file a claim with the transport company and inform Always On directly. - Page 8 Always On UPS Systems INSTALLATION This UPS is intended for use in a controlled indoor environment free of conductive contaminants and protected against any type of intrusion. Do not install the UPS in an excessively humid environment or near water.
-
Page 9: Introduction
Always On UPS Systems Inc. believes that product reliability is first and foremost in acquiring the confidence of the industry. Our Quality Control Standards ensures that testing at the... - Page 10 Always On UPS Systems Key features: 0.9 power factor, the Always On NX Series delivers more real power than other manufactured UPS’s. With today’s trend toward power factor corrected loads, the NX Series can support more total load than any other UPS, of similar size, allowing you to support a greater number of today’s Power Factor Corrected (PFC) equipment.
-
Page 11: Theory Of Operation
Always On UPS Systems THEORY OF OPERATION General Topology Figure 3.1.1 General Block Diagram UPS Module Components: The UPS module consists of the following major components: Input, Reserve and Bypass circuit breakers Rectifier / Charger Inverter Microprocessor controlled logic and control panel with alarm indicators and digital... -
Page 12: Normal Operation Mode
Always On UPS Systems Normal Operation Mode Figure 3.2.1 Normal Mode Operation rectifier/charger converts the supplied AC power into DC (bus) power, which is then supplied to the inverter and the battery charger. The DC to AC inverter then supplies continuous, noise free AC power to the critical loads. The inverter output is synchronized with the bypass AC power source provided that the bypass AC power source is within the specified frequency range. -
Page 13: Reserve Mode
Always On UPS Systems Reserve Mode: Figure 3.4.1 Reserve Mode Operation If the inverter is placed into an abnormal condition, such as over temperature, short circuit, abnormal output voltage or is overloaded for a period which exceeds the inverter’s limits, the inverter will automatically shutdown in order to protect itself. -
Page 14: Features And Advantages
–up operation causing possible damage. k. Wide input range: The components are overrated by designed to handle high input voltages and currents without harm to the system, ensuring that Always On UPS’s remain one of the most reliable UPS Systems available in today’s market. - Page 15 Always On UPS Systems m. Intelligent charger: The UPS will automatically recharge (boost charge) the batteries when the battery voltage level decreases to approximately 2V/Cell or to a user specified level. To prevent the over-charging of the battery, the boost charge will stop when batteries achieve a...
-
Page 16: Rectifier
In order to further improve the power factor and reduce harmonic current drawn by the rectifier, Always On UPS’s above 80kVA incorporate a 12-pulse full controlled rectifier (also available as an option on the 10 to 60kVA UPS’s) to reduce the total harmonic current to less than 12%. A phase shift transformer is added with input inductors to achieve this higher level of performance while maintaining our high input power factor. -
Page 17: Inverter
Always On UPS Systems Inverter Figure 3.8.1 Inverter Layout The inverter is composed of IGBT’s, inductors, capacitors, highly efficient filters, control circuitry and protection circuitry. This inverter inverts the DC power received on the DC bus to isolated, noise-free AC power, which is then supplied to the critical loads. Our PWM wave generator is switching at a higher frequency well above the human audible range. -
Page 18: Static Switch
3.10 Maintenance Bypass Switch The maintenance bypass switch is a function of Always On UPS’s, which is open under normal operation, and closed for maintenance service. All power supplied to the UPS should be disconnected before service begins. -
Page 19: Inter-Pcb Diagram
Always On UPS Systems INTER-PCB DIAGRAM 12 Pulse Rectifier SS Drive Rectifier Rectifier Power Supply Driver Control Rectifier Rectifier Batt Inverter R Phase Driver Control Relay Driver Controller 6 Pulse Rectifier Inverter S Phase Driver Remote Control Call Inverter T Phase... -
Page 20: Dimensions & Drawings
Always On UPS Systems DIMENSIONS & DRAWINGS 559mm [22”] Figure 5.1 10kVA to 60kVA Dimensional Drawing M0703_NX_Series_Operators_Manual V1.25 2012-06-12... - Page 21 Always On UPS Systems W AR NING Da ngerous AC & DC PHIGH VOLTAGE ! Operating P roc ed ure W arn i n g : For Install a tion & Fir s t Ti m e S ta rtup, P lea s e S e...
- Page 22 Always On UPS Systems Figure 5.3 80kVA to 160kVA Dimensional Drawing M0703_NX_Series_Operators_Manual V1.25 2012-06-12...
- Page 23 Always On UPS Systems START PROCE DURE: SHUTDOWN PR O CEDURE: 1. CLOSE THE RES ER VE B RE AK ER. 1. PUS H TH E INVE RT ER OFF SW ITC H 2. CLOSE THE REC TIFIER BRE AK ER.
-
Page 24: Installation
In the event that physical damage is visible, the carrier must be informed immediately and a claim filed with them. Inform Always On as soon as the claim has been filed and a copy of claim should be faxed to Always On at (250) 491-9775. -
Page 25: Storage
The RAM is supplied by a small backup battery located on the Controller board. If the storage time of the UPS exceeds 1 year, these functions should be verified by an Always On Service Center before putting the UPS into operation. 6.3.2 STORAGE OF BATTERY Although this system includes maintenance free batteries, keep in mind that they are subject to self-discharge and therefore must be recharged. -
Page 26: Site & Environment Consideration
Always On UPS Systems Site & Environment Consideration The designed function of the UPS is to provide a safe, clean and independent electrical supply free from random variations, disturbances or interruptions of the utility mains. The UPS will provide a constant power source, which is regulated in both voltage and frequency. When the utility mains are not available, the UPS will provide optimal back-up time depending on the capacity connected battery bank. -
Page 27: Unpacking
Always On UPS Systems d. Do not place any objects on the top of the UPS that might obscure the ventilation. Do not place the UPS near any heat source, or machinery, which may produce metallic particles, dust or powder. - Page 28 Always On UPS Systems transport company and inform Always On. Also check to ensure all of the accessories/options ordered are received. • DOOR KEY • OPERATOR’S MANUAL • BATTERY FUSE (FOR BATTERY CABINET ONLY) Check and verify the specifications of the UPS are identical to the specifications of the system ordered.
-
Page 29: Cable Selection
Always On UPS Systems Cable Selection The cabling of the UPS system has to be sized according to the UPS power rating. Sizing of circuit breakers, fuses and cables for input utility, output load and battery must meet the requirements of local and national electrical codes. - Page 30 Always On UPS Systems Table 2 (See rules 4-004, 8-104, 12-012, 12-2212, 26-000, 26-742, 42-008, and 42-016 and Tables 5A, 5C, 19, and D3) Allowable Ampacities for Not More Than 3 Copper Conductors in Raceway or Cable Based on Ambient Temperature of 30°C Allowable Ampacity 60°C...
- Page 31 Always On UPS Systems Table 4 (See rules 4-004, 8-104, 12-2212, 26-000, 26-742, 42-008, and 42-016 and Tables 5A, 5C, and D3) Allowable Ampacities for Not More Than 3 Aluminum Conductors in Raceway or Cable Based on Ambient Temperature of 30°C Allowable Ampacity 60°C...
- Page 32 Always On UPS Systems Table 5A (See rules 4-004(8), 12-2212, and Tables 1,2,3,4,57,58, and D3) Correction Factors Applying to Tables 1,2,3, and 4 Ampacity Correction Factors for Ambient Temperatures Above 30°C (These correction factors apply, column for column, to Tables 1,2,3, and 4. The correction factors in column 2 also apply to Table 57.)
-
Page 33: Fuse Rating & Cable Size For Battery Banks
Always On UPS Systems 6.6.3 FUSE RATING & CABLE SIZE FOR BATTERY BANKS Table 6.6.3.1 Recommended Fuse and Cable Size for the Battery Banks KVA Rating Imax(A) FUSE(A) CABLE(mm²) CABLE (AWG) 125*2 38*2 175*2 50*2 200*2 80*2 200*2 80*2 200*4... -
Page 34: Terminal Connection
Always On UPS Systems Terminal Connection Different models of UPS’s may have different cable connection terminals. UPS connection terminal configurations fall into one of the following types: RESERVE RECTIFIER BATTERY INPUT INPUT OUTPUT INPUT 3 PHASE INPUT / 3 PHASE OUTPUT TERMINAL WITH TWO SOURCE RECTIFIER &... -
Page 35: Front Panel
Always On UPS Systems FRONT PANEL Figure 7.1 Front Panel Display M0703_NX_Series_Operators_Manual V1.25 2012-06-12... - Page 36 Always On UPS Systems The front panel is located behind the glass window on the front of the UPS system. It displays the real time information and status of the UPS and battery system. It also provides for user interface for controlling and setting the UPS operating status. This panel also allows the user to operate and monitor the system with ease.
- Page 37 Always On UPS Systems • INVERTER FAIL INV SHUTDOWN – inverter has shutdown due to inverter output voltage below tolerances. • BYPASS ON INV SHUTDOWN – inverter has shutdown because the bypass breaker has been activated while the inverter is supplying power to the load.
- Page 38 Always On UPS Systems D: Buzzer outlet: There is a buzzer located behind the LCD Display. The buzzer will allow for audile notification during an abnormal condition. The buzzer will be activated under one of the following conditions: (The frequency of the buzzer is also described for your reference.)
- Page 39 Always On UPS Systems are being selected or changes the number/character forward when data or parameters of the UPS are being set. N. Down key: This is an LCD control key. It moves the cursor one field downward when items are being selected or changes the number/character backward when data or parameters of the UPS are being set.
-
Page 40: Operation
Always On UPS Systems OPERATION After all the cables have been connected and power is present at the input terminal, the UPS is ready to operate. Before initial start-up, re-check the following: a. Make certain there is no foreign material left on, inside or around the UPS b. -
Page 41: Shutdown Procedure
Always On UPS Systems Figure 8.1.1 Status Panel Display Under Normal Operation Circles represent LED’s that are on. Shutdown Procedure To completely shutdown the UPS, please follow the following steps. a. Switch off the inverter – The inverter can be switched off by simultaneously pressing the inverter off switch (O) and the inverter control switch (◄►). -
Page 42: From Inverter To Manual Bypass Procedure
Always On UPS Systems f. Now that all power has been cut off within the UPS system. All LED’s, displays and fans should be off. CAUTION! Terminal strip and breakers may still be energized if the main input breaker feeding the UPS system is not turned off or open. -
Page 43: From Manual Bypass To Inverter Procedure
Always On UPS Systems From Manual Bypass To Inverter Procedure After the maintenance procedures and testing are complete you will need to restore the UPS back to its normal mode of operation without interrupting the power to the loads. The following procedures need to be followed. -
Page 44: The Lcd Display
Always On UPS Systems THE LCD DISPLAY The LCD displays Real Time information as to the status and operation characteristics of the UPS system and battery banks. In order to make the display sharp and readable, the LCD is back-lit by LED’s. To prolong the life of the LED, the CPU will cut off the power of the LED 3 minutes after the last key has been pressed. -
Page 45: Menu 1 – Select Menu
Always On UPS Systems Menu 1 – Select Menu S E L E C T M E N U S T A T U S W A R N I N G F A U L T P A R A M E T E R... -
Page 46: Menu 2 – Status Warning Menu
Always On UPS Systems Menu 2 – Status Warning Menu S T A T U S W A R N I N G R E C T I F I E R = O N I N V E R T E R = O N... -
Page 47: Menu 3 – Real Time Data Menu
Always On UPS Systems Listed below are all the fault conditions that can be displayed: row: HIGH DC SHUTDOWN – DC Bus voltage out of operating range. row: SHORT CIRCUIT! – a short circuit condition has occurred on the output. -
Page 48: Menu 4 – Historical Event Menu
Always On UPS Systems Menu 4 – Historical Event Menu D A T E T I M E E V E N T S > R U N : 2 1 Y R 0 3 M O 2 0 0 2 \ 0 3 \ 2 9... -
Page 49: Menu 5 – Parameter Setting Menu
Always On UPS Systems Menu 5 – Parameter Setting Menu P A R A M E T E R S E T T I N G I N V E R T E R = O N / O F F... -
Page 50: Menu 6 – Rectifier Data Menu
Always On UPS Systems R E C T I F I E R D A T A > R E C T I F I E R F R E Q U E N C Y = X X R - N = X X X... -
Page 51: Menu 8 – Output Data Menu
Always On UPS Systems Menu 8 – Output Data Menu O U T P U T D A T A O U T P U T F R E Q U E N C Y = X X L O A D : R = X X X... -
Page 52: Menu 10 – Boost Charge Setting Menu
Always On UPS Systems 9.11 Menu 10 – Boost Charge Setting Menu Warning! These settings have been preset by the factory to optimize the battery bank requirements. Do not change settings unless factory or factory trained service personnel have been consulted. - Page 53 Always On UPS Systems B O O S T C H A R G E S E T T I N G A U T O - B O O S T ( M O N T H ) = 0 4...
-
Page 54: Menu 11 – Data Time Setting Menu
Always On UPS Systems 9.12 Menu 11 – Data Time Setting Menu D A T E T I M E S E T T I N G Y E A R = X X X X H O U R ( 2 4 H ) = X X... -
Page 55: Interface Connections
Always On UPS Systems INTERFACE CONNECTIONS All user interfaces are connected to or from PCB 3R, see the figure below. Figure 10.1.1 3R PCB Layout 10.1 Dry Contacts Eight, normally open, dry contact terminals are provided. Maximum rating of each relay is 16A/250VAC or 16A/30VDC. -
Page 56: Software For Pc Monitoring
Always On UPS Systems • COM – This contact is the OR result of the signals described above. That is, if any other contact closes, this contact will close too. The signal to be read is selectable through SWR2. See the figure below. -
Page 57: Options
Always On UPS Systems OPTIONS Warning! Similar products from other manufacturers will not fit into our UPS systems. The installation of any option requires professional settings and should only be preformed by the factory or factory trained representatives. 11.1 Battery Cabinet The battery cabinets have been designed with the same style and appearance as the UPS cabinet for ease of installation and cosmetic value. -
Page 58: Battery Runtime Charts
Always On UPS Systems 11.2 Battery Runtime Charts 4000W 8,000W 12,000W 16,000W 24,000W 32,000W Load 5000VA 10,000VA 15,000VA 20,000VA 30,000VA 40,000VA Model BBU-NX33D 25 mins 9 mins 4 mins BBU-NX33E 90 mins 40 mins 20 mins 15 mins 7 mins... -
Page 59: Emergency Stop Switch
Always On UPS Systems 11.3 Emergency Stop Switch This switch is used to immediately remove power from the load in the event of an emergency condition e.g. electrical shock, burning of the load or water located around the UPS. When the emergency stop button is pushed, the inverter will stop running immediately and the static switch does not activate. -
Page 60: Technical Specification
Always On UPS Systems TECHNICAL SPECIFICATION 12.1 NX Series – 10kVA to 250kVA UPS 3Ø Input GENERAL DATA Topology True On-Line, Dual Conversion Nominal output at PF=0.8 100% load, 0.9 91.5 92.5 92.5 Overall efficiency 50% load, 0.9 PF True galvanic isolation from input to output Heat rejection at 100% load, 0.9PF and... - Page 61 Always On UPS Systems Standards CSA 22.2 – 107.1, UL 1778, IEC 62040, FCC Part 15 Class A, EN50091-1, -2 Electrostatic discharge immunity 4kV contact / 8kV air discharge Standard Stand-alone Configuration Optional IPRO - up to 8 units may be paralleled for redundancy or capacity...
- Page 62 Always On UPS Systems Minimum discharge voltage 295VDC Boost charge voltage 410VDC Maximum Charge Current (ADC) Recharge time for 30 minute battery to 95% 10 times the discharge time (15 times for 40kVA) capacity Internal Batteries Available Not Available Battery ground fault detection...
- Page 63 Always On UPS Systems 100% unbalanced load (Ph-N) +/- 3% 100% linear load < 2% THD maximum Output voltage distortion 100% non-linear load < 3% THD maximum Crest factor capability Greater than 3:1 100% balanced load +/- 1% Phase displacement 100% unbalanced load +/- 2.5%...
- Page 64 Always On UPS Systems EXTERNAL INTERFACE Alarm contacts Standard 8 pre-defined contacts (consult user manual) Serial communication RS-232 Ethernet communications SNMP standard Emergency Power Off contacts provided (optional switch) Input signals Status displayed on LCD Panel FRONT PANEL CONTROLS, SIGNALS & ALARMS Active mimic Diagram Represents the operational status of the UPS, with integrated LED's and power flow indicators.
- Page 65 Always On UPS Systems UPS Rating Dimensions Weight (kVA) W (Width) D (Depth) H (Height) Floor Loading 559mm (22.0") 815mm (32.0") 1,600mm (63.0") 380kg (838lbs) 864 kg/sq.m (177 lbs/sq.ft.) 559mm (22.0") 815mm (32.0") 1,600mm (63.0") 415kg (915lbs) 943 kg/sq.m (193 lbs/sq.ft) 559mm (22.0")
-
Page 66: Contact Information
Always On UPS Systems CONTACT INFORMATION QA / Warranty Questions Always On UPS Systems Inc. Bldg 1 – 150 Campion Road, Kelowna, BC, Canada, V1X 7S8 Phone: (250) 491-9777 Ext 209 Fax: (250) 491-9775 Email: qa@alwaysonups.com Website: www.alwaysonups.com Software Questions Always On UPS Systems Inc.
