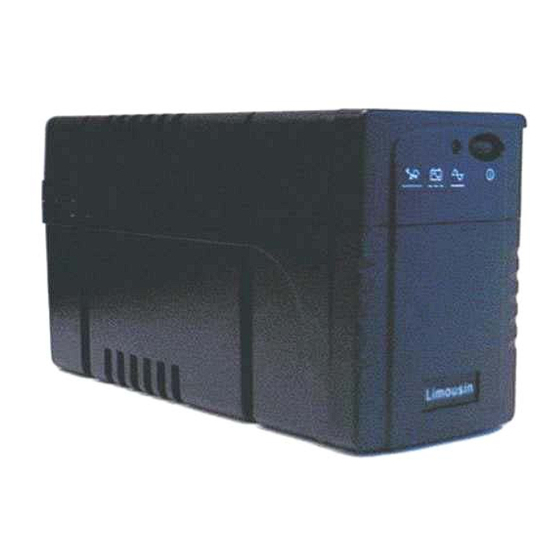

- Page 1 Limousin II User Manual 600VA Uninterruptible Power Supply Single Phase Input, Single Phase Output M0601_Limo_II_Series_Manual V1.6 2012-06-12.doc...
- Page 2 Always On UPS Systems SAVE THESE SAFETY INSTRUCTIONS This manual contains important instructions for the Limousin and should be followed during installation and maintenance of the UPS and batteries. The UPS contains voltages that are potentially hazardous. Please contact our dealers or qualified personnel for service.
-
Page 3: Table Of Contents
Always On UPS Systems Table of Contents INTRODUCTION....................1 PRESENTATION .....................2 2.1. Front Panel ....................2 2.2. Rear Panel....................2 INSTALLATION ....................3 3.1. Unpacking and Inspection .................3 3.2. Placement ....................3 3.3. Connect to Utility ..................3 3.4. Charging the Battery...................3 3.5. Connecting the Load ..................3 3.6. -
Page 4: Introduction
Always On UPS Systems 1. INTRODUCTION The Limousin is an economical UPS solution that provides ultimate protection for your home and office equipment from destructive problems that plague the utility. With the Limousin, you can expect brownout and surge protection with the AVR function using on-line voltage boost-up &... -
Page 5: Presentation
Always On UPS Systems 2. PRESENTATION 2.1. Front Panel Multi Purpose LED This LED will be solid green when the UPS is under normal conditions. It will flash every 2 seconds when the UPS is supplying battery power to the loads, and will flash rapidly when the battery needs replacement. -
Page 6: Installation
Always On UPS Systems 3. INSTALLATION 3.1. Unpacking and Inspection Examine the Limousin UPS packaging for damage. Inform the carrier immediately if and/or when damage is noticed. Retain the packaging for future use. 3.2. Placement Install the Limousin UPS in a protected area with adequate airflow, free of excessive dust and other airborne particles. -
Page 7: Operation
Always On UPS Systems 4. OPERATION 4.1. Switching “On” the UPS Make sure the Limousin UPS is plugged in and the utility power is present. Press and hold the “On/Off/Test/Silence” Button for more than 3 seconds or until the LED is lit. This switches the Limousin UPS “On”. -
Page 8: Audible Alarm
Always On UPS Systems 5. AUDIBLE ALARM 5.1. Back-Up (Slow Alarm) When in back-up mode, the LED flashes every 2 seconds and the UPS sounds an audible alarm. The alarm stops when the UPS returns to line normal operation. Press the “On/Off/Test/Silence”... -
Page 9: Computer Interface Port
Pin 2 is the RS-232 data output to computer (TX). Pin 4 is the RS-232 (DTR) Pin 7 is the RS-232 (RTS) Pin 5 is the common or computer ground DB-9 Pin Configuration for the Limousin II RS-232 RD (PIN 3) RS-232 TX (PIN 2) RS-232 RTS (PIN 7) -
Page 10: Battery Replacement
Always On UPS Systems BATTERY REPLACEMENT Your battery should run anywhere from 3-5 years before it needs to be replaced. Please follow the instructions below for easy, trouble free, battery replacement. Turn the UPS off. Follow procedure previously mentioned. Unplug the UPS from utility power source and disconnect all connected loads. -
Page 11: Troubleshooting
Always On UPS Systems 8. TROUBLESHOOTING Please follow the guidelines below for common problems: Check UPS input plug and wiring. Check UPS input voltage. Please prepare the information as follows for service personnel: UPS model number and serial number Description of problem(s) in detail. -
Page 12: Specifications
Always On UPS Systems 9. SPECIFICATIONS MODEL LIMOUSIN II Capacity 600VA GENERAL UPC Order Code 825433 00111 Voltage 120V nominal (220V option), +/-25% INPUT Frequency 50 or 60Hz +/- 5% (auto sensing) Input socket (1) IEC 320 Voltage (on battery) - Page 13 Always On UPS Systems Type Sealed, maintenance-free lead acid BATTERY Typical Recharge Time 6 hours (to 90% of full capacity) Back up Time 10-30 minutes Communications RS-232 INTERFACE LED Display Normal / Backup / Overload Audible Alarms On Battery, Low Battery, Overload...
-
Page 14: Contact Information
Always On UPS Systems 10. CONTACT INFORMATION 10.1. Additional Purchases or Upgrades Always On UPS Systems Inc. 100 – 150 Campion Road, Kelowna, BC, Canada, V1X 7S8 Phone: (250) 491-9777 Ext 451 Fax: (250) 491-9775 Email: sales@alwaysonups.com Website: www.alwaysonups.com 10.2.
