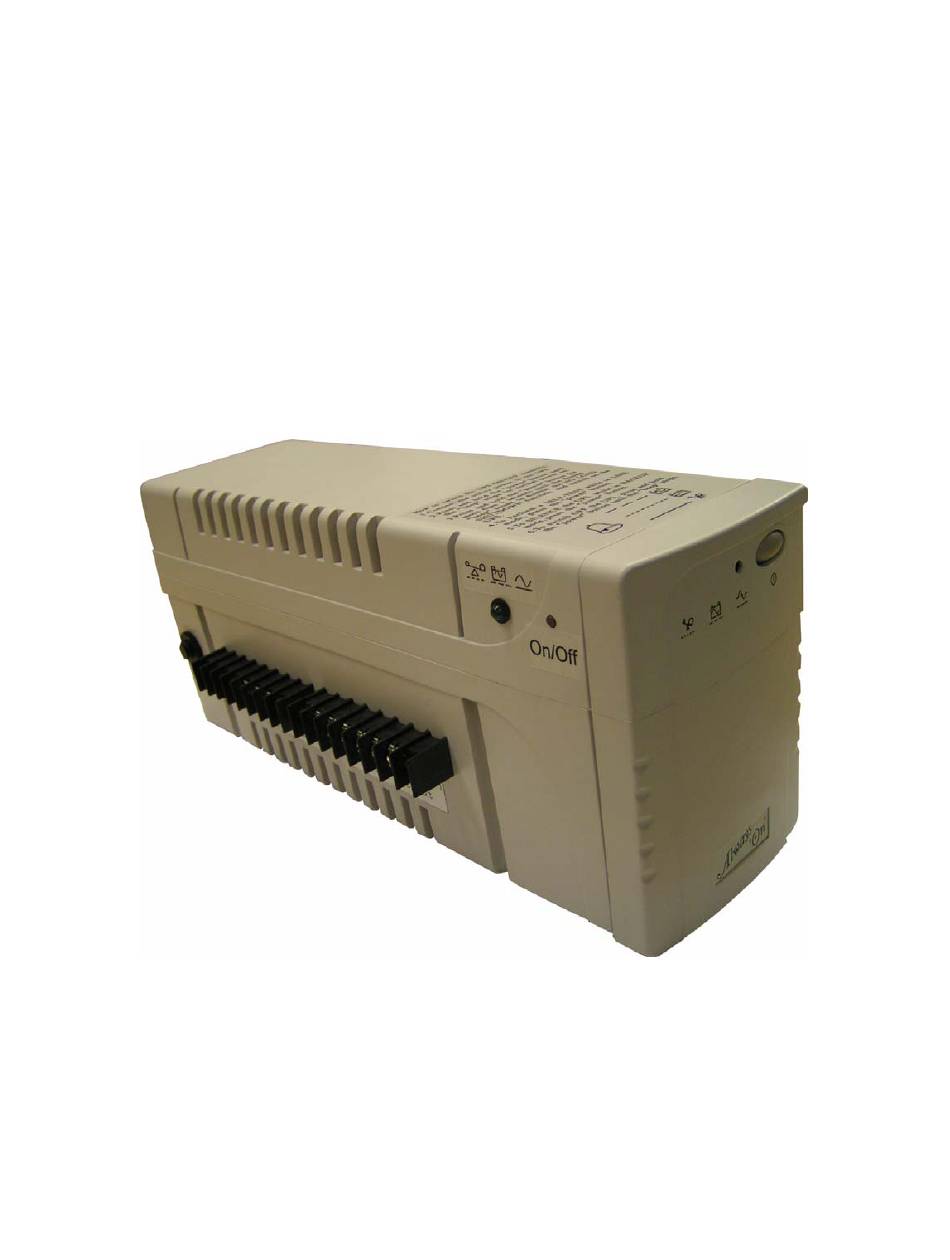

- Page 1 AC/DC Din Rail UPS System Single Phase Input, Single Phase Output Uninterruptible Power Supply 600VA UPS System – AC/DC Din Rail Mount Line Interactive (PWM): 600VA User Manual M1201_Din_Rail_AC-DC_600VA_Manual V1.6 2012-06-12.doc...
- Page 2 Always On UPS Systems SAVE THESE INSTRUCTIONS This manual contains important instructions for the DR UPS systems and should be followed during installation and maintenance of the UPS and batteries. The UPS contains voltages that are potentially hazardous. Please contact our dealers or qualified personnel for service.
-
Page 3: Table Of Contents
Always On UPS Systems INTRODUCTION__________________________________________________________________ 1 SAFETY INSTRUCTIONS __________________________________________________________ 2 PRESENTATION__________________________________________________________________ 3 Side Panel _______________________________________________________________________________________3 Input and Output Terminal Block Connections ________________________________________________________4 INSTALLATION __________________________________________________________________ 4 Unpacking and Inspection _________________________________________________________________________4 Placement _______________________________________________________________________________________4 Connect to Utility_________________________________________________________________________________4 Charging the Battery______________________________________________________________________________4 Connecting the Loads _____________________________________________________________________________4 OPERATION _____________________________________________________________________ 5 Switching “On”... -
Page 4: Introduction
Always On UPS Systems INTRODUCTION The AC/DC UPS DR is a Line Interactive UPS system that includes the newest and latest technology enhancements. The Line Interactive technology with AVR function (on-line voltage boost-up & buck-down) allows for a wide input voltage range of 90 to 150VAC. The AC/DC UPS DR is ideal protection for modern point of sale equipment. -
Page 5: Safety Instructions
Always On UPS Systems SAFETY INSTRUCTIONS 1. The UPS has its own internal energy source (battery), therefore the output receptacles may have electricity present even though the UPS is disconnected from the utility power. 2. The DC voltage provided from the internal battery is 12VDC. -
Page 6: Presentation
Always On UPS Systems PRESENTATION Side Panel 1. “ON-LINE / BACKUP / OVERLOAD" indicator (GREEN LED) 2. "ON/OFF/TEST/SILENCE" button Press and hold the button for more than 3 seconds to turn the UPS “ON” or “OFF”, press and hold the button less than 1 second to activate a self-test, or silence the back up alarm. -
Page 7: Input And Output Terminal Block Connections
Always On UPS Systems Input and Output Terminal Block Connections AC OUTPUT AC INPUT DC OUT Side Mount Input and Output Terminal Blocks INSTALLATION Unpacking and Inspection Examine the packaging for damage. Inform the carrier immediately if and/or when damage is noticed. -
Page 8: Operation
Always On UPS Systems OPERATION Switching “On” the UPS With the UPS plugged in, and utility power present, press and hold the On/Off/Test/Silence Button more than 3 seconds or until the "LINE NORMAL" LED is lit, this will switch the UPS “On”. The UPS will perform a self-test every time it is turned “On”. -
Page 9: Green Function
Always On UPS Systems Green Function In order to conserve battery power the UPS will automatically shutdown when in back-up mode, after 5 minutes, if the connected loads are operating at less than 20 watts. • To disable “GREEN FUNCTION” press and hold the “On” button during initial start-up for at least 3 seconds, until a beep-beep sound is heard. -
Page 10: Battery Replacement
Always On UPS Systems BATTERY REPLACEMENT Your battery should run anywhere from 3-5 years before it needs to be replaced. Please follow the instructions below for easy, trouble free, battery replacement. 1. Turn the UPS off (follow procedure previously mentioned) 2. -
Page 11: Troubleshooting
Always On UPS Systems TROUBLESHOOTING Please follow the guidelines below for common problems: Check UPS input plug and wiring. Check UPS input voltage. Please prepare the information as follows for service personnel: UPS model number and serial number Description of problem(s) in detail. -
Page 12: Storage
Always On UPS Systems STORAGE Storage Conditions Store the UPS covered and upright in a cool, dry location, with its battery fully charged. Before storing, charge the UPS for at least eight (8) hours. Remove any accessories in the accessory slot and disconnect any cables connected to the computer interface port to avoid the unnecessary draining of the battery. -
Page 13: Specifications
Always On UPS Systems SPECIFICATIONS UPC Order Code 825433 00861 Capacity 600VA Voltage 120VAC nominal, +/-20% INPUT Frequency 50 or 60Hz +/- 10% (auto sensing) Input Hard wire - Terminal Block Voltage (on battery) 120VAC +/-5%, Modified Sine Wave Frequency (on battery) -
Page 14: Contact Information
Always On UPS Systems CONTACT INFORMATION Additional Purchases or Upgrades Always On UPS Systems Inc. Bldg 1 – 150 Campion Road, Kelowna, BC, Canada, V1X 7S8 Phone: (250) 491-9777 Ext 451 Fax: (250) 491-9775 Email: sales@alwaysonups.com Website: www.alwaysonups.com QA / Warranty Questions Always On UPS Systems Inc.
