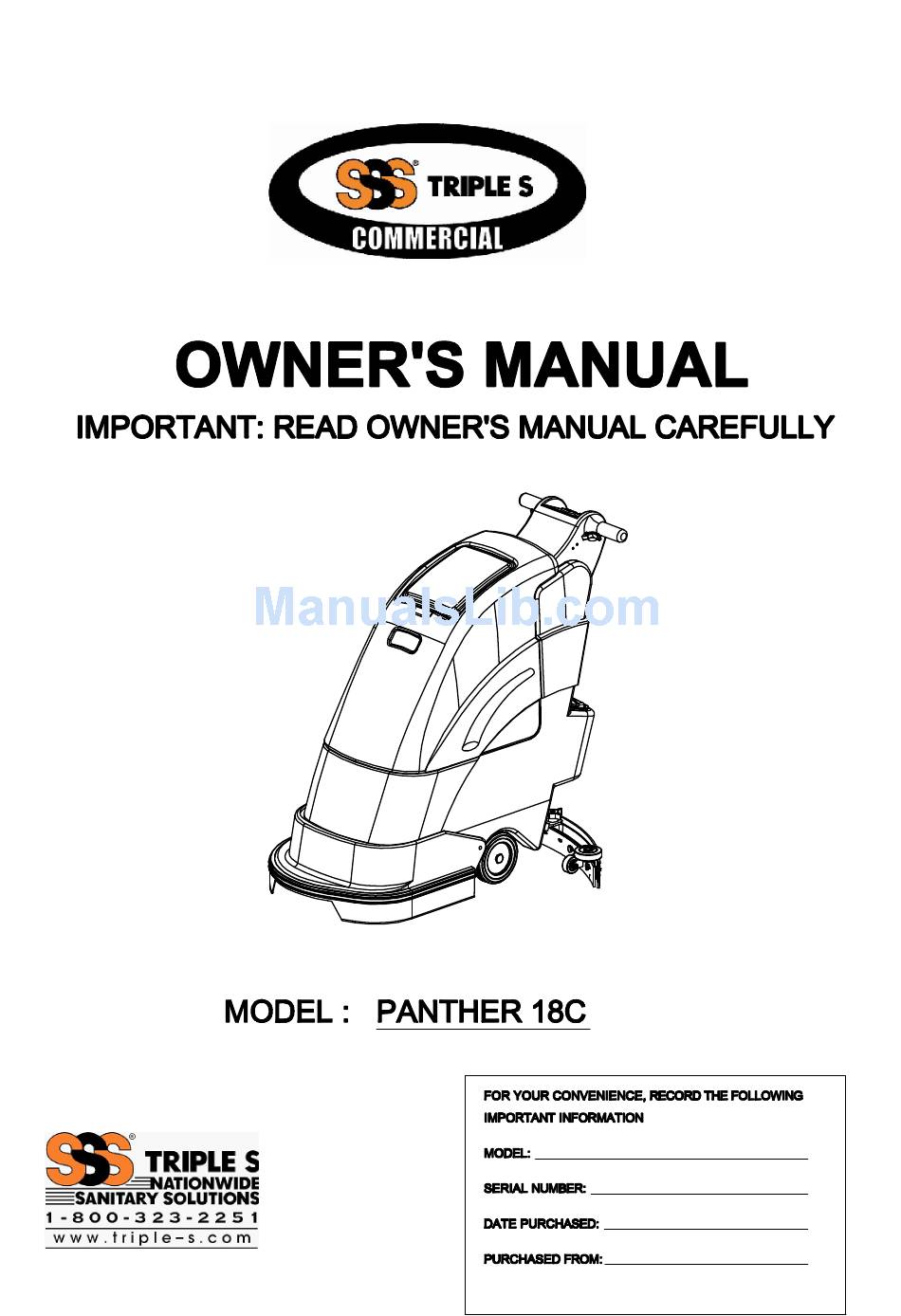

Triple S Panther 18C Owner's Manual

Automatic floor cleaner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Panther 18C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Triple S Panther 18C

Summary of Contents for Triple S Panther 18C

  • Page 3 SAFETY PRECAUTIONS This machine is intended for commercial use. It is constructed for use in an indoor environment and is not intended for any other use. Use only with recommended : Flammable materials can cause an accessories. explosion or fire. Do not use flammable materials in tanks.

  • Page 4: Machine Set Up & Installation

    INSTALLING THE SQUEEGEE 1. Loosen the two knobs on the squeegee MACHINE SET UP & INSTALLATION and slide the squeegee into the slots at the rear of the squeegee bracket. (the UNPACK MACHINE wheels on the squeegee point to the back) Be sure and check packing carton for any 2.

  • Page 5: While Operating Machine

    : If the recovery tank is not drained : Do not keep the machine in the same when the solution tank has been refilled, position with the pad / brush spinning, or you foam or water may enter the float shut-off could cause damage to the floor.

  • Page 6: Preventative Maintenance

    Any damage caused by freezing PREVENTATIVE MAINTENANCE temperatures will not be covered by the warranty. : Before performing any 6. Drain the recovery tank and remove the maintenance on the machine, be sure that clear on the top of the recovery tank so the power is turned off.
  • Page 7 BASIC TROUBLESHOUTING PROBLEM CAUSE SOLUTION The wiring not connected correctly Check the wiring or contact Distributor or bad wiring No Power Bad brush motor Contact Distributor Carbon brushes worn out Contact Distributor The wiring not connected correctly Check the wiring or contact Distributor or bad wiring Vacuum motor Bad vacuum motor...
  • Page 8 Technical Specifications: Working Width 450mm Squeegee Width 750mm Efficiency 1100m Brush Dia. 450mm Brush Speed 255rpm Max Pad Pressure 30Kg Brush Motor 110-115V, 750W Vacuum Motor 110-115V,650W Solution Tank Capacity Recovery Tank Capacity Machine Weight 68Kg Machine Length 1100mm Machine Height 970mm Machine Width 545mm...
  • Page 10 PART DESCRIPTION NUMBER REQ'D VF80111 FILTER, CLEAR DOME VF82139 “O” RING VF80113 FILTER VV20501 SCREW, PH, SST, M5 X 14 VV13654 WASHER, SST, M5 VF80112 MOUNTING BASE, FILTER VF82090 CLAMP, HOSE VF80349 HOSE, INLET, FILTER VF13521 NUT, M6 VF13533 WASHER, M6 VV13607 WASHER, LOCK, M6 VF13495...
  • Page 11 PART DESCRIPTION NUMBER REQ'D VF80222 THIN NUT VF14315 WASHER, PLAIN, M24 VF81403 BARB, HOSE, 90° DEG VF14255 SET SCREW, M12 X 65 VF14057A NUT, M12 VF80201 FRAME VF80225 BOLT VF14101 NUT, BUTTERFLY, M6 VF80203 SLIDING PLATE VF80213 NUT, BRASS VF13519 WASHER, LOCK, M8 VF80235 SPACER...
  • Page 13 PART DESCRIPTION NUMBER REQ'D VF82010C VF82010C CLEAR COVER,RECOVERY TANK CLEAR COVER,RECOVERY TANK VF82010B GASKET,CLEAR DOME VF82010A RUBBER HINGE VF13491 SCREW, PH, M4 X 12 VA13483 WASHER, PLAIN, M4 VA13477 SCREW, ST, M4.2 X 16 VF80343TR MODEL DECAL, RIGHT VF80326TR "VIPER" LOGO VF80302A VF80302A RECOVERY TANK...
  • Page 15 PART DESCRIPTION NUMBER REQ'D VF81408 ADJUSTING PLATE VF13535 WASHER, PLAIN, M8 VF13519 WASHER, LOCK, M8 VV13604 BOLT, M8 X 20 VF81710 ADJUSTING SCREW VF80322 PIN, HANDLE LOCK VF80323 TUBE, HANDLE ADJUSTMENT VF81716 SPRING VF80317BD LEVER, SWITCH, LEFT VV13650 SCREW, PH, M4 X 10 VF81712 SPRING VV13652...
  • Page 17 PART DESCRIPTION NUMBER NUMBER REQ'D REQ D VF81222 SCREW, HEX SOCKET, SHOULDER, 5/16 X 1.25" VF81219 WHEEL, 2" VF13535 WASHER, PLAIN, M8 X M20 X 2 VV20203 NUT, NYLON INSERT, 5/16" VF82121 KNOB, M6 VF82118 VF82118 BACK UP STRIP SQUEEGEE FRONT BACK UP STRIP, SQUEEGEE, FRONT VF82062 BLADE, SQUEEGEE, FRONT...

  • Page 19: Warranty Policy

    This warranty does not apply to damage or defect caused by accident, misuse, negligence, abuse, fire or to any Triple S product which has been serviced by anyone other than a Triple S authorized service representative. Housings or parts that have become damaged as a result of improper use of the machine are excluded from this warranty.
