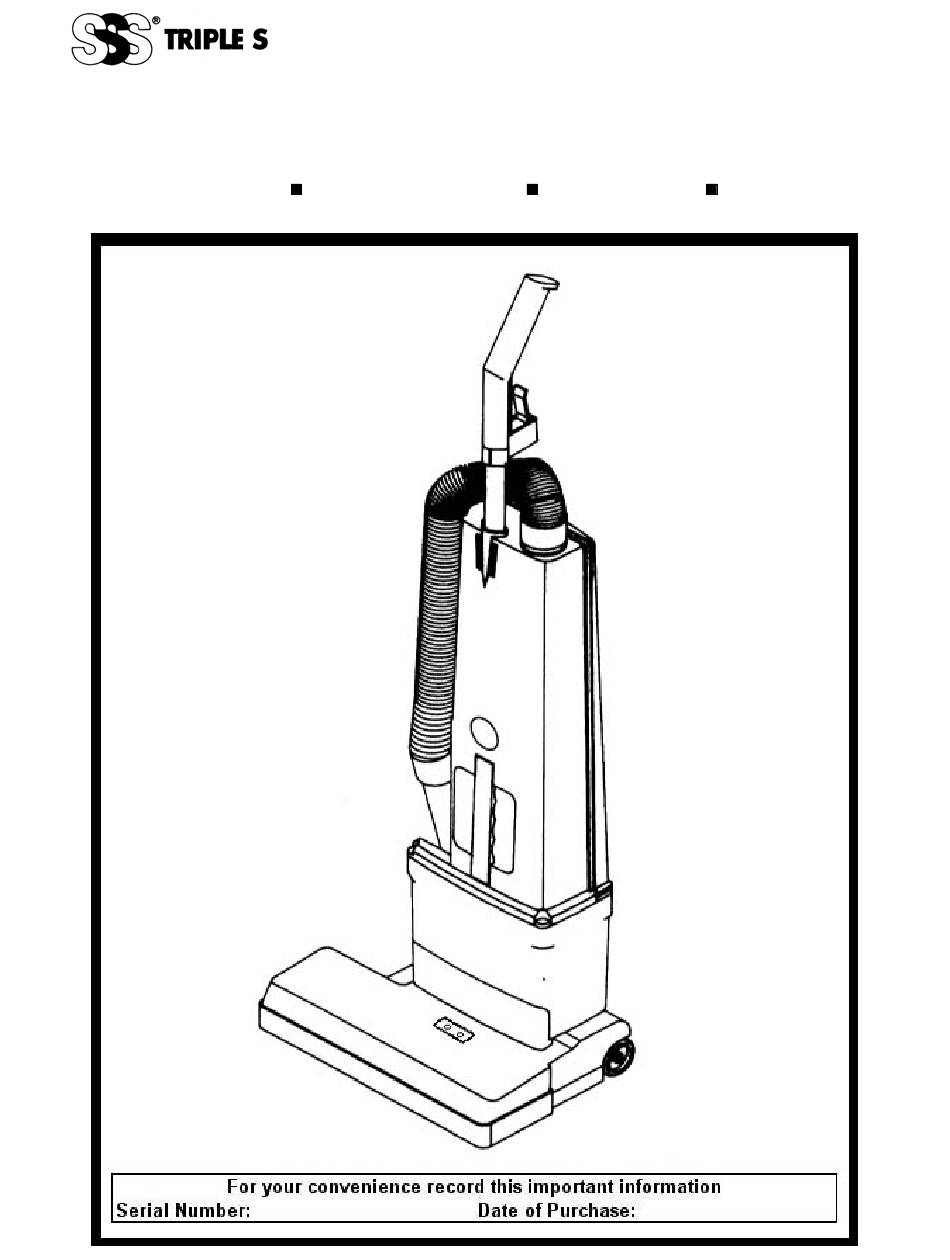

- Page 1 Model: PS-2 ProSense II Item # 49001 OPERATION SERVICE PARTS CARE...
- Page 2 FOR COMMERCIAL USE ONLY IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING -To reduce the risk of fire, electric shock, or injury: Do NOT use this product outdoors or on wet surfaces.
- Page 3 When not in use wrap cord around storage hooks located on back of machine. This equipment should be stored indoors and not exposed to the elements. ELECTRICAL - Model PS-2 This machine is designed to operate on a standard 15 amp. 120 volt, 60 hz, AC circuit.
-
Page 4: General Instructions
GENERAL INSTRUCTIONS CAUTION: Unplug unit from electrical outlet. 1. Installation/Removal of Brush Head Brush head can be removed by turning knob to the right. The brush head can now be separated from vacuum housing (see figure 1, number 1). 2. Handle Release To release the machine from upright position, push down on foot release (see figure 1, number 2). - Page 5 1. Tool Storage Tools should be installed as shown in Figure 1. The smaller lower section of the tools should be snapped into the retainers. 2. Accessory Hose (Figure 2) The vacuum hose can be removed from base of unit and used as is or with accessory tools.
- Page 6 WIRING DIAGRAM 120 VAC...
- Page 7 UPPER ASSEMBLY – PARTS DIAGRAM...
- Page 8 16G GRN/YEL 12.00" B=13 370302 GREY COUPLING HOSE 740731 18G BLACK 11.00" B=14 370309 GREY LATCH BAG CLIP 741011 WIRE HARNESS PS-2 370311 GREY COVER BAG LATCH 410-4419AA 2 POP RIVET 370310 GREY BUTTON VAC FTR 370313 GREY CORD HOOK 370182 CAM, LOCK &...
- Page 9 HEAD ASSEMBLY – PARTS DIAGRAM...
-
Page 10: Head Assembly Parts List
HEAD ASSEMBLY PARTS LIST... -
Page 11: Limited Warranty
LIMITED WARRANTY Manufacturer warrants to the original purchaser/user that this product is free from defects in workmanship and materials under normal use and service for a period of one year from date of purchase. In addition, Manufacturer will, at its option, honor labor warranty claims for the first 12 months from date of sale, provided such claims are submitted through and approved by factory authorized repair stations.
