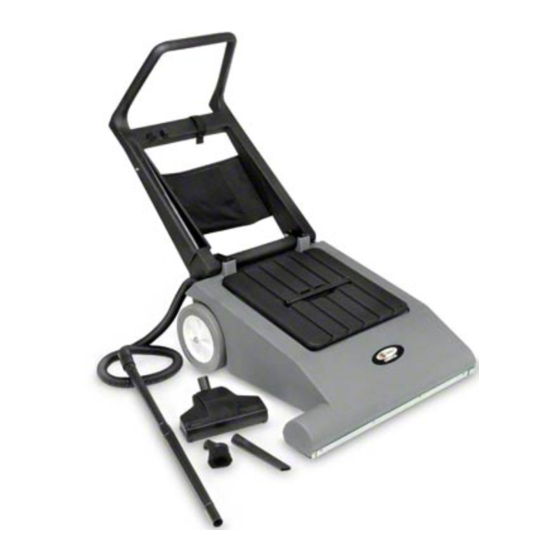

Triple S LAV-30 Operating & Maintenance Instructions

Triple S LAV-30 Operating & Maintenance Instructions

Large area vacuum
Hide thumbs Also See for LAV-30:

Advertisement

Quick Links

LARGE AREA VACUUM
INTRODUCTION
This operator's book has important information for the
use and safe operation of this machine. Read this book
carefully before starting the machine. Keep this book
and tell all operators to read the book. If you do not
follow the instructions, you can cause an injury or dam-
age equipment, furniture or buildings.
For new books write to:
Triple S
2 Executive Park Drive
Billerica, MA 01862
Carefully inspect all components to ensure that there is
no concealed freight damage. If such damage is dis-
covered, file a "CONCEALED DAMAGE REPORT" im-
mediately with the delivering carrier.
LAV-30
OPERATING & MAINTENANCE
READ THIS BOOK
The contents of this manual are based on the latest
product information available at the time of publication.
Triple S reserves the right to make changes or improve-
ments to its machines without notice.
FOR YOUR CONVENIENCE, RECORD THE
FOLLOWING IMPORTANT INFORMATION:
INSTRUCTIONS
MODEL
SERIAL NUMBER
PART NUMBER
DATE PURCHASED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LAV-30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Triple S LAV-30

  • Page 1 Keep this book Triple S reserves the right to make changes or improve- and tell all operators to read the book. If you do not ments to its machines without notice.
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL WARNINGS AND INSTRUCTIONS IN THIS BOOK BEFORE USING THIS MACHINE! If you do not understand, ask your supervisor. WARNING: To reduce the risk of fire, electric shock, or injury: 1. DO NOT USE THIS VACUUM FOR PICK UP OF WET DEBRIS. 2.
  • Page 3 Grounding Instructions This machine must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This machine is equipped with a cord having an equipment-grounding conductor and ground- ing plug.
  • Page 4 OPERATING PROCEDURES WARNING! For the safe operation of this machine OPERATION WITH TOOLS follow the instructions given in this booklet and Three on-board tools are available for the vacuum: the the training given by your supervisor. Failure to dusting tool, crevice tool and turbo tool (page 6). Twenty do so can result in personal injury and/or damage (20) feet of hose is provided which allows access to to machine and property!
  • Page 5 MAINTENANCE WEEKLY: VACUUM MOTOR MAINTENANCE: 1. Inspect and clean the two vacuum inlet filters. Have the vacuum motors inspected annually by a fac- Remove the cover from the machine. The filters are tory authorized service technician. If the carbon brushes now accessible (see page 10).
  • Page 6 LAV-30 WIDE AREA VACUUM Wand Recess Area on Handle (Models after 11/07) #201202 Bumper #930005 Pop Rivet Handle, Machine #653901 (Image Enlarged) Cover #652302 Kit, Hopper Latch #655001 Body, Machine #651301 Hose #654101 Clamp with Screw #S611A Cuff (2) #242402...
  • Page 7: Switch Assembly

    SWITCH ASSEMBLY Plate, Switch #656602 Switch, Rocker 20 Amp (2) Screw, #8x1/2 THP SMS (3) #911089 #W136D1 Not Shown: Lead Assembly, Switch #911211 Brush Switch Vacuum Switch COVER ASSEMBLY Bag Clamp Assembly Not Seen: Screws (2) Handle #962029 #653902 Clamps (2) #1394 Nuts (2) Bag Adapter...
  • Page 8 HANDLE & EXHAUST FILTER COMPONENTS Not Shown (at top Jacknut of handle): Handle #920026 Clamp #653901 Clamp, Cable #1394 #612001 Spring Screw Two (2) Sets: #228331 #W343D Bracket, Handle Screw #657201 #W343D Screw (2) Wiring Harness #W516D #911210 Connectors (5) Exhaust Filter #911179 #653301...
  • Page 9: Brush Assembly

    BRUSH ASSEMBLY Shoe Brush #657901 Not Shown: Screw, #8x1/2 THP (8) Gasket-Brush Shoe Two (2) Sets: #W136D #653404 Bearing Housing #654201 Pulley, Brush Screw, 8-32x3/8 Flat PH (2) #656901 #962105 Set Screw (2) Guard, Belt #W168D #653602 Screw (4) Bearing (2) #W136D #902035 Brush...
  • Page 10: Vacuum Motor & Filters

    VACUUM MOTOR & FILTERS Not Shown: Lead Assembly, Green (2) Gasket, Motor Mount (2) #911212 #633403 Lead Assembly (4) #911228 Vacuum Motor (2) Screw , Motor Mount (4) #655204 Nut (4) #962089 #W106D Vacuum Inlet Filters (2) #633301 Not Shown: Gasket, Hopper #653403 WHEEL ASSEMBLY...
  • Page 11 FOOT PEDAL & VACUUM ADJUSTMENT ASSEMBLY Nut, 1/4-20 (2) #920011 Rod, Vacuum Adjustment Cotter Pin #657402 #A13507 Screws, #8x1/2 THP (4) Screws, 8-32x5/16 PHP MS(4) #W136D #W500D Plate Foot Pedal (Lever for Door) Plate, Vacuum Door #652301 #655101 #652701 Gasket, Duct Seal, Vacuum Door #653401 #657601...
  • Page 12 The inoperative machine or warranted parts must be delivered to the authorized service center with shipping and delivery charges prepaid. If unable to locate a service center, you may contact Triple S at the address listed herein for the location of the nearest repair center or agent or for other instructions pertaining to your warranty difficulty.
