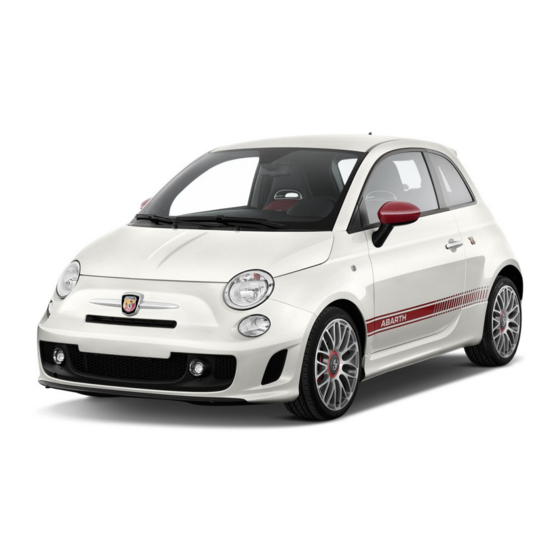

FIAT 500 ABARTH
2 0 1 5
O W N E R ' S M A N U A L
I N C L U D E S C A B R I O
I n f o r ma t i o n P r o v i d e d b y :

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2015 500 Abarth and is the answer not in the manual?

Questions and answers

Related Manuals for Fiat 2015 500 Abarth

Summary of Contents for Fiat 2015 500 Abarth

  • Page 1 FIAT 500 ABARTH 2 0 1 5 O W N E R ’ S M A N U A L I N C L U D E S C A B R I O I n f o r ma t i o n P r o v i d e d b y :...
  • Page 2 FIAT is a registered trademark of Fiat Group Marketing & WARNING! Corporate Communication S.p.A., used under license by Chrysler Group LLC.

  • Page 3: Introduction 3

    TABLE OF CONTENTS SECTION PAGE INTRODUCTION ............. . . 3 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE .
  • Page 4 I n f o r ma t i o n P r o v i d e d b y :...

  • Page 5: Table Of Contents

    INTRODUCTION CONTENTS INTRODUCTION ......4 VEHICLE IDENTIFICATION NUMBER ..7 HOW TO USE THIS MANUAL ....5 VEHICLE MODIFICATIONS/ALTERATIONS .

  • Page 6: Introduction

    - all essentials that are maintaining its validity traditional to our vehicles. • The range of additional services available to FIAT This Owner’s Manual has been prepared with the assis- Group Automobiles customers tance of service and engineering specialists to acquaint NOTE: After reviewing the owner information, it you with the operation and maintenance of your vehicle.

  • Page 7: How To Use This Manual

    INTRODUCTION 5 HOW TO USE THIS MANUAL Consult the Table of Contents to determine which section contains the information you desire. Since the specification of your vehicle depends on the items of equipment ordered, certain descriptions and illustrations may differ from your vehicle’s equipment. The detailed index at the back of this Owner’s Manual contains a complete listing of all subjects.
  • Page 8 6 INTRODUCTION I n f o r ma t i o n P r o v i d e d b y :...

  • Page 9: Vehicle Identification Number

    INTRODUCTION 7 WARNINGS AND CAUTIONS This Owners Manual contains WARNINGS against op- erating procedures that could result in a collision or bodily injury. It also contains CAUTIONS against proce- dures that could result in damage to your vehicle. If you do not read this entire Owners Manual, you may miss important information.

  • Page 10: Vehicle Modifications/Alterations

    8 INTRODUCTION VEHICLE MODIFICATIONS/ALTERATIONS WARNING! Any modifications or alterations to this vehicle could seriously affect its roadworthiness and safety and may lead to a collision resulting in serious injury or death. Stamped VIN Location NOTE: It is illegal to remove or alter the VIN. I n f o r ma t i o n P r o v i d e d b y :...
  • Page 11 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE CONTENTS A WORD ABOUT YOUR KEYS ... . .11 ▫ Remote Key Unlock, Driver Door/All Doors 1st Press .......16 ▫...
  • Page 12 10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE POWER WINDOWS .....24 ▫ Transporting Pets ..... .76 ▫...

  • Page 13: A Word About Your Keys

    THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11 The vehicle is supplied with a code card containing key A WORD ABOUT YOUR KEYS code numbers to order duplicate keys, and the autho- The key fob contains the Remote Keyless Entry (RKE) rized dealer that sold you your new vehicle has the key transmitter with an integrated key.
  • Page 14 12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 6. Remove the key from the ignition switch lock cylinder. WARNING! 7. Release the clutch pedal. • Before exiting a vehicle, always turn the ignition to the OFF/LOCK position, apply the parking brake, shift the transmission into REVERSE gear, and remove the Key Fob from the vehicle.

  • Page 15: Locking Doors With A Key

    THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13 Key-In-Ignition Reminder WARNING! (Continued) Opening the driver’s door when the key is in the ignition • Do not leave children or animals inside parked and the ignition switch position is OFF/LOCK sounds a vehicles in hot weather.

  • Page 16: Replacement Keys

    14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: A key which has not been programmed is also Replacement Keys considered an invalid key, even if it is cut to fit the NOTE: Only keys that have been programmed to the ignition switch lock cylinder for that vehicle.

  • Page 17: Remote Keyless Entry (Rke) - If Equipped

    THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15 • This device must accept any interference that may be received, including interference that may cause unde- sired operation. NOTE: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 18: To Unlock The Doors And Liftgate

    16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE To Unlock The Doors And Liftgate Opening Power Top Remote Function Push and release the UNLOCK button on the RKE The remote keyless power top function can only be used transmitter once to unlock the driver’s door or twice, with the engine off.
  • Page 19 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17 Opening Power Top Remote Function: WARNING! (Continued) 1. OPEN — Push and hold the unlock button down on • Before operating the power top, make sure that no the key fob for a minimum of three seconds to initiate moving parts of the convertible top can injure a Power Top Open.

  • Page 20: To Lock The Doors And Liftgate

    18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE To Lock The Doors And Liftgate Push and release the LOCK button on the RKE transmit- ter to lock all doors and the liftgate. The turn signal lights will flash and the horn will chirp to acknowledge the signal.
  • Page 21 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19 Key Fob Screw Location Battery Case Removed 3. Take out the battery case. Remove and replace the 4. Refit the battery case inside the Key Fob and turn the battery observing its polarity. screw to lock it into place.

  • Page 22: General Information

    20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 2. Closeness to a radio transmitter such as a radio station General Information tower, airport transmitter, and some mobile or CB This device complies with Part 15 of the FCC rules and radios.
  • Page 23 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21 WARNING! (Continued) • For personal security and safety in the event of a collision, lock the vehicle doors as you drive as well as when you park and leave the vehicle. • Before exiting a vehicle, always turn the ignition to the OFF/LOCK position, apply the parking brake, shift the transmission into REVERSE gear, and remove the Key Fob from the vehicle.

  • Page 24: Power Door Locks - If Equipped

    22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Power Door Locks — If Equipped WARNING! (Continued) A power door lock switch is incorporated into the driver • Do not leave the Key Fob in or near the vehicle, or door handle. Push or pull the handle to lock or unlock the in a location accessible to children.

  • Page 25: Autoclose

    THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23 To change the Autoclose setting in the EVIC, proceed as follows: 1. Briefly push the MENU button “On” or “Off” will flash on the display (according to the previous set- ting). 2. Push the + or – button for setting. 3.

  • Page 26: Power Windows

    24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE POWER WINDOWS Power Window Switches There are single window controls located on the shifter bezel, below the climate controls, which operate the driver and passenger door windows. The window con- trols will operate when the ignition switch is in the ON/RUN position.

  • Page 27: Auto-Down

    THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25 Auto-Down LIFTGATE To unlock the liftgate, use the Remote Keyless Entry The driver’s door window switch has an Auto-Down (RKE) transmitter or activate the power door lock feature. Push the window switch for approximately one switches located on the front door handles.

  • Page 28: Occupant Restraint Systems

    26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE OCCUPANT RESTRAINT SYSTEMS WARNING! Some of the most important safety features in your • Driving with the liftgate open can allow poisonous vehicle are the restraint systems: exhaust gases into your vehicle. You and your •...
  • Page 29 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27 2. If a child from 2 to 12 years old (not in a rear-facing 6. All occupants should always wear their lap and child restraint) must ride in the front passenger seat, shoulder belts properly.

  • Page 30: Seat Belt Systems

    28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ejection and the risk of injury caused by striking the WARNING! inside of the vehicle. Everyone in a motor vehicle should be belted at all times. • Never place a rear-facing child restraint in front of an air bag.
  • Page 31 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29 After the sequence completes, the Seat Belt Reminder NOTE: If BeltAlert has been deactivated, the Seat Belt Light remains illuminated until the respective seat belts Reminder Light will continue to illuminate while the are buckled.
  • Page 32 30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! WARNING! (Continued) • Do not allow people to ride in any area of your • Relying on the air bags alone could lead to more vehicle that is not equipped with seats and seat severe injuries in a collision.
  • Page 33 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31 WARNING! (Continued) WARNING! (Continued) • A lap belt worn too high can increase the risk of • A seat belt that is too loose will not protect you injury in a collision. The seat belt forces won’t be at properly.
  • Page 34 32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 2. The seat belt latch plate is above the back of the front WARNING! (Continued) seat, and next to your arm in the rear seat (for vehicles • A shoulder belt placed behind you will not protect equipped with a rear seat).
  • Page 35 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33 3. When the seat belt is long enough to fit, insert the latch plate and pull on the lap belt. A snug seat belt reduces plate into the buckle until you hear a “click.” the risk of sliding under the seat belt in a collision.
  • Page 36 34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 6. To release the seat belt, push the red button on the 4. Continue to slide the latch plate up until it clears the buckle. The seat belt will automatically retract to its folded webbing and the seat belt is no longer twisted.
  • Page 37 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35 Pregnant women should wear the lap part of the seat belt WARNING! across the thighs and as snug across the hips as possible. Keep the seat belt low so that it does not come across the •...
  • Page 38 36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The pretensioners are triggered by the Occupant Re- Restraints” section of this manual. The table below straint Controller (ORC). Like the air bags, the preten- defines the type of feature for each seating position. sioners are single use items.
  • Page 39 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37 In Automatic Locking Mode, the shoulder belt is auto- Driver Center Passenger matically pre locked. The seat belt will still retract to First Row remove any slack in the shoulder belt. The Automatic Second Locking Mode is available on all passenger seating positions with a combination lap/shoulder belt.
  • Page 40 38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE How To Engage The Automatic Locking Mode WARNING! 1. Buckle the combination lap and shoulder belt. • The seat belt assembly must be replaced if the 2. Grasp the shoulder portion and pull downward until switchable Automatic Locking Retractor (ALR) fea- the entire seat belt is extracted.

  • Page 41: Supplemental Restraint System (Srs)

    THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39 • Supplemental Side Air Bags Supplemental Restraint System (SRS) Air Bag System Components • Supplemental Knee Air Bag Your vehicle may be equipped with the following air bag • Front and Side Impact Sensors system components: •...
  • Page 42 40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Advanced Front Air Bags This vehicle has Advanced Front Air Bags for both the driver and front passenger as a supplement to the seat belt restraint systems. The driver’s Advanced Front Air Bag is mounted in the center of the steering wheel.
  • Page 43 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41 output appropriate to the severity and type of collision as WARNING! determined by the Occupant Restraint Controller (ORC), which may receive information from the front impact • Being too close to the steering wheel or instrument sensors or other system components.
  • Page 44 42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! WARNING! (Continued) • Relying on the air bags alone could lead to more • No objects should be placed over or near the air severe injuries in a collision. The air bags work bag on the instrument panel or steering wheel, with your seat belt to restrain you properly.
  • Page 45 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 43 On the other hand, depending on the type and location of way as the air bags inflate to their full size. The Advanced impact, Advanced Front Air Bags may deploy in crashes Front Air Bags fully inflate in less time than it takes to with little vehicle front-end damage but that produce a blink your eyes.
  • Page 46 44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Supplemental Driver Knee Air Bag This vehicle is equipped with a Supplemental Driver Knee Air Bag mounted in the instrument panel below the steering column. The Supplemental Driver Knee Air Bag provides en- hanced protection during a frontal impact by working together with the seat belts, pretensioners, and Advanced Front Air Bags.
  • Page 47 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45 deploys through the seat seam into the space between the occupant and the door. The SAB moves at a very high speed and with such a high force that it could injure you if you are not seated properly, or if items are positioned in the area where the SAB inflates.
  • Page 48 46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The SABIC deploys downward, covering the side win- WARNING! dows. An inflating SABIC pushes the outside edge of the headliner out of the way and covers the window. The • Your vehicle is equipped with left and right Supple- SABICs inflate with enough force to injure you if you are mental Side Air Bag Inflatable Curtains (SABICs).
  • Page 49 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47 The SABICs and SABs (“Side Air Bags”) are designed to compartment. The Side Air Bags may deploy during activate in certain side impacts. The Occupant Restraint angled or offset frontal collisions where the Advanced Controller (“ORC”) determines whether the deployment Front Air Bags deploy.
  • Page 50 48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE If A Deployment Occurs WARNING! The Advanced Front Air Bags are designed to deflate • Side Air Bags need room to inflate. Do not lean immediately after deployment. against the door or window. Sit upright in the NOTE: Front and/or side air bags will not deploy in all center of the seat.
  • Page 51 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49 • As the air bags deflate, you may see some smoke-like WARNING! particles. The particles are a normal by-product of the process that generates the non-toxic gas used for air Deployed air bags and seat belt pretensioners cannot bag inflation.
  • Page 52 50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Enhanced Accident Response System System Reset Procedure In the event of an impact, if the communication network Depending on the nature of the event the left and right remains intact, and the power remains intact, depending turn signal lights, located in the instrument panel cluster, on the nature of the event, the ORC will determine may both be blinking and will continue to blink until the...
  • Page 53 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51 Customer Action Customer Will See 1. Turn ignition OFF. (Turn Signal Switch Must be placed in Neutral State). 2. Turn ignition ON. Left Turn Light is OFF. Right Turn Light BLINKS. 3. Turn Right Turn Signal Switch ON. Right Turn Light is ON SOLID.
  • Page 54 52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE If a reset procedure step is not completed within 45 The ORC contains a backup power supply system that seconds, then the turn signal lights will turn off and the may deploy the air bags even if the battery loses power or reset procedure must be performed again in order to be it becomes disconnected prior to deployment.
  • Page 55 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53 free, if any of the following occurs, have an authorized WARNING! dealer service the air bag system immediately. Ignoring the Air Bag Warning Light in your instru- • The Air Bag Warning Light does not come on during ment panel could mean you won’t have the air bags the four to eight seconds when the ignition is first to protect you in a collision.
  • Page 56 54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Maintaining Your Air Bag System WARNING! (Continued) • Do not attempt to modify any part of your air bag WARNING! system. The air bag may inflate accidentally or may • Modifications to any part of the air bag system not function properly if modifications are made.
  • Page 57 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 55 Event Data Recorder (EDR) These data can help provide a better understanding of the circumstances in which crashes and injuries occur. This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in NOTE: EDR data are recorded by your vehicle only if a certain crash or near crash-like situations, such as an air non-trivial crash situation occurs;...

  • Page 58: Child Restraints

    56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Child Restraints WARNING! (Continued) Everyone in your vehicle needs to be buckled up at all great that you could not hold the child, no matter times, including babies and children. how strong you are. The child and others could be badly injured.
  • Page 59 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57 NOTE: • For additional information, refer to www.seatcheck.org or call 1–866–SEATCHECK (732–8243). Canadian resi- dents should refer to Transport Canada’s website for additional information: • www.tc.gc.ca/eng/roadsafety/safedrivers- childsafety-index-53.htm Summary Of Recommendations For Restraining Children In Vehicles Child Size, Height, Weight Or Age Recommended Type Of Child Restraint Infants and...
  • Page 60 58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Child Size, Height, Weight Or Age Recommended Type Of Child Restraint Larger Children Children who have out-grown their Belt Positioning Booster Seat and the vehicle forward-facing child restraint, but are too seat belt, seated in the rear seat of the ve- small to properly fit the vehicle’s seat belt hicle Children Too...
  • Page 61 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59 remain in a forward-facing child seat with a harness for WARNING! as long as possible, up to the highest weight or height allowed by the child seat. • Never place a rear-facing child restraint in front of an air bag.
  • Page 62 60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! WARNING! (Continued) • When your child restraint is not in use, secure it in • Improper installation can lead to failure of an the vehicle with the seat belt or LATCH anchor- infant or child restraint.
  • Page 63 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61 2. Do the child’s knees bend comfortably over the front WARNING! of the vehicle seat – while they are still sitting all the way back? Never allow a child to put the shoulder belt under an arm or behind their back.
  • Page 64 62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Recommendations For Attaching Child Restraints Restraint Type Combined Use any attachment method shown with an “X” Below Weight of the LATCH – Seat Belt Only LATCH – Seat Belt + Top Child + Child Lower Anchors Lower Anchors Tether Anchor...
  • Page 65 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 63 Lower Anchors And Tethers For Children (LATCH) has three vehicle anchor points for installing LATCH- Restraint System equipped child seats. There are two lower anchorages located at the back of the seat cushion where it meets the seatback and one top tether anchorage located behind the seating position.
  • Page 66 64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE LATCH Positions For Installing Child Restraints In This Vehicle Lower Anchorage Symbol 2 anchorages per • seating position Top Tether Anchorage Symbol • I n f o r ma t i o n P r o v i d e d b y :...
  • Page 67 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 65 What is the weight limit (child’s 65 lbs (29.5 kg) Use the LATCH anchorage system weight + weight of the child re- until the combined weight of the straint) for using the LATCH an- child and the child restraint is chorage system to attach the child 65 lbs (29.5 kg).
  • Page 68 66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Can two child restraints be at- Never “share” a LATCH anchorage tached using a common lower with two or more child restraints. LATCH anchorage? If the center position does not have dedicated LATCH lower anchor- ages, use the seat belt to install a child seat in the center position next to a child seat using the...
  • Page 69 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 67 Locating LATCH Anchorages The lower anchorages are round bars that are found at the rear of the seat cushion where it meets the seatback, below the anchorage sym- bols on the seatback. They are just visible when you lean into the rear seat to install the child restraint.
  • Page 70 68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Locating Tether Anchorages Center Seat LATCH WARNING! There are tether strap anchorages behind each rear seating position located on the back of the This vehicle does not have a center seating position. seat.
  • Page 71 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69 1. Loosen the adjusters on the lower straps and on the 5. Tighten all of the straps as you push the child restraint tether strap of the child seat so that you can more rearward and downward into the seat.
  • Page 72 70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE behind the child restraint, route the seat belt through the Installing Child Restraints Using The Vehicle Seat child restraint belt path and then buckle it. Do not lock Belt the seat belt. Remind all children in the vehicle that the The seat belts in the passenger seating positions are seat belts are not toys and that they should not play with equipped with a Switchable Automatic Locking Retractor...
  • Page 73 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 71 Lap/Shoulder Belt Systems For Installing Child Restraints In This Vehicle • ALR = Switchable Automatic Locking Retractor Top Tether Anchorage Symbol • I n f o r ma t i o n P r o v i d e d b y :...
  • Page 74 72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE What is the weight limit (child’s Weight limit of the Child Restraint Always use the tether anchor when weight + weight of the child re- using the seat belt to install a for- straint) for using the Tether Anchor ward facing child restraint, up to with the seat belt to attach a forward...
  • Page 75 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 73 Installing A Child Restraint With A Switchable 4. Pull on the webbing to make the lap portion tight Automatic Locking Retractor (ALR) against the child seat. 1. Place the child seat in the center of the seating 5.
  • Page 76 74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE the tether strap to the anchorage and tighten the tether WARNING! (Continued) strap. See the section “Installing Child Restraints seat frame or a tether anchorage. Only attach the Using the Top Tether Anchorage” for directions to tether strap of a rear-facing car seat to the tether attach a tether anchor.
  • Page 77 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 75 tether anchorage for that seating position, move the child restraint to another position in the vehicle if one is available. 2. Route the tether strap to provide the most direct path for the strap between the anchor and the child seat. If your vehicle is equipped with adjustable rear head restraints, raise the head restraint, and where possible, route the tether strap under the head restraint and...

  • Page 78: Transporting Pets

    76 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ENGINE BREAK-IN RECOMMENDATIONS WARNING! A long break-in period is not required for the engine and • An incorrectly anchored tether strap could lead to drivetrain (transmission and axle) in your vehicle. increased head motion and possible injury to the Drive moderately during the first 300 miles (500 km).

  • Page 79: Safety Tips

    THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 77 CAUTION! WARNING! Never use Non-Detergent Oil or Straight Mineral Oil • Do not leave children or animals inside parked in the engine or damage may result. vehicles in hot weather. Interior heat build-up may cause serious injury or death.

  • Page 80: Exhaust Gas

    78 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Exhaust Gas WARNING! (Continued) • If it is necessary to sit in a parked vehicle with the WARNING! engine running, adjust your heating or cooling Exhaust gases can injure or kill. They contain carbon controls to force outside air into the vehicle.

  • Page 81: Safety Checks You Should Make Inside The Vehicle

    THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 79 not lit during starting, see your authorized dealer. If the Safety Checks You Should Make Inside The light stays on, flickers, or comes on while driving, have Vehicle the system checked by an authorized dealer. Seat Belts Defroster Inspect the seat belt system periodically, checking for...
  • Page 82 80 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! WARNING! (Continued) • Check mounting of mats on a regular basis. Always Pedals that cannot move freely can cause loss of properly reinstall and secure floor mats that have vehicle control and increase the risk of serious per- been removed for cleaning.

  • Page 83: Periodic Safety Checks You Should Make Outside The Vehicle

    THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 81 Fluid Leaks Periodic Safety Checks You Should Make Outside The Vehicle Check area under vehicle after overnight parking for fuel, engine coolant, oil, or other fluid leaks. Also, if gasoline Tires fumes are detected or if fuel, power steering fluid (if Examine tires for excessive tread wear and uneven wear equipped), or brake fluid leaks are suspected.
  • Page 84 I n f o r ma t i o n P r o v i d e d b y :...
  • Page 85 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CONTENTS POWER CONVERTIBLE TOP — IF EQUIPPED . .86 ▫ Heated Mirrors — If Equipped ... .93 ▫ Lowering The Power Top....86 ▫...
  • Page 86 84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE ▫ Seat Height Adjustment ....103 ▫ Turn Signals ......110 ▫...
  • Page 87 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85 ▫ To Resume Speed .....120 ▫ To Close ......130 ▫...

  • Page 88: Power Convertible Top - If Equipped

    86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: POWER CONVERTIBLE TOP — IF EQUIPPED On vehicles equipped with a power convertible top, the • The power top buttons will operate when the ignition power convertible top switch is located on the overhead switch is turned to the ACC/ON/RUN position.

  • Page 89: Raising The Power Top

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87 NOTE: Vertical movement only operates in auto open/ NOTE: Rail lubrication is recommended every 2000 close mode. cycles, or if scratching noises due to dust are present. Refer to “Fluids, Lubes, and Genuine Part” in “Maintain- Raising The Power Top ing Your Vehicle”...

  • Page 90: Power Convertible Top Relearn Procedure

    88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Power Convertible Top Relearn Procedure CAUTION! (Continued) If your power convertible top does not operate in the • Use care when washing the vehicle, water pressure Auto Opening/Closing mode (automatically opening/ directed at the weather strip seals may cause water closing to the one-quarter open and three-quarter open to leak into the vehicle’s interior.

  • Page 91: Wind Stop

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89 5. Release the OPEN button. If the power convertible top does not relearn repeat the procedure a second time. 6. Hold the CLOSED button to move the top to the fully closed position. Wind Stop The Wind Stop installs in the backseat area of the vehicle.

  • Page 92: Automatic Dimming Mirror - If Equipped

    90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Headlight glare from vehicles behind you can be reduced Automatic Dimming Mirror — If Equipped by moving the small control under the mirror to the night This mirror automatically adjusts for headlight glare position (toward the rear of the vehicle).

  • Page 93: Power Mirrors

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91 Power Mirrors The power mirror controls are located on the driver’s door trim panel. Automatic Dimming Mirror CAUTION! To avoid damage to the mirror during cleaning, never Power Mirror Switches spray any cleaning solution directly onto the mirror. The power mirror controls consist of a mirror select Apply the solution onto a clean cloth and wipe the switch and a four-way mirror control switch.
  • Page 94 92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE mirror, press the mirror select switch to either the L (left) Spotter Mirror — If Equipped or R (right) to select the mirror you need to adjust. Some models are equipped with a driver’s side spotter Using the mirror control switch, press on any of the four mirror.

  • Page 95: Folding Mirrors

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93 Folding Mirrors The exterior mirrors are hinged to allow the mirror to pivot forward or rearward to help avoid damage. The mirror has three detent positions: full forward, normal and full rearward. Heated Mirrors — If Equipped These mirrors are heated to melt frost or ice.

  • Page 96: Blue&Me™ Hands-Free Communication

    — If Equipped voice recognition system is of the “speaker independent” Windows Mobile™-based FIAT BLUE&ME™ is a per- type. sonal telematic system enabling you to use communica- With this system you can also play your favorite music...

  • Page 97: The Hands-Free Kit

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95 steering wheel controls and the instrument panel multi- The Hands-Free Kit function display. Please refer to the Fiat Blue & Me Radio The basic characteristic of this hands-free kit is voice Supplement for further information.
  • Page 98 96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To get started with BLUE&ME™ hands-free kit with • To interact with BLUE&ME™ you can use either the voice recognition, you have to simply pair your buttons on the steering wheel or voice commands. Bluetooth®...
  • Page 99 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97 The hands-free kit enables the following operations: • Conference Call — you can call another contact while you are engaged in a phone conversation (with • Contact Calling By Voice — you can call a contact in Bluetooth®...
  • Page 100 98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Message Reader Message reader functions are managed by the control buttons on the steering wheel or by the BLUE&ME™ The BLUE&ME™ message reader enables automatic voice commands. reading, through the car sound system, of the SMS texts you receive on your Bluetooth®...
  • Page 101 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99 • To delete individual messages or the entire inbox using In this way, while you are driving you can play your the buttons on the steering wheel or voice commands. favorite music collections. •...
  • Page 102 100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: WARNING! • The media player does not support audio files com- • Driving while distracted can result in loss of ve- pressed with other formats and DRM (Digital Rights hicle control, accident and injury. It is strongly Management) protected audio files.

  • Page 103: Seats

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101 WARNING! (Continued) WARNING! • Keep the Owner’s Manual in the car: when kept in • It is dangerous to ride in a cargo area, inside or the car, the Owner’s Manual will be available for outside of a vehicle.

  • Page 104: Forward/Rearward Adjustment

    102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE move forward and rearward on the seat to be sure that Forward/Rearward Adjustment the seat adjusters have latched. The adjusting bar is located at the front of the seats, near the floor. WARNING! •...

  • Page 105: Seat Height Adjustment

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103 Seat Height Adjustment The driver’s seat height can be raised or lowered by using a lever, located on the outboard side of the seat. Pump the lever upward to raise the seat height, or pump the lever downward to lower the seat height.

  • Page 106: Ez Entry Feature

    104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Lift the seatback upright and push the seat rearward to EZ Entry Feature its locked position once the rear passengers are seated. The driver and front passenger seats have an EZ entry feature for rear seat passengers. Pull upward on the Memory Feature release tether, located on the outboard side of the seat- Both front seats have a memory feature, which can...

  • Page 107: Heated Seats - If Equipped

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105 fore/aft (memory) position on the tracks. This results in WARNING! the seat back memory being set only – The track will then be locked forward of its last set fore/aft memory posi- • Persons who are unable to feel pain to the skin tion.

  • Page 108: Head Restraints

    106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE button, located at the base of the head restraint, and push Head Restraints downward on the head restraint. Refer to “Occupant Head restraints are designed to reduce the risk of injury Restraints” in “Things To Know Before Starting Your by restricting head movement in the event of a rear- Vehicle”...

  • Page 109: To Open And Close The Hood

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107 2. Rotate the safety catch under the front edge of the TO OPEN AND CLOSE THE HOOD hood, near the center, and raise the hood. To open the hood, two latches must be released. 1.
  • Page 110 108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 3. Lift the hood prop rod that clips to the right side (left In hot climates, the prop rod may be hot. Pick up the prop side when standing in front of the hood) of the engine rod at the foam on the end of the prop rod.

  • Page 111: Lights

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109 LIGHTS Multifunction Lever The multifunction lever, located on the left side of the steering wheel, controls the operation of the headlights, headlight beam selection, passing light and turn signals. NOTE: The external lights can only be turned on with the ignition in the ON/RUN position.

  • Page 112: High Beams

    110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE High Beams Daytime Running Lights — If Equipped To activate the Daytime Running Lights (DRL), rotate the With the low beams activated, push the multi- end of the multifunction lever to the O symbol. function lever towards the instrument panel to NOTE: The low beams and side/taillights will not be on turn on the high beams.

  • Page 113: Lane Change Assist

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111 Lane Change Assist Tap the lever up or down once, without moving beyond the detent, and the turn signal (right or left) will flash three times then automatically turn off. Follow Me Home/Headlight Delay When this feature is selected the driver can choose to have the headlights remain on for a preset period of time.

  • Page 114: Interior Lights

    112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Deactivation CAUTION! Pull the multifunction lever toward the steering wheel Before getting out of the vehicle be sure that the and hold it for more than two seconds. switch is in the center position or that the lights are Interior Lights off to avoid draining the battery.

  • Page 115: Front Fog Lights - If Equipped

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113 • When the doors are locked with the Key Fob the lights will turn off. Interior Light Timing (On/Right Position) • When all doors are closed a 15 minute timer is activated. NOTE: The timer is deactivated when the key is moved into the ON/RUN position.

  • Page 116: Windshield Wipers And Washers

    114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WINDSHIELD WIPERS AND WASHERS The windshield wiper/washer lever is located on the right side of the steering column. NOTE: The windshield wipers/washers will only oper- ate with the ignition in the ON/RUN position. Front Windshield Wiper Operation There are five different modes of operation for the front windshield wipers.
  • Page 117 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115 NOTE: The Intermittent function only has one detent Front Windshield Washer Operation but wiper delay will vary with changes in vehicle speed. Pull the windshield wiper/washer lever toward the As vehicle speed increases the delay time will decrease. steering wheel to activate the washers.

  • Page 118: Rear Windshield Wiper

    116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CAUTION! (Continued) • Always remove any buildup of snow that prevents the windshield wiper blades from returning to the off position. If the windshield wiper control is turned off and the blades cannot return to the off position, damage to the wiper motor may occur.

  • Page 119: Tilt Steering Column - If Equipped

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117 hold the lever for more than a half second and the wipers will activate automatically for three cycles after the lever is released. TILT STEERING COLUMN — IF EQUIPPED This feature allows you to tilt the steering column upward or downward.

  • Page 120: Electronic Speed Control

    118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! Do not adjust the steering column while driving. Adjusting the steering column while driving or driv- ing with the steering column unlocked, could cause the driver to lose control of the vehicle. Failure to follow this warning may result in serious injury or death.

  • Page 121: To Activate

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119 To Activate To Set A Desired Speed Push the ON/OFF button. The Cruise Indicator Light in Turn the Electronic Speed Control ON. When the vehicle the instrument cluster will illuminate. To turn the system has reached the desired speed, press the SET (-) button off, push the ON/OFF button a second time.

  • Page 122: To Resume Speed

    120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • If the button is continually pressed, the set speed will To Resume Speed continue to increase until the button is released, then To resume a previously set speed, push the RES (+) the new set speed will be established.

  • Page 123: To Accelerate For Passing

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121 The speed decrement shown is dependant on the selected To Accelerate For Passing speed unit of U.S. (mph) or Metric (km/h): Press the accelerator as you would normally. When the pedal is released, the vehicle will return to the set speed. U.S.

  • Page 124: Rear Park Assist - If Equipped

    122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Rear Park Assist Sensors WARNING! The four Rear Park Assist sensors, located in the rear Electronic Speed Control can be dangerous where the fascia/bumper, monitor the area behind the vehicle that system cannot maintain a constant speed. Your ve- is within the sensors’...

  • Page 125: Rear Park Assist Warning Display

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123 will produce an audible alert. As the vehicle moves closer Rear Park Assist Warning Display to the obstacle, the display will show fewer arcs and the The Rear Park Assist Warning screen is located within the audible alert becomes more frequent.
  • Page 126 124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Audible And Visual Signals Supplied By The Rear Park Assist System SIGNAL MEANING INDICATION Obstacle Distance An obstacle is present within the Audible signal (dashboard loudspeaker) sensors’ field of view • Sound pulses emitted at a rate that in- creases as the distance decreases.

  • Page 127: Failure Indications

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125 SIGNAL MEANING INDICATION Failure Sensor or System failures Visual Signal (instrument panel) • Icon appears on display. • Message is displayed on the Electronic Vehicle Information Center (EVIC) (where provided). While audible signals are emitted, the audio system is not instrument panel warning icon and message displayed muted.

  • Page 128: Cleaning The Rear Park Assist System

    126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Even if the system is able to identify that a specific sensor Park Assist System Usage Precautions is in failure condition, the EVIC shall indicate that the NOTE: Rear Park Assist system is unavailable, without reference to the sensor in failure condition.
  • Page 129 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127 • Objects such as bicycle carriers, etc., must not be CAUTION! (Continued) placed within 12 in (30 cm) from the rear fascia/ • The vehicle must be driven slowly when using bumper while driving the vehicle. Failure to do so can Rear Park Assist in order to be able to stop in time result in the system misinterpreting a close object as a when an obstacle is detected.
  • Page 130 128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! WARNING! (Continued) • Before using the Rear Park Assist System, it is • Drivers must be careful when backing up even strongly recommended that the ball mount and when using the Rear Park Assist system. Always hitch ball assembly is disconnected from the ve- check carefully behind your vehicle, look behind hicle when the vehicle is not used for towing.

  • Page 131: Power Sunroof - If Equipped

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129 POWER SUNROOF — IF EQUIPPED WARNING! The power sunroof roof switch is located in the overhead • Never leave children alone in a vehicle, or with console. access to an unlocked vehicle. Never leave the Key Fob in or near the vehicle, or in a location acces- sible to children.

  • Page 132: To Open

    130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To Open Pinch Protect Feature Press and hold the power sunroof switch rearward for This feature will detect an obstruction in the opening of approximately one second and the sunroof will stop at the sunroof during Express Close operation.

  • Page 133: Emergency Operation

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131 Emergency Operation In case of electrical failure the sunroof can be operated with the hex wrench that is located in the glove box. There is a plug located in the rear of the sunroof opening at the center of the vehicle.

  • Page 134: Electrical Power Outlets

    132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Power is available when the ignition switch is in the ELECTRICAL POWER OUTLETS ON/RUN or START position. Insert the cigar lighter or There is a standard 12 Volt (13 Amp) power outlet, accessory plug into the outlet for use. To preserve the located in the floor console, for added convenience.
  • Page 135 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133 WARNING! To avoid serious injury or death: • Only devices designed for use in this type of outlet should be inserted into any 12 Volt outlet. • Do not touch with wet hands. •...

  • Page 136: Cigar Lighter - If Equipped

    134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CIGAR LIGHTER — IF EQUIPPED CAUTION! This is located on the center console, in front of the cup • Many accessories that can be plugged in draw holders. To activate the cigar lighter, push and release the power from the vehicle’s battery, even when not in knob.

  • Page 137: Cupholders

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135 For rear passengers, there are cupholders located on the CUPHOLDERS floor between the front driver and passenger seats. For the driver and front passenger, cupholders are lo- cated on the floor console between the front seats. Rear Cupholders Front Cupholders I n f o r ma t i o n P r o v i d e d b y :...

  • Page 138: Storage

    136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE STORAGE Glove Compartment The glove compartment is located on the right side of the instrument panel. Pull outward on the glove compart- ment latch to open the glove compartment. Push the glove compartment door upward to close it. Glove Compartment Latch I n f o r ma t i o n P r o v i d e d b y :...

  • Page 139: Cargo Area Features

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137 CARGO AREA FEATURES The rear seatbacks have a fold down feature to allow increased cargo capacity. Push down the release button, located at the outboard top of the seatback and move the seatback to its folded- down position to provide a flat load floor cargo area.

  • Page 140: Rear Window Features

    138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE REAR WINDOW FEATURES Rear Window Defroster The rear window defroster button is located in the center of the instrument panel, below the radio. Press this button to turn on the rear window defroster. An indicator in the instrument cluster will illuminate when the rear window defroster is on.
  • Page 141 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139 CAUTION! Failure to follow these cautions can cause damage to the heating elements: • Use care when washing the inside of the rear window. Do not use abrasive window cleaners on the interior surface of the window. Use a soft cloth and a mild washing solution, wiping parallel to the heating elements.
  • Page 142 I n f o r ma t i o n P r o v i d e d b y :...
  • Page 143 UNDERSTANDING YOUR INSTRUMENT PANEL CONTENTS INSTRUMENT PANEL FEATURES ..143 ▫ EVIC Control Buttons ....163 TURBO BOOST GAUGE .
  • Page 144 142 UNDERSTANDING YOUR INSTRUMENT PANEL SALES CODE (RAB) RADIO ....182 iPod®/USB/MEDIA PLAYER CONTROL — IF EQUIPPED ......208 ▫...

  • Page 145: Instrument Panel Features

    UNDERSTANDING YOUR INSTRUMENT PANEL 143 INSTRUMENT PANEL FEATURES 1 — Side Vent 7 — Passenger Air Bag 13 — Storage Compartment 2 — Multifunction Lever – Light Control 8 — Glove Compartment 14 — Shift Lever 3 — Instrument Cluster And Warning Lights 9 —...

  • Page 146: Turbo Boost Gauge

    144 UNDERSTANDING YOUR INSTRUMENT PANEL TURBO BOOST GAUGE Your vehicle is equipped with a boost gauge and inte- grated shift light indicator located to the left of the instrument cluster. The boost gauge indicates the intake manifold pressure relative to barometric pressure. The engine management system in your vehicle intelligently regulates intake manifold pressure based on environ- mental (ambient) and engine operating conditions.

  • Page 147: Instrument Cluster - Eco

    UNDERSTANDING YOUR INSTRUMENT PANEL 145 INSTRUMENT CLUSTER — ECO I n f o r ma t i o n P r o v i d e d b y :...

  • Page 148: Instrument Cluster - Pop, Lounge, 500C

    146 UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT CLUSTER — POP, LOUNGE, 500C I n f o r ma t i o n P r o v i d e d b y :...

  • Page 149: Instrument Cluster

    UNDERSTANDING YOUR INSTRUMENT PANEL 147 INSTRUMENT CLUSTER I n f o r ma t i o n P r o v i d e d b y :...

  • Page 150: Instrument Cluster Descriptions

    148 UNDERSTANDING YOUR INSTRUMENT PANEL on a significantly under-inflated tire causes the tire to INSTRUMENT CLUSTER DESCRIPTIONS overheat and can lead to tire failure. Under-inflation also 1. Tire Pressure Monitoring Telltale Light — If Equipped reduces fuel efficiency and tire tread life, and may affect Each tire, including the spare (if provided), the vehicle’s handling and stopping ability.
  • Page 151 UNDERSTANDING YOUR INSTRUMENT PANEL 149 as intended. TPMS malfunctions may occur for a variety CAUTION! (Continued) of reasons, including the installation of replacement or sensor damage. Using aftermarket tire sealants may alternate tires or wheels on the vehicle that prevent the cause the Tire Pressure Monitoring System (TPMS) TPMS from functioning properly.
  • Page 152 150 UNDERSTANDING YOUR INSTRUMENT PANEL NOTE: (kilometers) at speeds greater than 30 mph (48 km/h), see your authorized dealer as soon as possible to have the • A continuous chime will sound if the vehicle is problem diagnosed and corrected. driven more than 1 mile (1.6 km) with either turn signal on.
  • Page 153 UNDERSTANDING YOUR INSTRUMENT PANEL 151 5. Air Bag Warning Light beam. Pull the lever toward you to switch the headlights back to low beam. If the driver’s door is open, and the This light will turn on for four to eight seconds headlights or park lights are left on, the high beam as a bulb check when the ignition switch is first indicator light will remain illuminated and a chime will...
  • Page 154 152 UNDERSTANDING YOUR INSTRUMENT PANEL 9. Malfunction Indicator Light (MIL) CAUTION! The Malfunction Indicator Light (MIL) is part Prolonged driving with the Malfunction Indicator of an onboard diagnostic (OBDII) system Light (MIL) on could cause damage to the engine which monitors the emissions and engine con- control system.
  • Page 155 UNDERSTANDING YOUR INSTRUMENT PANEL 153 10. Front Fog Light Indicator — If Equipped CAUTION! This indicator will illuminate when the front Failure to follow these cautions can cause damage to fog lights are on. the heating elements: • Use care when washing the inside of the rear 11.
  • Page 156 154 UNDERSTANDING YOUR INSTRUMENT PANEL indicate that the parking brake is applied, that the brake The light will remain on until the cause is corrected. fluid level is low, or that there is a problem with the NOTE: The light may flash momentarily during sharp Anti-lock Brake System reservoir.
  • Page 157 UNDERSTANDING YOUR INSTRUMENT PANEL 155 an EBD failure, the Brake Warning Light will turn on 15. Anti-Lock Brake (ABS) Light along with the ABS Light. Immediate repair to the ABS This light monitors the Anti-lock Brake System system is required. (ABS).
  • Page 158 156 UNDERSTANDING YOUR INSTRUMENT PANEL 16. Gas Pedal Percentage Gauge/Turbo Gauge/ECO In- your fuel economy. The index is recalculated ap- dex Gauge proximately every second and takes into account a combination of the instant fuel economy and your Depending on what options and trim level, your vehicle driving style during the current trip.
  • Page 159 UNDERSTANDING YOUR INSTRUMENT PANEL 157 18. Electronic Vehicle Information Center (EVIC) CAUTION! The EVIC features a driver-interactive display that is Driving with a hot engine cooling system could located in the instrument cluster. For further information, damage your vehicle. If the temperature gauge reads refer to “Electronic Vehicle Information Center (EVIC)”...
  • Page 160 158 UNDERSTANDING YOUR INSTRUMENT PANEL then the odometer must be set at zero, and a sticker must WARNING! (Continued) be placed in the door jamb stating what the mileage was Vehicle.” Follow the warnings under the “Cooling before the repair or service. It is a good idea for you to System Pressure Cap”...
  • Page 161 UNDERSTANDING YOUR INSTRUMENT PANEL 159 23. Generic Warning Light while driving, turn off some of the vehicle’s non-essential electrical devices or increase engine speed (if at idle). If The Generic Warning Light will illuminate if the charging system light remains on, it means that the any of the following conditions occur: Oil vehicle is experiencing a problem with the charging Change Request, Engine Oil Pressure Sensor...
  • Page 162 160 UNDERSTANDING YOUR INSTRUMENT PANEL the light is flashing when the engine is running, imme- 28. Engine Temperature Warning Light diate service is required and you may experience reduced This light warns of an overheated engine condi- performance, an elevated/rough idle or engine stall and tion.

  • Page 163: Electronic Vehicle Information Center (Evic)

    UNDERSTANDING YOUR INSTRUMENT PANEL 161 The EVIC consists of the following: ELECTRONIC VEHICLE INFORMATION CENTER (EVIC) • System Status The Electronic Vehicle Information Center (EVIC) fea- • Vehicle Information Warning Message Displays tures a driver-interactive display that is located in the instrument cluster.

  • Page 164: Evic Displays

    162 UNDERSTANDING YOUR INSTRUMENT PANEL • Door Ajar EVIC Displays • Speed Limiter — If Equipped 2. Amber Telltales • Ice Risk • Fuel Cut Off • Fuel Cut Off Failed • Hill Holder Failed • Oil Change Request • Check Lights •...

  • Page 165: Evic Control Buttons

    UNDERSTANDING YOUR INSTRUMENT PANEL 163 5. Red Telltales (Right Bank) Push and release the DOWN button to scroll down- ward through the displayed menu and the related • Trunk Ajar options or to decrease the value displayed. • Transmission Failure •...

  • Page 166: Electronic Vehicle Information Center (Evic) Setup Menu

    164 UNDERSTANDING YOUR INSTRUMENT PANEL • Autoclose Electronic Vehicle Information Center (EVIC) Setup Menu • Units The menu comprises a series of functions arranged in a • Language cycle. Push and release the UP and DOWN but- tons to access the different options and settings •...

  • Page 167: Change Engine Oil Indicator System

    UNDERSTANDING YOUR INSTRUMENT PANEL 165 Selecting An Option Of The Main Menu Without 3. Briefly push and release the MENU button to select Submenu the displayed submenu option and to open the rel- evant setup menu. 1. Briefly push and release the MENU button to select the main menu option to set.

  • Page 168: Trip Computer

    166 UNDERSTANDING YOUR INSTRUMENT PANEL after a single chime has sounded to indicate the next NOTE: If the indicator message illuminates when you scheduled oil change interval. The engine oil change start the vehicle, the oil change indicator system did not indicator system is duty cycle based, which means the reset.

  • Page 169: Trip Functions

    UNDERSTANDING YOUR INSTRUMENT PANEL 167 New Trip Exit Trip To reset: To exit the Trip function, wait until all the values have been displayed or hold the MENU button for longer than • Push and hold the TRIP button to reset the system one second.

  • Page 170: Values Displayed

    168 UNDERSTANDING YOUR INSTRUMENT PANEL • Instantaneous economy Values Displayed • Average speed A Range This indicates the distance which may be traveled with • Travel time A (driving time) the fuel remaining in the tank, assuming that driving “Trip B” can be used to display the figures relating to: conditions will not change.

  • Page 171: Personal Settings (Customer-Programmable Features)

    UNDERSTANDING YOUR INSTRUMENT PANEL 169 Average Economy Personal Settings (Customer-Programmable Features) This value shows the approximate average consumption since the last reset. Dimmer Instant Economy The EVIC display is provided with a light sensor capable of detecting environmental light conditions and adjust- This indicates the fuel consumption.
  • Page 172 170 UNDERSTANDING YOUR INSTRUMENT PANEL 2. Briefly push and release the MENU button to go back 3. When the function is activated (On), briefly push and to the menu screen or push and hold the MENU release the MENU button to display the presently set (approximately one second) to go back to the main activation speed.
  • Page 173 UNDERSTANDING YOUR INSTRUMENT PANEL 171 To cancel the setting, proceed as follows: 2. Push and release the UP or DOWN button to select Trip B data. Push and release the UP 1. Briefly push and release the MENU button. “On” will DOWN buttons to turn ON or OFF flash on the display.
  • Page 174 172 UNDERSTANDING YOUR INSTRUMENT PANEL 3. Select the required option and then push and release setting rapidly. Save the setting by briefly pushing the button when you approach the required set- the MENU button. ting. 4. When accessing the “Time” sub-menu item, briefly •...
  • Page 175 UNDERSTANDING YOUR INSTRUMENT PANEL 173 Set Date 6. Push and release the UP or DOWN button for setting. This function may be used to set the date (day - month - year). NOTE: The setting will increase or decrease by one unit each time the UP or DOWN button is pushed.
  • Page 176 174 UNDERSTANDING YOUR INSTRUMENT PANEL • CD audio, CD MP3: track number. Speed Display When this function is activated the cluster will display To activate (On) or to deactivate (Off) the sound system the vehicle speed (MPH or km/h). info displaying, proceed as follows: To activate (On) or to deactivate (Off) the speed display 1.
  • Page 177 UNDERSTANDING YOUR INSTRUMENT PANEL 175 Autoclose Units (Set Units) With this function active, the doors will automatically This function may be used to set the measurement unit in lock at when the vehicle’s speed exceeds 15 mph three submenus: “Distance,” “Temperature” and “Fuel (24 km/h).
  • Page 178 176 UNDERSTANDING YOUR INSTRUMENT PANEL 4. When accessing the “Distance” submenu, briefly push 1. Push and release the UP or DOWN button for and release the MENU button. Either “mi” or “km” setting. will appear on the display (according to the previous 2.
  • Page 179 UNDERSTANDING YOUR INSTRUMENT PANEL 177 Language (Selecting The Language) Buzzer Volume (Adjusting The Failure/Warning Buzzer Volume) The messages can be displayed in the following lan- guages: Italian, English, Turkce, Nederlands, Spanish, With this function the volume of the buzzer accompany- French, Dutch, Polish, Brasilian.
  • Page 180 Indication) This function may be used to adjust the volume of the beep accompanying the buttons. MENU, UP This function will only be displayed after a FIAT Group DOWN buttons can be adjusted according to 8 Automobiles dealership has deactivated the S.B.R. sys- levels.
  • Page 181 UNDERSTANDING YOUR INSTRUMENT PANEL 179 3. Push and release the UP or DOWN button for To set the required unit, proceed as follows: setting. 1. Briefly push and release the MENU button to display 4. Briefly push and release the MENU button to go back the two sub-menus.
  • Page 182 180 UNDERSTANDING YOUR INSTRUMENT PANEL Hill Start Assist Tire Pressure This function is used when starting a vehicle from a stop This function will be used to display the tire pressures on a hill. Hill Start Assist maintains the same level of individually for all four tires by location.
  • Page 183 UNDERSTANDING YOUR INSTRUMENT PANEL 181 Lock Exit Menu When Unlock Driver Door is selected, only the driver’s This function closes the initial menu screen. door will unlock on the first push of the Remote Keyless Briefly push and release the MENU button to go back to Entry (RKE) transmitter UNLOCK button.

  • Page 184: Understanding Your Instrument Panel Sales Code (Rab) Radio

    182 UNDERSTANDING YOUR INSTRUMENT PANEL SALES CODE (RAB) RADIO Introduction The radio has been designed according to the specifica- tions of the passenger compartment, with a personalized design to match the style of the dashboard. If the radio has BLUE&ME™, refer to the appropriate “BLUE&ME™...
  • Page 185 UNDERSTANDING YOUR INSTRUMENT PANEL 183 Reception Conditions Reception conditions change constantly while driving. The presence of dirt, scratches or distortions on the CDs Reception may be interfered with by the presence of could cause skipping and poor sound quality while it is mountains, buildings or bridges, or when you are far playing.
  • Page 186 184 UNDERSTANDING YOUR INSTRUMENT PANEL • Do not stick labels on the CD surface or write on the • If a copy-protected CD is used, it may take a few recorded surface with pencils or pens. seconds before the system starts to play it. The CD player cannot be guaranteed to play all protected •...

  • Page 187: Technical Specifications

    UNDERSTANDING YOUR INSTRUMENT PANEL 185 • Two 100 mm full range speakers, one speaker in each Technical Specifications of the rear side panels. The complete system consists of: • An amplifier in the trunk on the right-hand side panel. • Two 165 mm diameter midwoofer speakers, one speaker in each of the front doors.

  • Page 188: Quick Guide

    186 UNDERSTANDING YOUR INSTRUMENT PANEL Quick Guide Radio Controls BUTTON GENERAL FUNCTIONS MODE Short button push Short button push TUNER AM, FM, SAT (if equipped) source Short repeated button push selection A-B-C Cycles A, B, C presets for AM, FM, Short repeated button push SAT (if equipped) MEDIA...
  • Page 189 UNDERSTANDING YOUR INSTRUMENT PANEL 187 BUTTON GENERAL FUNCTIONS MODE (Mute/Pause Button) Volume activation/deactivation Short button push (Mute/Pause) AUDIO Audio adjustments: low tones Menu activation: short button push (BASS), high tones (TREBLE), left/ Adjustment type selection: push right balance (BALANCE), front/ Adjustment of values: push rear balance (FADER) (Information Button)
  • Page 190 188 UNDERSTANDING YOUR INSTRUMENT PANEL BUTTON RADIO FUNCTIONS MODE Radio Station Search: Automatic search: push buttons • Automatic Search (long push for fast for- • Manual Search ward) Manual search: push buttons (long push for fast forward) 1 2 3 4 5 Current radio station storing Long button push for memory pre- set 1 to 5 respectively...

  • Page 191: General Information

    UNDERSTANDING YOUR INSTRUMENT PANEL 189 CD Section General Information The radio offers the following functions: • Track selection (forward/backward) Radio Section • Fast forward/rewind through tracks • PLL tuning with FM/AM bands • CD Display function: display of track number and on mp3 discs (song title, artist) and time elapsed since •...

  • Page 192: Functions And Adjustments

    190 UNDERSTANDING YOUR INSTRUMENT PANEL • Track selection (forward/backward) Functions And Adjustments • Fast forward/rewind through tracks Turning The Car Radio On The car radio comes on when the (ON/OFF) button • MP3 Display function: display of folder name, ID3- is pushed briefly.
  • Page 193 UNDERSTANDING YOUR INSTRUMENT PANEL 191 Selecting The CD Function Audio Adjustment By briefly pushing the MEDIA button, the CD audio The functions that can be selected from the audio menu source can be selected (only if a CD is loaded). change depending on the context: AM/FM/MEDIA/ SATELLITE.
  • Page 194 192 UNDERSTANDING YOUR INSTRUMENT PANEL • MIDRANGE (Midrange adjustment) 2. Push the button to select “Bass,” “Mid- range” or “Treble” in the AUDIO menu. • TREBLE (Treble adjustment) 3. Push the button to increase/decrease the • BALANCE (right/left Balance adjustment) bass or treble adjustments.
  • Page 195 UNDERSTANDING YOUR INSTRUMENT PANEL 193 By pushing the buttons briefly, the levels will Select the value “0” to set the right and left audio outputs change progressively. By pushing them down longer, at the same level. the levels will change quickly. Loudness Function —...
  • Page 196 194 UNDERSTANDING YOUR INSTRUMENT PANEL curves can be adjusted. To deactivate the equalizer, select User EQ Settings Function — If Equipped the “EQ Preset” function in the audio menu. To set a personalized equalizer adjustment: To activate the equalizer, use the AUDIO button to select 1.
  • Page 197 UNDERSTANDING YOUR INSTRUMENT PANEL 195 Menu • System Reset MENU Button Functions • Speed Volume Push the MENU button briefly to activate the Menu • On Volume Limit function. Push the MENU button again to exit the Menu function. Use the buttons to scroll through the menu Speed Volume Function —...
  • Page 198 196 UNDERSTANDING YOUR INSTRUMENT PANEL On Volume Limit Use the buttons to change the setting. This function makes it possible to activate/deactivate the NOTE: maximum volume limit when turning the radio on. • Using the Menu it is only possible to adjust the The display shows the function status: activation/deactivation of the function and not the minimum or maximum volume value.

  • Page 199: Radio

    UNDERSTANDING YOUR INSTRUMENT PANEL 197 • “Radio off: 20 min” — The radio turns off indepen- Radio dently from the ignition key; the radio remains on for (Tuner) Introduction a maximum period of 20 minutes after the key has When the car radio is turned on, the last function that been turned to the STOP position.
  • Page 200 198 UNDERSTANDING YOUR INSTRUMENT PANEL Each time the button is pressed the following bands are By pushing the preset button for more than two seconds, selected cyclically: the tuned station will be stored. Pushing the A-B-C button will change between the preset memory group in •...

  • Page 201: Siriusxm Satellite Radio - If Equipped

    UNDERSTANDING YOUR INSTRUMENT PANEL 199 the desired direction. If the button is pushed SiriusXM Satellite Radio longer, the fast search starts and then stops when the With over 130 channels, SiriusXM Satellite Radio brings button is released. you more of what you love. Get 69 channels of 100% commercial-free music, plus all of your favorite sports, Stereophonic Broadcasters news, talk and entertainment.
  • Page 202 200 UNDERSTANDING YOUR INSTRUMENT PANEL www.siriusxm.com/customeragreement. SiriusXM Radio You can find the SiriusXM current terms and conditions U.S. service only available to those at least 18 years of age at www.siriusxm.com. in the 48 contiguous United States, D.C., and PR. Service Re-Subscribe To SiriusXM Satellite Radio available in Canada;...
  • Page 203 SIRIUS data services or its The following are instructions for retrieving the Elec- use in vehicles. tronic Serial Number (ESN) from FIAT 500 NAFTA model radios: SiriusXM and all related marks and logos are trademarks of To retrieve the ESN of SIRIUS Satellite Receiver Module SiriusXM Radio Inc.

  • Page 204: Cd Player

    202 UNDERSTANDING YOUR INSTRUMENT PANEL It is advisable to use original CDs to ensure optimal CD Player playing. If CD-R/RWs are used, we recommend using Introduction good quality media that are burned at the slowest speed This chapter describes the operation of the CD player possible.
  • Page 205 UNDERSTANDING YOUR INSTRUMENT PANEL 203 Push the button with the radio turned on, to A CD which cannot be read will not be ejected until these activate the motorized CD ejection system. After ejec- functions are over. At the end, with the CD mode tion, the last audio source listened to before playing activated, the display will show the wording “CD Disc the CD will be heard.

  • Page 206: Cd Mp3 Player

    204 UNDERSTANDING YOUR INSTRUMENT PANEL If the track has been played for more than 3 seconds, CD MP3 Player pushing the button, starts the track again from the Introduction beginning. In this case, if you want to play the This chapter describes the operation of the CD MP3 previous track, push the button twice consecu- player.
  • Page 207 UNDERSTANDING YOUR INSTRUMENT PANEL 205 The specifications and operating conditions for playing Selecting MP3 Sessions With Hybrid Discs MP3 files are the following: If a hybrid disc is inserted (Mixed Mode, Enhanced, CD-Extra) also containing MP3 files, the radio automati- •...

  • Page 208: Troubleshooting

    206 UNDERSTANDING YOUR INSTRUMENT PANEL When one of the ID3-TAG pieces of information is chosen Structure Of The Folders to be displayed (Title, Artist, Album) and this informa- The radio with MP3 player: tion has not been recorded for the track played, the text •...
  • Page 209 UNDERSTANDING YOUR INSTRUMENT PANEL 207 Source Can Not Be Selected The Duration Of The Mp3 Tracks Is Not Correctly Displayed: Nothing has been loaded. Load the CD or the MP3 CD to In some cases (due to the recording mode) the duration of be listened to.

  • Page 210: Ipod®/Usb/Media Player Control - If

    208 UNDERSTANDING YOUR INSTRUMENT PANEL iPod®/USB/MEDIA PLAYER CONTROL — IF EQUIPPED This feature allows an iPod® or external USB device to be plugged into the USB or AUX port, located in the center console. USB/AUX Port 1 — Auxiliary Cable Jack 2 —...

  • Page 211: Steering Wheel Audio Controls

    UNDERSTANDING YOUR INSTRUMENT PANEL 209 The right-hand control is a rocker-type switch with a STEERING WHEEL AUDIO CONTROLS pushbutton in the center and controls the volume and The remote sound system controls are located on the rear mode of the sound system. Pushing the top of the rocker surface of the steering wheel.

  • Page 212: Radio Operation

    210 UNDERSTANDING YOUR INSTRUMENT PANEL Radio Operation Operating Instructions — Hands-Free Phone (If Equipped) Pushing the top of the switch will “Seek” up for the next listenable station and pushing the bottom of the switch Refer to the appropriate Blue&Me™ User’s Manual for will “Seek”...

  • Page 213: Radio Operation And Mobile Phones

    UNDERSTANDING YOUR INSTRUMENT PANEL 211 5. Store the disc in its case after playing. RADIO OPERATION AND MOBILE PHONES Under certain conditions, the mobile phone being on in 6. Do not expose the disc to direct sunlight. your vehicle can cause erratic or noisy performance from 7.

  • Page 214: Manual Heating And Air Conditioning

    212 UNDERSTANDING YOUR INSTRUMENT PANEL 1. Temperature Control Manual Heating And Air Conditioning Rotate this control to regulate the temperature of the air inside the passenger compartment. Rotating the dial to the left into the blue area of the scale indicates cooler temperatures, while rotating to the right into the red area indicates warmer temperatures.
  • Page 215 UNDERSTANDING YOUR INSTRUMENT PANEL 213 NOTE: 4. Mode Control • Continuous use of the Recirculation mode may make Rotate this control to change the system between Modes the inside air stuffy and window fogging may occur. (Panel, Bi-Level, Floor, Mix, Defrost). Extended use of this mode is not recommended.
  • Page 216 214 UNDERSTANDING YOUR INSTRUMENT PANEL • Mix 5. A/C Button Air is directed through the floor, defrost, and Push this button to engage the Air Conditioning. A light side window demister outlets. This setting will illuminate when the Air Conditioning system is works best in cold or snowy conditions that engaged.

  • Page 217: Automatic Temperature Control (Atc)

    UNDERSTANDING YOUR INSTRUMENT PANEL 215 Automatic Temperature Control (ATC) • The Automatic Temperature Control (ATC) allows the occupant to select a comfort settings. • The system provides set-and-forget operation for op- timum comfort and convenience. • The system can be controlled manually, if desired. The ATC system automatically maintains the interior comfort level desired by the occupant.
  • Page 218 216 UNDERSTANDING YOUR INSTRUMENT PANEL 2. A/C Button are selected. This allows the front occupants to control the volume of air circulated in the vehicle and cancel the Push and release to change the current Air Conditioning AUTO mode. (A/C) setting. Performing this function will cause the The operator can also select the direction of the airflow ATC to switch into manual mode.
  • Page 219 UNDERSTANDING YOUR INSTRUMENT PANEL 217 and side window demist outlets. When the defrost but- NOTE: The center instrument panel outlets can be aimed ton is selected, the blower level will increase. Use Defrost so that they are directed toward the rear seat passengers mode with maximum temperature settings for best wind- for maximum airflow to the rear.
  • Page 220 218 UNDERSTANDING YOUR INSTRUMENT PANEL 11. Climate Control ON/OFF Button NOTE: Push and release to turn the Climate Control ON or OFF. • If the system is in Mix or Defrost Mode, the A/C can be turned off, but the A/C system shall remain active 12.
  • Page 221 UNDERSTANDING YOUR INSTRUMENT PANEL 219 NOTE: In cold weather, use of Recirculation mode may buttons. Once the desired temperature is displayed, the system will achieve and automatically maintain that lead to excessive window fogging. The recirculation comfort level. feature may be unavailable (indicator light shall blink) if conditions exist that could create fogging on the inside of 3.

  • Page 222: Operating Tips

    220 UNDERSTANDING YOUR INSTRUMENT PANEL Manual Operation Operating Tips The system allows for manual selection of blower speed, NOTE: Refer to the chart at the end of this section for air distribution mode, A/C status and recirculation con- suggested control settings for various weather conditions. trol.
  • Page 223 UNDERSTANDING YOUR INSTRUMENT PANEL 221 Regular cleaning of the inside of the windows with a a heavy load or high heat conditions, it may use Recir- non-filming cleaning solution (vinegar and water works culation A/C mode to provide additional comfort while very well) will help prevent contaminates (cigarette in automatic mode.
  • Page 224 222 UNDERSTANDING YOUR INSTRUMENT PANEL Operating Tips Chart I n f o r ma t i o n P r o v i d e d b y :...
  • Page 225 STARTING AND OPERATING CONTENTS STARTING PROCEDURES ....227 MANUAL TRANSMISSION — IF EQUIPPED . . .230 ▫ Manual Transmission — If Equipped ..227 ▫...
  • Page 226 224 STARTING AND OPERATING AUTOSTICK ......242 BRAKE SYSTEM ..... . .252 ▫...
  • Page 227 STARTING AND OPERATING 225 ▫ Tire Loading And Tire Pressure ...267 TIRE CHAINS (TRACTION DEVICES) ..284 TIRES — GENERAL INFORMATION ..272 TIRE ROTATION RECOMMENDATIONS .
  • Page 228 226 STARTING AND OPERATING ▫ Fuel System Cautions....298 TRAILER TOWING .....301 ▫...

  • Page 229: Starting Procedures

    STARTING AND OPERATING 227 STARTING PROCEDURES Manual Transmission — If Equipped Before starting your vehicle, adjust your seat, adjust both Apply the parking brake, place the shift lever in NEU- inside and outside mirrors, and fasten your seat belts. TRAL, and press the clutch pedal before starting the vehicle.

  • Page 230: Cold Weather Operation

    228 STARTING AND OPERATING Turn the ignition switch to the AVV/ACC (START) CAUTION! position and release it when the engine starts. If the engine fails to start within 10 seconds, turn the ignition Use of the recommended SAE 5W-40 synthetic en- switch to the STOP (OFF/LOCK) position, wait 10 to gine oil and adhering to the prescribed oil change 15 seconds, then repeat the “Normal Starting”...

  • Page 231: If Engine Fails To Start

    STARTING AND OPERATING 229 3. If the engine fails to start within ten seconds, cycle the If Engine Fails To Start ignition to the STOP (OFF/LOCK) position, wait five seconds to allow the starter to cool, then repeat the WARNING! Extended Park Starting procedure.

  • Page 232: After Starting

    230 STARTING AND OPERATING After Starting MANUAL TRANSMISSION — IF EQUIPPED The idle speed will automatically decrease as the engine Five-Speed Manual Transmission warms up. WARNING! Turbocharger “Cool Down” You or others could be injured if you leave the This vehicle is equipped with an after-run pump to cool vehicle unattended without having the parking the turbocharger after the engine is shut off.
  • Page 233 STARTING AND OPERATING 231 Use each gear in numerical order; do not skip a gear. Be sure the transmission is in first gear, not third, when starting from a standing position. Damage to the clutch can result from starting in third gear. For most city driving, you will find it easier to use only the lower gears.

  • Page 234: Recommended Shift Speeds

    232 STARTING AND OPERATING Recommended Shift Speeds Downshifting To use your manual transmission for optimal fuel Proper downshifting will improve fuel economy and economy, it should be upshifted as listed in the following prolong engine life. table. CAUTION! Manual Transmission Recommended Shift Speeds If you skip a gear while downshifting or downshift Units In mph (km/h) at too high of a vehicle speed, these conditions may...

  • Page 235: If Equipped

    STARTING AND OPERATING 233 When turning a corner or driving up a steep grade, NOTE: You must press and hold the brake pedal while downshift early so that the engine will not be overbur- shifting out of PARK. dened. WARNING! AUTOMATIC TRANSMISSION —...
  • Page 236 234 STARTING AND OPERATING WARNING! (Continued) WARNING! (Continued) • Unintended movement of a vehicle could injure • Never leave children alone in a vehicle, or with those in or near the vehicle. As with all vehicles, access to an unlocked vehicle. Allowing children to you should never exit a vehicle while the engine is be in a vehicle unattended is dangerous for a running.

  • Page 237: Key Ignition Park Interlock

    STARTING AND OPERATING 235 Key Ignition Park Interlock Six-Speed Automatic Transmission This vehicle is equipped with a Key Ignition Park Inter- The transmission gear position display (located in the lock which requires the transmission to be in PARK instrument cluster) indicates the transmission gear range. before the ignition switch can be turned to the LOCK/ You must press the brake pedal to move the shift lever OFF (key removal) position.
  • Page 238 236 STARTING AND OPERATING The transmission shift lever has PARK, REVERSE, NEU- TRAL, DRIVE, and AutoStick shift positions. Manual shifts can be made using the AutoStick shift control (refer to “AutoStick” in this section for further information). Toggling the shift lever forward (-) or rearward (+) while in the AutoStick position (beside the DRIVE position) will manually select the transmission gear, and will display the current gear in the instrument cluster as 1, 2,...

  • Page 239: Gear Ranges

    STARTING AND OPERATING 237 When parking on a hill, apply the parking brake before Gear Ranges shifting the transmission to PARK, otherwise the load on DO NOT race the engine when shifting from PARK or the transmission locking mechanism may make it difficult NEUTRAL into another gear range.
  • Page 240 238 STARTING AND OPERATING WARNING! (Continued) WARNING! (Continued) • It is dangerous to shift out of PARK or NEUTRAL Once the key is removed, the transmission is if the engine speed is higher than idle speed. If locked in PARK, securing the vehicle against un- your foot is not firmly pressing the brake pedal, the wanted movement.
  • Page 241 STARTING AND OPERATING 239 • Look at the transmission gear position display and CAUTION! verify that it indicates the PARK position. • Before moving the shift lever out of PARK, you • With brake pedal released, verify that the shift lever must turn the ignition switch from the LOCK/OFF will not move out of PARK.
  • Page 242 240 STARTING AND OPERATING DRIVE (D) WARNING! This range should be used for most city and highway Do not coast in NEUTRAL and never turn off the driving. It provides the smoothest upshifts and down- ignition to coast down a hill. These are unsafe practices shifts, and the best fuel economy.
  • Page 243 STARTING AND OPERATING 241 If the transmission temperature exceeds normal operating Limp Home Mode allows the vehicle to be driven to an limits, the transmission controller will expand the range of authorized dealer for service without damaging the trans- torque converter clutch engagement. This is done to pre- mission.

  • Page 244: Autostick

    242 STARTING AND OPERATING NOTE: Even if the transmission can be reset, we recom- Operation mend that you visit your authorized dealer at your When the shift lever is in the AutoStick position (beside the earliest possible convenience. Your authorized dealer has Drive position), it can be moved forward and rearward.
  • Page 245 STARTING AND OPERATING 243 • The transmission will automatically downshift to first • Transmission shifting will be more noticeable when gear when coming to a stop. After a stop, the driver AutoStick is engaged. should manually upshift (+) the transmission as the •...

  • Page 246: Driving On Slippery Surfaces

    244 STARTING AND OPERATING DRIVING ON SLIPPERY SURFACES Traction When driving on wet or slushy roads, it is possible for a Acceleration wedge of water to build up between the tire and road Rapid acceleration on snow covered, wet, or other slip- surface.

  • Page 247: Driving Through Water

    STARTING AND OPERATING 245 DRIVING THROUGH WATER Shallow Standing Water Driving through water more than a few inches/ Although your vehicle is capable of driving through centimeters deep will require extra caution to ensure shallow standing water, consider the following Cautions safety and prevent damage to your vehicle.
  • Page 248 246 STARTING AND OPERATING CAUTION! CAUTION! (Continued) • Driving through standing water may cause damage • Always check the depth of the standing water to your vehicle’s drivetrain components. Always before driving through it. Never drive through inspect your vehicle’s fluids (i.e., engine oil, trans- standing water that is deeper than the bottom of mission, axle, etc.) for signs of contamination (i.e., the tire rims mounted on the vehicle.

  • Page 249: Power Steering

    STARTING AND OPERATING 247 If the Steering icon is displayed and the “POWER STEER- POWER STEERING ING SYSTEM OVER TEMP” message is displayed on the The electric power steering system will give you good EVIC screen, they indicate that extreme steering maneu- vehicle response and increased ease of maneuverability vers may have occurred which caused an over tempera- in tight spaces.

  • Page 250: Parking Brake

    248 STARTING AND OPERATING NOTE: • Even if the power steering assistance is no longer operational, it is still possible to steer the vehicle. Under these conditions there will be a substantial increase in steering effort, especially at low speeds and during parking maneuvers.
  • Page 251 STARTING AND OPERATING 249 from the curb on an uphill grade. The parking brake WARNING! (Continued) should always be applied whenever the driver is not in • Be sure the parking brake is fully disengaged the vehicle. before driving; failure to do so can lead to brake failure and a collision.

  • Page 252: Sport Mode

    250 STARTING AND OPERATING SPORT MODE Manual Transmission — If Equipped In Sport mode, the engine is more responsive to the throttle pedal, and provides more maximum torque by increasing turbo boost pressure. Steering feedback is improved, and steering effort is slightly higher. This driving mode is useful for spirited driving.

  • Page 253: Automatic Transmission - If Equipped

    STARTING AND OPERATING 251 Automatic Transmission — If Equipped The Sport mode increases steering feedback to the driver with slight increase in effort and changes the transmis- sion shift schedules for more aggressive shifting. This driving mode is useful while driving on twisty roads where more steering precision is desired in spirited cornering.

  • Page 254: Brake System

    252 STARTING AND OPERATING BRAKE SYSTEM ELECTRONIC BRAKE CONTROL SYSTEM Your vehicle is equipped with dual hydraulic brake Your vehicle is equipped with a advanced electronic systems. If either of the two hydraulic systems loses brake control system that includes the Anti-Lock Brake normal capability, the remaining system will still func- System (ABS), Brake Assist System (BAS), Traction Con- tion.
  • Page 255 STARTING AND OPERATING 253 The ABS includes an amber ABS Warning Light. When WARNING! (Continued) the light is illuminated, the ABS is not functioning. The • The ABS cannot prevent collisions, including those system reverts to standard non-anti-lock brakes. Turning resulting from excessive speed in turns, following the ignition Off and On again may reset the ABS if the another vehicle too closely, or hydroplaning.

  • Page 256: Brake Assist System (Bas)

    254 STARTING AND OPERATING Brake Assist System (BAS) WARNING! The BAS is designed to optimize the vehicle’s braking • The Brake Assist System (BAS) cannot prevent the capability during emergency braking maneuvers. The natural laws of physics from acting on the vehicle, system detects an emergency braking situation by sens- nor can it increase the traction afforded by prevail- ing the rate and amount of brake application and then...

  • Page 257: Hill Start Assist (Hsa)

    STARTING AND OPERATING 255 wheel(s) and engine power is reduced to provide en- short period of time, the system will release brake hanced acceleration and stability. A feature of the TCS pressure and the vehicle will roll down the hill. The system, Brake Limited Differential (BLD), functions simi- system will release brake pressure in proportion to the lar to a limited slip differential and controls the wheel...

  • Page 258: Electronic Stability Control (Esc)

    256 STARTING AND OPERATING Electronic Stability Control (ESC) WARNING! The Electronic Stability Control (ESC) system enhances There may be situations on minor hills with a loaded directional control and stability of the vehicle under vehicle, or while pulling a trailer, when the system various driving conditions.
  • Page 259 STARTING AND OPERATING 257 ESC Off Switch (Automatic Transmission) ESC Off Switch (Manual Transmission) NOTE: The ESC Off switch is located left of the steering column (Manual Transmission Only). I n f o r ma t i o n P r o v i d e d b y :...
  • Page 260 258 STARTING AND OPERATING ESC Operating Modes WARNING! The ESC system has three available operating modes. The Electronic Stability Control (ESC) cannot pre- Full On vent the natural laws of physics from acting on the vehicle, nor can it increase the traction afforded by This is the normal operating mode for ESC.
  • Page 261 STARTING AND OPERATING 259 To turn ESC on again, momentarily press the switch Full Off again. This will restore the normal ESC On mode of This mode is intended for off-highway or off-road use operation. only and should not be used on public roadways. In this mode, all TCS and ESC stability features are turned OFF, WARNING! except for the limited slip feature described in the TCS...

  • Page 262: Esc Activation/Malfunction Indicator Light And Esc Off Indicator Light

    260 STARTING AND OPERATING The ESC Activation/Malfunction Indicator Light also ESC Activation/Malfunction Indicator Light And flashes when TCS is active. If the ESC Activation/ ESC OFF Indicator Light Malfunction Indicator Light begins to flash during accel- eration, ease up on the accelerator and apply as little The ESC Activation/Malfunction Indicator throttle as possible.

  • Page 263: Tire Safety Information

    STARTING AND OPERATING 261 NOTE: TIRE SAFETY INFORMATION • P (Passenger) — Metric tire sizing is based on U.S. Tire Markings design standards. P-Metric tires have the letter “P” molded into the sidewall preceding the size designa- tion. Example: P215/65R15 95H. •...
  • Page 264 262 STARTING AND OPERATING • Temporary spare tires are designed for temporary • High flotation tire sizing is based on U.S. design emergency use only. Temporary high pressure com- standards and it begins with the tire diameter molded pact spare tires have the letter “T” or “S” molded into into the sidewall.
  • Page 265 STARTING AND OPERATING 263 EXAMPLE: R = Construction code – R means radial construction, or – D means diagonal or bias construction 15, 16, 18 = Rim diameter in inches (in) Service Description: 95 = Load Index – A numerical code associated with the maximum load a tire can carry H = Speed Symbol –...

  • Page 266: Tire Identification Number (Tin)

    264 STARTING AND OPERATING EXAMPLE: Load Identification: Absence of the following load identification symbols on the sidewall of the tire indicates a Standard Load (SL) tire: • XL = Extra load (or reinforced) tire, or • LL = Light load tire or •...
  • Page 267 STARTING AND OPERATING 265 EXAMPLE: DOT MA L9 ABCD 0301 DOT = Department of Transportation – This symbol certifies that the tire is in compliance with the U.S. Department of Transportation tire safety standards and is approved for highway use MA = Code representing the tire manufacturing location (two digits) L9 = Code representing the tire size (two digits) ABCD = Code used by the tire manufacturer (one to four digits)

  • Page 268: Tire Terminology And Definitions

    266 STARTING AND OPERATING Tire Terminology And Definitions Term Definition B-Pillar The vehicle B-Pillar is the structural member of the body located behind the front door. Cold Tire Inflation Pressure Cold tire inflation pressure is defined as the tire pressure after the vehicle has not been driven for at least three hours, or driven less than 1 mile (1.6 km) after sitting for a minimum of three hours.

  • Page 269: Tire Loading And Tire Pressure

    STARTING AND OPERATING 267 Tire Loading And Tire Pressure Tire And Loading Information Placard Location NOTE: The proper cold tire inflation pressure is listed on the driver’s side B-Pillar or the rear edge of the driver’s side door. Example Tire Placard Location (B-Pillar) Example Tire Placard Location (Door) I n f o r ma t i o n P r o v i d e d b y :...
  • Page 270 268 STARTING AND OPERATING Tire And Loading Information Placard 3. Tire size designed for your vehicle. 4. Cold tire inflation pressures for the front, rear, and spare tires. Loading The vehicle maximum load on the tire must not exceed the load carrying capacity of the tire on your vehicle. You will not exceed the tire’s load carrying capacity if you adhere to the loading conditions, tire size, and cold tire inflation pressures specified on the Tire and Loading...
  • Page 271 STARTING AND OPERATING 269 To determine the maximum loading conditions of your 4. The resulting figure equals the available amount of vehicle, locate the statement “The combined weight of cargo and luggage load capacity. For example, if occupants and cargo should never exceed XXX lbs or “XXX”...
  • Page 272 270 STARTING AND OPERATING NOTE: • If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle. The follow- ing table shows examples on how to calculate total load, cargo/luggage, and towing capacities of your vehicle with varying seating configurations and num- ber and size of occupants.
  • Page 273 STARTING AND OPERATING 271 I n f o r ma t i o n P r o v i d e d b y :...

  • Page 274: Tires - General Information

    272 STARTING AND OPERATING Safety WARNING! Overloading of your tires is dangerous. Overloading WARNING! can cause tire failure, affect vehicle handling, and • Improperly inflated tires are dangerous and can increase your stopping distance. Use tires of the cause collisions. recommended load capacity for your vehicle.

  • Page 275: Tire Inflation Pressures

    STARTING AND OPERATING 273 Fuel Economy WARNING! (Continued) Underinflated tires will increase tire rolling resistance • Unequal tire pressures from one side of the vehicle resulting in higher fuel consumption. to the other can cause the vehicle to drift to the right or left.
  • Page 276 274 STARTING AND OPERATING At least once a month: 1 mile (1.6 km) after sitting for a minimum of three hours. The cold tire inflation pressure must not exceed the maxi- • Check and adjust tire pressure with a good quality mum inflation pressure molded into the tire sidewall.

  • Page 277: Tire Pressures For High Speed Operation

    STARTING AND OPERATING 275 Tire Pressures For High Speed Operation Radial Ply Tires The manufacturer advocates driving at safe speeds and WARNING! within posted speed limits. Where speed limits or condi- tions are such that the vehicle can be driven at high Combining radial ply tires with other types of tires speeds, maintaining correct tire inflation pressure is very on your vehicle will cause your vehicle to handle...

  • Page 278: Tire Types

    276 STARTING AND OPERATING Consult an authorized tire dealer for tire repairs and Summer Or Three Season Tires — If Equipped additional information. Summer tires provide traction in both wet and dry Damaged Run Flat tires, or Run Flat tires that have conditions, and are not intended to be driven in snow or experienced a loss of pressure should be replaced imme- on ice.

  • Page 279: Run Flat Tires - If Equipped

    STARTING AND OPERATING 277 Snow tires generally have lower speed ratings than what WARNING! was originally equipped with your vehicle and should not be operated at sustained speeds over 75 mph Do not use summer tires in snow/ice conditions. You (120 km/h).

  • Page 280: Spare Tires - If Equipped

    278 STARTING AND OPERATING Run Flat mode. A Run Flat mode occurs when the tire CAUTION! inflation pressure is of/or below 14 psi (96 kPa). Once a Run Flat tire reaches the run flat mode it has limited Because of the reduced ground clearance, do not take driving capabilities and needs to be replaced immedi- your vehicle through an automatic car wash with a ately.
  • Page 281 STARTING AND OPERATING 279 Compact Spare Tire — If Equipped Do not install more than one compact spare tire and wheel on the vehicle at any given time. The compact spare is for temporary emergency use only. You can identify if your vehicle is equipped with a WARNING! compact spare by looking at the spare tire description on the Tire and Loading Information Placard located on the...
  • Page 282 280 STARTING AND OPERATING tire may have limited tread life. When the tread is worn WARNING! to the tread wear indicators, the temporary use full size spare tire needs to be replaced. Since it is not the same as Limited-use spares are for emergency use only. In- your original equipment tire, replace (or repair) the stallation of this limited-use spare tire affects vehicle original equipment tire and reinstall on the vehicle at the...

  • Page 283: Tire Spinning

    STARTING AND OPERATING 281 Tire Spinning Tread Wear Indicators When stuck in mud, sand, snow, or ice conditions, do not Tread wear indicators are in the original equipment tires spin your vehicle’s wheels above 30 mph (48 km/h) or for to help you in determining when your tires should be longer than 30 seconds continuously without stopping.

  • Page 284: Life Of Tire

    282 STARTING AND OPERATING These indicators are molded into the bottom of the tread • Distance driven. grooves. They will appear as bands when the tread depth • Performance tires, tires with a speed rating of V or becomes a 1/16 of an inch (2 mm). When the tread is higher, and summer tires typically have a reduced worn to the tread wear indicators, the tire should be tread life.

  • Page 285: Replacement Tires

    STARTING AND OPERATING 283 affect your vehicle’s handling. If you ever replace a Replacement Tires wheel, make sure that the wheel’s specifications match The tires on your new vehicle provide a balance of many those of the original wheels. characteristics. They should be inspected regularly for wear and correct cold tire inflation pressures.

  • Page 286: Tire Chains (Traction Devices)

    284 STARTING AND OPERATING WARNING! (Continued) CAUTION! braking of your vehicle. This can cause unpredict- Replacing original tires with tires of a different size able handling and stress to steering and suspen- may result in false speedometer and odometer read- sion components.

  • Page 287: Tire Rotation Recommendations

    STARTING AND OPERATING 285 The suggested rotation method is the “rearward cross” TIRE ROTATION RECOMMENDATIONS shown in the following diagram. This rotation pattern The tires on the front and rear of your vehicle operate at does not apply to some directional tires that must not be different loads and perform different steering, driving, reversed.

  • Page 288: Tire Pressure Monitoring System (Tpms)

    286 STARTING AND OPERATING The TPMS will warn the driver of a low tire pressure if TIRE PRESSURE MONITORING SYSTEM (TPMS) the tire pressure falls below the low pressure warning The Tire Pressure Monitor System (TPMS) will warn the limit for any reason, including low temperature effects, or driver of a low tire pressure based on the vehicle recom- natural pressure loss through the tire.
  • Page 289 STARTING AND OPERATING 287 For example, your vehicle may have a recommended CAUTION! cold (parked for more than three hours) tire pressure of 30 psi (207 kPa). If the ambient temperature is 68° F • The TPMS has been optimized for the original (20°...

  • Page 290: Base System

    288 STARTING AND OPERATING NOTE: • Seasonal temperature changes will affect tire pressure, and the TPMS will monitor the actual tire pressure in • The TPMS is not intended to replace normal tire care the tire. and maintenance, or to provide warning of a tire failure or condition.
  • Page 291 STARTING AND OPERATING 289 The TPMS consists of the following components: Check TPMS Warnings • Receiver Module. The Tire Pressure Monitoring Telltale Light will flash on and off for 75 seconds and remain on solid when a system • Four Tire Pressure Monitoring Sensors. fault is detected, and the “Service Tire Pressure Monitoring •...
  • Page 292 290 STARTING AND OPERATING NOTE: Your vehicle may be equipped with a compact 4. For each subsequent ignition key cycle, a chime will spare wheel and tire assembly. sound and the Tire Pressure Monitoring Telltale Light will flash on and off for 75 seconds and then remain on 1.

  • Page 293: Premium Tpm System

    STARTING AND OPERATING 291 Enhanced TPM System The TPMS consists of the following components: When the vehicle is equipped with an enhanced TPM • Receiver module system, the driver can view text messages showing the • Four Tire Pressure Monitoring Sensors actual tire pressure value by position by selecting the tire pressure menu command in the instrument cluster.
  • Page 294 292 STARTING AND OPERATING will automatically update and the “Tire Pressure Moni- toring Telltale Light” will turn off. The vehicle may need to be driven for up to 20 minutes above 15 mph (24 km/h) in order for the TPMS to receive this informa- tion.
  • Page 295 STARTING AND OPERATING 293 A system fault can occur due to any of the following: 1. Signal interference due to electronic devices or driving next to facilities emitting the same radio frequencies as the TPM sensors. 2. Installing aftermarket window tinting that contains materials that may block radio wave signals.
  • Page 296 294 STARTING AND OPERATING shown. This indicates that the pressure values are still • After driving the vehicle for up to 20 minutes above being received from the TPM sensors but they may not be 15 mph (24 km/h), the “Tire Pressure Monitoring located in the correct vehicle position.

  • Page 297: General Information

    STARTING AND OPERATING 295 of the four active road tires. The vehicle may need to be FUEL REQUIREMENTS driven for up to 20 minutes above 15 mph (24 km/h) in order for the TPMS to receive this information. This engine is designed to meet all emis- sion regulations and provide satisfactory General Information fuel economy and performance when us-...

  • Page 298: Reformulated Gasoline

    296 STARTING AND OPERATING Fuels blended with these oxygenates may be used in Reformulated Gasoline your vehicle. Many areas of the country require the use of cleaner burning gasoline referred to as “Reformulated Gasoline.” CAUTION! Reformulated gasoline contain oxygenates and are spe- cifically blended to reduce vehicle emissions and im- Do not use gasoline containing Methanol or E-85 prove air quality.

  • Page 299: Mmt In Gasoline

    STARTING AND OPERATING 297 If a Non-FFV vehicle is inadvertently fueled with E-85 More extensive repairs will be required for prolonged fuel, the engine will have some or all of these symptoms: exposure to E-85 fuel. • Operate in a lean mode. MMT In Gasoline Methylcyclopentadienyl Manganese Tricarbonyl (MMT) •...

  • Page 300: Materials Added To Fuel

    298 STARTING AND OPERATING Materials Added To Fuel CAUTION! (Continued) All gasoline sold in the United States is required to • An out-of-tune engine or certain fuel or ignition contain effective detergent additives. Use of additional malfunctions can cause the catalytic converter to detergents or other additives is not needed under normal overheat.

  • Page 301: Carbon Monoxide Warnings

    STARTING AND OPERATING 299 Carbon Monoxide Warnings WARNING! (Continued) • Guard against carbon monoxide with proper main- WARNING! tenance. Have the exhaust system inspected every Carbon monoxide (CO) in exhaust gases is deadly. time the vehicle is raised. Have any abnormal Follow the precautions below to prevent carbon conditions repaired promptly.

  • Page 302: Starting And Operating

    300 STARTING AND OPERATING ADDING FUEL CAUTION! Fuel Filler Cap (Gas Cap) • Damage to the fuel system or emission control The gas cap is located on the passenger side of the system could result from using an improper fuel vehicle.

  • Page 303: Loose Fuel Filler Cap Message

    STARTING AND OPERATING 301 Loose Fuel Filler Cap Message WARNING! (Continued) After fuel has been added, the vehicle diagnostic system • Never add fuel when the engine is running. It may can determine if the fuel filler cap is possibly loose, cause the MIL to turn on and could cause a fire.

  • Page 304: Recreational Towing (Behind Motorhome, Etc.)

    302 STARTING AND OPERATING RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.) Towing This Vehicle Behind Another Vehicle Towing Condition Wheels OFF the Ground Manual Transmission Automatic Transmission Flat Tow NONE Transmission in NOT ALLOWED NEUTRAL Dolly Tow Front Rear NOT ALLOWED NOT ALLOWED On Trailer This vehicle may be towed on a flatbed or vehicle trailer Vehicles equipped with manual transmissions may be...
  • Page 305 STARTING AND OPERATING 303 CAUTION! DO NOT flat tow any vehicle equipped with an automatic transmission. Damage to the drivetrain will result. If these vehicles require towing, make sure all drive wheels are OFF the ground. CAUTION! Towing this vehicle in violation of the above require- ments can cause severe transmission damage.
  • Page 306 I n f o r ma t i o n P r o v i d e d b y :...
  • Page 307 WHAT TO DO IN EMERGENCIES CONTENTS HAZARD WARNING FLASHERS ...307 WHEEL AND TIRE TORQUE SPECIFICATIONS ..... .319 IF YOUR ENGINE OVERHEATS .
  • Page 308 306 WHAT TO DO IN EMERGENCIES JUMP-STARTING PROCEDURE ... .327 SHIFT LEVER OVERRIDE ....333 ▫ Preparations For Jump-Start ....328 TOWING A DISABLED VEHICLE .

  • Page 309: Hazard Warning Flashers

    WHAT TO DO IN EMERGENCIES 307 HAZARD WARNING FLASHERS IF YOUR ENGINE OVERHEATS The Hazard Warning flasher switch is located on the In any of the following situations, you can reduce the instrument panel below the radio. potential for overheating by taking the appropriate action. •...

  • Page 310: Tire Service Kit - If Equipped

    308 WHAT TO DO IN EMERGENCIES CAUTION! WARNING! (Continued) do not open the hood until the radiator has had time Driving with a hot cooling system could damage to cool. Never try to open a cooling system pressure your vehicle. If the pointer rises to the H (red) mark, cap when the radiator or coolant bottle is hot.

  • Page 311: Tire Service Kit Storage

    WHAT TO DO IN EMERGENCIES 309 Tire Service Kit Storage Tire Service Kit Components And Operation The Tire Service Kit is located under the front driver’s seat. Tire Service Kit Components 1 — Sealant Bottle 5 — Mode Select Knob 2 —...

  • Page 312: Tire Service Kit Usage Precautions

    310 WHAT TO DO IN EMERGENCIES Using The Mode Select Knob And Hoses Using The Power Button Your Tire Service Kit is equipped with the following Push and release the Power Button (4) once to symbols to indicate the air or sealant mode. turn On the Tire Service Kit.
  • Page 313 WHAT TO DO IN EMERGENCIES 311 from the vehicle or tire and wheel components. Once the sealant dries, it can easily be peeled off and properly discarded. • For optimum performance, make sure the valve stem on the wheel is free of debris before connecting the Tire Service Kit.
  • Page 314 312 WHAT TO DO IN EMERGENCIES WARNING! WARNING! (Continued) • Keep Tire Service Kit away from open flames or • Do not attempt to seal a tire on the side of the heat source. vehicle closest to traffic. Pull far enough off the •...

  • Page 315: Sealing A Tire With Tire Service Kit

    WHAT TO DO IN EMERGENCIES 313 on the ground. This will provide the best positioning WARNING! (Continued) of the kit when injecting the sealant into the deflated • Tire Service Kit Sealant solution contains latex. tire and running the air pump. Move the vehicle as In case of an allergic reaction or rash, consult a necessary to place the valve stem in this position physician immediately.
  • Page 316 314 WHAT TO DO IN EMERGENCIES 4. Remove the cap from the valve stem and then screw NOTE: Sealant may leak out through the puncture in the the fitting at the end of the Sealant Hose (6) onto the tire. valve stem.
  • Page 317 WHAT TO DO IN EMERGENCIES 315 NOTE: If the Mode Select Knob (5) is on Air Mode and If the tire does not inflate to at least 26 psi (1.8 Bar) the pump is operating, air will dispense from the Air pressure within 15 minutes: Pump Hose (7) only, not the Sealant Hose (6).
  • Page 318 316 WHAT TO DO IN EMERGENCIES 3. Immediately disconnect the Sealant Hose (6) from (D) Drive Vehicle: the valve stem, reinstall the cap on the fitting at the Immediately after injecting sealant and inflating the tire, end of the hose, and place the Tire Service Kit in drive the vehicle 5 miles (8 km) or 10 minutes to ensure the vehicle storage location.
  • Page 319 WHAT TO DO IN EMERGENCIES 317 (E) After Driving: If the tire pressure is 19 psi (1.3 Bar) or higher: Pull over to a safe location. Refer to “Whenever You Stop 1. Press the Power Button (4) to turn on Tire Service Kit to Use Tire Service Kit”...
  • Page 320 318 WHAT TO DO IN EMERGENCIES 5. Remove the Speed Limit sticker from the instrument 3. Press the Sealant Bottle release button. The Sealant panel after the tire has been repaired. Bottle (1) will pop up. Remove the bottle and dispose of it accordingly.

  • Page 321: Wheel And Tire Torque Specifications

    WHAT TO DO IN EMERGENCIES 319 Inspect the wheel mounting surface prior to mounting WHEEL AND TIRE TORQUE SPECIFICATIONS the tire and remove any corrosion or loose particles. Proper lug nut/bolt torque is very important to ensure that the wheel is properly mounted to the vehicle. Any time a wheel has been removed and reinstalled on the vehicle the lug nuts/bolts should be torqued using a properly calibrated torque wrench.

  • Page 322: If Equipped

    320 WHAT TO DO IN EMERGENCIES Tighten the lug nuts/bolts in a star pattern until each WARNING! nut/bolt has been tightened twice. To avoid the risk of forcing the vehicle off the jack, do not tighten the lug nuts fully until the vehicle has been lowered.

  • Page 323: Jack Location

    WHAT TO DO IN EMERGENCIES 321 Jack Location WARNING! (Continued) The jack and jack wrench tool are stowed in a bag under • Being under a jacked-up vehicle is dangerous. The the front driver’s seat. vehicle could slip off the jack and fall on you. You could be crushed.

  • Page 324: Preparations For Jacking

    322 WHAT TO DO IN EMERGENCIES 5. Turn Off the ignition. Preparations For Jacking 1. Park the vehicle on a firm level surface, avoiding ice or Block both the front and rear of the slippery areas. wheel diagonally opposite the jacking position.

  • Page 325: Jacking Instructions

    WHAT TO DO IN EMERGENCIES 323 Jacking Instructions WARNING! (Continued) • Do not let anyone sit in the vehicle when it is on a WARNING! jack. Carefully follow these tire changing warnings to • Do not get under the vehicle when it is on a jack. help prevent personal injury or damage to your If you need to get under a raised vehicle, take it to vehicle:...
  • Page 326 324 WHAT TO DO IN EMERGENCIES Jack Warning Label CAUTION! Do not attempt to raise the vehicle by jacking on locations other than those indicated in the Jacking Instructions for this vehicle. Center Cap Removal 1. Remove the scissors jack and tool bag from under the NOTE: Before using the swivel wrench to remove the driver’s seat.
  • Page 327 WHAT TO DO IN EMERGENCIES 325 3. Loosen, but do not remove, the wheel bolts by turning them to the left one turn while the wheel is still on the ground. NOTE: There are front and rear jacking locations on each side of the body (as indicated by the triangular lift point symbol on the sill molding).
  • Page 328 326 WHAT TO DO IN EMERGENCIES 4. Turn the jack screw to the left until the jack can be WARNING! placed under the jacking location. Once the jack is positioned, turn the jack screw to the right until the Raising the vehicle higher than necessary can make jack head is properly engaged with the lift area closest the vehicle less stable.

  • Page 329: Jump-Starting Procedure

    WHAT TO DO IN EMERGENCIES 327 torque. If you doubt that you have tightened the bolts WARNING! correctly, have them checked with a torque wrench by your authorized dealer or service station. To avoid the risk of forcing the vehicle off the jack, do not fully tighten the wheel bolts until the vehicle 10.

  • Page 330: Preparations For Jump-Start

    328 WHAT TO DO IN EMERGENCIES NOTE: When using a portable battery booster pack, Preparations For Jump-Start follow the manufacturer’s operating instructions and The battery in your vehicle is located on the left side of precautions. the engine compartment. WARNING! Do not attempt jump-starting if the battery is frozen.
  • Page 331 WHAT TO DO IN EMERGENCIES 329 3. Remove the protective cover over the positive (+) WARNING! battery post. To remove the cover pull upward on the cover. • Take care to avoid the radiator cooling fan when- ever the hood is raised. It can start anytime the 4.

  • Page 332: Jump-Starting Procedure

    330 WHAT TO DO IN EMERGENCIES 3. Connect the negative end (-) of the jumper cable to the Jump-Starting Procedure negative (-) post of the booster battery. WARNING! 4. Connect the opposite end of the negative (-) jumper cable to a good engine ground (exposed metal part of Failure to follow this jump-starting procedure could the discharged vehicle underhood compartment) result in personal injury or property damage due to...

  • Page 333: Freeing A Stuck Vehicle

    WHAT TO DO IN EMERGENCIES 331 6. Once the vehicle is started, remove the jumper cables FREEING A STUCK VEHICLE in the reverse sequence: If your vehicle becomes stuck in mud, sand or snow, it can Disconnecting The Jumper Cables often be moved using a rocking motion.
  • Page 334 332 WHAT TO DO IN EMERGENCIES CAUTION! (Continued) CAUTION! (Continued) the risk of clutch or transmission failure during • Revving the engine or spinning the wheels too fast prolonged efforts to free a stuck vehicle. may lead to transmission overheating and failure. It can also damage the tires.

  • Page 335: Shift Lever Override

    WHAT TO DO IN EMERGENCIES 333 SHIFT LEVER OVERRIDE If a malfunction occurs and the shift lever cannot be moved out of the PARK position, you can use the following procedure to temporarily move the shift lever: 1. Turn the engine OFF. 2.

  • Page 336: Towing A Disabled Vehicle

    334 WHAT TO DO IN EMERGENCIES TOWING A DISABLED VEHICLE This section describes procedures for towing a disabled vehicle using a commercial towing service. Towing Condition Wheels OFF The AUTOMATIC MANUAL Ground TRANSMISSION TRANSMISSION Flat Tow NONE NOT ALLOWED If transmission is operable: •...

  • Page 337: Automatic Transmission

    WHAT TO DO IN EMERGENCIES 335 If you must use the accessories (wipers, defrosters, etc.) If the ignition key is unavailable, or the battery is while being towed, the ignition must be in the ON/RUN discharged, refer to “Shift Lever Override” in this section position.

  • Page 338: Manual Transmission

    336 WHAT TO DO IN EMERGENCIES Manual Transmission • Vehicle can be flat towed (all four wheels on the ground) with the transmission in NEUTRAL. • Vehicle can be towed with the front wheels elevated. • Vehicle can be towed on a flatbed truck (all wheels off the ground).
  • Page 339 MAINTAINING YOUR VEHICLE CONTENTS ENGINE COMPARTMENT — 1.4L TURBO ..339 ▫ Engine Air Cleaner Filter ....346 ONBOARD DIAGNOSTIC SYSTEM — OBD II . . .340 ▫...
  • Page 340 338 MAINTAINING YOUR VEHICLE ▫ Manual Transmission — If Equipped ..367 ▫ Front Turn Signal, Parking And Daytime Running Lamps..... . .384 ▫...

  • Page 341: Engine Compartment - 1.4L Turbo

    MAINTAINING YOUR VEHICLE 339 ENGINE COMPARTMENT — 1.4L TURBO 1 — Engine Coolant Reservoir 5 — Battery 2 — Engine Oil Dipstick 6 — Engine Oil Fill 3 — Brake Fluid Reservoir 7 — Washer Fluid Reservoir 4 — Front Distribution Unit (Fuses) I n f o r ma t i o n P r o v i d e d b y :...

  • Page 342: Onboard Diagnostic System - Obd Ii

    340 MAINTAINING YOUR VEHICLE ONBOARD DIAGNOSTIC SYSTEM — OBD II CAUTION! Your vehicle is equipped with a sophisticated onboard • Prolonged driving with the MIL on could cause diagnostic system called OBD II. This system monitors further damage to the emission control system. It the performance of the emissions, engine, and automatic could also affect fuel economy and driveability.
  • Page 343 MAINTAINING YOUR VEHICLE 341 For states that require an Inspection and Mainte- NOTE: If you crank or start the engine, you will have to nance (I/M), this check verifies the “Malfunction start this test over. Indicator Light (MIL)” is functioning and is not 2.

  • Page 344: Replacement Parts

    342 MAINTAINING YOUR VEHICLE If your OBD II system is not ready, you should see your REPLACEMENT PARTS authorized dealer or repair facility. If your vehicle was Use of genuine parts for normal/scheduled maintenance recently serviced or had a battery failure or replacement, and repairs is highly recommended to ensure the de- you may need to do nothing more than drive your signed performance.

  • Page 345: Maintenance Procedures

    MAINTAINING YOUR VEHICLE 343 NOTE: Intentional tampering with emissions control MAINTENANCE PROCEDURES systems may void your warranty and could result in civil The pages that follow contain the required maintenance penalties being assessed against you. services determined by the engineers who designed your vehicle.

  • Page 346: Engine Oil

    344 MAINTAINING YOUR VEHICLE Engine Oil CAUTION! (Continued) Checking Oil Level • Your vehicle has been built with improved fluids that protect the performance and durability of your To assure proper engine lubrication, the engine oil must vehicle and also allow extended maintenance inter- be maintained at the correct level.
  • Page 347 MAINTAINING YOUR VEHICLE 345 Adding 1 qt (1L) of oil when the reading is at the low end NOTE: Under no circumstances should oil change inter- of the indicated range will result in the oil level at the full vals exceed 10,000 miles (16,000 km) or twelve months, end of the indicator range.

  • Page 348: Engine Oil Filter

    346 MAINTAINING YOUR VEHICLE The engine oil filler cap also shows the recommended engine Engine Oil Filter oil viscosity for your engine. For information on engine oil The engine oil filter should be replaced with a new filter filler cap location, refer to “Engine Compartment” in “Main- at every engine oil change.

  • Page 349: Maintenance-Free Battery

    MAINTAINING YOUR VEHICLE 347 Maintenance-Free Battery WARNING! Your vehicle is equipped with a maintenance-free battery. The air induction system (air cleaner, hoses, etc.) can You will never have to add water, nor is periodic main- provide a measure of protection in the case of engine tenance required.
  • Page 350 348 MAINTAINING YOUR VEHICLE WARNING! (Continued) CAUTION! • Battery gas is flammable and explosive. Keep • It is essential when replacing the cables on the flame or sparks away from the battery. Do not use battery that the positive cable is attached to the a booster battery or any other booster source with positive post and the negative cable is attached to an output greater than 12 Volts.

  • Page 351: Air Conditioner Maintenance

    MAINTAINING YOUR VEHICLE 349 Air Conditioner Maintenance WARNING! (Continued) For best possible performance, your air conditioner should • The air conditioning system contains refrigerant be checked and serviced by an authorized dealer at the under high pressure. To avoid risk of personal start of each warm season.
  • Page 352 350 MAINTAINING YOUR VEHICLE Refrigerant Recovery And Recycling R134a — with a low GWP (Global Warming Potential). However, If Equipped the manufacturer recommends that air conditioning ser- vice be performed by authorized dealer or other service R-134a Air Conditioning Refrigerant is a hydrofluoro- facilities using recovery and recycling equipment.
  • Page 353 MAINTAINING YOUR VEHICLE 351 The A/C air filter is located in the fresh air inlet on the 2. Pull the console closeout cover rearward to disengage lower right of center console. Perform the following the front retaining tab and remove the cover. procedure to replace the filter: 1.
  • Page 354 352 MAINTAINING YOUR VEHICLE 3. Remove the two 5.5 mm screws (1 and 2) that secure 4. Remove the A/C air filter by pulling it straight out of the the particulate air filter cover to the HVAC housing. housing. Take note of the air filter position indicators. Air Filter Cover Screw Locations A/C Air Filter 5.

  • Page 355: Body Lubrication

    MAINTAINING YOUR VEHICLE 353 the application of any lubricant, the parts concerned CAUTION! should be wiped clean to remove dust and grit; after lubricating excess oil and grease should be removed. The A/C air filter is identified with an arrow to Particular attention should also be given to hood latching indicate airflow direction through the filter.
  • Page 356 354 MAINTAINING YOUR VEHICLE Operation of the wipers on dry glass for long periods may cause deterioration of the wiper blades. Always use washer fluid when using the wipers to remove salt or dirt from a dry windshield. Avoid using the wiper blades to remove frost or ice from the windshield.

  • Page 357: Adding Washer Fluid

    MAINTAINING YOUR VEHICLE 355 3. Grab the bottom of the wiper blade and rotate it 4. Install the wiper blade pivot pin into the wiper blade forward to unsnap the blade pivot pin from the wiper holder at the end of the wiper arm, and firmly press blade holder.

  • Page 358: Exhaust System

    356 MAINTAINING YOUR VEHICLE Exhaust System WARNING! The best protection against carbon monoxide entry into • Exhaust gases can injure or kill. They contain the vehicle body is a properly maintained engine exhaust carbon monoxide (CO), which is colorless and system.
  • Page 359 MAINTAINING YOUR VEHICLE 357 Under normal operating conditions, the catalytic con- CAUTION! verter will not require maintenance. However, it is im- portant to keep the engine properly tuned to assure • The catalytic converter requires the use of un- proper catalyst operation and prevent possible catalyst leaded fuel only.

  • Page 360: Cooling System

    358 MAINTAINING YOUR VEHICLE To minimize the possibility of catalytic converter dam- Cooling System age: WARNING! • Do not shut off the engine or interrupt the ignition, when the transmission is in gear and the vehicle is in • When working near the radiator cooling fan, dis- motion.
  • Page 361 MAINTAINING YOUR VEHICLE 359 Coolant Checks If the engine coolant (antifreeze) is dirty or contains visible sediment, have an authorized dealer clean and Check engine coolant (antifreeze) protection every flush with OAT coolant (antifreeze) (conforming to 12 months (before the onset of freezing weather, where MS.90032).
  • Page 362 360 MAINTAINING YOUR VEHICLE CAUTION! (Continued) CAUTION! (Continued) Organic Additive Technology (OAT) engine cool- • This vehicle has not been designed for use with ant is different and should not be mixed with propylene glycol-based engine coolant (antifreeze). Hybrid Organic Additive Technology (HOAT) en- Use of propylene glycol-based engine coolant (anti- gine coolant (antifreeze) or any “globally compat- freeze) is not recommended.
  • Page 363 MAINTAINING YOUR VEHICLE 361 Please review these recommendations for using Organic Please note that it is the owner’s responsibility to main- Additive Technology (OAT) engine coolant (antifreeze) tain the proper level of protection against freezing ac- that meets the requirements of Chrysler Material Stan- cording to the temperatures occurring in the area where dard MS.90032.
  • Page 364 362 MAINTAINING YOUR VEHICLE Cooling System Pressure Cap WARNING! (Continued) The cap must be fully tightened to prevent loss of engine • Do not use a pressure cap other than the one speci- coolant (antifreeze) and to ensure that engine coolant fied for your vehicle.
  • Page 365 MAINTAINING YOUR VEHICLE 363 Coolant Level Points To Remember The coolant expansion bottle provides a quick visual NOTE: When the vehicle is stopped after a few miles/ method for determining that the coolant level is ad- kilometers of operation, you may observe vapor coming equate.

  • Page 366: Brake System

    364 MAINTAINING YOUR VEHICLE • If frequent engine coolant (antifreeze) additions are Brake System required, the cooling system should be pressure tested In order to assure brake system performance, all brake for leaks. system components should be inspected periodically. • Maintain engine coolant (antifreeze) concentration at a Refer to the “Maintenance Schedule”...
  • Page 367 MAINTAINING YOUR VEHICLE 365 Be sure to clean the top of the master cylinder area before Use only manufacturer’s recommended brake fluid. removing the cap. If necessary, add fluid to bring the Refer to “Fluids, Lubricants, and Genuine Parts” in fluid level up to the requirements described on the brake “Maintaining Your Vehicle”...
  • Page 368 366 MAINTAINING YOUR VEHICLE WARNING! (Continued) WARNING! (Continued) • To avoid contamination from foreign matter or • Do not allow petroleum-based fluid to contaminate moisture, use only new brake fluid or fluid that has the brake fluid. Brake seal components could be been in a tightly closed container.

  • Page 369: Manual Transmission - If Equipped

    MAINTAINING YOUR VEHICLE 367 the vehicle. Fluid changes are not necessary unless lubri- Manual Transmission — If Equipped cant has become contaminated with water. Lubricant Selection NOTE: If contaminated with water, the fluid should be Use only the manufacturers recommended transmission changed immediately.
  • Page 370 368 MAINTAINING YOUR VEHICLE CAUTION! CAUTION! Using a transmission fluid other than the manufac- Do not use chemical flushes in your transmission as turer’s recommended fluid may cause deterioration the chemicals can damage your transmission compo- in transmission shift quality and/or torque converter nents.

  • Page 371: Appearance Care And Protection From Corrosion

    MAINTAINING YOUR VEHICLE 369 Appearance Care And Protection From Corrosion CAUTION! Protection Of Body And Paint From Corrosion If a transmission fluid leak occurs, visit your autho- Vehicle body care requirements vary according to geo- rized dealer immediately. Severe transmission dam- graphic locations and usage.
  • Page 372 370 MAINTAINING YOUR VEHICLE What Causes Corrosion? • If insects, tar, or other similar deposits have accumu- lated on your vehicle, use MOPAR® Super Kleen Bug Corrosion is the result of deterioration or removal of and Tar Remover to remove. paint and protective coatings from your vehicle.
  • Page 373 MAINTAINING YOUR VEHICLE 371 Special Care • If you carry special cargo such as chemicals, fertilizers, de-icer salt, etc., be sure that such materials are well • If you drive on salted or dusty roads or if you drive packaged and sealed. near the ocean, hose off the undercarriage at least once a month.
  • Page 374 372 MAINTAINING YOUR VEHICLE NOTE: If your vehicle is equipped with Dark Vapor or Stain Repel Fabric Cleaning Procedure — Black Satin Chrome wheels DO NOT USE wheel cleaners, If Equipped abrasives or polishing compounds. They will perma- Stain Repel seats may be cleaned in the following man- nently damage this finish and such damage is not cov- ner: ered by the New Vehicle Limited Warranty.
  • Page 375 MAINTAINING YOUR VEHICLE 373 Interior Care WARNING! Use MOPAR® Total Clean to clean fabric upholstery and Do not use volatile solvents for cleaning purposes. carpeting. Many are potentially flammable, and if used in Use MOPAR® Total Clean to clean vinyl upholstery. closed areas they may cause respiratory harm.
  • Page 376 374 MAINTAINING YOUR VEHICLE To minimize the possibility of scratching the lenses and Instrument Panel Cover reducing light output, avoid wiping with a dry cloth. To The instrument panel cover has a low glare surface which remove road dirt, wash with a mild soap solution fol- minimizes reflections on the windshield.
  • Page 377 MAINTAINING YOUR VEHICLE 375 Cleaning Plastic Instrument Cluster Lenses If the belts need cleaning, use a mild soap solution or lukewarm water. Do not remove the belts from the car to The lenses in front of the instruments in this vehicle are wash them.

  • Page 378: Fuses

    376 MAINTAINING YOUR VEHICLE FUSES WARNING! (Continued) • Before replacing a fuse, make sure that the ignition WARNING! is off and that all the other services are switched off • When replacing a blown fuse, always use an ap- and/or disengaged. propriate replacement fuse with the same amp •...

  • Page 379: Interior Fuses

    MAINTAINING YOUR VEHICLE 377 Interior Fuses The interior fuse panel is part of the Body Control Module (BCM) and is located on the driver’s side under the instrument panel. Fuse Panel Vehicle Fuse Cavity Mini Fuse Description Number 7.5 Amp Brown Right Low Beam 5 Amp Tan Front and Rear Ceiling Lights Trunk and Door...
  • Page 380 378 MAINTAINING YOUR VEHICLE Vehicle Fuse Cavity Mini Fuse Description Number 5 Amp Tan Instrument Panel Node 20 Amp Yellow Central Door Locking 10 Amp Red Diagnostic Socket, Car Radio, Climate Control System 20 Amp Yellow Bi-Directional Washer 20 Amp Yellow Passenger Power Window 7.5 Amp Brown Left Low Beam, Headlamp Leveling...

  • Page 381: Underhood Fuses

    MAINTAINING YOUR VEHICLE 379 Underhood Fuses The Front Distribution Unit is located on the right side of the engine compartment, next to the battery. To access the fuses, press the release tabs and remove the cover. Front Distribution Unit The ID number of the electrical component correspond- ing to each fuse can be found on the back of the cover.
  • Page 382 380 MAINTAINING YOUR VEHICLE Cavity Maxi Fuse Mini Fuse Description 20 Amp Yellow – Ignition Switch 40 Amp Orange – Anti-Lock Brake Pump 70 Amp Tan – Electric Power Steering 20 Amp Yellow – Radiator Fan - Single Speed 30 Amp Green –...
  • Page 383 MAINTAINING YOUR VEHICLE 381 Cavity Maxi Fuse Mini Fuse Description – 25 Amp Clear Powertrain (Multiair – If Equipped) – 15 Amp Blue Powertrain – 15 Amp Blue Powertrain – 5 Amp Tan Powertrain (Multiair – If Equipped) – 7.5 Amp Brown Air Conditioning –...

  • Page 384: Vehicle Storage

    382 MAINTAINING YOUR VEHICLE Cavity Maxi Fuse Mini Fuse Description 30 Amp Green (ATO) – Rear Defroster – 5 Amp Tan Rear Defroster – 5 Amp Tan Heated Mirrors – If Equipped VEHICLE STORAGE REPLACEMENT BULBS If you are leaving your vehicle dormant for more than 21 Interior Bulbs days, you may want to take these steps to protect your Bulb Number...

  • Page 385: Bulb Replacement

    MAINTAINING YOUR VEHICLE 383 Bulb Number Bulb Number Front Parking/Daytime W21/5W License Plate Lamps LED (See Authorized Running Lamps dealer) Front Fog Lamps H11LL NOTE: Numbers refer to commercial bulb types that Front Side Marker Lamps can be purchased from your authorized dealer. Front Turn Signal Lamps WY21W If a bulb needs to be replaced, visit your authorized...

  • Page 386: Headlamps Low Beam And High Beam

    384 MAINTAINING YOUR VEHICLE Headlamps Low Beam and High Beam 1. Remove the plastic cap from the back of the headlamp housing. 2. Rotate the bulb counter-clockwise. 3. Remove the bulb and replace as needed. 4. Install the bulb and rotate clockwise to lock in place. 5.

  • Page 387: Front Fog Lamps

    MAINTAINING YOUR VEHICLE 385 6. Install the bulb into socket, and rotate bulb/socket Rear Tail, Stop, Backup And Turn Signal Lamps clockwise into lamp locking it in place. 1. Open the liftgate. 7. Reinstall the plastic cap. 2. Remove the two screws and remove the tail lamp assembly.

  • Page 388: Center High Mounted Stop Lamp (Chmsl)

    386 MAINTAINING YOUR VEHICLE 3. Remove four screws and separate the backplate from 4. Press the retaining device and open the bulb holder. the lamp housing. 5. Remove the snap-fitted bulb to be replaced and re- 4. Remove the tail, stop, or turn signal bulbs by pushing place it.

  • Page 389: Fluid Capacities

    MAINTAINING YOUR VEHICLE 387 FLUID CAPACITIES U.S. Metric Fuel (Approximate) 10.5 Gallons 40 Liters Engine Oil with Filter 1.4 Liter Turbo Engine 4 Quarts 3.8 Liters Cooling System 1.4 Liter Turbo Engine (MOPAR® Antifreeze/Engine Coolant 4.6 Quarts 4.4 Liters 10 Year/150,000 Mile Formula) — with Manual Transmission 1.4 Liter Turbo Engine (MOPAR®...

  • Page 390: Fluids, Lubricants And Genuine Parts

    388 MAINTAINING YOUR VEHICLE FLUIDS, LUBRICANTS AND GENUINE PARTS Engine Component Fluid, Lubricant, or Genuine Part Engine Coolant We recommend you use MOPAR® Antifreeze/Coolant 10 Year/ 150,000 Mile Formula OAT (Organic Additive Technology) meeting the requirements of Chrysler Material Standard MS-12106. Engine Oil We recommend you use API Certified SAE 5W-40 Full Synthetic Engine Oil, meeting the requirements of Chrysler Material Standard MS-12991.
  • Page 391 MAINTAINING YOUR VEHICLE 389 CAUTION! CAUTION! (Continued) • Do not use water alone or alcohol-based engine • Mixing of engine coolant (antifreeze) other than coolant (antifreeze) products. Do not use additional specified Organic Additive Technology (OAT) en- rust inhibitors or antirust products, as they may not gine coolant (antifreeze), may result in engine be compatible with the radiator engine coolant and damage and may decrease corrosion protection.

  • Page 392: Chassis

    390 MAINTAINING YOUR VEHICLE Chassis Component Fluid, Lubricant, or Genuine Part Manual Transmission – If Equipped We recommend you use MOPAR® C635 DDCT/MTX Transmission Fluid Automatic Transmission – If Equipped Use only MOPAR® AW-1 Automatic Transmission Fluid or equivalent. Failure to use the correct fluid may affect the function or performance of your transmission.

  • Page 393: Maintenance Schedules

    MAINTENANCE SCHEDULES CONTENTS MAINTENANCE SCHEDULE ... . .392 ▫ Maintenance Chart.....394 I n f o r ma t i o n P r o v i d e d b y :...
  • Page 394 392 MAINTENANCE SCHEDULES Your authorized dealer will reset the oil change indicator MAINTENANCE SCHEDULE message after completing the scheduled oil change. If a Your vehicle is equipped with an automatic oil change scheduled oil change is performed by someone other indicator system.
  • Page 395 MAINTENANCE SCHEDULES 393 Once A Month Or Before A Long Trip: At Every Oil Change Interval As Indicated By Oil Change Indicator System: Check engine oil level Change oil and filter. Check windshield washer fluid level Rotate the tires. Rotate at the first sign of irregular Check the tire inflation pressures and look for unusual wear, even if it occurs before the oil indicator sys- wear or damage...
  • Page 396 394 MAINTENANCE SCHEDULES Maintenance Chart Mileage or time passed (whichever comes first) Or Years: Or Kilometers: Additional Inspections Inspect the CV joints. Inspect front suspension, tie rod ends, boot seals, and replace if necessary. Inspect brake linings, replace if needed. Inspect parking brake function, adjust as necessary.
  • Page 397 MAINTENANCE SCHEDULES 395 Mileage or time passed (whichever comes first) Or Years: Or Kilometers: Replace engine air filter. Replace the spark plugs. ** Flush and replace the engine coolant at 10 years or 150,000 miles (240,000 km) whichever comes first. Inspect and replace PCV valve if necessary.
  • Page 398 396 MAINTENANCE SCHEDULES WARNING! • You can be badly injured working on or around a motor vehicle. Do only service work for which you have the knowledge and the right equipment. If you have any doubt about your ability to perform a service job, take your vehicle to a competent mechanic.
  • Page 399 IF YOU NEED ASSISTANCE ....398 DEPARTMENT OF TRANSPORTATION ▫ FIAT Customer Center ....399 UNIFORM TIRE QUALITY GRADES ..403 ▫...

  • Page 400: Suggestions For Obtaining Service For Your Vehicle

    398 IF YOU NEED CONSUMER ASSISTANCE SUGGESTIONS FOR OBTAINING SERVICE FOR Be Reasonable With Requests YOUR VEHICLE If you list a number of items and you must have your vehicle by the end of the day, discuss the situation with Prepare For The Appointment the service advisor and list the items in order of priority.

  • Page 401: Fiat Customer Center

    • If for some reason you are still not satisfied, talk to the general manager or owner of the authorized dealer. FIAT Canada Customer Center They want to know if you need assistance. P.O. Box 1621 Windsor, Ontario N9A 4H6 Phone: 1-800- •...

  • Page 402: Service Contract

    400 IF YOU NEED CONSUMER ASSISTANCE has access to a TDD or a conventional teletypewriter within three weeks of the vehicle delivery date. If you (TTY) in the United States, can communicate with the have any questions about the service contract, call the manufacturer by dialing 1-800-380-CHRY.

  • Page 403: Warranty Information

    You will be pleased with their See the Warranty Information Booklet, located on the DVD, sincere efforts to resolve any warranty issues or related for the terms and provisions of FIAT Group Automobiles concerns. warranties applicable to this vehicle and market.

  • Page 404: In Canada

    If you believe that your vehicle has a safety defect, you diagnosing/troubleshooting, problem solving, maintain- should contact the Customer Service Department imme- ing, servicing, and repairing FIAT Group Automobiles diately. Canadian customers who wish to report a safety vehicles. A complete working knowledge of the vehicle,...

  • Page 405: Department Of Transportation Uniform Tire Quality Grades

    The following tire grading categories were established by assistance of service and engineering specialists to ac- the National Highway Traffic Safety Administration. The quaint you with specific FIAT Group Automobiles ve- specific grade rating assigned by the tire’s manufacturer hicles. Included are starting, operating, emergency and...

  • Page 406: Treadwear

    404 IF YOU NEED CONSUMER ASSISTANCE Treadwear WARNING! The Treadwear grade is a comparative rating, based on The traction grade assigned to this tire is based on the wear rate of the tire when tested under controlled straight-ahead braking traction tests, and does not conditions on a specified government test course.
  • Page 407 IF YOU NEED CONSUMER ASSISTANCE 405 Vehicle Safety Standard No. 109. Grades B and A repre- sent higher levels of performance on the laboratory test wheel, than the minimum required by law. WARNING! The temperature grade for this tire is established for a tire that is properly inflated and not overloaded.
  • Page 408 I n f o r ma t i o n P r o v i d e d b y :...
  • Page 409 INDEX I n f o r ma t i o n P r o v i d e d b y :...
  • Page 410 408 INDEX Adding Engine Coolant (Antifreeze) ... .360 Air Conditioner Maintenance ....349 Adding Fuel ......300 Air Conditioning.
  • Page 411 INDEX 409 Automatic Transmission ....233 Brakes ....... . .364 Adding Fluid .
  • Page 412 410 INDEX Cellular Phone ......211 Seating Positions ......62 Chains, Tire .
  • Page 413 INDEX 411 Inspection ......363 Door Locks, Automatic ..... .23 Points to Remember .
  • Page 414 412 INDEX Emergency, In Case of Overheating ......307 Hazard Warning Flasher ....307 Starting .
  • Page 415 INDEX 413 Fluid, Brake ......390 Octane Rating ......295 Fluid Capacities .
  • Page 416 414 INDEX Hazard Instrument Panel and Controls ....143 Driving Through Flowing, Rising, or Shallow Instrument Panel Cover .....374 Standing Water .
  • Page 417 INDEX 415 Latches ....... . .81 Low Fuel ......148 Hood .
  • Page 418 416 INDEX Maintenance Free Battery....347 New Vehicle Break-In Period ....76 Maintenance, General .
  • Page 419 INDEX 417 Operating Precautions ..... .340 Pretensioners Operator Manual (Owner’s Manual) ... . .5 Seat Belts .
  • Page 420 418 INDEX Replacement Keys ......14 Lap/Shoulder Belts ..... . .29 Replacement Parts.
  • Page 421 INDEX 419 Seats ........101 Specifications Adjustment ......101 Oil .
  • Page 422 420 INDEX Sun Roof .......129 Pressure Monitor System (TPMS) ... .286 Supplemental Restraint System - Airbag .
  • Page 423 INDEX 421 Traction Control ......254 Vehicle Identification Number (VIN) ... . .7 Trailer Towing .
  • Page 424 422 INDEX Windows ....... .24 Power ....... .24 Windshield Defroster .
  • Page 425 INSTALLATION OF RADIO TRANSMITTING EQUIPMENT Special design considerations are incorporated into this The antenna cable should be as short as practical and vehicle’s electronic system to provide immunity to radio routed away from the vehicle wiring when possible. Use frequency signals. Mobile two-way radios and telephone only fully shielded coaxial cable.
  • Page 426 Chrysler Group LLC 15FX24-126-AC Third Edition Rev 1 Printed in U.S.A. I n f o r ma t i o n P r o v i d e d b y :...

Table of Contents

Save PDF
