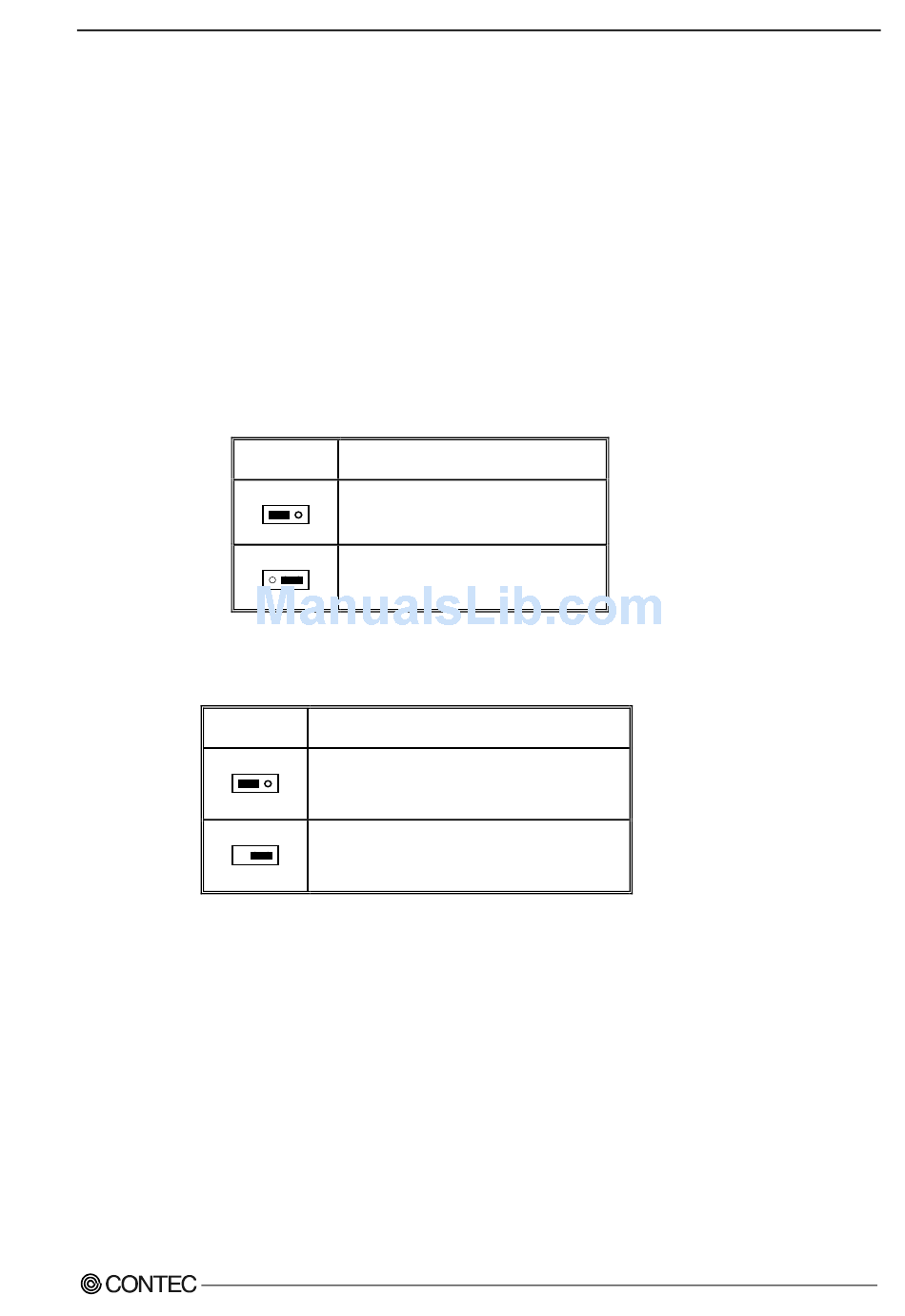

3. Jumper Setting

3.1 Clear CMOS Content: JP1

The time, date, and CMOS values can be specified in the Setup program. The CMOS
values can be returned to their defaults by using the Setup program. The RAM data contains
the password information is powered by the onboard button cell battery. User can erase the
CMOS memory content by short pin2 and pin3 of JP1 together.

3.2 Reserved jumper: JP3 / JP4

JP3 / JP4
JP3 / JP4
1 2
JP3 / JP4
1 2
SPI-8150-LVA, SPI-8151-LVA
JP1
JP1
Normal Operation (Default)
1 2 3
JP1
Clear CMOS Content
1 2 3
Function
3
Do not setting
3
Function
Default
