2. Hardware Installations

2.12 IDE port Connector: CN11 / CN13

CN11:Primary IDE connector CN13:Secondary IDE connector
The CPU card SPI-8150-LLVA provides a bus-mastering PCI IDE interfaces.
These interfaces support PIO Mode 3, PIO Mode 4, ATAPI devices (e.g., CD-ROM), and
Ultra DMA/33/66/100 synchronous-DMA mode transfers. The BIOS supports logical block
addressing (LBA) and extended cylinder head sector (ECHS) translation modes. The BIOS
automatically detects the IDE device transfer rate and translation mode.

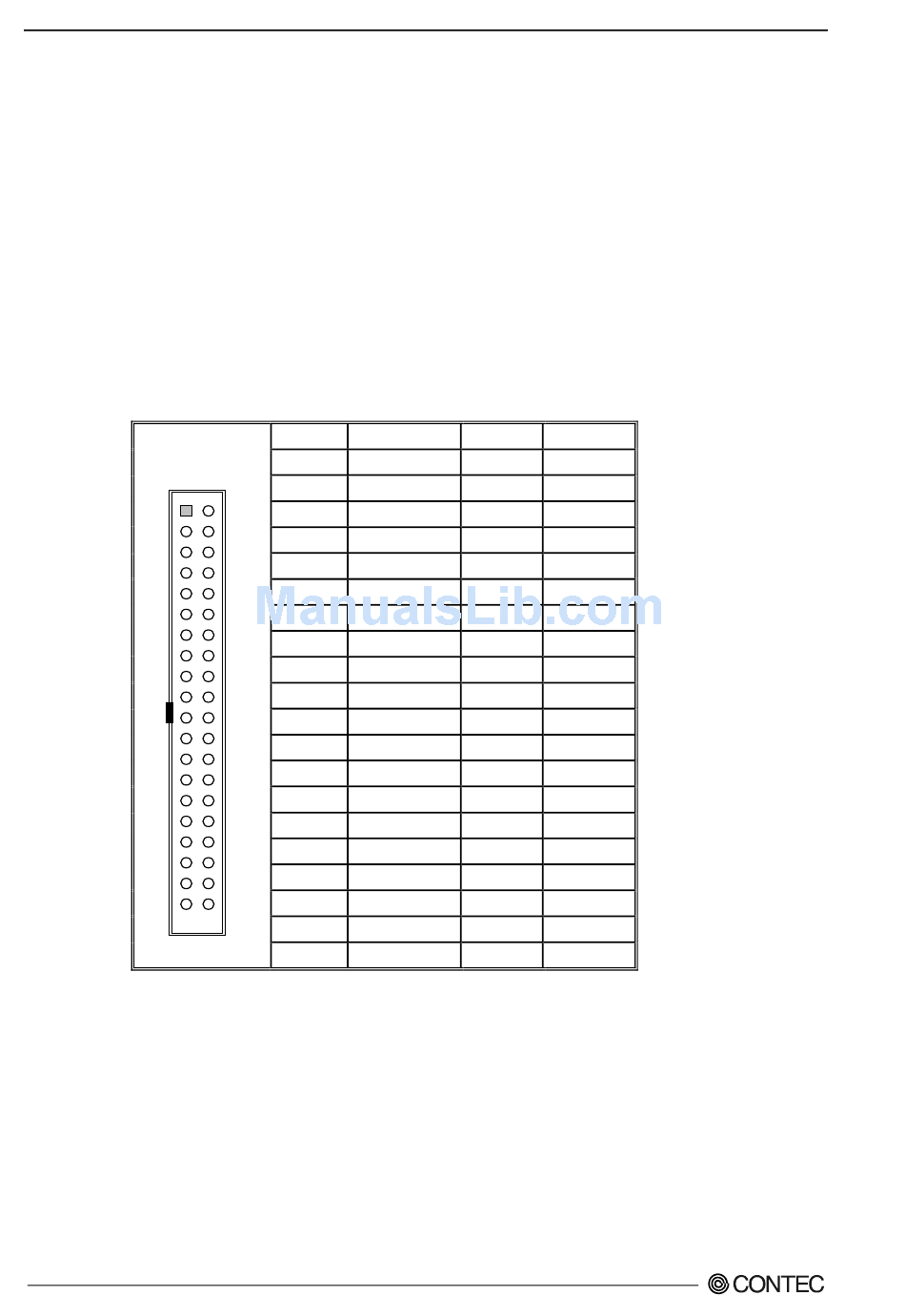

CN11/CN13
1
39
18
PIN No. Function
1
RESET
3
D7
2
5
D6
7
D5
9
D4
11
D3
13
D2
15
D1
17
D0
19
GND
21
DREQ
23
IOW
25
IOR
27
IORDY
29
DACK
31
IRQ
33
A1
35
40 A0
37
CS0
39
HD ACT
PIN No. Function
2
GND
4
D8
6
D9
8
D10
10
D11
12
D12
14
D13
16
D14
18
D15
20
N.C
22
GND
24
GND
26
GND
28
ALE
30
GND
32
N.C.
34
PDIAG
36
A2
38
CS1
40
GND
