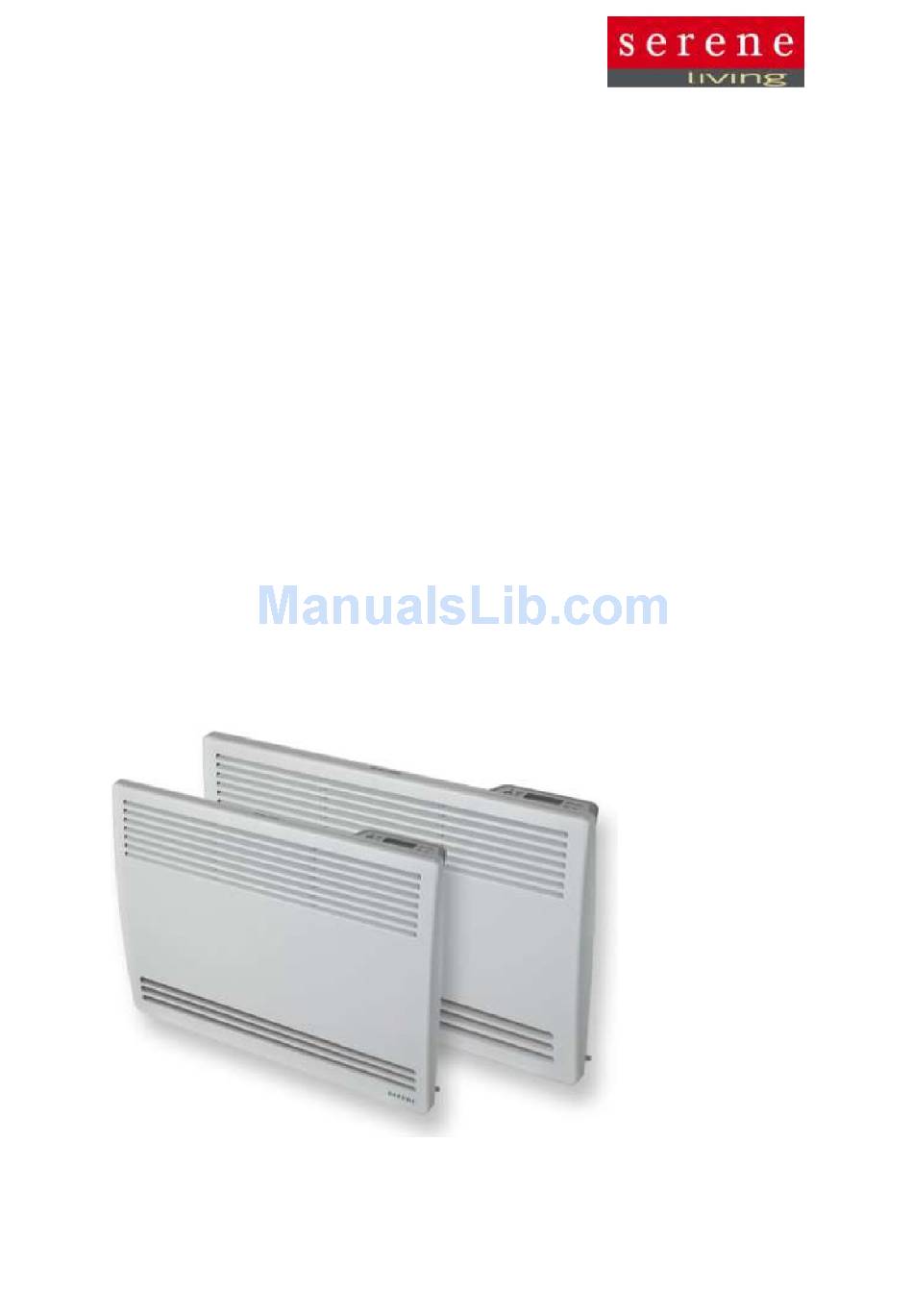

- Page 1 Serene Heating Panel Models S2022/3 With 24/7 Electronic LCD Programming Operating Instruction Manual Please read and save the user manual Serene S2022/3 Heating panel Series 2...
-
Page 2: Safety Information

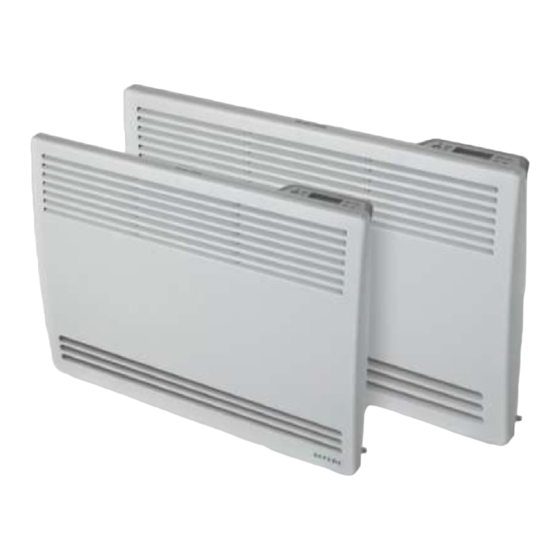

Introduction Serene Heating Panels Serene Convection panel heaters are available as horizontal models, providing you with the opportunity to choose a model that will optimise the available wall space. Our new designs have passed rigorous testing and quality assurance controls with both style and safety in mind. As a result, they have a slim profile, operate silently, are double insulated, include auto reset overheat protection and are supplied with wall mounting brackets for simple installation. -
Page 3: Safety Cut-Out
Cutout: Serene Convection Heating Panels are fitted with a resettable thermal cutout. This safety device will automatically switch off the elements should the heater reach an abnormal temperature and turn the heater back on once it has cooled down. -
Page 4: Installation
The heater is supplied with a flex and 3 pin plug. For single operation the heater can be plugged directly into a socket outlet or hard wired. For permanent connection to fixed wiring, the plug must be removed. Serene S2022/3 Heating panel... -
Page 5: Operation And Functions
14: MANUAL INDICATOR 4:CONFIRM PROGRAM 15: AUTO INDICATOR 5:TEMPERATURE DOWN 16: TIMER 6: TEMPERATURE UP 17: HOURS 7:ECO 18: MINUTES 8:POWER INDICATOR 19: REAL TIME TEMPERATURE 9:DAY OF THE WEEK 20: TEMPERATURE (℃) 10: HEATING INDICATOR Serene S2022/3 Heating panel... -
Page 6: Program Setup
Touch 5 or 6 o set the seconds and press 3 to finish. After setting the seconds the controller will revert back to the day setting as a cycle. Touch button 4 to finish time setting. All time symbols will now stop flashing. Serene S2022/3 Heating panel... -
Page 7: Timer Setting
The setting program will only save after you have touched the 4 button. The factory pre-setting running time is 07-11 and 13-18 hours. When in automatic mode 16 will not display. Your Serene heating panel is fitted with a 24 hour clock. Serene S2022/3 Heating panel... -
Page 8: Turning Off
To turn the heater off touch the power button 1. Selecting Eco or High power Touch 7 to choose high/low power, If high power is selected, 12 will light up. If ECO is selected 11 will light up. Serene S2022/3 Heating panel... - Page 9 The program memory is retained in the event of any power interruption. Over - heat protection All Serene heating panels are equipped with a overheat protection switch that will automatically turn the heater off if for any reason the unit has overheated.
-
Page 10: Wall Mounting Instructions
4. Locate the heater over the bottom clips of the wall bracket and then push the heater securely into the fittings on the top and/or sides of the bracket. Serene S2022/3 Heating panel... - Page 11 1. By using a cross head screwdriver, remove the 2 locking screws of the wall mounting bracket. 2. Lift the heater up and away from the wall. IMPORTANT: When fitted in a bathroom The heater must NOT be located immediately below a socket outlet. Serene S2022/3 Heating panel...
-
Page 12: Specifications
Wattage 500W-2000W Wiring: Permanent connection or by cord set. Double insulated, no earth required. Ingress Protection Rating IPX24 Serene Industries Limited reserves the right to alter specifications without notice. Contact : NEW ZEALAND t: +64 (3) 344 5550 0800 437 264 e: nzenquiry@serene-ind.com...
