Page 1: Installation Manual

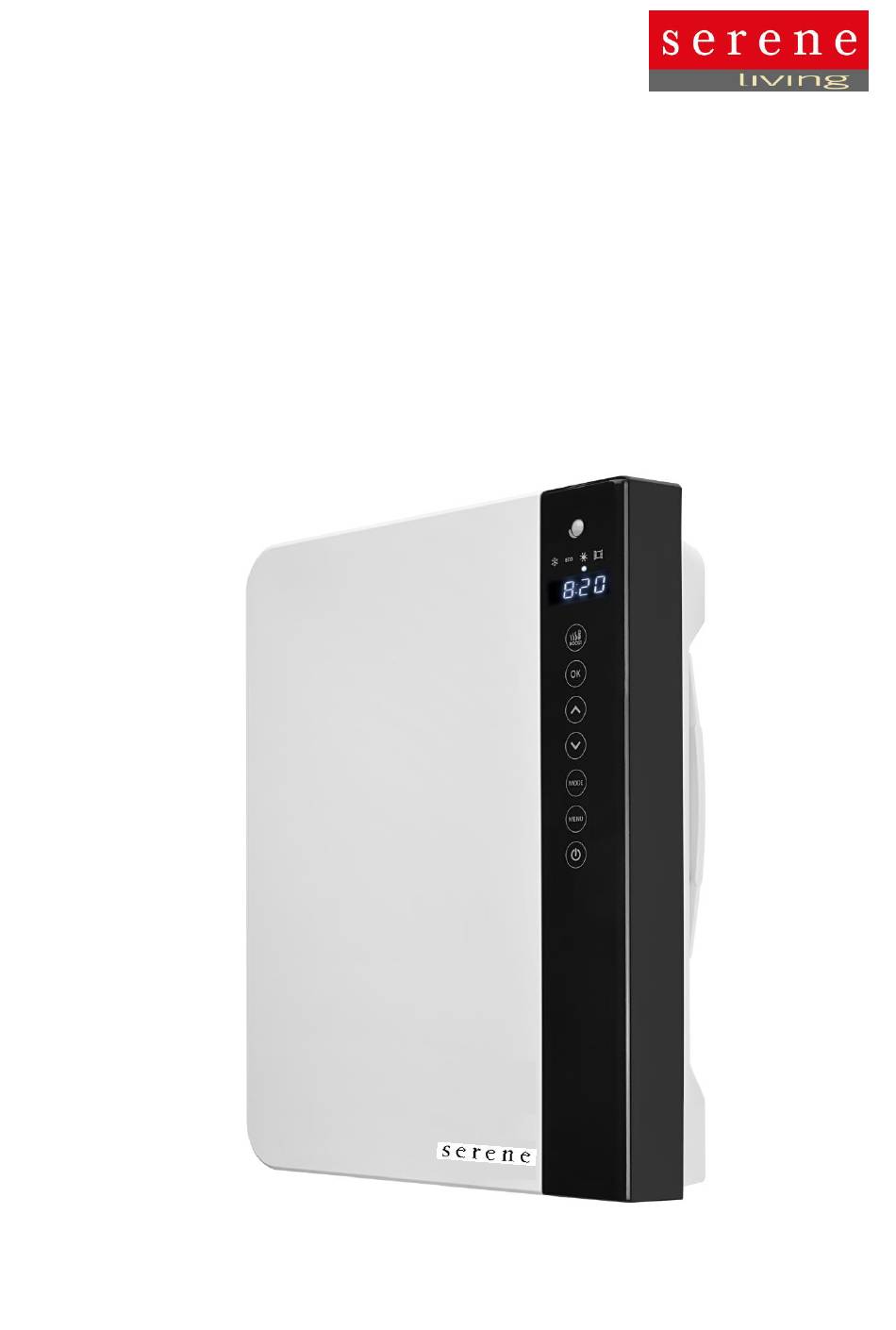

Operating & Installation Manual Serene Model S2033 PLEASE RETAIN THESE INSTRUCTIONS IN A SAFE PLACE FOR FURTHER REFERENCE... -
Page 2: Safety Information
Safety Information: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 3: Wall Mounting
Before operating the heater, please read these instructions thoroughly to avoid damage and hazardous situations. Any use of this heater other than that stipulated in this instruction manual may cause fire, electric shock or injury, and voids all warranties. Before any operation remove the packaging and check product integrity. In case of defects or damages do not try to repair it yourself but contact your dealer. - Page 4 Wall mount continued FILTER This product is fitted with a filter to protect the heating element from dust and dirt. The filter is removable to be easily cleaned with water. See picture 10 below. To keep the heater in perfect condition, clean the filter once every six months REMEMBERING TO PUT IT BACKAGAIN AFTERWARDS.
- Page 5 COMMAND DESCRIPTION AND FUNCTIONING Tesoro is fitted with a double pole electromechanical ON/OFF switch on its left side. Switching off the product the supply voltage is disconnected from all the internal components. The following controls are available on the front panel (per see diagram on next page) A - Presence Sensor B - Anti-freeze mode LED indicator...
- Page 6 COMMAND AND FUNCTIONING...
- Page 7 Tesoro can be used choosing between 4 different operating modes: 1. ANTI-FREEZE 2.PROGRAMMED 3. AUTOMATIC 4. BASIC 1.Anti-freeze mode The thermostat is set to keep 7 ± 3 ° C. The function is activated manually or automatically when no presence in the room is detected for at least 36 hours.
-
Page 8: Main On/Off Switch
3.Automatic Mode The product is set to work at a comfort temperature whenever someone is detected in the room. Should no one be detected in the room for at least TEN minutes, the heater will automatically set the Eco mode (3,5°C less than the set Comfort temperature). Should no one be detected in the room for more than 36 hours, the heater will automatically set the Anti- freeze mode (7°C). - Page 15 Contact HONG KONG t: +852 2325 3210 f: +852 2325 3166 e: info@serene-ind.com www.serene-ind.com Suite 1010, 15F, Block A, Alexander Industrial Building, 62, King Lam Street Cheung Sha Wan, Kowloon Hong Kong NEW ZEALAND t: +64 (3) 344 5550 ff: 0800 437 264 e: nzenquiry@serene-ind.com...
