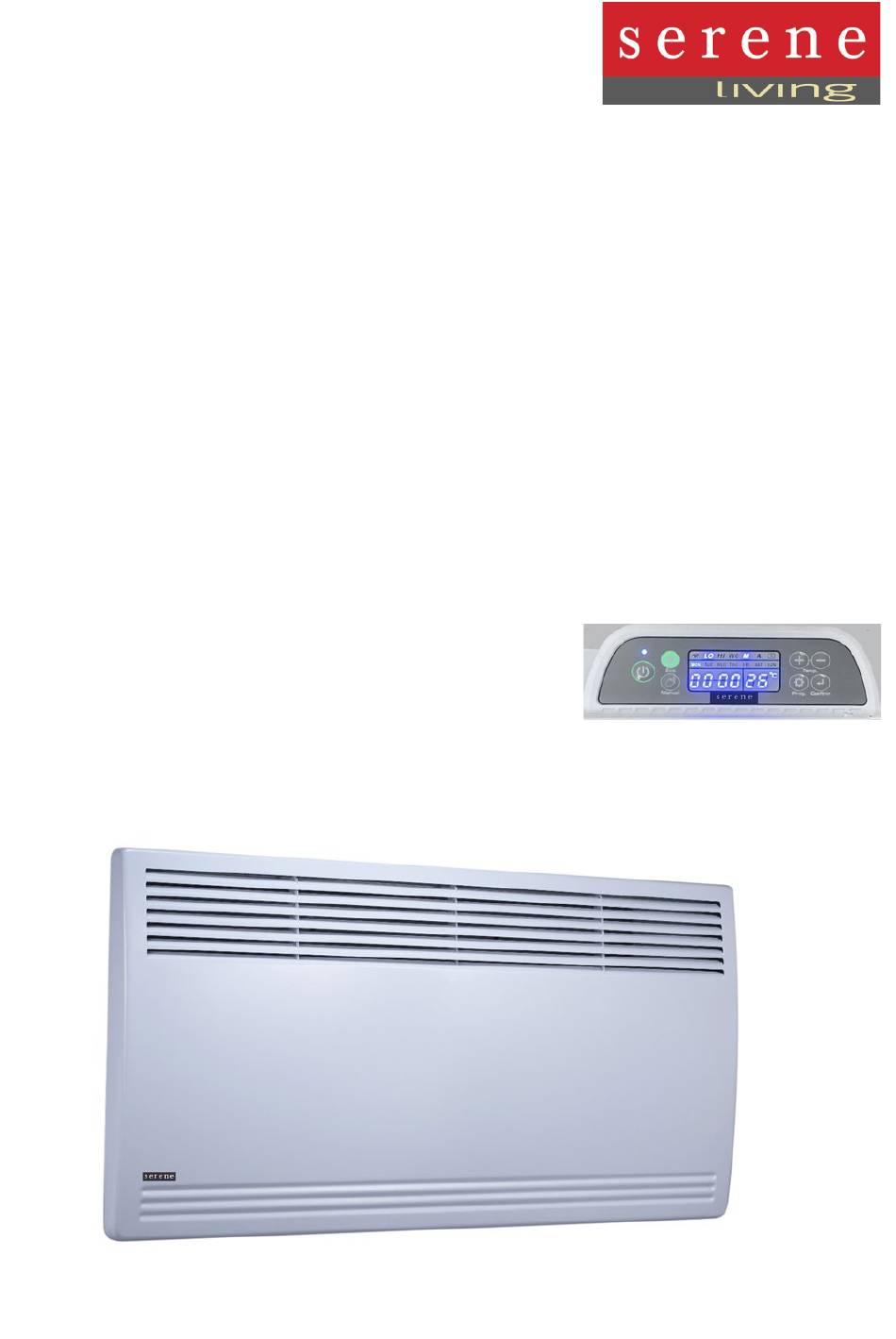

- Page 1 Europa - Model S2212 Touch Control Programable Panel Operating & Installation Manual Electronic 24/7 Programming...
-
Page 2: Safety Information
Introduction The Serene Europa S2212 is an easy to use fully programmable real time electronic controlled heater with manual override and ECO program. The electronic thermostat samples the air temperature every few minutes which ensures that the element is energized for shorter periods minimising power usage. -
Page 3: Safety Cut-Out
Safety Cutout: Serene Convection heating panels are fitted with an auto-reset thermal cutout. This safety device will automatically switch off the elements should the heater reach an abnormal temperature. Should this occur: switch off the heater immediately and allow the heater to cool- down. -
Page 4: Wall Mounting Instructions
Wall Mounting Instructions: The heater is fixed on the wall with the mounting bracket attached to back of the heater. To secure mounting bracket to the wall • Remove the wall mounting bracket from the back of the heater, by compressing the fittings at the top and/or sides of the bracket, which clip into the heater body. -
Page 5: Guide To The Control Panel
Guide to the Control Panel Operation and Functions: 9 10 11 12 14 13 15 16 1 : Power On/Off 2 : Manual or Automatic mode 3 : Programing 4 : Confirm 5-6 : Temp Adjustment 7 : ECO Mode 8 : Power indicator 9 : Day Indicator 10 : Heating indicator... -
Page 6: Manual Mode Operation
Operation Guide Setup: Power on/off Ensure the power switch (20) is set to off before plugging in. Once plugged-in turn on the power switch (20). There will be a short “beep” to indicate the unit is connected to the power & the power indicator light will display. Then Press (1) to switch the unit on. -
Page 7: Time And Date Setting
Time & Date setting: When setting up the program for the first time the actual time needs to be set up as follows. Day: With the power on press (3 and 4) at the same time for 3 seconds. The day (9) will flash. Press (5 and 6) to select the day and press (3) to finish. - Page 8 Repeat 1 & 2 as needed for each day of the week. Notes: • When in automatic mode (16) will not display. • Your Serene Heating Panel is fitted with a 24-hour clock. • If the start time and end time match the system will cancel the program...
-
Page 9: Other Functions
Other Functions: Eco Mode This heating panel is fitted with an Eco mode that drops the power to 1200 watts. To engage Eco mode press (7) and the LO indicator will display at (11) to disengage Eco mode press (7) again and the HI indicator will display at (12). Built in Memory Function When the unit is switched off and then back on the temperature defaults to the last set and the previously set programming is still active. -
Page 10: Specifications
Dimensions (mm): W 950 D 75 H 400 Electrical Supply: 220-240 volts A.C. 50/60 Hz Wattage: 2400 Watts Wiring: 3 pin plug or permanent connection. Ingress Protection Rating: IP24 Serene Industries Limited reserves the right to alter specifications without notice... - Page 11 Table for information requirements for electric local space heaters Item Symbol Value Unit Item Unit Heat output (for model S2212) Type of heat input, for electric local space heaters only (select one) Nominal heat Pnom Manual heat charge control with [no]...
- Page 12 Contact: HONG KONG Head Office - Serene Industries Limited t: +852 2325 3209 f: +852 2325 3166 e: info@serene-ind.com w: www.serene-ind.com Suite 1010, 10F, Block A, Alexander Industrial Building, 62 King Lam Street, Cheung Sha Wan, Kowloon Hong Kong SAR...
