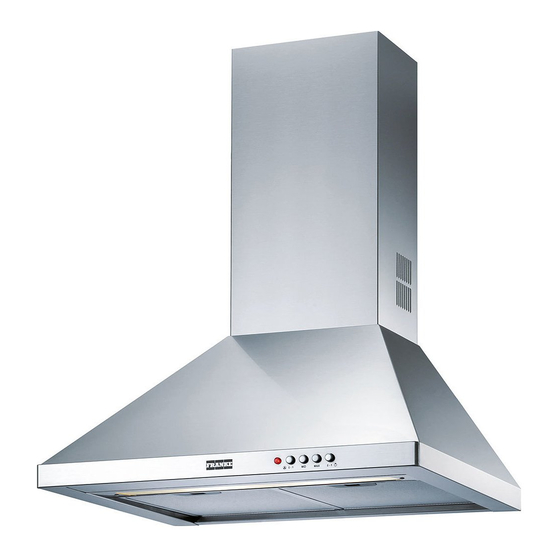

Franke FDL 664 Instructions For Use And Installation
Hide thumbs
Also See for FDL 664:
- Instructions for use and installation (28 pages) ,
- Instructions for use and installation (64 pages)
Subscribe to Our Youtube Channel
Related Manuals for Franke FDL 664
Summary of Contents for Franke FDL 664
- Page 1 Instructions for use and installation Cooker Hood Instructions for use and installation FDL 664 FDL 764 FDL 964...
- Page 2 Instructions Manual INDEX WARNINGS - COMPONENTS ............................10 INSTALLATION..................................11 USE - MAINTENANCE ................................ 12...
- Page 3 WARNINGS - COMPONENTS WARNINGS This appliance has been designed for use as either an EXTRACTION (ducting to the outside) or RECIRCULATION (filtering) hood. The measurements contained on the drawings in this booklet refer to two models of cooker hood. Therefore, it is essential that you refer to the cor- rect drawing when taking measurements for installation.
- Page 4 INSTALLATION The cooker hood must be installed centrally over a cooking appliance. The minimum distance between the cooking surface and the metal grease filters on the underside of the hood must be at least 650mm. To install the hood proceed as follows: 1) Drill six 8mm diameter holes at X1-X2-J and insert the plastic rawl plugs supplied as illus- trated in fig.
- Page 5 USE - MAINTENANCE The cooker hood functions are controlled by a series of slider or push button switches mounted on the front of the hood and control the worktop lighting and fan motor speeds. This cooker hood will not remove steam. 1) SLIDER SWITCHES - A switch controls the wotktop lighting - ON/OFF.
- Page 6 750 min 1140 max 590 min S30_01_n X X1 S30_02_n...
- Page 8 çevre ve insan sağlığı üzerindeki olumsuz etkilerini bertaraf etmeye katkı sağlamış olursunuz. Bu ürünün geri dönüşüm koşulları hakkında daha ayrıntılı bilgi için hudutları içinde bulunduğunuz belediyenin ilgili diaresine, atık yoketme servisine veya ürünün satıcısına danışınız. Franke S.p.a. Via Pignolini,2 37019 Peschiera del Garda (VR) www.franke.it...
