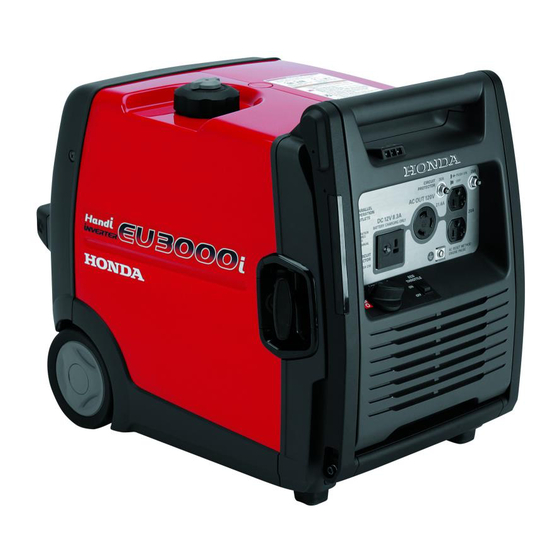

  • Page 1 Owner’s Manual GENERATOR EU3000i Click to Save As See page 86 for o2012 Honda Motor Co., Ltd. -All Rights Reserved 2014 Initial Use Instructions...
  • Page 2 The information and specifications included in this publication were in effect at the time of approval for printing. Honda Motor Co., Ltd. reserves the right, however, to discontinue or change specifications or design at any time without notice and without incurring any obligation whatsoever.
  • Page 3 INTRODUCTION Congratulations on your selection of a Honda generator. We are certain you will be pleased with your purchase of one of the finest generators on the market. We want to help you get the best results from your new generator and to operate it safely.
  • Page 4 A FEW WORDS ABOUT SAFETY Your safety and the safety of others are very important. And using this generator safely is an important responsibility. To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual.

  • Page 5: Table Of Contents

    CONTENTS GENERATOR SAFETY................6 IMPORTANT SAFETY INFORMATION ..........6 Operator Responsibility..............6 Carbon Monoxide Hazards..............6 Electric Shock Hazards ..............7 Fire and Burn Hazards ...............7 Refuel With Care ................8 SAFETY LABEL LOCATIONS ..............9 CONTROLS & FEATURES ...............10 COMPONENT & CONTROL LOCATIONS ...........10 CONTROLS...................12 Engine Switch ..................12 Starter Grip ..................12 Fuel Filler Cap Vent Lever..............13 Eco-Throttle Switch .................13...
  • Page 6 CONTENTS OPERATION................22 SAFE OPERATING PRECAUTIONS ..........22 STARTING THE ENGINE ............23 STOPPING THE ENGINE ............26 AC OPERATION ..............28 AC Applications ..............29 AC PARALLEL OPERATION ............. 30 AC Parallel Operation Applications......... 32 DC OPERATION ..............34 ECO-THROTTLE SYSTEM ............37 STANDBY POWER..............
  • Page 7 Air Index ................71 Specifications ..............72 Wiring Diagram ..............73 CONSUMER INFORMATION............74 Dealer Locator Information ........... 74 Honda Publications .............. 74 Customer Service Information ..........75 Distributor’s Limited Warranty ..........76 Emission Control System Warranty ........81 INITIAL USE INSTRUCTIONS ............86 ENGINE OIL ................

  • Page 8: Generator Safety

    GENERATOR SAFETY IMPORTANT SAFETY INFORMATION Honda generators are designed for use with electrical equipment that has suitable power requirements. Other uses can result in injury to the operator or damage to the generator and other property. Most injuries or property damage can be prevented if you follow all instructions in this manual and on the generator.

  • Page 9: Electric Shock Hazards

    • Do not connect to a building’s electrical system unless an isolation switch has been installed by a qualified electrician. • Use only a Honda approved parallel operation cable kit (optional equipment) when connecting two EU3000i generators for parallel operation.

  • Page 10: Refuel With Care

    GENERATOR SAFETY Refuel With Care Gasoline is extremely flammable, and gasoline vapor can explode. Allow the engine to cool if the generator has been in operation. Refuel only outdoors in a well-ventilated area with the engine off. Do not refuel during operation. Do not overfill the fuel tank.

  • Page 11: Safety Label Locations

    GENERATOR SAFETY SAFETY LABEL LOCATIONS These labels warn you of potential hazards that can cause serious injury. Read them carefully. If a label comes off or becomes hard to read, contact your Honda servicing dealer for a replacement.

  • Page 12: Controls & Features

    CONTROLS & FEATURES COMPONENT & CONTROL LOCATIONS Use the illustrations on these pages to locate and identify the most frequently used controls. OVERLOAD INDICATOR OUTPUT INDICATOR OIL ALERT INDICATOR 30 A AC CIRCUIT PROTECTOR 30 A TWIST LOCK RECEPTACLE 20 A AC CIRCUIT PROTECTOR PARALLEL OPERATION...
  • Page 13 CONTROLS & FEATURES AIR CLEANER COVER MUFFLER FILTERS SPARK PLUG MAINTENANCE COVER SPARK PLUG OIL MAINTENANCE COVER OIL FILLER CAP...

  • Page 14: Controls

    CONTROLS & FEATURES CONTROLS Engine Switch CHOKE The engine switch controls the ignition system, fuel valve and choke valve. OFF – Stops the engine and closes the fuel valve. ON – Running position; opens the fuel valve and allows the engine to be started.

  • Page 15: Fuel Filler Cap Vent Lever

    CONTROLS & FEATURES Fuel Filler Cap Vent Lever The fuel filler cap is provided with a vent lever to seal the fuel tank. The vent lever must be in the ON position for the engine to run. When the engine is not in use, leave the vent lever in the OFF position to reduce the possibility of fuel leakage.

  • Page 16: Parallel Operation Outlets

    Parallel Operation Outlets These outlets are used for connecting two EU3000i generators for parallel operation (see page 30). A Honda approved parallel operation cable kit (optional equipment) is required for parallel operation. This kit can be purchased from an authorized Honda generator dealer.

  • Page 17: Dc Receptacle

    CONTROLS & FEATURES DC Receptacle The DC receptacle should ONLY be used for charging 12-volt automotive type batteries. The DC charging output is not regulated. DC Circuit Protector The DC circuit protector automatically shuts off the DC battery charging circuit when the DC charging circuit is overloaded, when there is a problem with the battery, or when the connections between the battery and the generator are improper.

  • Page 18: Folding Handle

    CONTROLS & FEATURES Folding Handle The foldable handle is intended for ease of transportation and should be folded when the generator is stationary. Do not rest objects on the handle when in the transport position. To Extend The Handle Lift the handle upward with both hands. To Fold The Handle Lower the handle with both hands until it clicks into place.

  • Page 19: Features

    CONTROLS & FEATURES FEATURES Ground Terminal The generator ground terminal is connected to the frame of the generator, the metal non-current-carrying parts of the generator, and the ground terminals of each receptacle. Before using the ground terminal, consult a qualified electrician, electrical inspector, or local agency having jurisdiction for local codes or ordinances that apply to the intended use of the generator.

  • Page 20: Output Indicator

    CONTROLS & FEATURES Output Indicator The output indicator (green) is illuminated when the generator is operating normally. It indicates that the generator is producing electrical power at the receptacles. In addition, the output indicator has a simplified hour meter function. When you start the engine, the indicator blinks according to the generator’s cumulative operating hours as follows: •...

  • Page 21: Overload Indicator

    CONTROLS & FEATURES Overload Indicator If the generator is overloaded (in excess of 3.0 kVA), or if there is a short circuit in a connected appliance, the overload indicator (red) will come on. If the overload indicator (red) stays on continuously for more than 4 seconds, current to the connected appliance(s) will shut off, and the output indicator (green) will go off.

  • Page 22: Before Operation

    BEFORE OPERATION ARE YOU READY TO GET STARTED? Your safety is your responsibility. A little time spent in preparation will significantly reduce your risk of injury. Knowledge Read and understand this manual. Know what the controls do and how to operate them. Familiarize yourself with the generator and its operation before you begin using it.

  • Page 23: Check The Engine

    BEFORE OPERATION To prevent a possible fire, keep the generator at least 3 feet (1 meter) away from building walls and other equipment during operation. Do not place flammable objects close to the engine. Before beginning your pre-operation checks, be sure the generator is on a level surface and the engine switch is in the OFF position.

  • Page 24: Operation

    OPERATION SAFE OPERATING PRECAUTIONS Before operating the generator for the first time, review chapters GENERATOR SAFETY BEFORE OPERATION (see page 6) and (see page 20). For your safety, do not operate the generator in an enclosed area such as a garage. Your generator’s exhaust contains poisonous carbon monoxide gas that can collect rapidly in an enclosed area and cause illness or death.

  • Page 25: Starting The Engine

    OPERATION STARTING THE ENGINE To prevent a possible fire, keep the generator at least 3 feet (1 meter) away from building walls and other equipment during operation. Do not place flammable objects close to the engine. Operating this generator less than 3 feet (1 meter) from a building or other obstruction can cause overheating and damage the generator.
  • Page 26 OPERATION 3.Make sure the Eco-Throttle switch is in the OFF position. ECO-THROTTLE SWITCH CHOKE 4.Turn the engine switch to the ON position. To start a cold engine, turn the engine switch to the CHOKE position. To restart a warm engine, leave the engine switch in the ON position.
  • Page 27 OPERATION 6.If the engine switch was turned CHOKE to the CHOKE position to start the engine, turn it to the ON position as the engine warms 7.If you wish to use the Eco-Throttle system, turn the Eco-Throttle switch to the ON position after the engine has warmed up for 2 or 3 minutes.

  • Page 28: Stopping The Engine

    OPERATION STOPPING THE ENGINE To stop the engine in an emergency, simply turn the engine switch to the OFF position. Under normal conditions, use the following procedure. 1. Turn off or disconnect all appliances that are connected to the generator. 2.
  • Page 29 OPERATION 4.If two generators were connected for parallel operation, disconnect the parallel operation cable after stopping the engines if you do not wish to resume parallel operation. PARALLEL OPERATION CABLE (optional equipment)

  • Page 30: Ac Operation

    OPERATION AC OPERATION Before connecting an appliance to the generator, make sure that the appliance is in good working order and that its electrical rating does not exceed that of the receptacle. Most motorized appliances require more than their electrical rating for startup.

  • Page 31: Ac Applications

    OPERATION AC Applications Before connecting an appliance or power cord to the generator: • Make sure that it is in good working order. A faulty appliance or power cord can create a potential for electrical shock. • If an appliance begins to operate abnormally, becomes sluggish, or stops suddenly, turn it off immediately.

  • Page 32: Ac Parallel Operation

    OPERATION AC PARALLEL OPERATION Before connecting an appliance to either generator, make sure that the appliance is in good working order and that its electrical rating does not exceed that of the receptacle. Most motorized appliances require more than their electrical rating for startup.
  • Page 33 OPERATION 3.Plug in the appliance following the instruction provided with the parallel operation cable kit. 4.Turn on the appliance. If the generators are overloaded (see page 33), or if there is a short circuit in a connected appliance, the overload indicator (red) will come on.

  • Page 34: Ac Parallel Operation Applications

    • Never connect different generator models. • Use only a Honda approved parallel operation kit (optional equipment) when connecting two EU3000i Handi generators for parallel operation.
  • Page 35 OPERATION Most appliance motors require more than their rated wattage for startup. Make sure the electrical rating of the tool or appliance does not exceed the maximum power rating of the generator. Maximum power in parallel operation is: 6.0 kVA For continuous operation, do not exceed the rated power.

  • Page 36: Dc Operation

    OPERATION DC OPERATION The DC receptacle should ONLY be used for charging 12-volt automotive type batteries. The DC charging output is not regulated. The DC receptacle can be used while the AC power is in use. When using the AC power together with DC power, do not exceed 20.8 ampere AC load.
  • Page 37 If this happens, wait a few minutes before pushing in the circuit protector to resume operation. If the DC circuit protector continues to go OFF, discontinue charging and see your authorized Honda generator dealer. The circuit protector does not prevent overcharging the battery.
  • Page 38 OPERATION Disconnecting the battery charging cable: 1.Stop the engine. 2.Disconnect the black lead of the battery charging cable from the negative (–) battery terminal. 3.Disconnect the red lead of the battery charging cable from the positive (+) battery terminal. 4.Disconnect the battery charging cable from the DC receptacle of the generator.

  • Page 39: Eco-Throttle System

    OPERATION ECO-THROTTLE™ SYSTEM With the switch in the ON position, engine speed is automatically lowered when loads are reduced, turned off, or disconnected. When appliances are turned on or reconnected, the engine returns to the proper speed to power the electrical load. In the OFF position, the Eco-Throttle™...

  • Page 40: Standby Power

    OPERATION STANDBY POWER Connections to a Building’s Electrical System Connections for standby power to a building’s electrical system must be made by a qualified electrician. The connection must isolate the generator power from utility power, and must comply with all applicable laws and electrical codes.

  • Page 41: Special Requirements

    OPERATION Special Requirements Keep all cooling holes open and clear of debris, mud, water, etc. Cooling holes are located on the front panel, rear panel, and the bottom of the generator. If the cooling holes are blocked, the generator may overheat and damage the engine, inverter, or windings.

  • Page 42: Servicing Your Generator

    Remember that an authorized Honda servicing dealer knows your generator best and is fully equipped to maintain and repair it. To ensure the best quality and reliability, use only new, Honda Genuine parts or their equivalents for repair and replacement.

  • Page 43: Maintenance Safety

    SERVICING YOUR GENERATOR MAINTENANCE SAFETY Some of the most important safety precautions follow. However, we cannot warn you of every conceivable hazard that can arise in performing maintenance. Only you can decide whether or not you should perform a given task. Failure to properly follow maintenance instructions and precautions can cause you to be...

  • Page 44: Maintenance Schedule

    — (1) Service more frequently when used in dusty areas. (2) These items should be serviced by your Honda servicing dealer, unless you have the proper tools and are mechanically proficient. Refer to the Honda shop manual for service procedures.

  • Page 45: Refueling

    SERVICING YOUR GENERATOR REFUELING With the engine stopped, remove the fuel filler cap and check the fuel level. Refill the fuel tank if the fuel level is low. Gasoline is highly flammable and explosive. You can be burned or seriously injured when handling fuel.
  • Page 46 SERVICING YOUR GENERATOR When fueling an empty fuel tank, fill the tank up to the upper level mark. The generator will not start if there is not enough fuel in the tank. UPPER LEVEL MARK TETHER FUEL FILLER CAP (RED) After refueling, tighten the fuel filler cap until it clicks.

  • Page 47: Fuel Recommendations

    SERVICING YOUR GENERATOR FUEL RECOMMENDATIONS This engine is certified to operate on regular unleaded gasoline with a pump octane rating of 86 or higher. Never use stale or contaminated gasoline or an oil/gasoline mixture. Avoid getting dirt or water in the fuel tank. You may use regular unleaded gasoline containing no more than 10% ethanol (E10) or 5% methanol by volume.

  • Page 48: Engine Oil Level Check

    SERVICING YOUR GENERATOR ENGINE OIL LEVEL CHECK Check the engine oil level with the generator on a level surface and the engine stopped. 1.Pull the knob and remove the oil maintenance cover. OIL MAINTENANCE COVER KNOB...
  • Page 49 SERVICING YOUR GENERATOR 2. Remove the oil filler cap. 3. Check the oil level. If it is below the upper limit, fill with the recommended oil to the upper limit (see page 50). 4. Reinstall the oil filler cap securely. 5.

  • Page 50: Engine Oil Change

    SERVICING YOUR GENERATOR ENGINE OIL CHANGE Drain the oil while the engine is warm to assure rapid and complete draining. 1. Turn the engine switch and fuel filler cap vent lever to the OFF position (see page 26) to reduce the possibility of fuel leakage. 2.
  • Page 51 SERVICING YOUR GENERATOR 4. Open the oil drain plug cover from the bottom of the generator. 5. Place a suitable container below the engine to catch the used oil. 6. Remove the oil drain plug and sealing washer and drain the oil. 7 .

  • Page 52: Engine Oil Recommendations

    AMBIENT TEMPERATURE The SAE oil viscosity and service category are in the API label on the oil container. Honda recommends that you use API service category SJ or later (or equivalent) oil.

  • Page 53: Air Cleaner Service

    SERVICING YOUR GENERATOR AIR CLEANER SERVICE 1.Loosen the air cleaner cover screw, and remove the air cleaner cover. AIR CLEANER COVER SCREW AIR CLEANER COVER 2.Remove the main and outer filters from the air cleaner case. MAIN FILTER OUTER FILTER 3.Check the main and outer filters to be sure they are clean and in good condition.
  • Page 54 SERVICING YOUR GENERATOR 4.Make sure that the rubber seal is set in the groove of the air cleaner case. Replace the rubber seal if it is damaged. RUBBER SEAL 5.Reinstall the air filters. MAIN FILTER Put the outer filter into the ribs on the air cleaner case.

  • Page 55: Air Filter Cleaning

    SERVICING YOUR GENERATOR AIR FILTER CLEANING A dirty main and outer filters will restrict air flow to the carburetor, reducing engine performance. If you operate the generator in very dusty areas, clean the main and outer filters more frequently than specified in the Maintenance Schedule.

  • Page 56: Spark Plug Service

    SERVICING YOUR GENERATOR SPARK PLUG SERVICE In order to service the spark plug, you will need a spark plug wrench (commercially available). Recommended spark plug: BPR6ES (NGK) W20EPR-U (DENSO) To ensure proper engine operation, the spark plug must be properly gapped and free of deposits.
  • Page 57 SERVICING YOUR GENERATOR 5.Inspect the spark plug. Replace SIDE ELECTRODE it if the electrodes are worn or if 0.028–0.031 in the insulator is cracked, (0.7–0.8 mm) chipped, or fouled. SEALING WASHER 6.Measure the spark plug electrode gap with a wire-type INSULATOR feeler gauge.

  • Page 58: Spark Arrester Service

    SERVICING YOUR GENERATOR SPARK ARRESTER SERVICE The spark arrester must be serviced every 100 hours to keep it functioning as designed. If the engine has been running, the muffler will be very hot. Allow the muffler to cool before servicing the spark arrester. Clean the spark arrester as follows: 1.Loosen the cover screw and remove the spark plug maintenance cover.
  • Page 59 SERVICING YOUR GENERATOR 3.Use a brush to remove carbon deposits from the spark arrester screen. Be careful to avoid damaging the screen. The spark arrester must be free of breaks and tears. Replace the spark arrester if it is damaged. 4.Reinstall the spark arrester and spark plug maintenance cover.

  • Page 60: Storage

    STORAGE STORAGE PREPARATION Proper storage preparation is essential for keeping your generator trouble-free and looking good. The following steps will help to keep rust and corrosion from impairing your generator’s function and appearance, and will make the engine easier to start when you use the generator again.
  • Page 61 Drain the fuel tank and carburetor (p.60). Change the engine oil and lubricate the cylinder (p.61). * Use gasoline stabilizers that are formulated to extend storage life. Follow the manufacturer’s instructions for use. Contact your authorized Honda generator dealer for stabilizer recommendations.
  • Page 62 STORAGE Draining the Fuel Tank and Carburetor Gasoline is highly flammable and explosive. You can be burned or seriously injured when handling fuel. • Stop the engine and keep heat, sparks, and flame away. • Handle fuel only outdoors. • Wipe up spills immediately. 1.

  • Page 63: Engine Oil

    STORAGE Engine Oil 1.Change the engine oil (see page 48). 2.Remove the spark plug (see page 54), and pour approximately one teaspoon (5 cc) of clean engine oil into the cylinder. Crank the engine several revolutions to distribute the oil, then reinstall the spark plug. 3.Reinstall the spark plug cap on the spark plug securely.

  • Page 64: Storage Precautions

    STORAGE STORAGE PRECAUTIONS If your generator will be stored with gasoline in the fuel tank and carburetor, it is important to reduce the hazard of gasoline vapor ignition. Select a well ventilated storage area away from any appliance that operates with a flame, such as a furnace, water heater, or clothes dryer.

  • Page 65: Transporting

    TRANSPORTING Do not lay the generator on its side when moving, storing, or operating it. Oil may leak and damage the engine or your property. If the generator has been used, allow it cool for at least 15 minutes before loading the generator on the transport vehicle. A hot engine and exhaust system can burn you and can ignite some material.

  • Page 66: Taking Care Of Unexpected Problems

    Gap or replace spark plug (p. 54). improperly gapped. Spark plug wet with fuel (flooded Dry and reinstall spark plug. engine). Fuel filter restricted, carburetor Take the generator to an malfunction, ignition malfunction, authorized Honda servicing dealer, valves stuck, etc. or refer to the shop manual.

  • Page 67: Engine Lacks Power

    (p. 60). refueled with bad gasoline. Refuel with fresh gasoline (p. 43). Fuel filter restricted, carburetor Take the generator to an malfunction, ignition malfunction, authorized Honda servicing dealer, valves stuck, etc. or refer to the shop manual.

  • Page 68: No Power At The Ac Receptacles

    Replace or repair power tool or appliance. Stop and restart the engine. Faulty generator. Take the generator to an authorized Honda servicing dealer, or refer to the shop manual. NO POWER AT THE DC RECEPTACLE Possible Cause Correction DC circuit protector OFF.

  • Page 69: Technical Information

    TECHNICAL INFORMATION Serial Number Location FRAME SERIAL NUMBER Record the frame serial number and date purchased in the spaces below. You will need this information when ordering parts and when making technical or warranty inquiries. Frame serial number: Date purchased:...

  • Page 70: Carburetor Modification For High Altitude Operation

    High altitude performance can be improved by specific modifications to the carburetor. If you always operate your generator at altitudes above 5,000 feet (1,500 meters), have your authorized Honda servicing dealer perform this carburetor modification. This engine, when operated at high altitude with the carburetor modifications for high altitude use, will meet each emission standard throughout its useful life.

  • Page 71: Emission Control System Information

    Carbon monoxide does not react in the same way, but it is toxic. Honda utilizes appropriate air/fuel ratios and other emissions control systems to reduce the emissions of carbon monoxide, oxides of nitrogen, and hydrocarbons.
  • Page 72 • Afterburning (backfiring). • Black exhaust smoke or high fuel consumption. Replacement Parts The emission control systems on your new Honda engine were designed, built, and certified to conform with applicable emission regulations. We recommend the use of Honda Genuine parts whenever you have maintenance done.

  • Page 73: Air Index

    TECHNICAL INFORMATION Air Index (Models sold in California) An Air Index Information label is applied to engines certified to an emission durability time period in accordance with the requirements of the California Air Resources Board. The bar graph is intended to provide you, our customer, the ability to compare the emissions performance of available engines.

  • Page 74: Specifications

    Refer to page 54 (0.7–0.8 mm) Valve clearance IN: 0.08±0.02 mm See your authorized (cold) EX: 0.10±0.02 mm Honda dealer. Other specifications No other adjustments needed. Specifications may vary according to the types, and are subject to change without notice.

  • Page 75: Wiring Diagram

    TECHNICAL INFORMATION Wiring Diagram...

  • Page 76: Consumer Information

    CONSUMER INFORMATION Dealer Locator Information To find an authorized Honda Servicing Dealer anywhere in the United States: Visit our website: http://powerequipment.honda.com/dealer-locator Honda Publications Shop Manual This manual covers complete maintenance and overhaul procedures. It is intended to be used by a skilled technician.

  • Page 77: Customer Service Information

    CONSUMER INFORMATION Customer Service Information Honda Power Equipment dealership personnel are trained professionals. They should be able to answer any question you may have. If you encounter a problem that your dealer does not solve to your satisfaction, please discuss it with the dealership’s management. The Service Manager or General Manager can help.

  • Page 78: Distributor's Limited Warranty

    What American Honda Will Repair or Replace Under Warranty: American Honda will repair or replace, at its option, any part that is proven to be defective in material or workmanship under normal use during the applicable warranty time period. Warranty repairs and replacements will be made without charge for parts or labor.
  • Page 79 CONSUMER INFORMATION To Obtain Warranty Service: You must, at your expense, take the Honda Power Equipment product, accessory, replacement part, apparel, or the power equipment on which the accessory or replacement part is installed, and proof of purchase to any Honda Power Equipment dealer in the United States, Puerto Rico, or the U.S.
  • Page 80 Disclaimer of Consequential Damage and Limitation of Implied Warranties: American Honda disclaims any responsibility for loss of time or use of the product, transportation, commercial loss, or any other incidental or consequential damage. Any implied warranties are limited to the duration of this written limited warranty.
  • Page 81 What American Honda Will Repair or Replace Under Warranty: American Honda will repair or replace, at its option, any Honda Power Equipment parts, accessories, or apparel that are proven to be defective in material or workmanship under normal use during the applicable warranty time period.
  • Page 82 You must, at your expense, take the Honda Power Equipment part, accessory, or apparel, or the Honda Power Equipment on which the accessory or part is installed, and proof of purchase to any Honda Power Equipment dealer in the United States, Puerto Rico, or the U.S.

  • Page 83: Emission Control System Warranty

    CONSUMER INFORMATION Emission Control System Warranty Your new Honda Power Equipment engine complies with the U.S. EPA, Environment Canada, and State of California emission regulations (models certified for sale in California only). American Honda Motor Co., Inc. provides the emission warranty coverage for engines in the United States, and its territories.
  • Page 84 You are responsible for presenting your power equipment engine to a Honda Power Equipment dealer as soon as a problem exists. The emission related warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.
  • Page 85 Honda without charge for diagnosis, parts, or labor. All defective parts replaced under this warranty become the property of Honda. A list of warranted parts is on page 85. Normal maintenance items, such as spark plugs and filters, that are on the warranted parts list are warranted up to their required replacement interval only.
  • Page 86 You must, at your own expense, take your Honda Power Equipment engine or the product on which it is installed, along with your sales registration card or other proof of original purchase date, to any Honda Power Equipment dealer who is authorized by Honda to sell and service that Honda product during his normal business hours.
  • Page 87 Tubing, fittings, seals, gaskets, and clamps associated with these listed systems. Note: This list applies to parts supplied by Honda and does not cover parts supplied by the equipment manufacturer. Please see the original equipment manufacturer’s emissions warranty for non-Honda parts.

  • Page 88: Initial Use Instructions

    INITIAL USE INSTRUCTIONS ENGINE OIL The generator is shipped WITHOUT OIL in the engine. 1. Place the generator on a level surface. 2. Pull the knob and remove the oil maintenance cover. OIL MAINTENANCE COVER KNOB 3. Remove the oil filler cap and add enough SAE 10W-30 API service category SJ or later (or equivalent) oil to bring the oil level to the upper limit of the oil filler neck.

  • Page 89: Fuel

    INITIAL USE INSTRUCTIONS FUEL Add fuel to the generator in a well-ventilated area. Never refuel the engine inside a building where gasoline fumes may reach flames or sparks. Keep gasoline away from appliance pilot lights, barbecues, electric appliances, power tools, etc. Spilled fuel is not only a fire hazard, it causes environmental damage.
  • Page 90 INITIAL USE INSTRUCTIONS 2. Fuel carefully to avoid spilling fuel. Do not fill the fuel tank above the upper level mark (red) on the fuel strainer. When fueling an empty fuel tank, fill the tank up to the upper level mark.

  • Page 91: Before Operation

    Please Register Your Generator If your dealer did not collect registration information from you, please take a few minutes and register your purchase with Honda. This allows us to contact you with any important updates regarding your generator. Please note registration is not required to obtain warranty service.

  • Page 92: Index

    INDEX AC Applications ..............29 AC Circuit Protectors ............. 14 AC OPERATION ..............28 AC PARALLEL OPERATION ............ 30 AC Parallel Operation Applications........... 32 AIR CLEANER SERVICE............51 AIR FILTER CLEANING ............53 Air Index ................71 ARE YOU READY TO GET STARTED?........20 BEFORE OPERATION ............
  • Page 93 FUEL RECOMMENDATIONS .............. 45 Fuel Filler Cap Vent Lever ..............13 GENERATOR SAFETY................6 Ground Terminal................. 17 Honda Publications................74 IMPORTANT SAFETY INFORMATION ..........6 INITIAL USE INSTRUCTIONS ............86 IS YOUR GENERATOR READY TO GO?..........20 Knowledge ..................20...
  • Page 94 INDEX MAINTENANCE SAFETY ............41 MAINTENANCE SCHEDULE ............ 42 NO POWER AT THE AC RECEPTACLES ........66 NO POWER AT THE DC RECEPTACLE ........66 Oil Alert Indicator ..............19 OPERATION................22 Operator Responsibility ............6 Output Indicator ..............18 Overload Indicator ..............
  • Page 95 INDEX SAFE OPERATING PRECAUTIONS ........... 22 SAFETY LABEL LOCATIONS............. 9 Safety Precautions ..............41 Serial Number Location ............67 SERVICING YOUR GENERATOR ..........40 SPARK ARRESTER SERVICE ........... 56 SPARK PLUG SERVICE............54 Special Requirements............. 39 Specifications ............... 72 STANDBY POWER..............38 Starter Grip ................
  • Page 96 MEMO...
  • Page 97 MEMO...
  • Page 98 MEMO...

  • Page 99: Quick Reference Information

    QUICK REFERENCE INFORMATION Fuel Type Regular unleaded gasoline with an ethanol content of no more than 10% and a pump octane rating of 86 or higher Engine Oil Type SAE 10W-30, API SJ or later (or equivalent), for general use (page 50) Maximum oil capacity: 17 oz (0.53 L)
