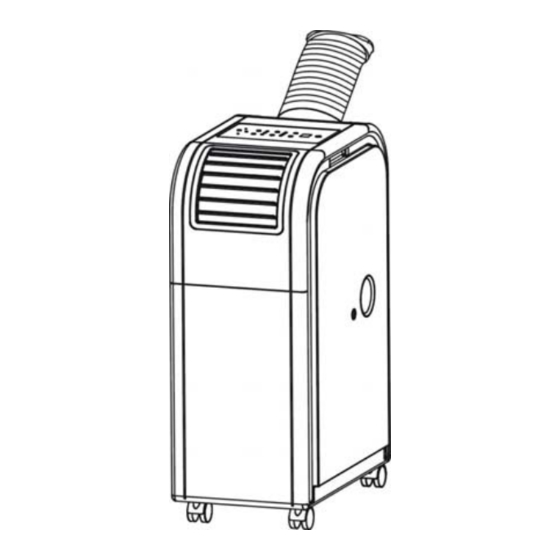

Mobile air conditioner

Advertisement

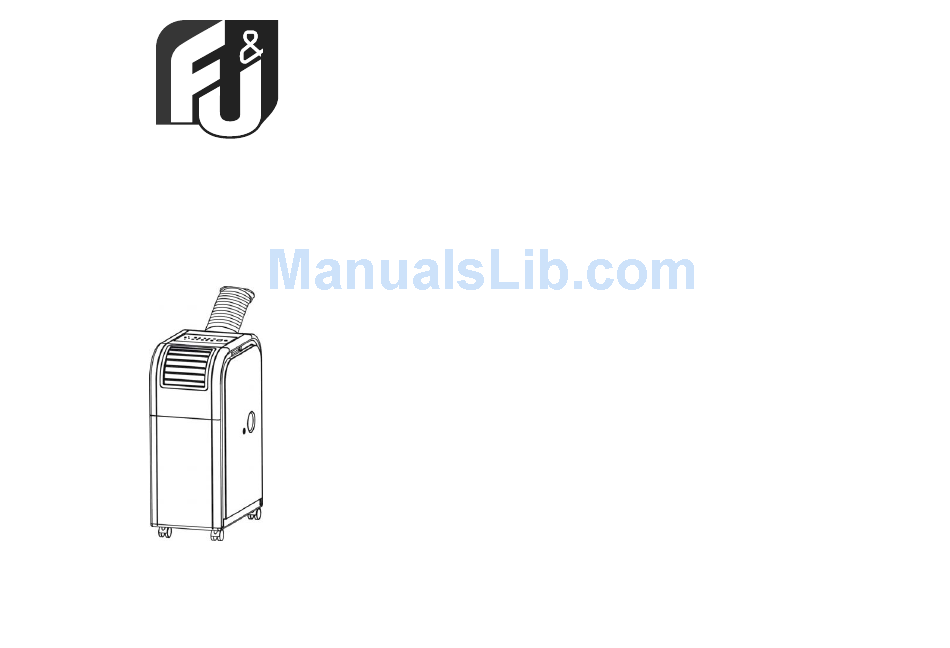

PA-91/PA-120
INSTRUCTION FOR USE
MOBILE AIR CONDITIONER
VERY IMPORTANT
Do not install and use your portable air conditioner unit
before carefully reading this instruction guide.
Please retain this manual brochure for product warranty and
future reference
CAUTION
1." DO NOT BLOCK VENTILATION "! Please make sure the inlet and outlet
ventilation is not blocked at all times.
2. Operate this unit on a horizontal surface to avoid water leakage.
3. Do not operate this unit in an explosive or corrosive atmosphere.
4. Operate this unit in an ambient of 32or less.
5. The unit should not be operated in heating function an indoor ambient temperature
above 7℃or lower23℃. Clean air filter periodically to enjoy the most efficient cooling.
7. When the unit is shut off, please wait at least 3.5 minutes before restarting
this is to prevent the compressor from being damaged.
8. This unit needs at least 7 Amps of electricity to have its compressor operational.
To avoid the household electricity block out, please do not use any extension
cord for this unit.
9. This unit is for indoor cooling, heating and dehumidifying.
10. When boot-strap, the fan will operate but the compressor will start up after
the cooling alarm flashes for three minutes
In heating function, the heating alarm will flash for 3.5 minutes
before the compressor and fan start up.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA-91 and is the answer not in the manual?

Questions and answers

Summary of Contents for F&U PA-91

  • Page 1 Please retain this manual brochure for product warranty and future reference CAUTION PA-91/PA-120 1." DO NOT BLOCK VENTILATION "! Please make sure the inlet and outlet INSTRUCTION FOR USE ventilation is not blocked at all times.
  • Page 2 CONGRATULATIONS ON YOUR 11. When the supply cord is damaged, it must be replaced by the manufacturer, SELECTION OF A QUALITY its service agent or similarly qualified persons in order to avoid hazard. 12、The batteries must be removed from the appliance before it is scrapped and that PORTABLE AIR CONDITIONER they are disposed of safely.
  • Page 3: Control Panel & Description Of Function

    UNPACKING INSTRUCTIONS 1. Place the unit in the correct upright position before unpacking. 7. Cool inlet 2. Cut the two packing straps. 8. Cool Air filter 3. Slide the carton in an upwards motion and it will release from the base. 9.
  • Page 4 7. PROGRAMMABLE TIMER Press to turn unit "ON" or "OFF". 1.POWER KEY Programmable timer ON/OFF key. Press this key to select refrigeration, heat or dehumidification. or 2. FUNCTION TIMER-ON: The timer-on is used to turn on the unit automatically after the set time is over. cooling 1.
  • Page 5: Remote Control Function

    ALARM NOTICE When the water tank is full,"E4" will be displayed on the display panel. To resume operation, please remove the rubber cap of the drain hose to drain out the water firstly. This unit can evaporate the condensation and flow out through the exhaust hose automatically.
  • Page 6: Power Supply

    To remove the air filter, please follows the arrow direction and push the AIR FILTER The air filter located on the left hand side of the unit can be removed, filter lightly, and then take out the filter for cleaning. simply by pulling the frame in an upward motion.
  • Page 7: Helpful Hints

    PLACE FOR USE Because the machine expels hot air, please don’t operate in a narrow place. In case of dangerous leak, don’t work the machine in a humid place. Don’t place the machine in a sunlit corner otherwise the colors soon fade out of the machine.
  • Page 8: Specification

    2004 / 108 / EC REFRIGERANT Low Voltage Directive: 2006 / 95 / EC 330Wx486Dx740H 330Wx486Dx740H DIMENSION(MM) declare that the PA-91 and PA-120 are in compliance with the following norms: EN 55014-1:2006 EN 55014-2/Α1:2001 EN 61000-3-2:2006 (CE) N 842/2006: EN 61000-3-3/A2 :2005...
