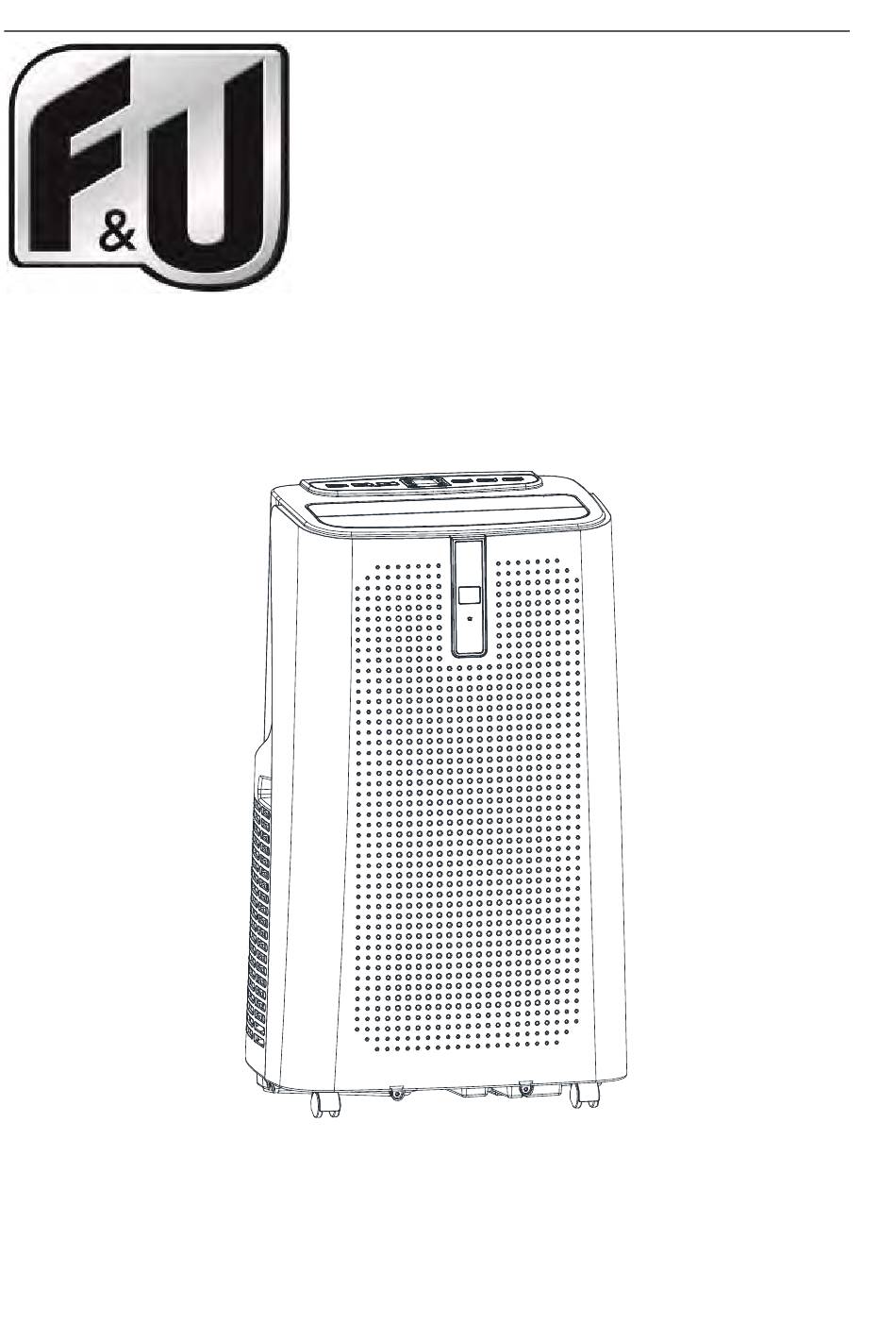

- Page 1 Page: 1/16 PAH-1229 Mobile Air Conditioning User Manual...
-
Page 2: Table Of Contents
Page: 2/16 Content Notes………………………………………………….…..…..3 II. Features and Components............5 III. Installation and Adjustment........... . 7 IV. Control Setting.............. .…..V. Drainage Instructions .............. 13 VI. Maintenance………………………………………………… VII. Troubleshooting ..............….. 15 VIII. Appendix …………………………………………………… 16... -
Page 3: Notes
Page: 3/16 Thank you for choosing the luxurious and elegant mobile air conditioning. Please keep the manual for later review, and read the manual carefully before use. I. Notes Notes: The air conditioning is only suitable for indoor use, and is not suitable for other applications. *Follow local grid interconnection rules while installing the air conditioning and ensure that it is properly grounded. - Page 4 Page: 4/16 Do not install and use the air conditioning in the bathroom or other humid environments. * Do not pull the plug to turn off the machine. * Do not place cups or other objects on the body to prevent water or other liquids from spilling into the air conditioning.
-
Page 5: Features And Components
Page: 5/16 II. Features and Components 1. Features New look, compact structure, streamlined machine, aristocratic atmosphere. With cooling, heating (single cold with no such function), dehumidification and fan function. Automatic swing leaf in the outlet has automatic air swing function, and the outlet can be covered when the machine is turned off to prevent dust from entering the body. - Page 6 Page: 6/16 2. Components:...
-
Page 7: Installation And Adjustment
Page: 7/16 III. Installation and Adjustment 1. Installation: Warning: before using the mobile air conditioning, keep it upright for at least two hours. The air conditioning can be easily moved in the room. In the moving process, ensure that the air conditioning is in the upright position and the air conditioning should be placed on a flat surface. - Page 8 Page: 8/16 2）Elongate the heat pipe and snap the flat end of the heat pipe joints into the elliptical hole of the window sealing plate assembly (as shown in Figure 5 and Figure 6) . Notes: 1. the flat end of the heat pipe joints must be snapped into place. 2.
-
Page 9: Control Setting
Page: 9/16 IV. Control Setting Operating instructions: LED Control Panel Operation interface is as follows:... - Page 10 Page: 10/16 Display window ① Remote control receiver ② Water full indicator ③ 1: when the machine is powered on for the first time, the buzzer will shout, and then the machine will get into standby status. 2: Power Key: press the key to turn on and turn off the machine. In the case of power on, press the key to turn off the machine;...
- Page 11 Page: 11/16 * Can use the remote control to set the sleep mode. II. Operating Instructions of the Remote Control Operation interface of the remote control is as follows Instructions of key operation of the high-quality remote control are as follows: 1.
-
Page 12: Drainage Instructions
Page: 12/16 III. A Variety of Protection Functions Frost Protection Function: In cooling, if the temperature of the EVA pipe sensor is too low, the machine will automatically enter protection status; if the temperature of the EVA pipe sensor rises to a certain temperature, it can automatically revert to normal operation. -
Page 13: Maintenance
Page: 13/16 flowing to the floor or the carpet. 4）When the water is discharged, stuff the water plug, and tighten the drainage cover. Notes: 1. Restart the machine after the water plug and drainage cover are installed, otherwise condensate water of the machine will flow to the floor or the carpet. 2. - Page 14 Page: 14/16 2.1: Clean the upper filter screen frame 1）Clasp the wedging block of the EVA filter screen frame with hands. Force down from the outside to remove the EVA filter screen frame. Unscrew four screws fixing the EVA filter screen and the rear housing to remove the EVA filter screen (as shown in the above figure) .
-
Page 15: Troubleshooting
Page: 15/16 VII. Troubleshooting Do not repair or disassemble the air conditioning by yourself. Unqualified repair will lead to failure of the warranty card, and may cause damage to users or their properties. Problems Reasons Solutions Turn it on after connecting it to a socket with There is no electricity. -
Page 16: Viii.appendix
Page: 16/16 VIII.Appendix Schematic Diagram Capillary Condenser Compressor Evaporator All the technical and specific parameters,please refer to product nameplate. Due to continuous improvement,we reserve the right to change some design without any notice. Recycling Notice Your product is designed and manufactured with high quality materials and components which can be recycled and reused.
