Installation of Wall Mount (Optional)

To obtain a wall-mounting kit, contact ViewSonic or your local dealer. Refer to
the instructions that come with the base mounting kit. To convert your
ViewPanel from a desk-mounted to a wall-mounted display, do the following:
Press this button
1
2
3
4
Four
screw
holes
5
Mounted
on the wall

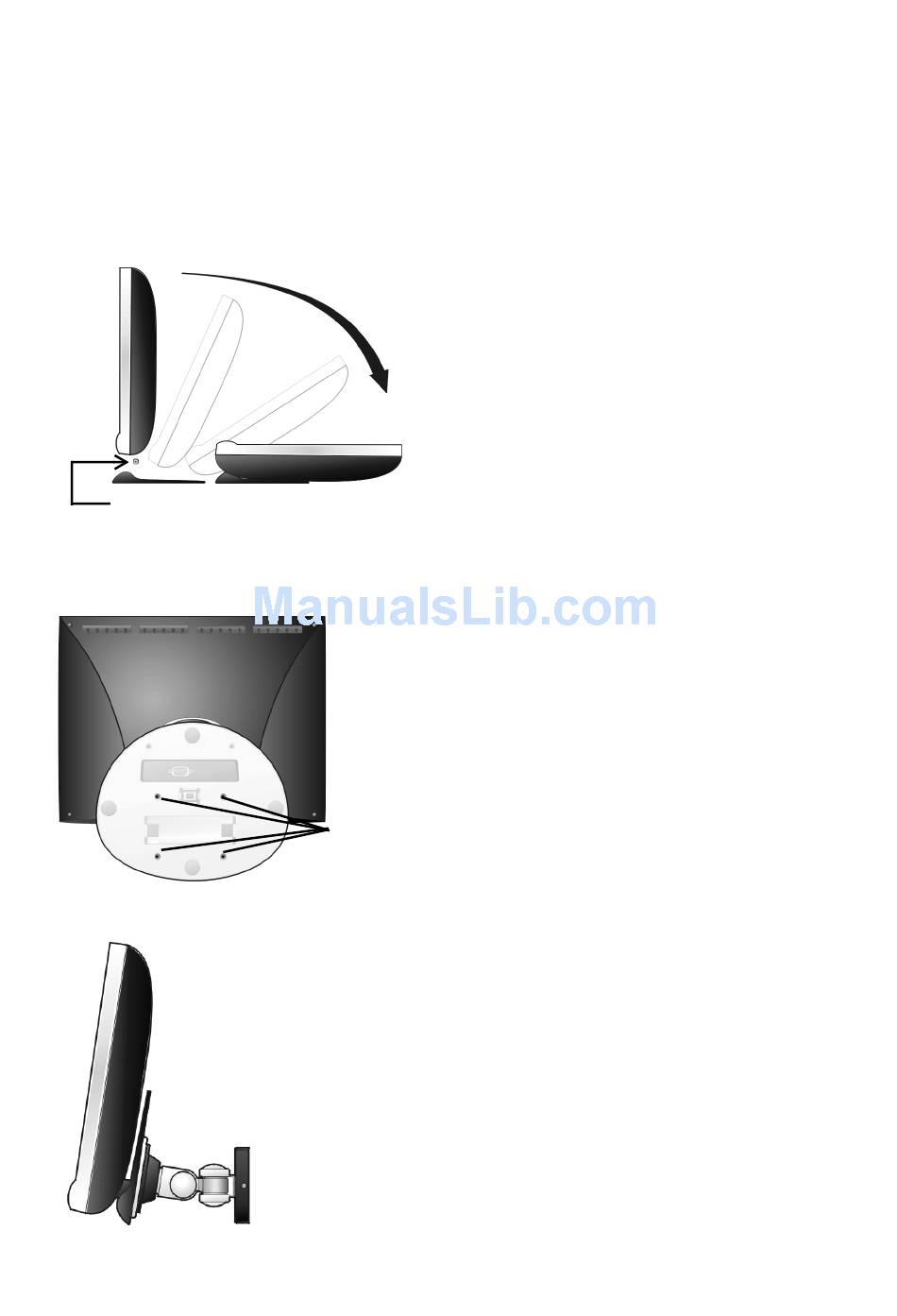

Disconnect Power.
As you face the front of the
ViewPanel, notice the button on
the right side. Press the button
and push the ViewPanel back and
down flat against the base as
shown.
Lay the ViewPanel face down on
a towel or blanket. Notice the
four screw holes on the bottom of
the base.
Attach the mounting bracket
from the VESA compatible wall-
mounting kit (100 mm x 100 mm
distance).
Attach the ViewPanel to the wall,
following the instructions in the
wall-mounting kit.
ViewSonic VE800 5
