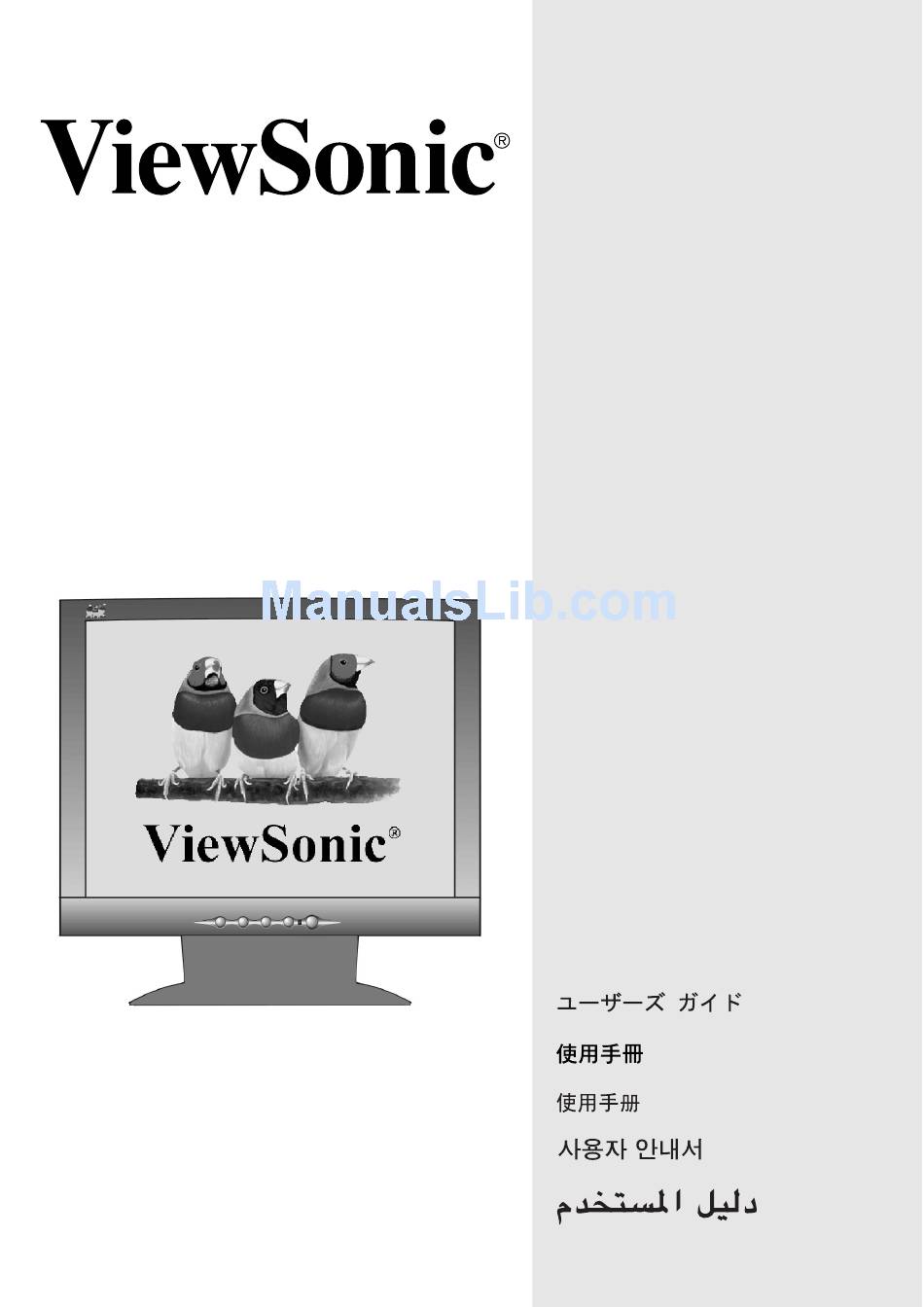

    VE700 ViewPanel ® User Guide Guide de l’utilisateur Bedienungsanleitung Guía del usuario Guida dell'utente Guia do usuário Användarhandbok Käyttöopas Jmdh\h^kl\hihevah\Zl_ey ,QVWUXNFMDREVáXJL Full 17" Diagonal Viewable Screen...

  • Page 2: Table Of Contents

    Specifications ... 12 Troubleshooting ... 13 Customer Support ... 14 Cleaning the ViewPanel Display ... 15 Limited Warranty ... 16 Appendix Safety Guidelines ... 17 Compliance Information for U.S.A... 18 CE Conformity for Europe ... 18 11/28/02 C ViewSonic VE700...

  • Page 3: Product Registration, For Your Records

    NERGY Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this mate- rial, or the performance or use of this product.

  • Page 4: Package Contents, Precautions

    NOTE: The CD jacket contains the Quick Start Guide, and the CD includes the User Guide PDF files and INF/ICM display optimization files. The INF file ensures compatibility with Windows operating systems, and the ICM file (Image Color Matching) ensures accurate on-screen colors. ViewSonic recommends that you install both files. Precautions •...

  • Page 5: Quick Installation

    Panel display before computer) is impor- tant. NOTE: Windows users may receive a message asking them to install the INF file. This is on the CD. 4 Insert the ViewSonic Wizard CD into the computer’s CD drive. • Follow the on-screen instructions AC/DC Power Adapter...

  • Page 6: Installation Of Wall Mount (optional)

    Installation of Wall Mount (Optional) To obtain a wall-mounting kit, contact ViewSonic or your local dealer. Refer to the instructions that come with the base mounting kit. To convert your ViewPanel from a desk-mounted to a wall-mounted display, do the following:...

  • Page 7: Setting The Timing Mode, Osd And Power Lock Settings

    ViewPanel’s power will automatically turn ON when power is restored. • Power Button Unlock: Press and hold [1] and the down arrow 10 seconds. controls ® ® display timing mode to: for 10 seconds. If any again for 10 seconds. for 10 again for ViewSonic VE700...

  • Page 8: Adjusting The Screen Image

    Scroll through menu options and adjust the displayed control. Front Control Panel Selects a highlighted control. Also, displays the control screen for the selected control and toggles between control pairs. ® Main Menu with OnView controls Power light Power On/Off ViewSonic VE700...

  • Page 9

    "active area" of the ViewPanel ® to scroll up or down The line at the bottom of the screen tells you what you can do next - in this example, either EXIT or select the BRIGHTNESS control. or down buttons. ViewSonic VE700...

  • Page 10: Main Menu Controls

    When you are finished making all color adjustments, press button [1] twice. automatically sizes, centers, and fine tunes adjusts background black level of the screen image. provides several color options: preset color and down buttons. , then ® ViewSonic VE700...

  • Page 11

    Fine Tune or graphic characters. Try the Auto Image Adjust (see page 9) before using the NOTE: Fine Tune control. adjusts the clarity and focus of the screen image. Sharpness ViewSonic VE700...

  • Page 12

    Memory Recall returns adjustments to the original factory settings if the display is operating in a factory Preset Timing Mode listed in this user guide. Exception: This control does not effect changes made with the User Color control. ViewSonic VE700...

  • Page 13: Specifications

    Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the ViewPanel. Macintosh computers older than G3 require a ViewSonic contact ViewSonic. 17.0" (full 17.0" viewable diagonal area), TFT (Thin Film Transistor), Active Matrix SXGA LCD, 0.264 mm pixel pitch...

  • Page 14: Troubleshooting

    Loose or broken pins in the cable connector could cause an improper connection. • Connect the ViewPanel display to another computer. • If you have an older graphics card, contact ViewSonic for a non-DDC adapter. Control buttons do not work •...

  • Page 15: Customer Support

    F: +61 2 9929 8393 T: 65 273 4018 F: 65 273 1566 T: 886 2 2246 3456 service.ap@ F: 886 2 8242 3668 T: 886 2 2246 3456 service.ap@ F: 886 2 8242 3668 ViewSonic VE700...

  • Page 16: Cleaning The Viewpanel Display

    ViewPanel display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the ViewPanel display. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.

  • Page 17: Limited Warranty

    If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.

  • Page 18: Safety Guidelines

    If you have any questions concerning which proper power cord to use, please consult with the dealer from whom you have purchased the product. 6ZLW]HUODQG  6(9 %ULWDLQ  %$6(%6 -DSDQ  (OHFWULF$SSOLDQFH&RQWURO$FW Figure A2 0D[LPXP&XUUHQW5DWLQJRI8QLW 10 Amps 12 Amps 12 Amps 10 Amps 12 Amps ViewSonic VE700...

  • Page 19: Compliance Information For U.s.a, Ce Conformity For Europe

    CE Conformity for Europe The device complies with the requirements of the EEC directive 89/336/EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility, and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety." ViewSonic VE700...

  • Page 20
