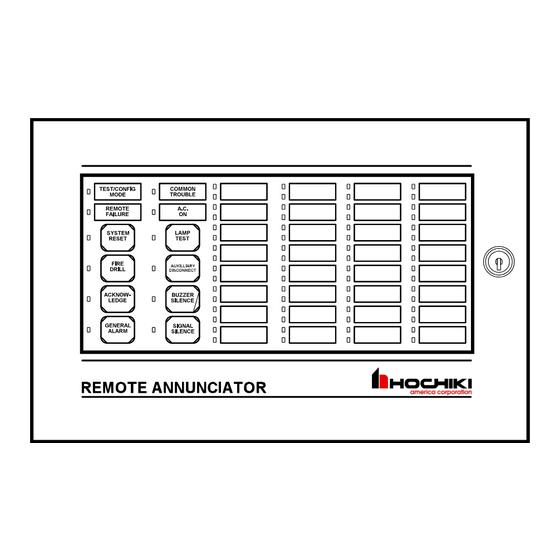

HRA-1000 SERIES
Remote Multiplex Annunciator Panels
WIRING and INSTALLATION INSTRUCTION
NOTICE
All information, documentation, and specifications contained in this manual are subject to change without prior
notice by the man ufacturer.
©2002 by Hochiki America Corporated
Printed May 2002
LT -617 HO C R ev.3
Advertisement
Table of Contents
Related Manuals for Hochiki HRA-1000 SERIES
Summary of Contents for Hochiki HRA-1000 SERIES
- Page 1 Remote Multiplex Annunciator Panels WIRING and INSTALLATION INSTRUCTION NOTICE All information, documentation, and specifications contained in this manual are subject to change without prior notice by the man ufacturer. ©2002 by Hochiki America Corporated Printed May 2002 LT -617 HO C R ev.3...
-
Page 2: Installation Instruction
Hochiki modular design HRA-1000 Series Remote Multiplex Annunciator panels provides a large capacity of annunciation (up to 224 points) with standard Hochiki Series 1000 Fire Alarm Control Panels. The HRAM-1032 Main Annunciator Chassis is a 32 Circuit, Annunciator which may be expanded with up to four HRAX-1048 Adder Annunciator Chassis to a maximum of 224 Circuit Display Points. -
Page 3: Wiring Instruction
WIRING INSTRUCTION The RS-485 Wiring to the RAM-1032 Module needs to be Twisted Shielded Pair as shown in the diagram. The wire gauge may be ... 22 AWG up to 2000 ft. 20 AWG up to 4000 ft. 18 AWG up to 8000 ft. - Page 4 DIP SWITCH SETTINGS & CABLING Each Annunciator As sem bly (M ain and Adder Ch assis’) ne eds to be assigned a unique, s equentia l “Address” via the Main Chass is DIP Switch SW 1. DIP Switch SW 2 is us ed to allow disabling of some Front Panel push buttons (when individual switches are “O N”...
-
Page 5: Specifications And Features
SPECIFICATIONS & FEATURES Enclosure Models: HBB-1001 Backbox for one Annunciator Chassis with keylock door. HBB-1002 Backbox for up to two Annunciator Chassis with keylock door. HBB-1003 Backbox for up to three Annunciator Chassis with keylock door. Notes: 1. Enclosure finish: Painted semi-gloss off white 2. -
Page 6: Warranty
WARRANTY Hochiki Am erica Corporation, m anufactured equipm ent is guarante ed to be free of d efects in m ate rial and wo rkm anship for a period of o ne (1 ) year fro m the date of origina l shipm ent. H OC HIK I will repair or replace, at its option, any equipment which it determines to contain defective material or workmanship.
