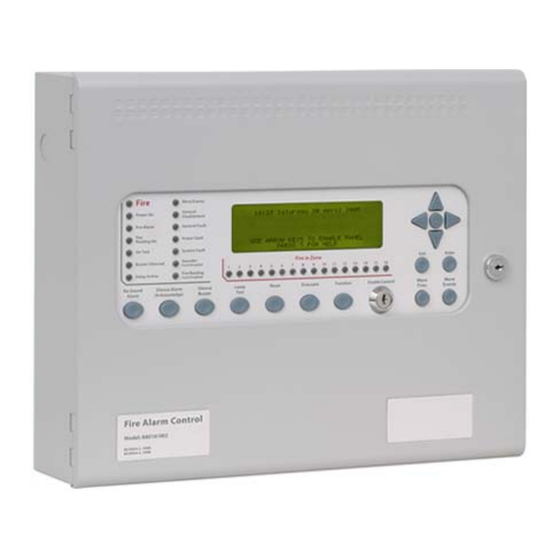

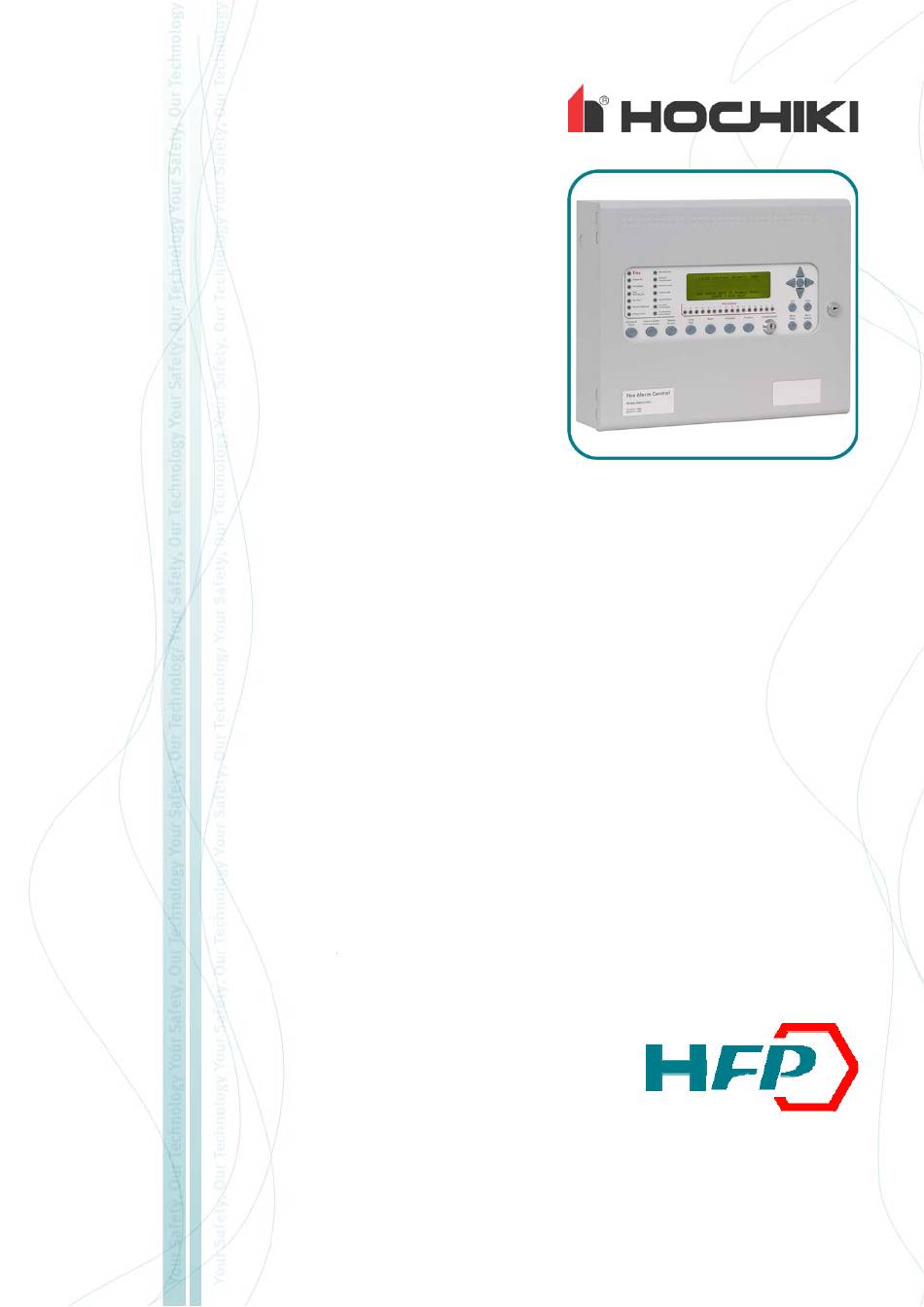

- Page 1 HFP AP SINGLE/TWO LOOP CONTROL PANEL RANGE USER MANUAL...
- Page 2 Hochiki Europe (UK) Limited reserves the right to alter the specifications of its products from time to time without notice. Although every effort has been made to ensure the accuracy of the information contained in this document it is not warranted or represented by Hochiki Europe (UK) Limited to be a complete and up-to-date description.
-
Page 3: Table Of Contents
Set System Time ......................... 11 Contamination Status ........................11 Access Level 3 ..........................11 Panel Printer – replacing printer paper .................... 12 Routine Maintenance ......................... 12 2013 Hochiki Europe (UK) Ltd 2-3-0-1651/ISS1/FEB13... -
Page 4: Introduction
Failure to ensure that all conductive accessible parts of this equipment are adequately bonded to the protective earth will render the equipment unsafe. 2013 Hochiki Europe (UK) Ltd 2-3-0-1651/ISS1/FEB13... -
Page 5: Panel Controls
This button is used to view suppressed fire events. In the case of multiple fire activations, or when fire activation information has been temporarily suppressed for menu navigation, the fire events can be quickly restored and viewed by pressing this button. 2013 Hochiki Europe (UK) Ltd 2-3-0-1651/ISS1/FEB13... -
Page 6: More Events
If there is a second fire activation during an Active Delay, then all delays are cancelled and outputs will operate in accordance with the building fire strategy. 2013 Hochiki Europe (UK) Ltd 2-3-0-1651/ISS1/FEB13... -
Page 7: Re-Sound Alarm
The system can be reset by pressing the Reset button. If there are more than two zones in fire on the system then these may be viewed in the text display by pressing the More Fires button. 2013 Hochiki Europe (UK) Ltd 2-3-0-1651/ISS1/FEB13... -
Page 8: Fault Event
An input on the system can be configured to create an Alert event. Operation of an Alert input will cause all sounder devices to be pulsed on a 1 second cycle. The panel buzzer will sound continuously and the source of the alert event will be shown in the LCD status display. 2013 Hochiki Europe (UK) Ltd 2-3-0-1651/ISS1/FEB13... -
Page 9: Access 2 Menu
Access Level 2. This menu option allows delays to outputs to be activated, by disabling the immediate response facility. 5.1.2 Disable Zones All detection devices, including manual call points, are disabled in the selected zone. 2013 Hochiki Europe (UK) Ltd 2-3-0-1651/ISS1/FEB13... -
Page 10: Disable Addresses
Normal or Activated. For output devices, the output state will be shown as either Normal, Intermittent of Continuous. This menu is used by experienced personnel to investigate the current status of the system and may help in fault finding techniques. 2013 Hochiki Europe (UK) Ltd 2-3-0-1651/ISS1/FEB13... -
Page 11: Test Zones
5.6 Access Level 3 This menu option is used to enter the access 3 password for the engineering function menu. Details of the options available at Access level 3 can be found in the Product Manual. 2013 Hochiki Europe (UK) Ltd 2-3-0-1651/ISS1/FEB13... -
Page 12: Panel Printer - Replacing Printer Paper
Detection devices are automatically calibrated on a daily basis and any devices that fail the detector manufacturer requirements will be notified as a maintenance fault. The contamination status menu is also useful in determining detection devices that are approaching their working range limits (see 5.5 above). 2013 Hochiki Europe (UK) Ltd 2-3-0-1651/ISS1/FEB13...
