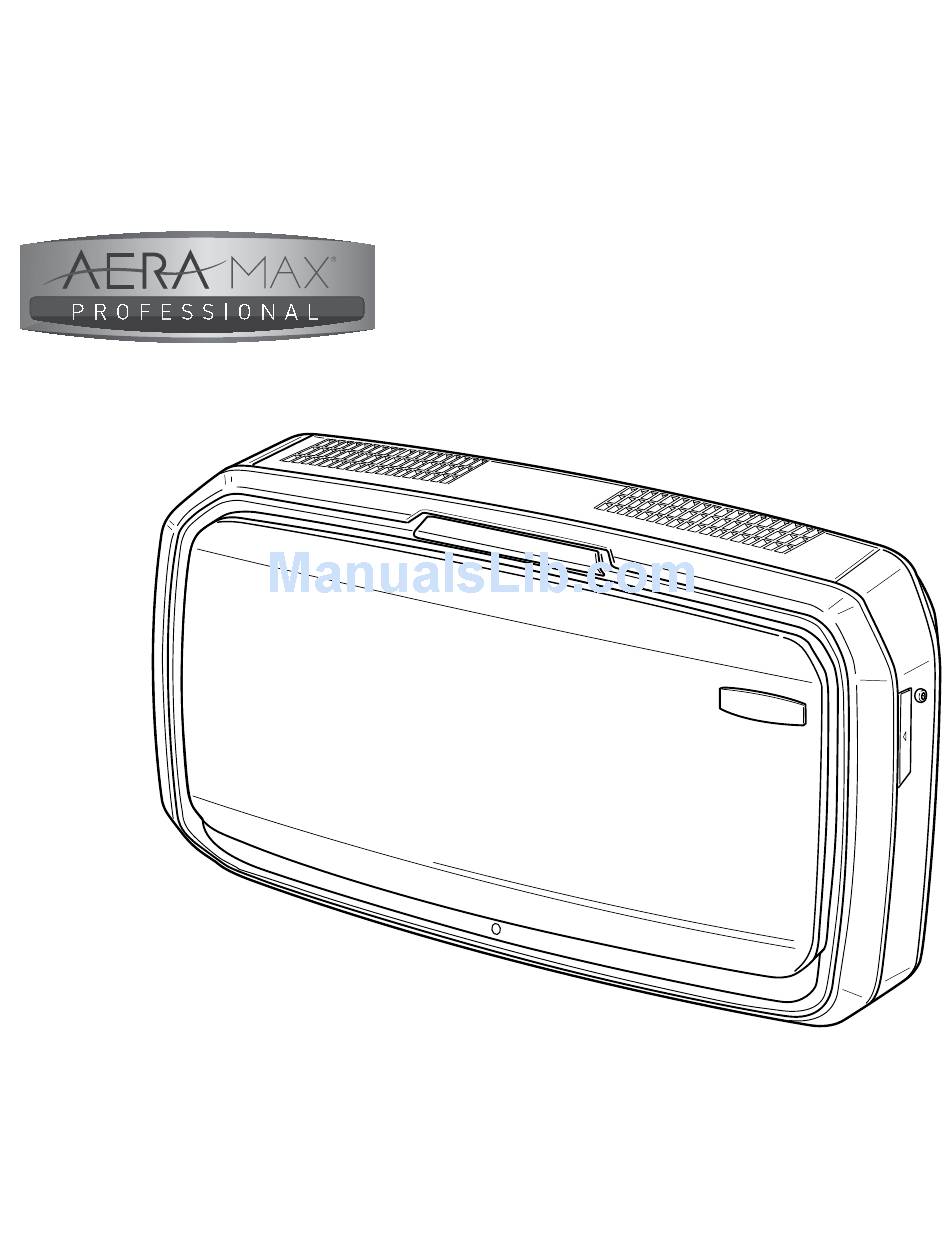

- Page 1 INSTALLATION GUIDE Air Quality Control System: AM IV AeraMax ® Please read instructions carefully before installing unit...
- Page 2 ENGLISH AeraMax ® PRO Air Quality Control System: AM IV 1. Access panel 2. Filters 3. Filter frame 4. Main Assembly 5. Power Switch 6. Access panel latch 7. Access panel lock 8. Rear housing assembly 9. Control panel Fig 1...
- Page 3 SAFETY WARNING: To avoid the risk of electrocution confirm the electrical supply has been disconnected or switched off before beginning any installation work. Confirm no electrical wiring, utility pipes, or duct work is located directly behind the installation / drilling area. On a stud wall, it is strongly recommended at least 2 mounting anchors for the air purifier be mounted to an existing stud.
- Page 4 MOUNTING REAR HOUSING AND MAIN ASSEMBLY Test the electrical outlet box first to ensure rated power requirements are met before beginning installation. Remove air purifier from its shipping carton and remove all packing material. Fig 3 Fig 4 Fig 5 Fig 6 Place the air purifier face up on a Open access panel and remove...
- Page 5 MAIN ASSEMBLY INSTALLATION WARNING: To avoid the risk of electrocution confirm the electrical supply has been disconnected or switched off before continuing any installation work. Fig 12 Fig 13 Fig 14 Fig 15 The power connector (B, in Fig Carefully align the main assembly with the rear housing assembly.
- Page 6 Fellowes, Inc. 1789 Norwood Ave Itasca, Illinois 60143-1095 USA 630-893-1600 1-800-477-7940 Product Support: 1-800-945-4545 www.aeramaxpro.com ©2014 Fellowes, Inc. Part No. 408531 Rev B...
