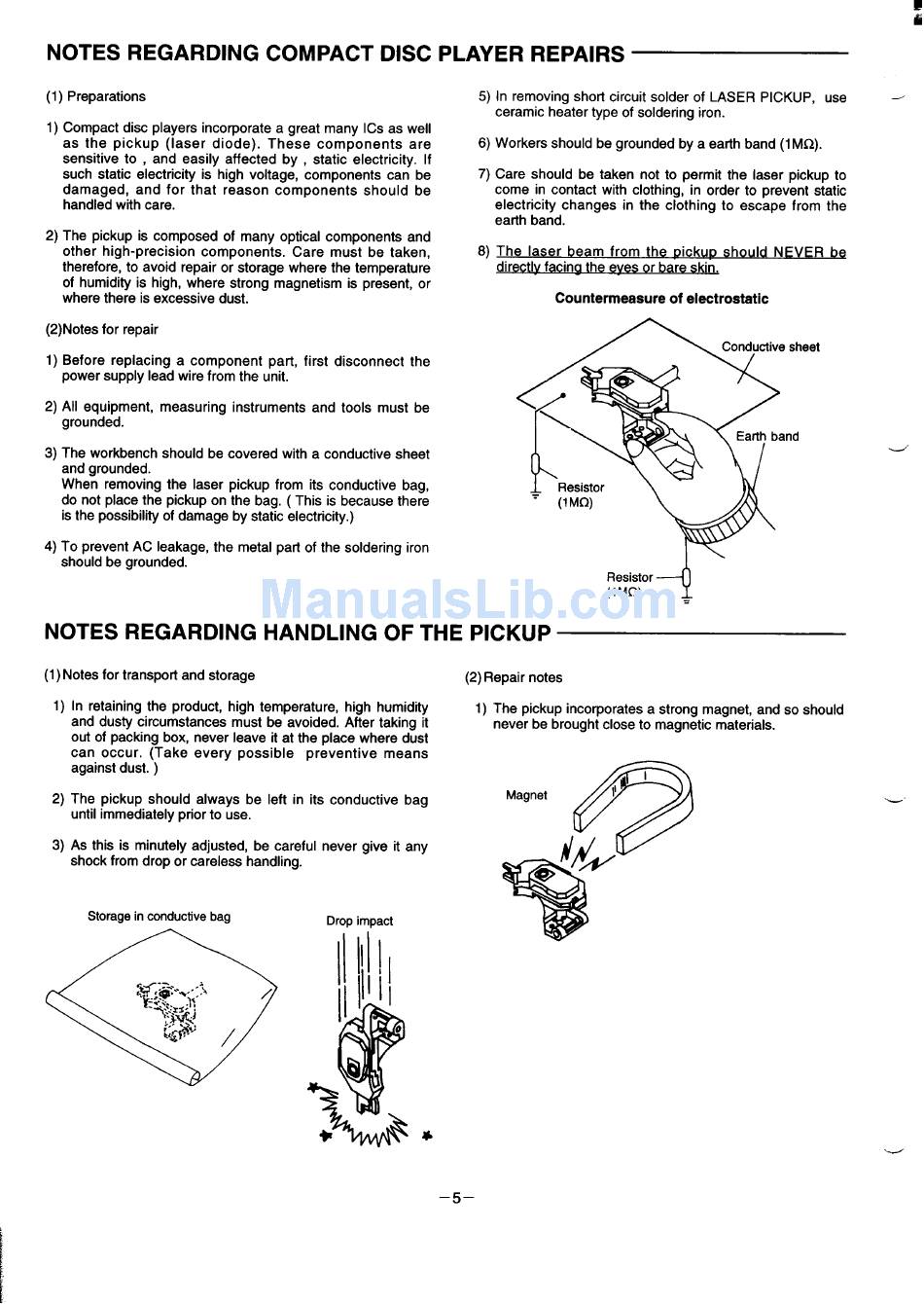

NOTES REGARDING COMPACT DISC PLAYER REPAIRS
(1) Preparations
1) Compact disc players incorporate
a great many ICS as well
as the pickup
(laser
diode).
These
components
are
sensitive
to , and easily affected
by , static electricity.
If
such static electricity
is high voltage, components
can be
damaged,
and for that reason
components
should
be
handled with care.
2) The pickup is composed
of many optical components
and
other high-precision
components.
Care must be taken,
therefore, to avoid repair or storage where the temperature
of humidity is high, where strong magnetism
is present, or
where there is excessive dust.
(2) Notes for repair
1) Before replacing
a component
part, first disconnect
the
power supply lead wire from the unit.
2) AH equipment,
measuring
instruments
and tools must be
grounded.
3) The workbench should be covered with a conductive sheet
and grounded.
When removing the laser pickup from its conductive
bag,
do not place the pickup on the bag. ( This is because there
is the possibility of damage by static electricity.)
4) To prevent AC leakage, the metal part of the soldering iron
should be grounded.
5) In removing short circuit solder of LASER PICKUP,
use
ceramic heater type of soldering iron.
6) Workers should be grounded by a earth band (1 MQ).
7) Care should be taken not to permit the laser pickup to
come in contact with clothing,
in order to prevent static
electricity
changes
in the clothing
to escape from the
earth band.
8) The laser bea m frOm the Dicku~ should
NEVER
be
directly facing the eves o r bares kin.
Countermeasure of electrostatic
Resistor A
(lMCr)
~
NOTES REGARDING HANDLING OF THE PICKUP
(1) Notes for transport and storage
1)
2)
3)
In retaining the product, high temperature,
high humidity
and dusty circumstances
must be avoided. After taking it
out of packing box, never leave it at the place where dust
can occur.
(Take
every
possible
preventive
means
against dust. )
The pickup should always be left in its conductive
bag
until immediately
prior to use.
As this is minutely adjusted,
be careful never give it any
shock from drop or careless handling.
Storage in conductive bag
Drop impact
(2) Repair notes
1) The pickup incorporates
a strong magnet, and so should
never be brought close to magnetic materials.
