ADJ VBar Pak User Instructions page 8

VBar Pak
create their own programs tailored to their own individual needs.
Follow the directions below to set your DMX Mode and address.
1. Before connecting to an DMX controller, your fixture has different
DMX channel modes, please select your desired mode by press-
ing the DMX Mode button, then using the "+" or "-" buttons to
scroll through the DMX Channel Modes. See DMX Mode on page
13.
2. After you have selected your mode, set the DMX address for the
fixture by pressing the "Set Address" button. When the "Set Add-
ress" button is pressed the LED's will flash 2-3 times and all the
red LED's will light. Use the number buttons to press in your de-
sired address. See "SET ADDRESS" on page 13 above for exam-
ples.
Note: When setting the DMX address, each time a number is pressed
a LED color will glow, when you have set the DMX address correctly
all LED's will flash 2-3 times.
3. Now you may connect the fixture via the XLR connections to any
standard DMX controller. Please see pages 15-20 to for a detailed
descriptions of the DMX modes, values, and traits.
VBar Pak
ADJ Products, LLC - www.adj.com - VBar Pak User Manual Page 14
ADJ LED RC2

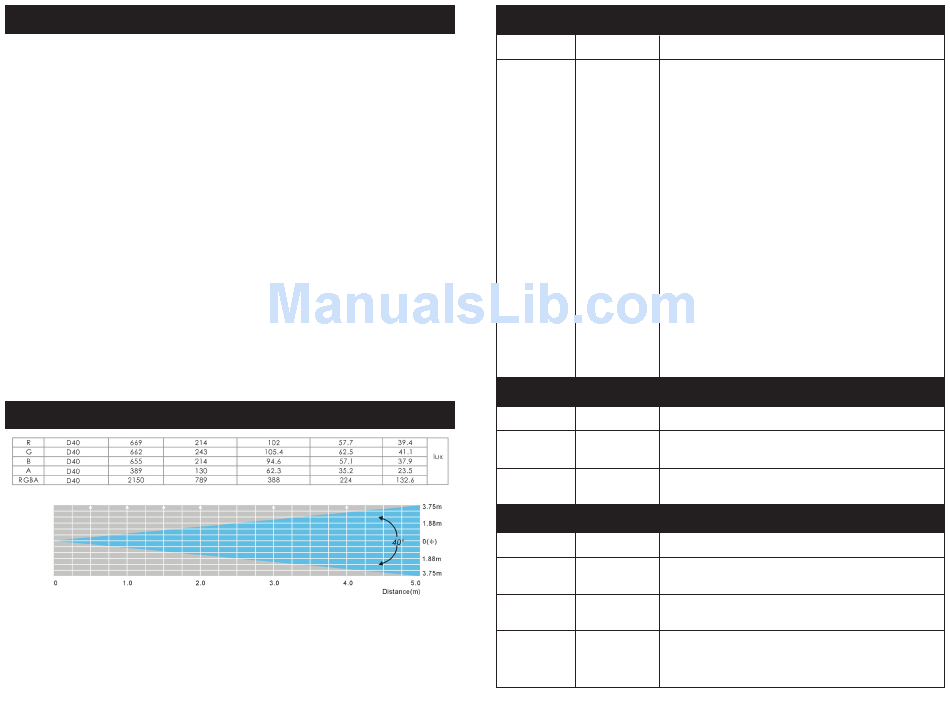

Photometric Chart
VBar Pak
Channel Value
1
0 - 15
16 - 31
32 - 47
48 - 63
64 - 79
80 - 95
96 - 111
112 - 127
128 - 143
144 - 159
160 - 175
176 - 191
192 - 207
208 - 223
224 - 239
240 - 255 RED & GREEN & BLUE & AMBER
VBar Pak
Channel Value
1
0 - 255 PLEASE SEE 1 CHANNEL MODE
2
0 - 255
VBar Pak
Channel Value
1
0 - 255 PLEASE SEE 1 CHANNEL MODE
2
0 - 255
3
0 - 15
16 - 255
ADJ Products, LLC - www.adj.com - VBar Pak User Manual Page 15
1 Channel Mode
Function
COLOR MACROS
OFF
RED
GREEN
BLUE
AMBER
RED & GREEN
RED & BLUE
RED & AMBER
GREEN & BLUE
GREEN & AMBER
BLUE & AMBER
RED & GREEN & BLUE
RED & GREEN & AMBER
RED & BLUE & AMBER
GREEN & BLUE & AMBER
2 Channel Mode
Function
COLOR MACROS
MASTER DIMMER
0% - 100%
3 Channel Mode
Function
COLOR MACROS
MASTER DIMMER
0% - 100%
STROBING
OFF
SLOW - FAST
